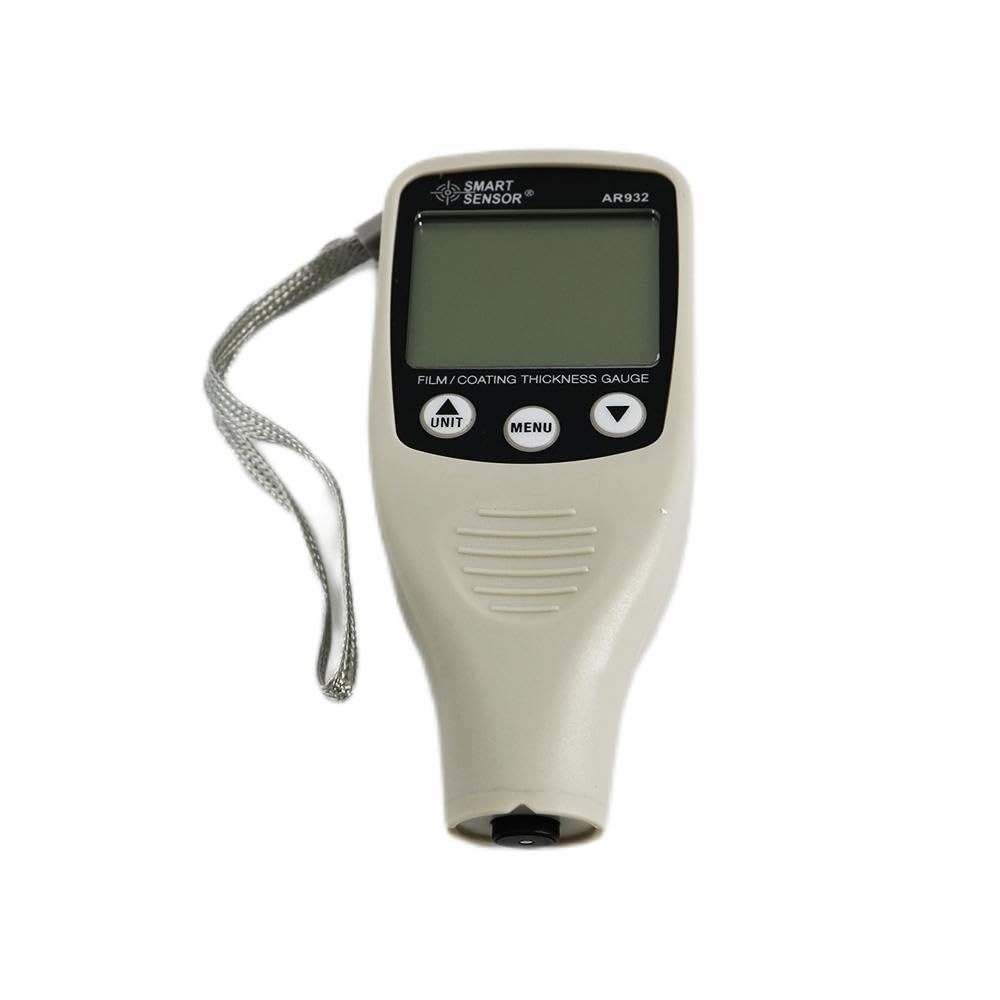

AR932 is a stable, safe and reliable coating thickness gauge for fast,accurate and nondestructive measurement of the thickness of non-magnetic coatings(such as paint, electroplated coating and film)on magnetic metal substrates.
Automatically identify sustrate material and display on the LCD.
Metric and imperial units of measurement optional ,auto power off,LCD backlight.
Single measurement,continuous measurement and with zero point calibration and multi-point calibration.
More advantage:max,min,ave value measuring, 20 groups data storage,180 degree flip for easy read,data hold,low power indication.
model number: AR932
Part Number: AR932
Details: Specification:
Brand:Smart Sensor
Model: AR932
Color: White
Measurement Range:0~1500um
Principle of Measurement:Film
Accuracy:
±(1.8%um±2um)(0-499um)
±(2.2%um±2um)(499-1700um)
Minimum measurement area:25 x 25mm
Minimum Curvature: Convex,5mm; Concave,30mm
Minimum substrate thickness: magnetic 0.2mm;non-magnetic,0.05mm
LCD Backlight Display:yes
Low Battery Indicator:yes
Zero Calibration:yes
Basic Calibration:yes
Single/Continuous Measurement:yes
Data Store:20 groups
Auto Power Off:yes
Max/min Function:yes
Data Hold:yes
Unit Selection:yes
Auto Calibration: according to five different calibration plates of 0, 50, 100, 250, 500
Operating Condition:0℃~40℃

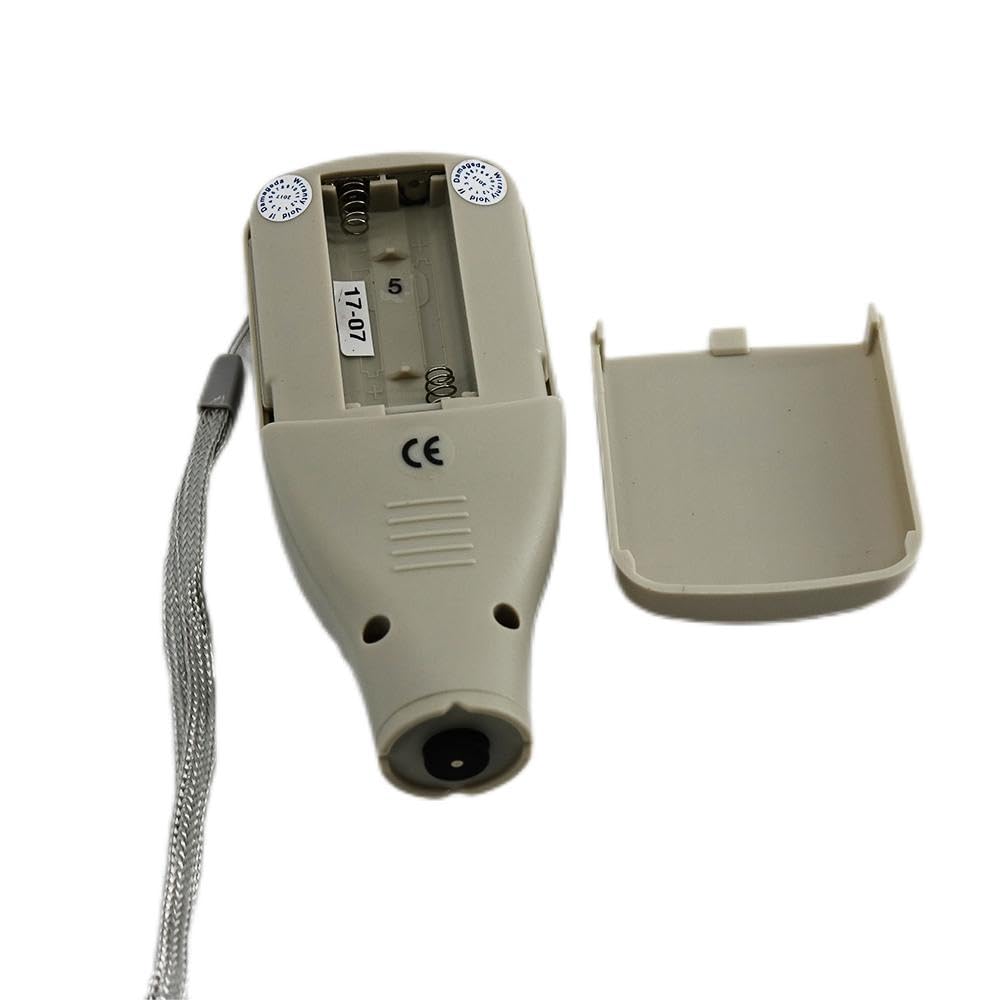

Battery:2 x 1.5V AAA battery
Item Weight:75g
Item Size:120 x 52 x 25mm
Package Information:
Package Size: 225 x 185 x 47mm/8.86 x 7.28 x 1.85in
Package Weight:432g/15.25oz
General Box Package

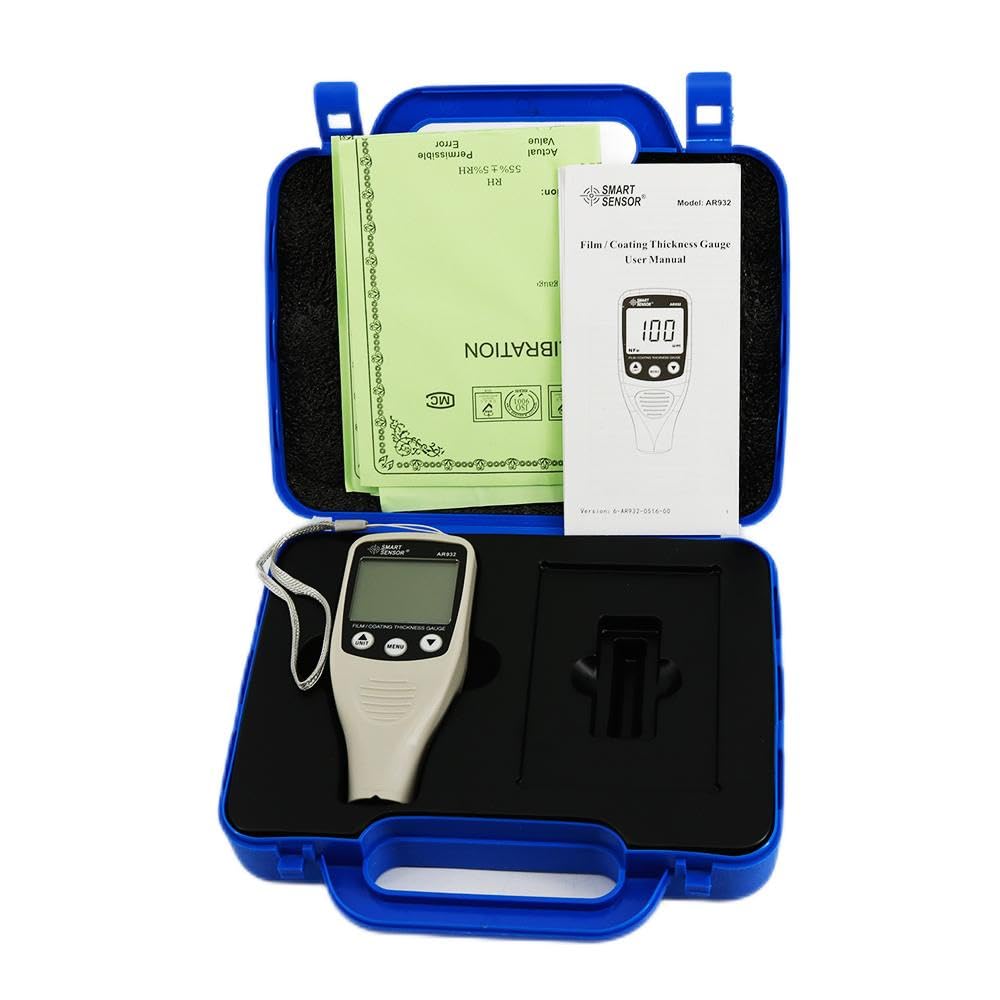

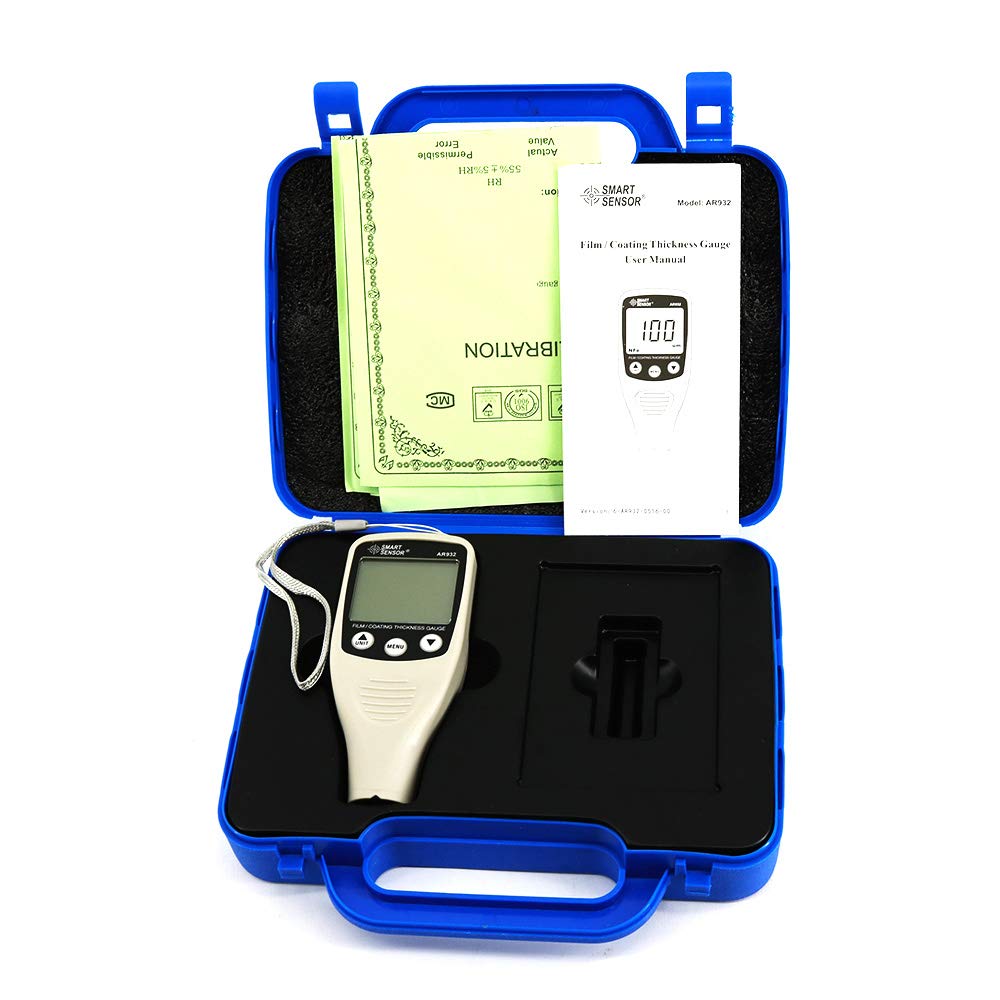

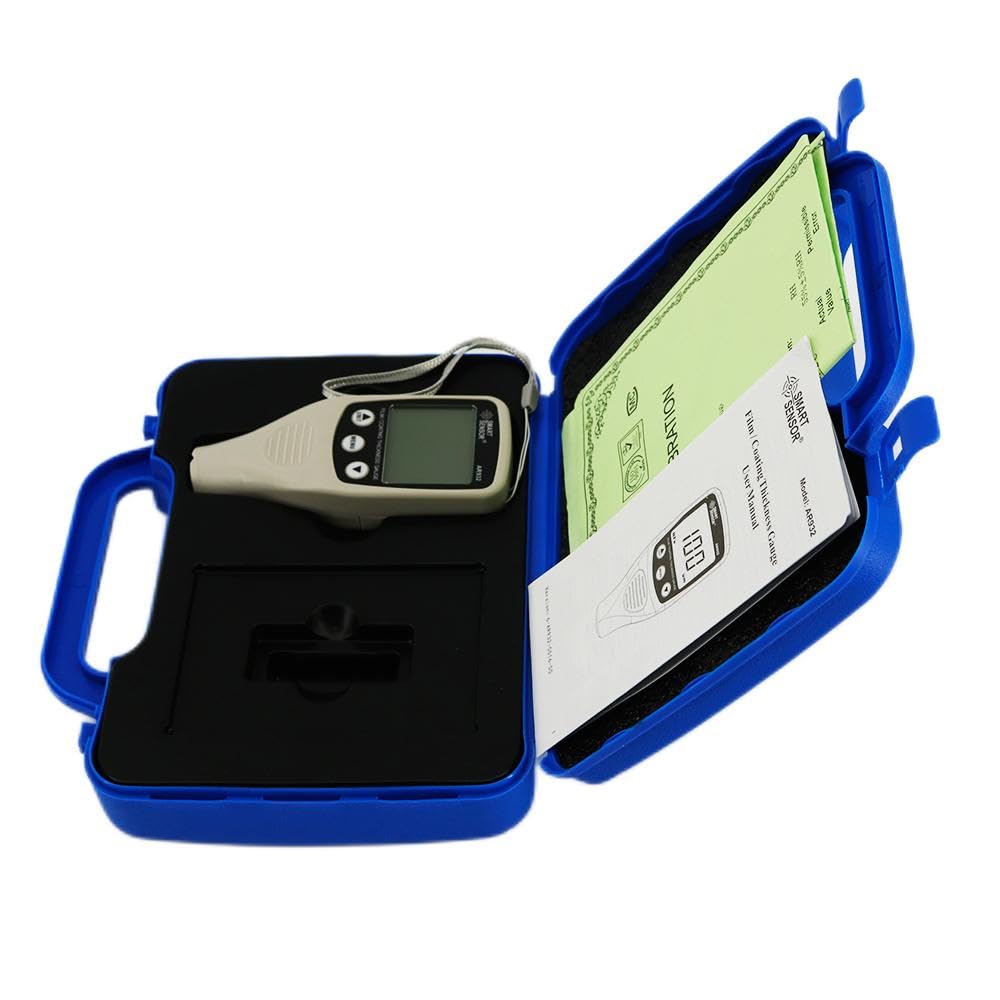

Package Included:
1 x Thickness meter
2 x Iron Base
4 x Plastic Shims

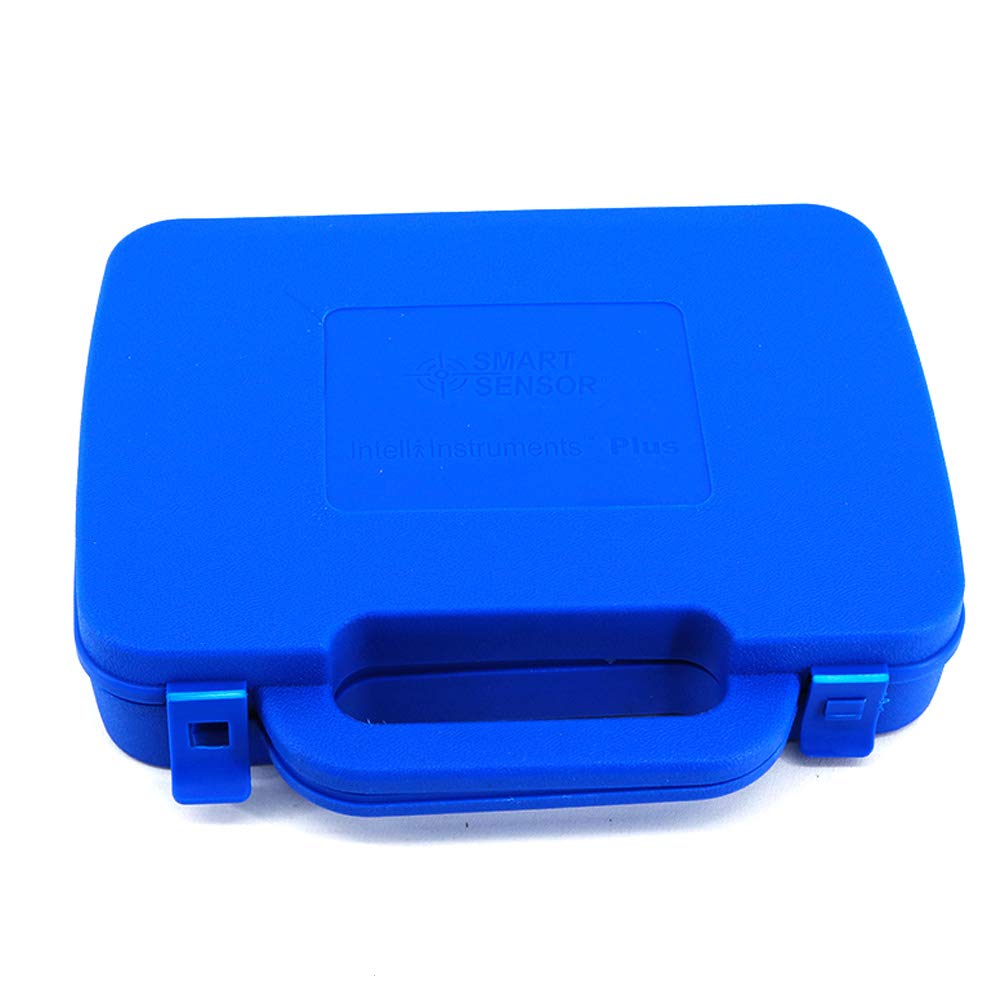

1 x Carry Box
1 x User manual
