Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
Suitable for 12V storage battery and the rated current is 3A;
LED display: Power indication (Green light) and charging indication (Red light);
Max. Input Voltage Range:(90~280)V

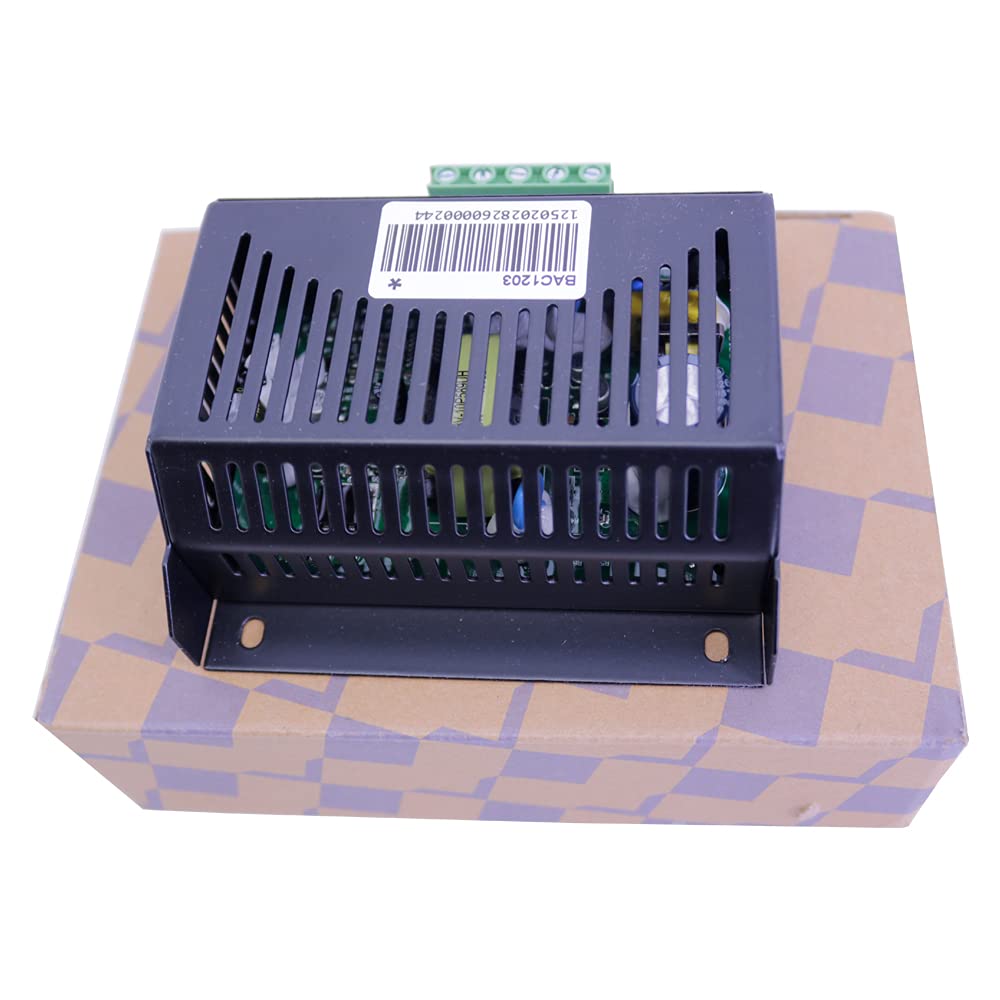

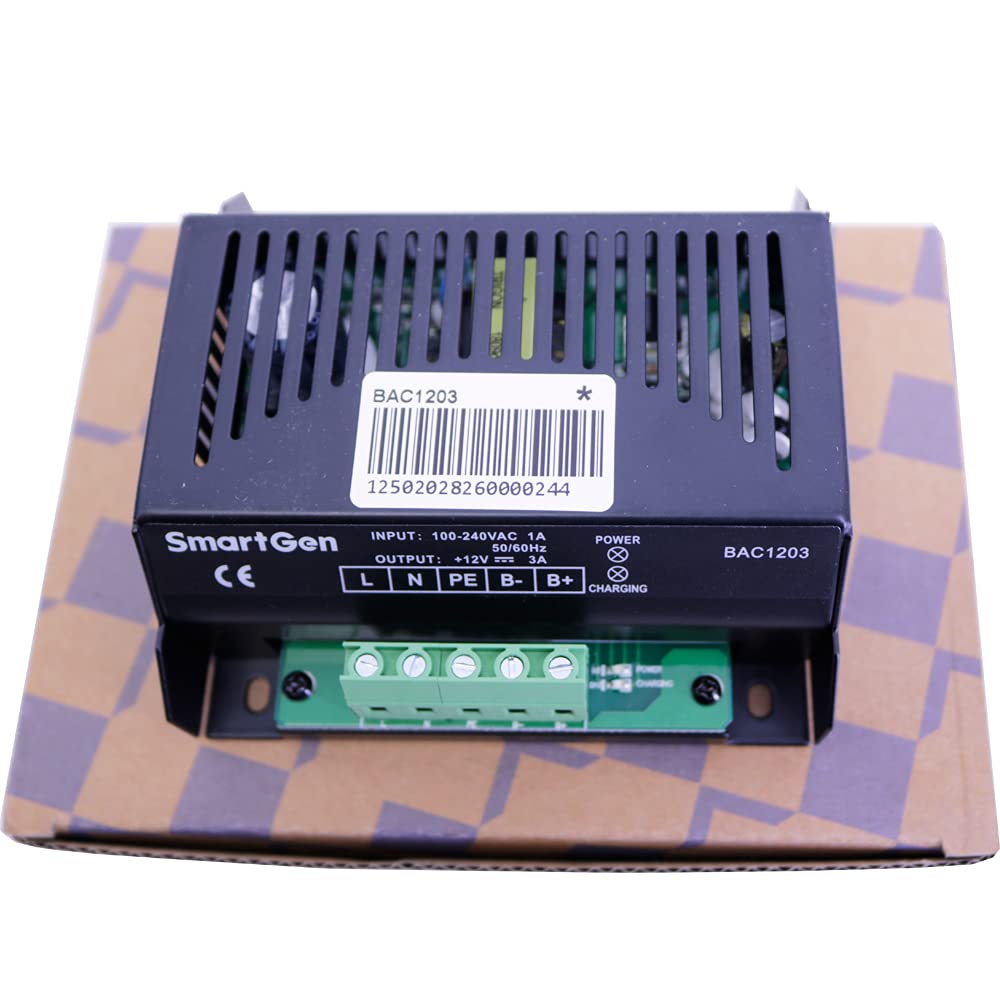

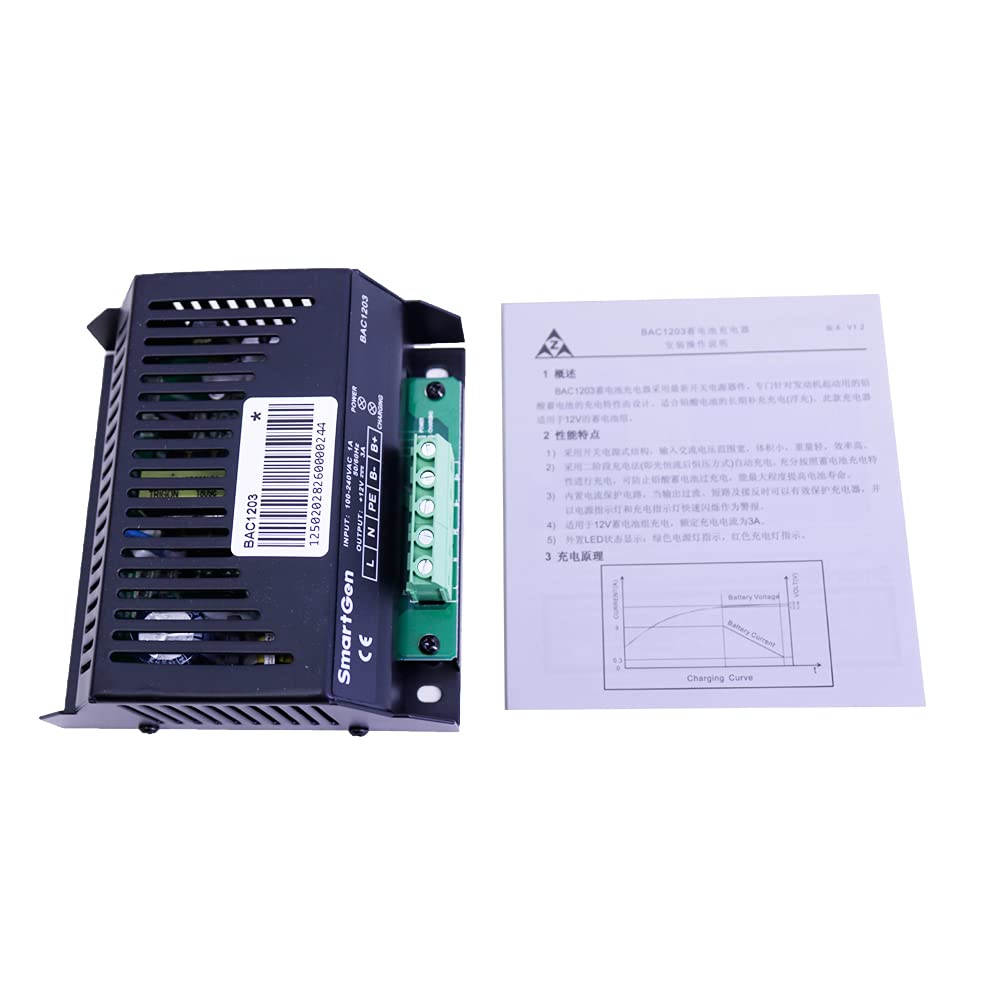

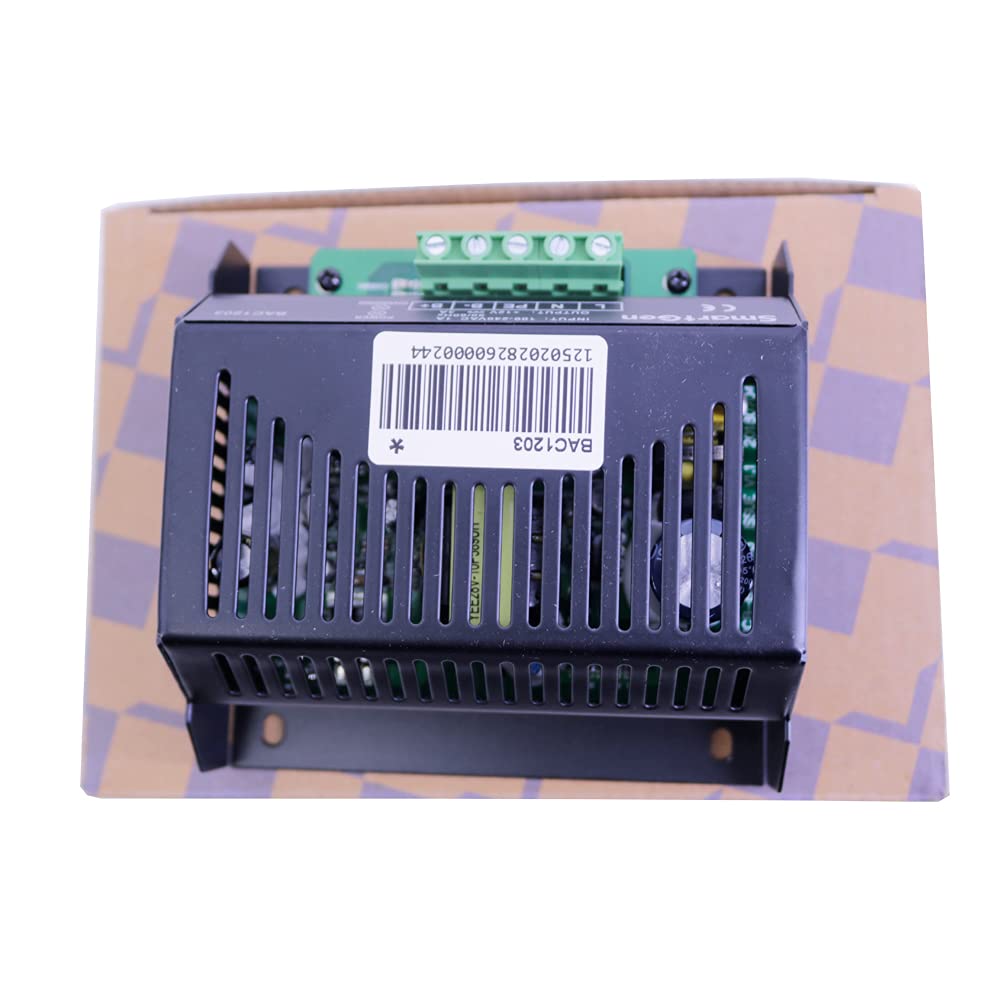

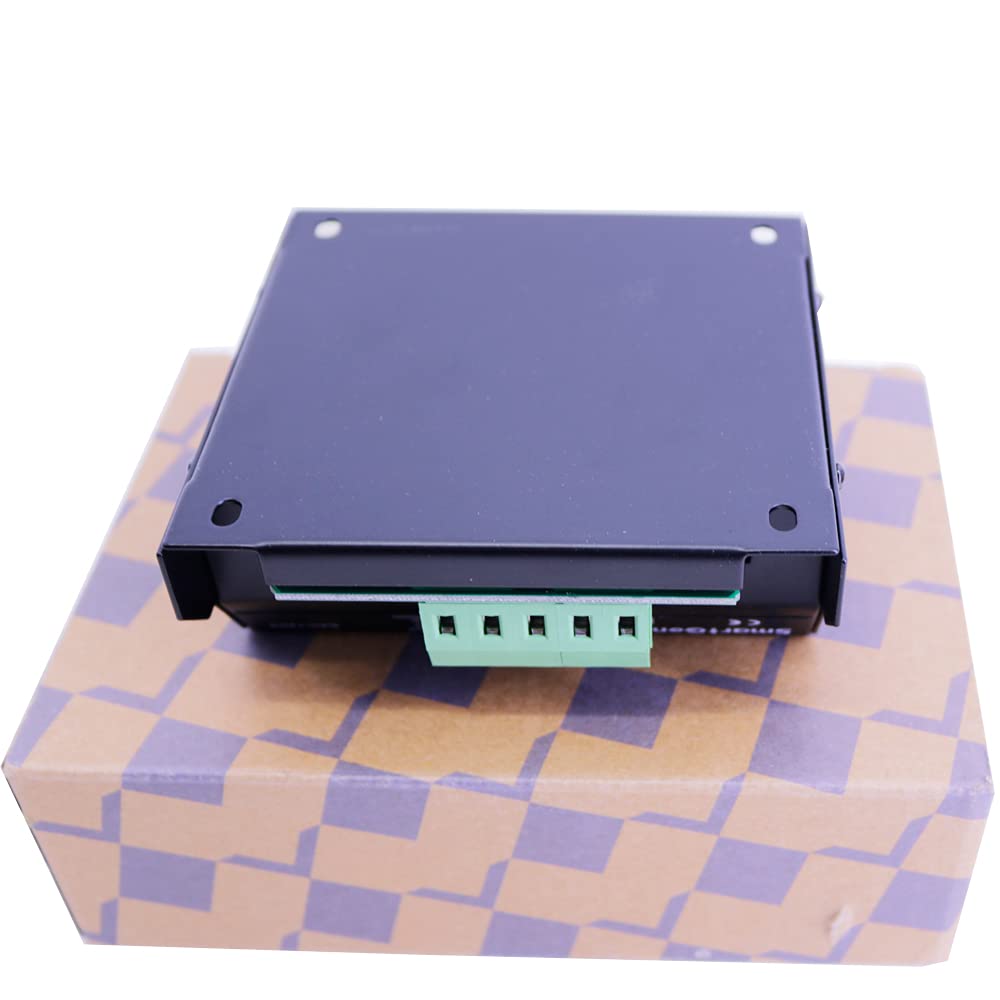

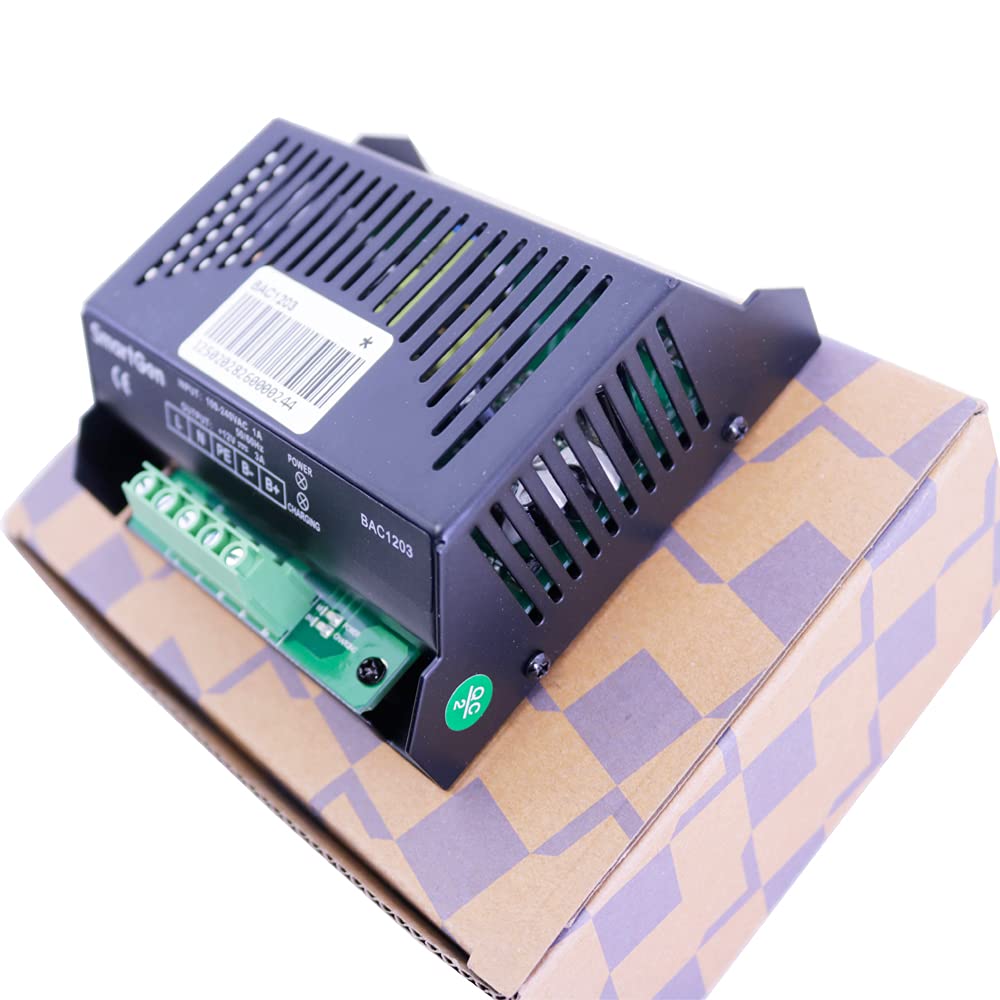

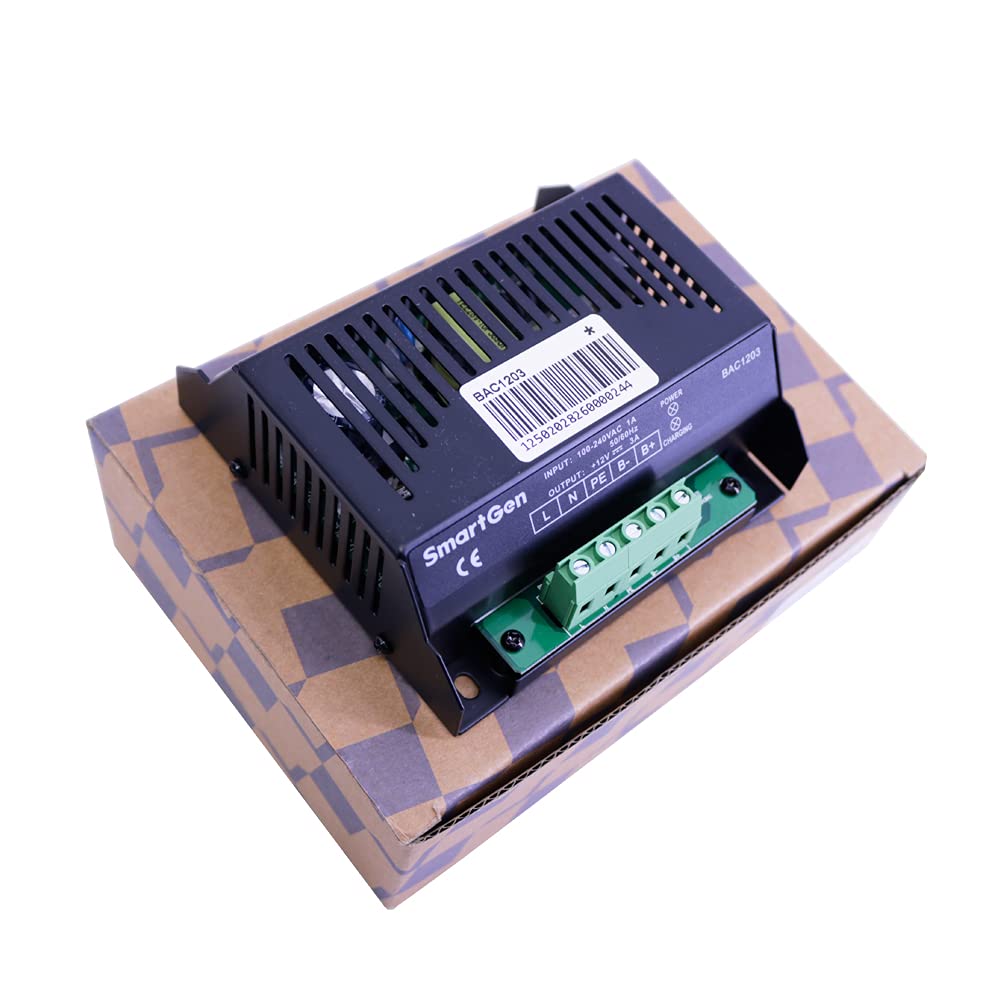

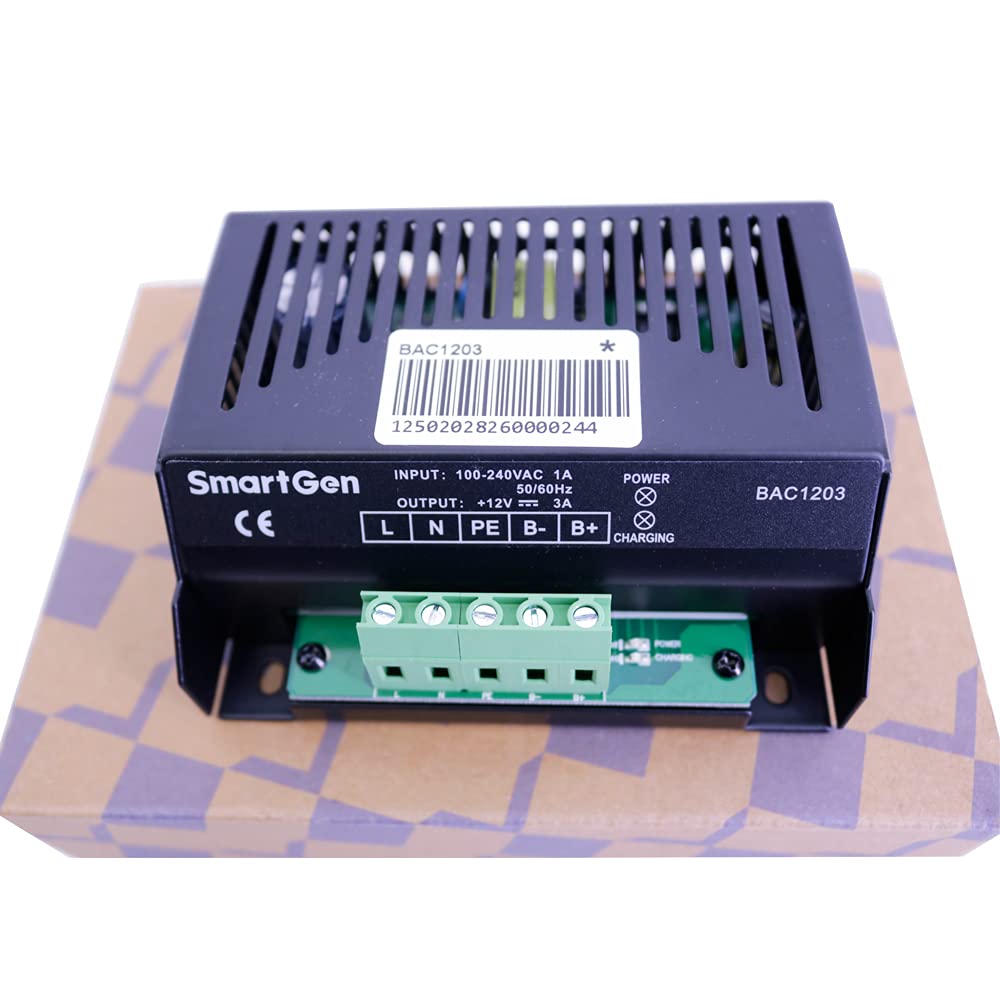

BAC1203 Auto Battery Charger
model number: BAC1203
Part Number: BAC1203
Details: Fit with up-to-date power supply device, float charger BAC1203 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.
PERFORMANCE AND CHARACTERISTICS
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in current protective circuit for short-circuit protection and reverse connection protection. If failure occurs, power indicator and charging indicator will flash rapidly.
Function Item
Battery Voltage:12V
Max. Charging Current:3A
Rated Input Voltage:(100~240)V
Max. Input Voltage Range:(90~280)V
AC Input Frequency:(50/60)Hz
Max. Input Current:1A
No-Load Power Consumption:<3W
Operating Mode:Two segments
Maximum Efficiency:83%
Net Weight(kg):0.38
Case Dimensions(mm):110*106*45
