Switch power supply structure, wide input AC voltage range, small size, light weight, high efficiency rate;
Users can select automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging process are carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in PFC circuit can calibrate the power factor above 0.99;
Built-in current protective circuit for over current protection, short-circuit protection and reverse connection protection. The output will be recovery automatically after the failure is removed.
BACM2406 charger is suitable for 24V battery; rated current; 6A; BACM1206 charger is suitable for 12V battery; rated current; 6A.

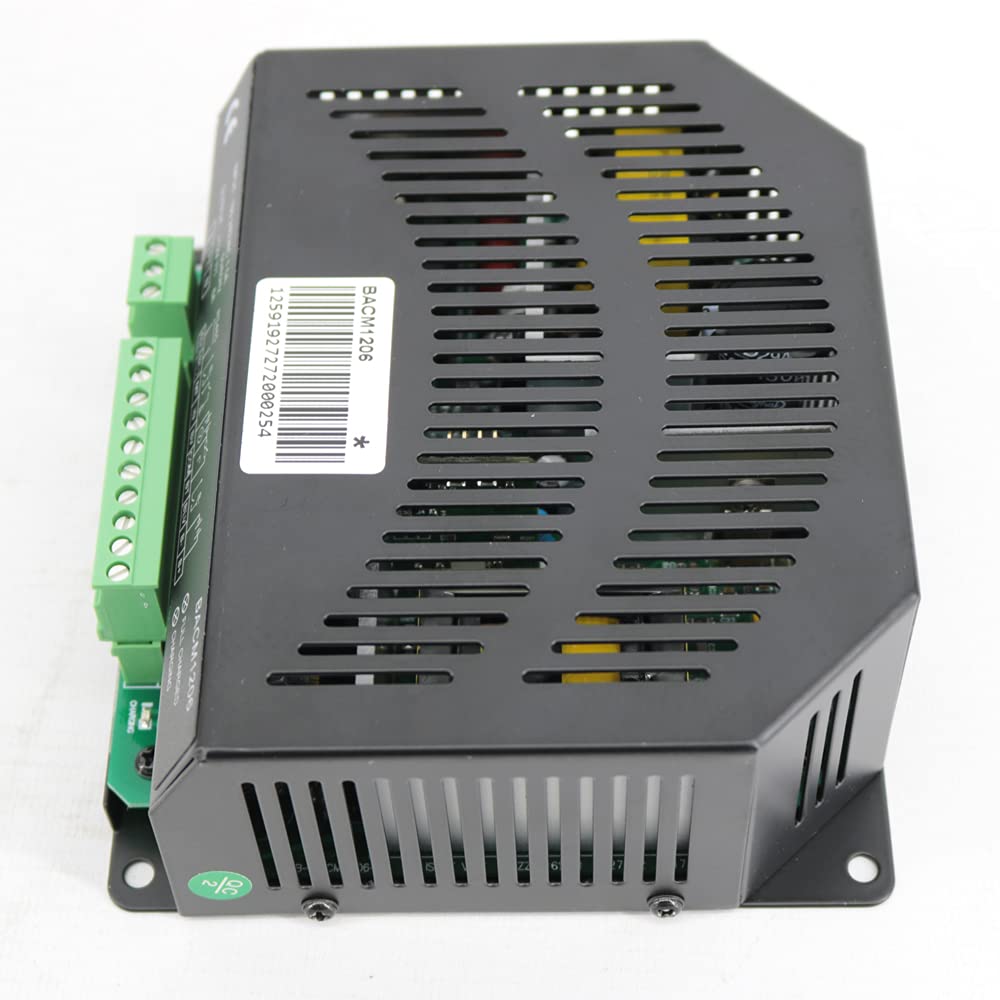

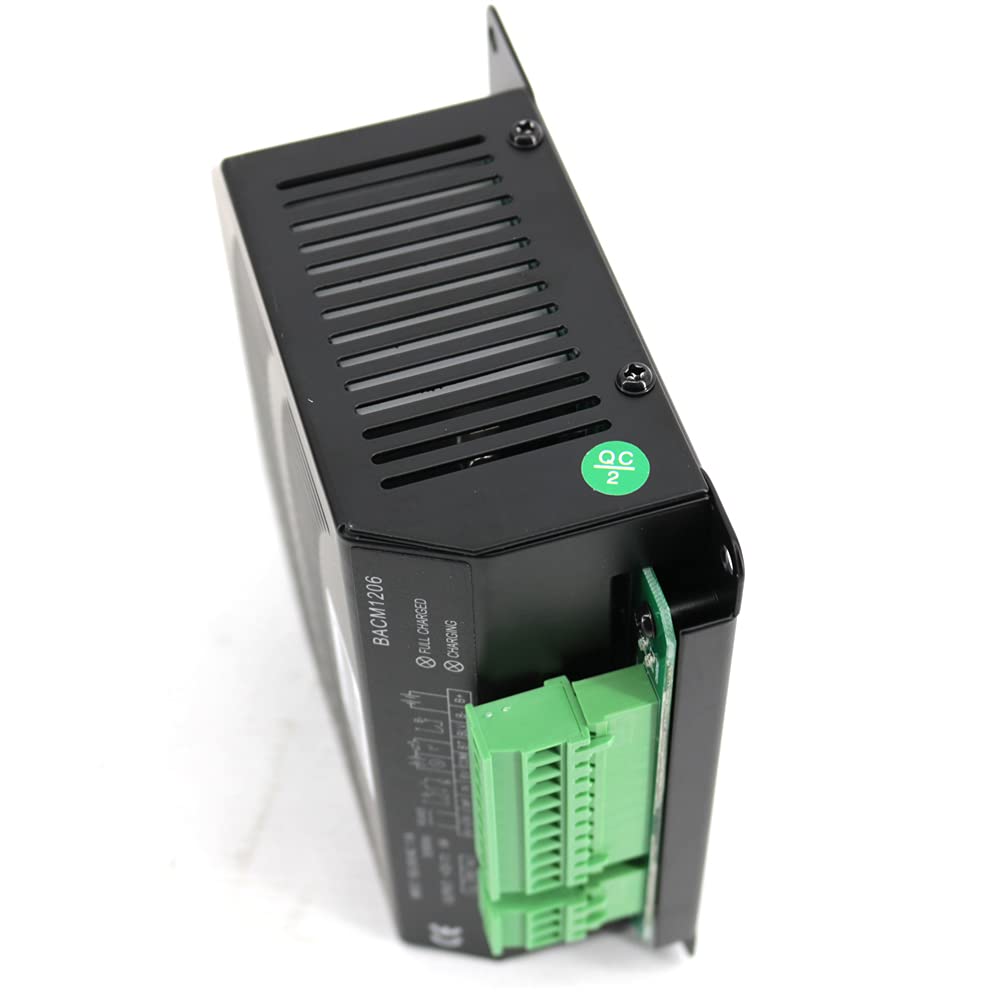

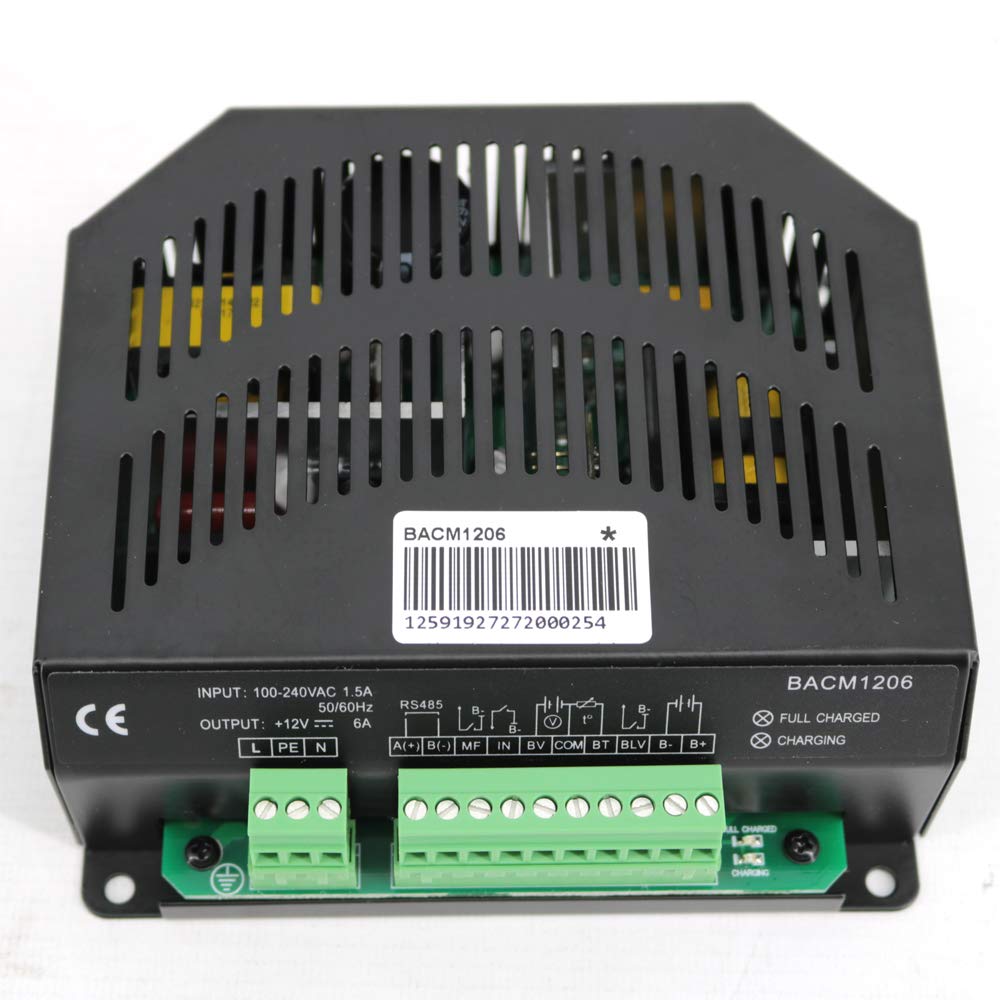

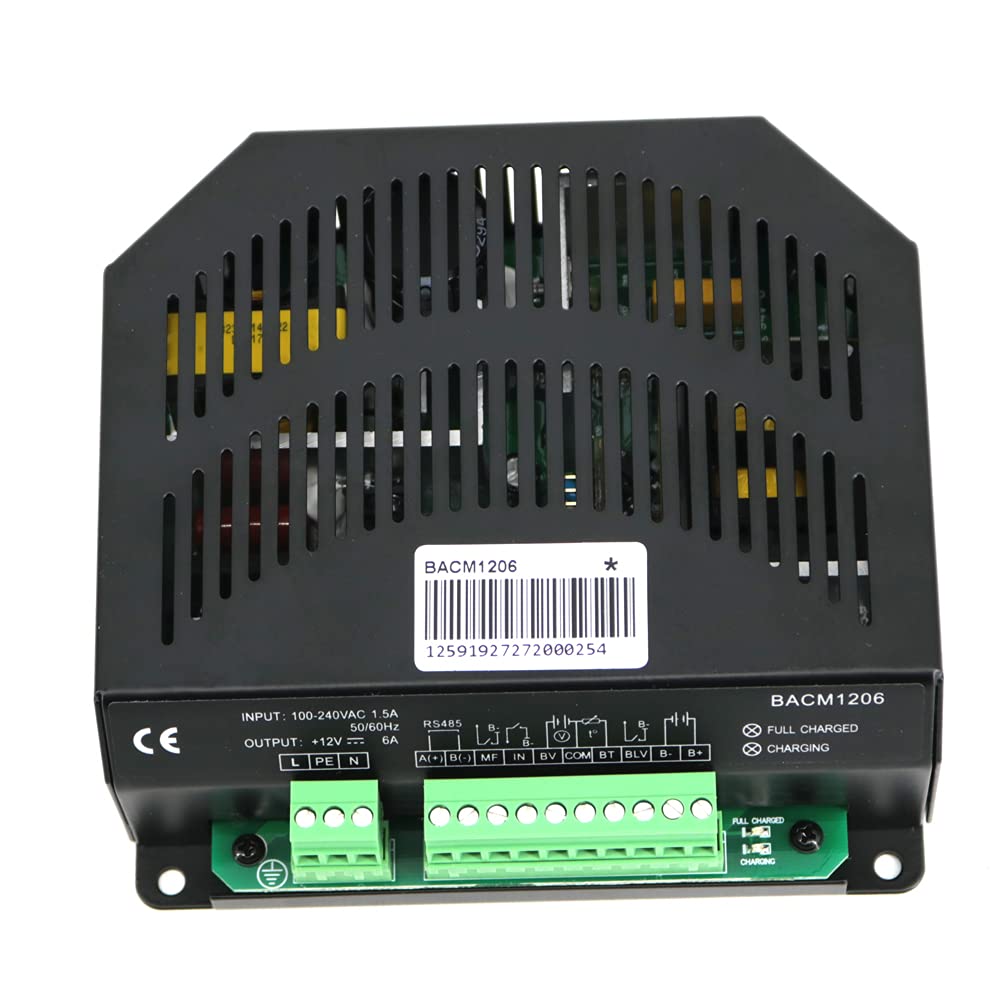

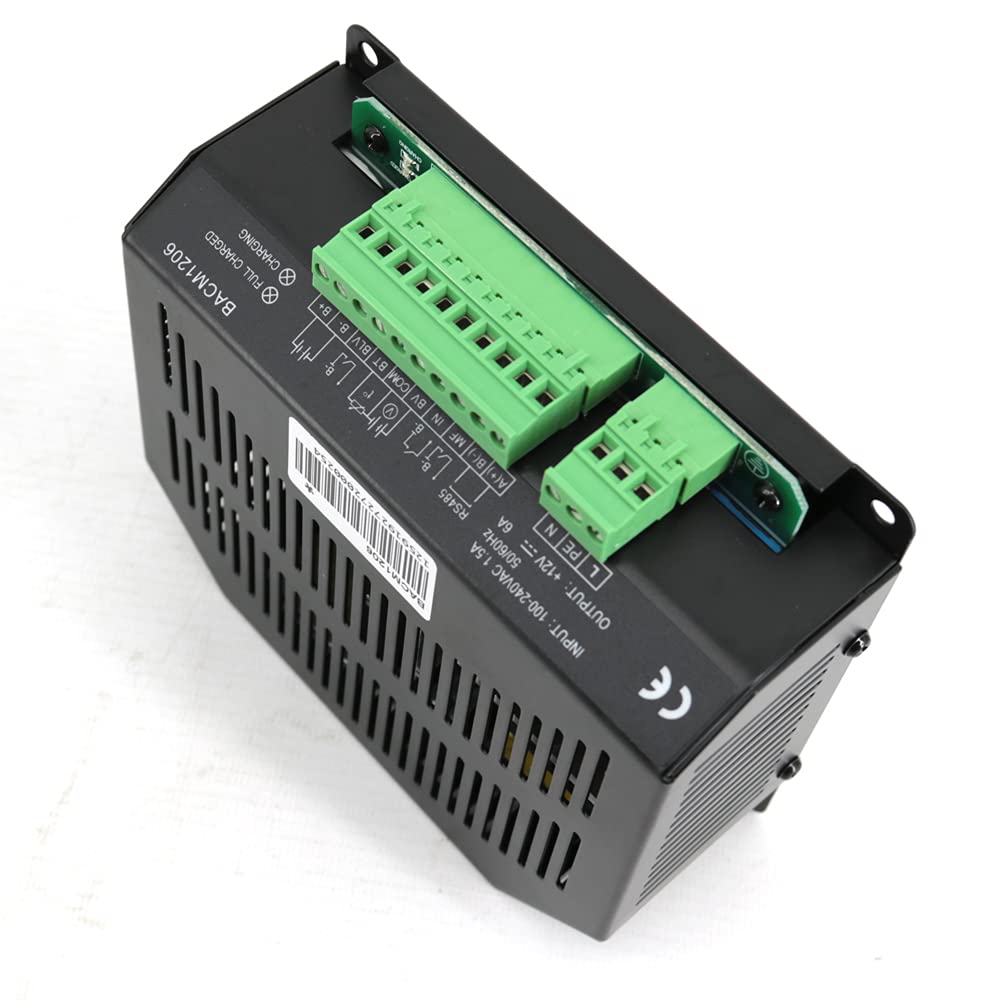

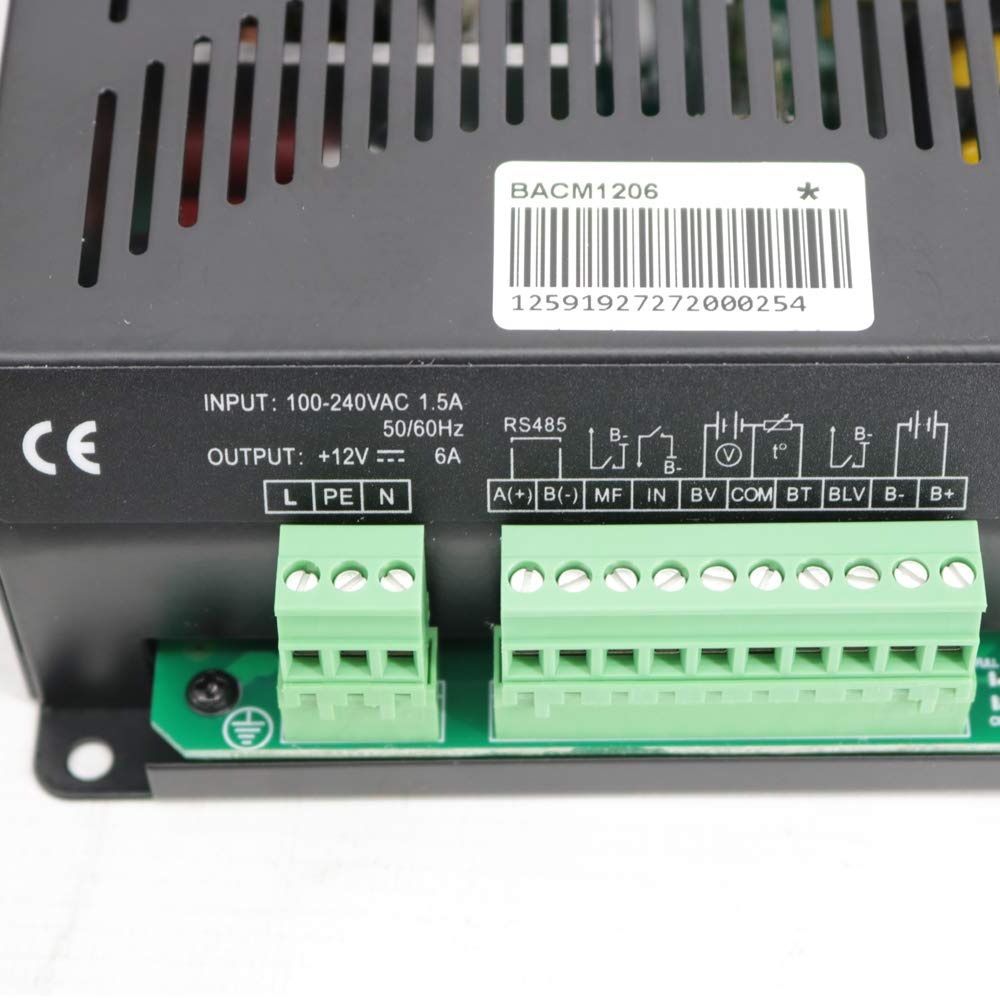

model number: BACM1206
Part Number: BACM1206
Details: BACMXX06 battery charger is intelligent and multi-function which is specially designed for meet the charging characteristics of the lead-acid engine starter batteries. BACMXX06 battery chargers are divided into 2 types according to the battery voltage: BACM2406 (suitable for 24V) and BACM1206 (suitable for 12V). Both their maximum charge current are 6A.
Function Item Parameter
Battery Voltage:12V
Max. Charging Current:6A
Rated Input Voltage:(100~240)V
Max. Input Voltage Range:(90~280)V
AC Input Frequency:(50/60)Hz
Max. Input Current:1.5A
No-Load Power Consumption:<3W
Power Factor Compensation:．
Operating Mode:Two&Three segments
Temp. Compensation:．
Communication:RS485
Auxiliary Input:．
Maximum Efficiency:87%
Operating Temp:.(-30~+55)℃
Storage Temp:.(-40~+85)℃
Net Weight(kg):0.9

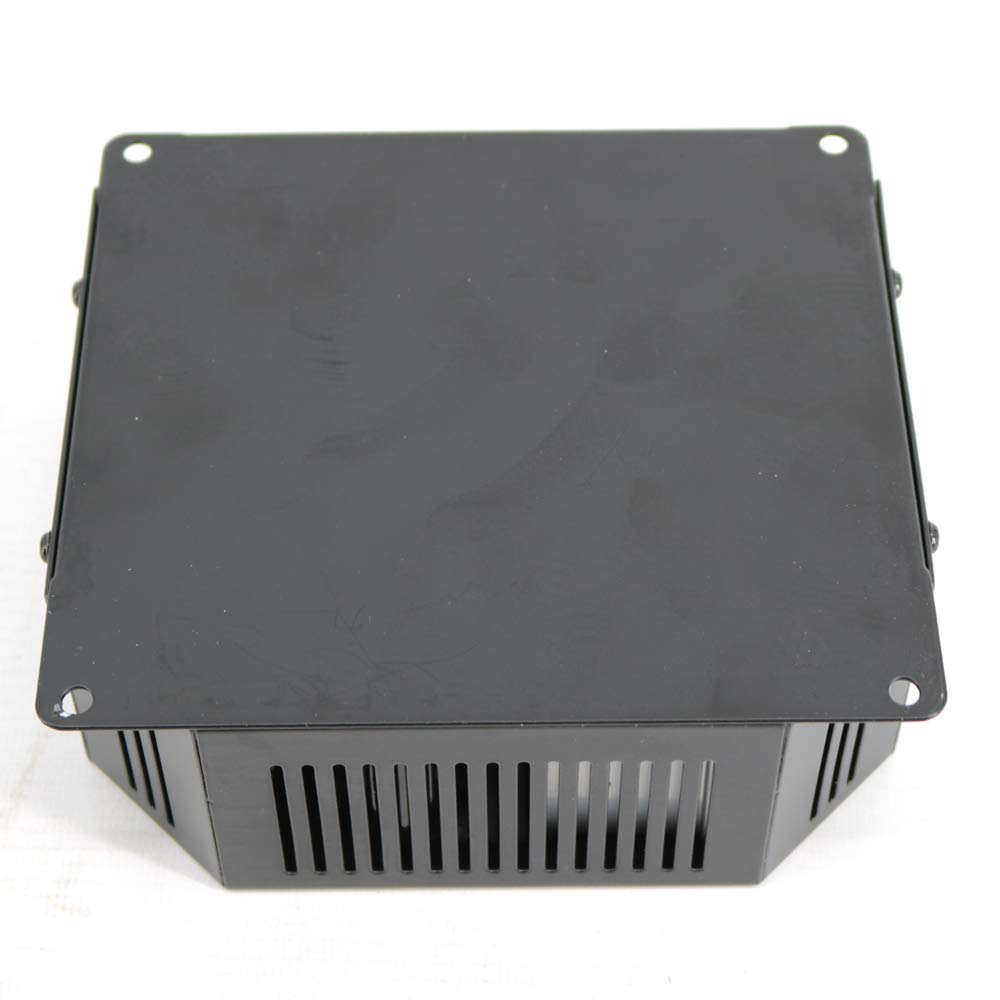

Case Dimensions(mm):145.5*131*55
