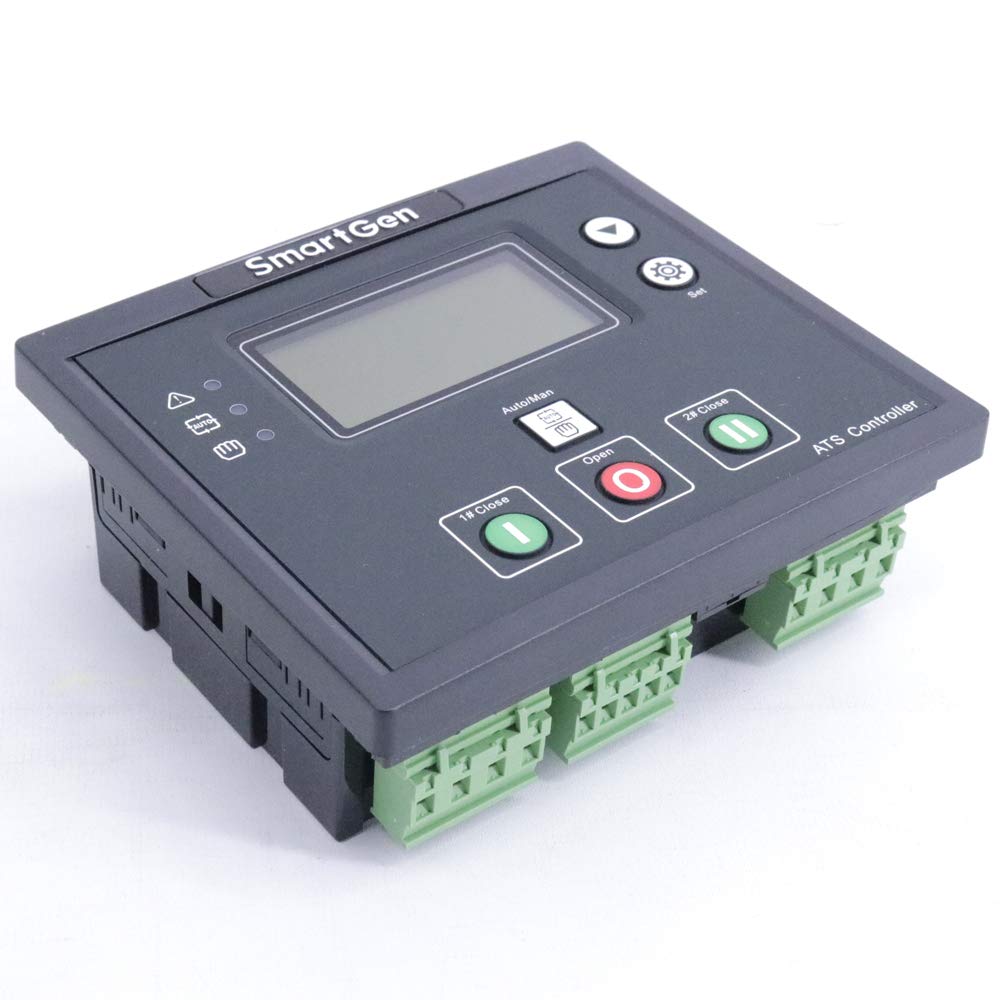

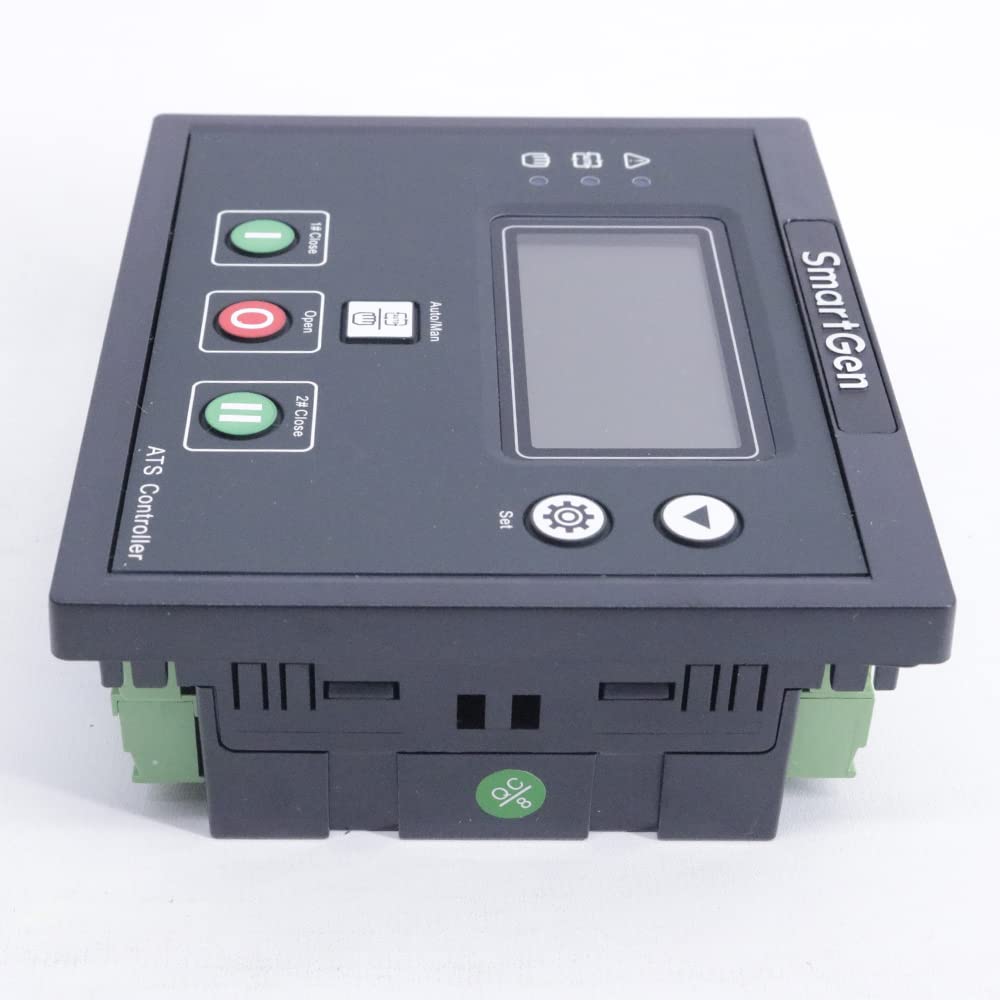

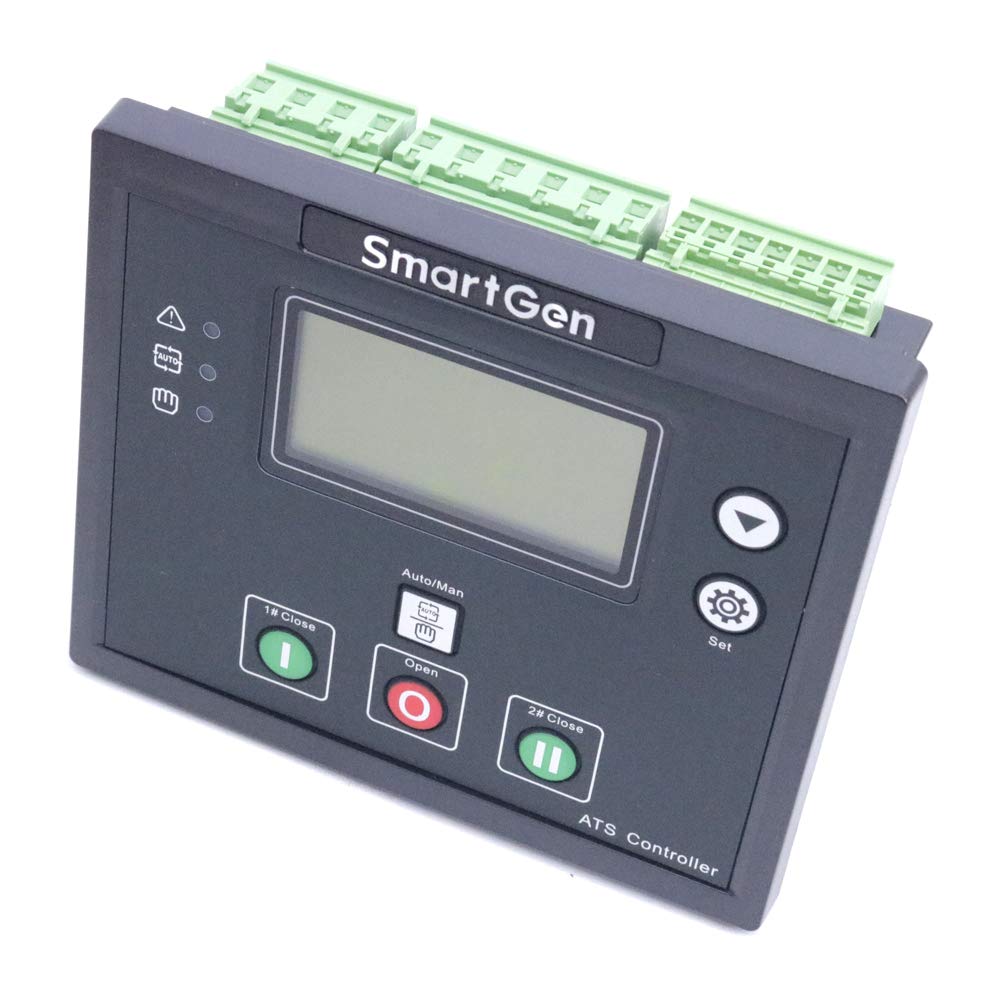

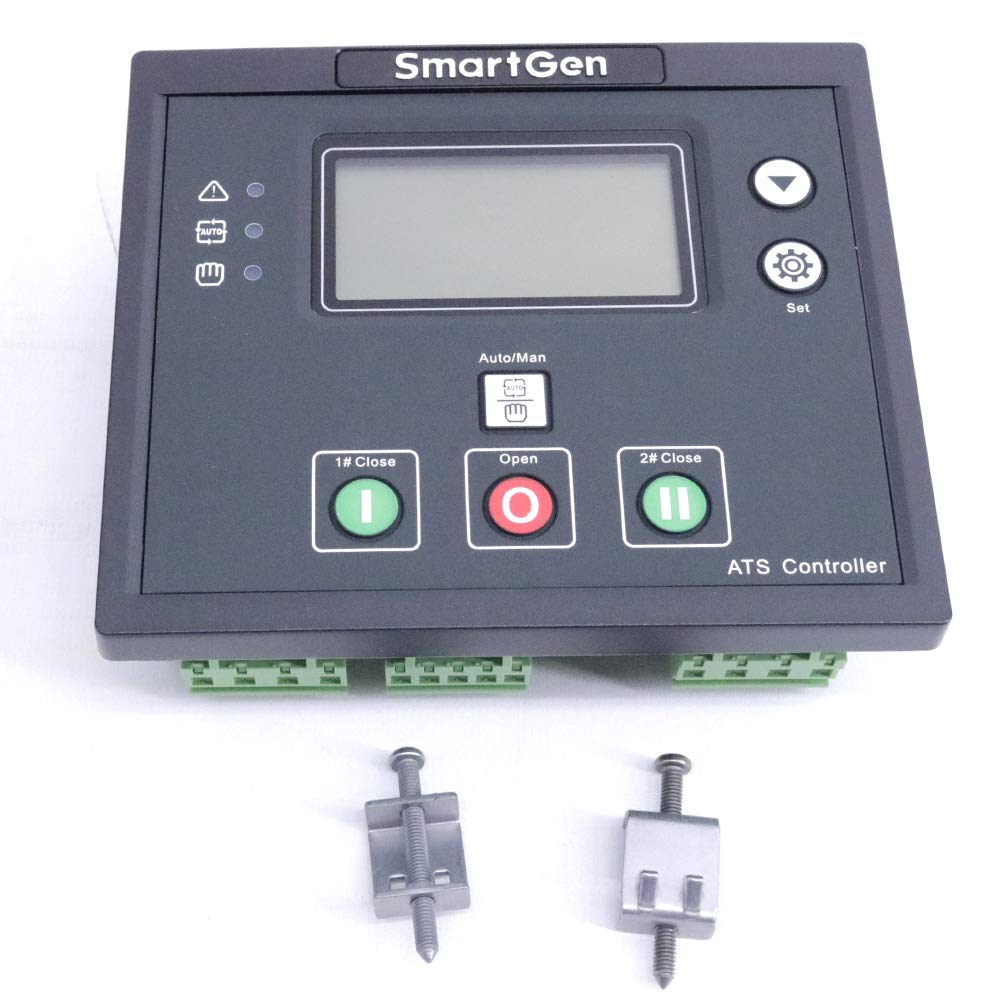

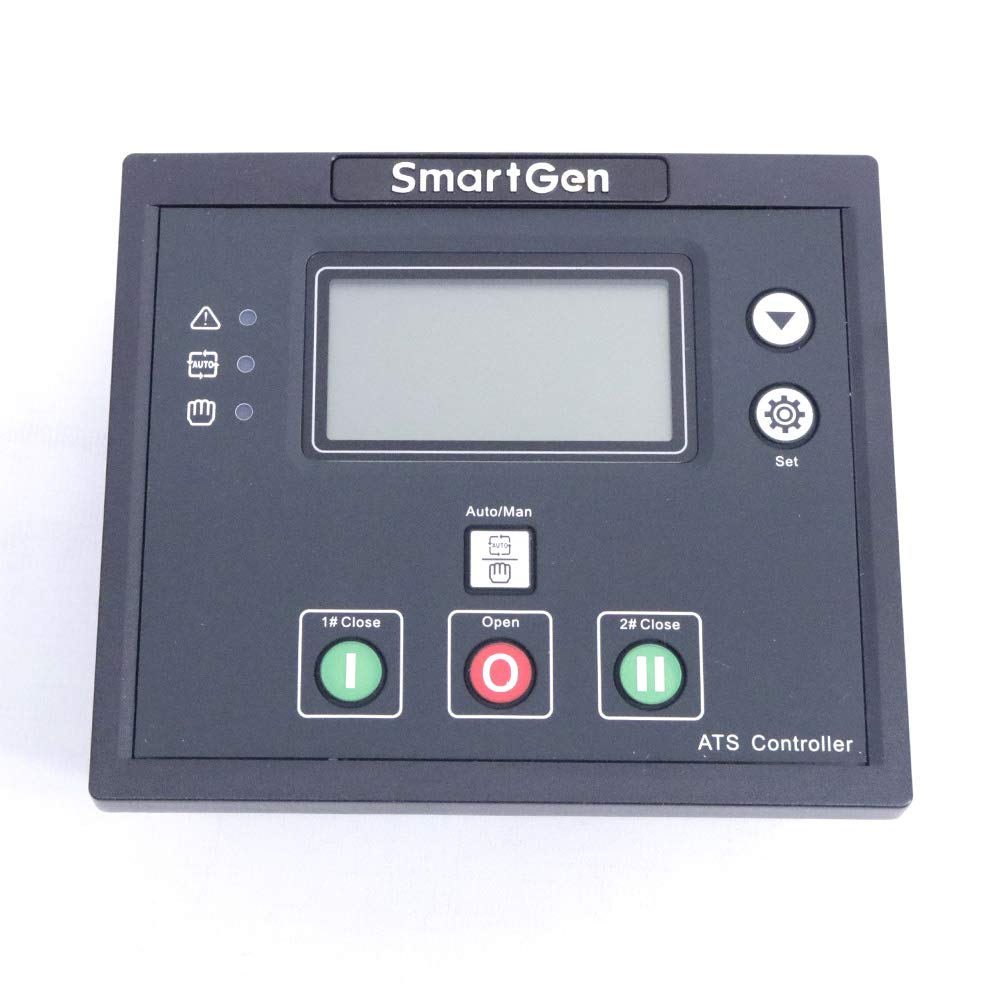

Smartgen HAT560N Intelligent ATS Controller DC Power Supply Generator Controller Automatic Transfer System Panel

Brand: Graigar

Color: Black

Features:

• HAT560N series ATS controller is intelligent dual-supply module with configurable function, automatic measurement, LCD display, and digital communication. It combines digital, intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
• The powerful Microprocessor contained within the unit allows for precision voltage (2-way-3-phase/single phase) measuring and make accurate judgment; in addition, the corresponding digital output port will active when there is over/under voltage, over/under frequency, loss of phase and other abnormal condition occurs.
• This controller has full consideration in various application of ATS (automatic transfer system) and can be directly used for specialized ATS, Contactor ATS, Air break ATS etc. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electrical devices, automatic control and testing system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, etc.
• Over/under voltage, loss of phase, reverse phase sequence, over/under frequency protection. Automatic/Manual mode. In manual mode, can force the switch to close or open;
• All parameters can be set on site. With Two different passwords which ensures authorized staff operation only. During commissioning, the genset can be set either on On-load or Off-load mode.

model number: HAT560N

Part Number: HAT560N

Details: Display:LCD(132*64)
Language:Chinese & English

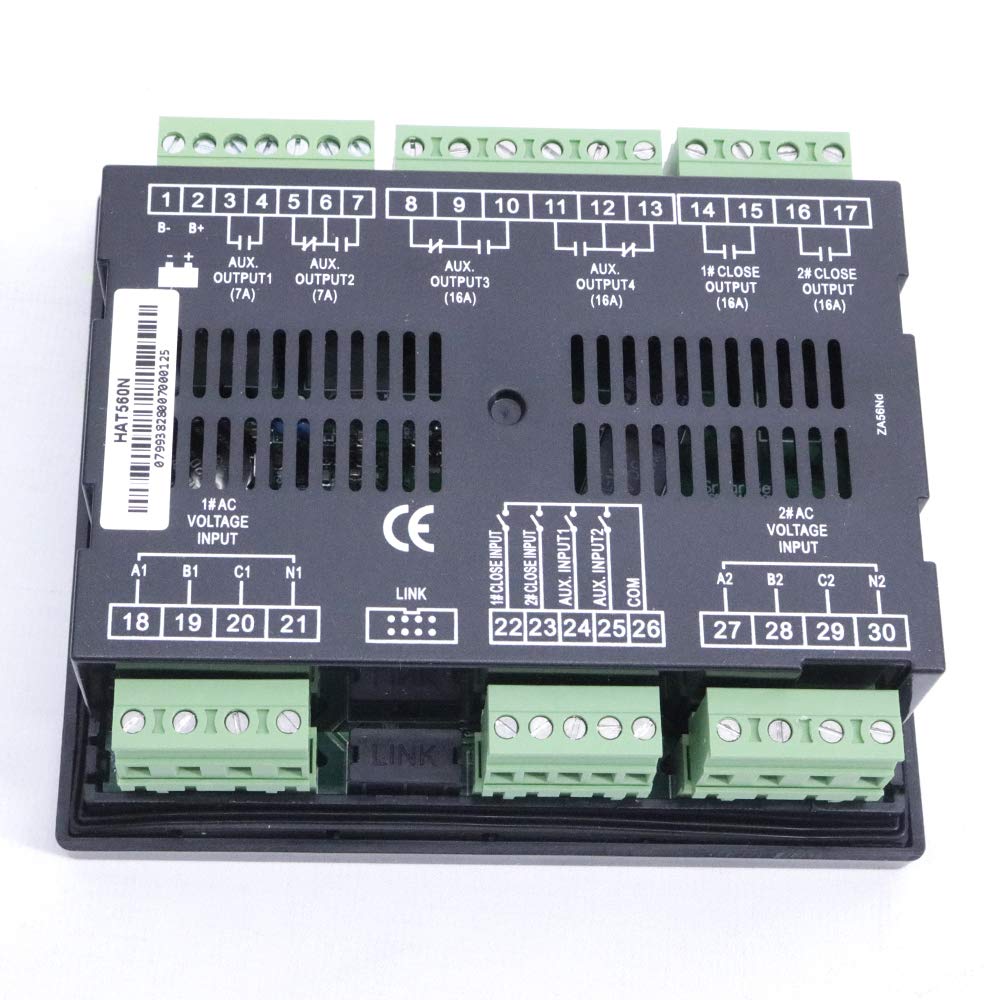

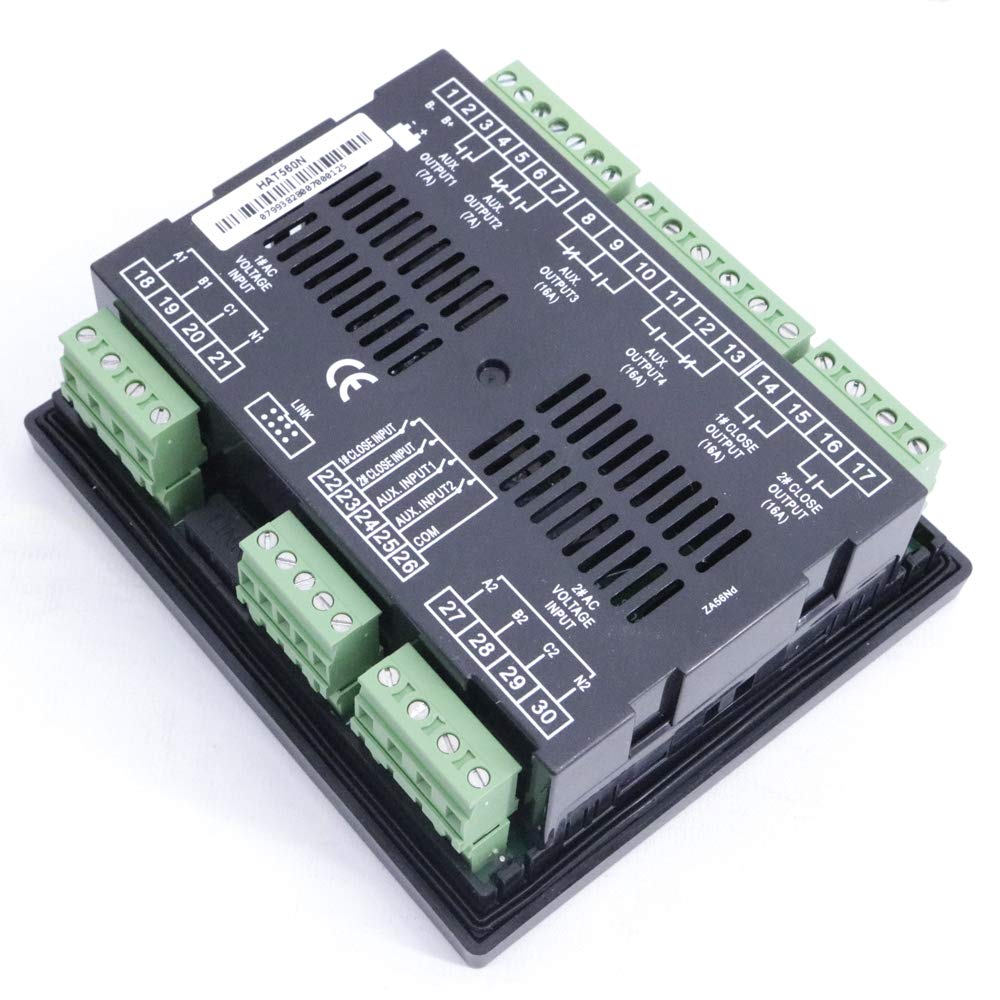

AC System:1P2W/2P3W/3P3W/3P4W
Alternator Voltage:(30~360)V(ph-N)
Alternator Frequency:50/60Hz
Monitor Interface:LINK
Programmable Interface:LINK
RTC(Real Time Clock):●
Scheduled Start Genset:●
Circulate Start Genset:●
Switch Over Priority:●
Applicable Switch Type:PC Two-stage, PC Three-stage, CB and CC switch
DC Supply:DC(8-35)V
Case Dimensions(mm):139*120*48
Panel Cutout(mm):130*111
Operating Temp.:(-25~+70)℃

EAN: 0707457580078
