System type can set for: Mains (1#) & Mains (2#), Mains (1#) & Generator (2#), Generator (1#) & Mains (2#), Generator (1#) & Generator (2#).

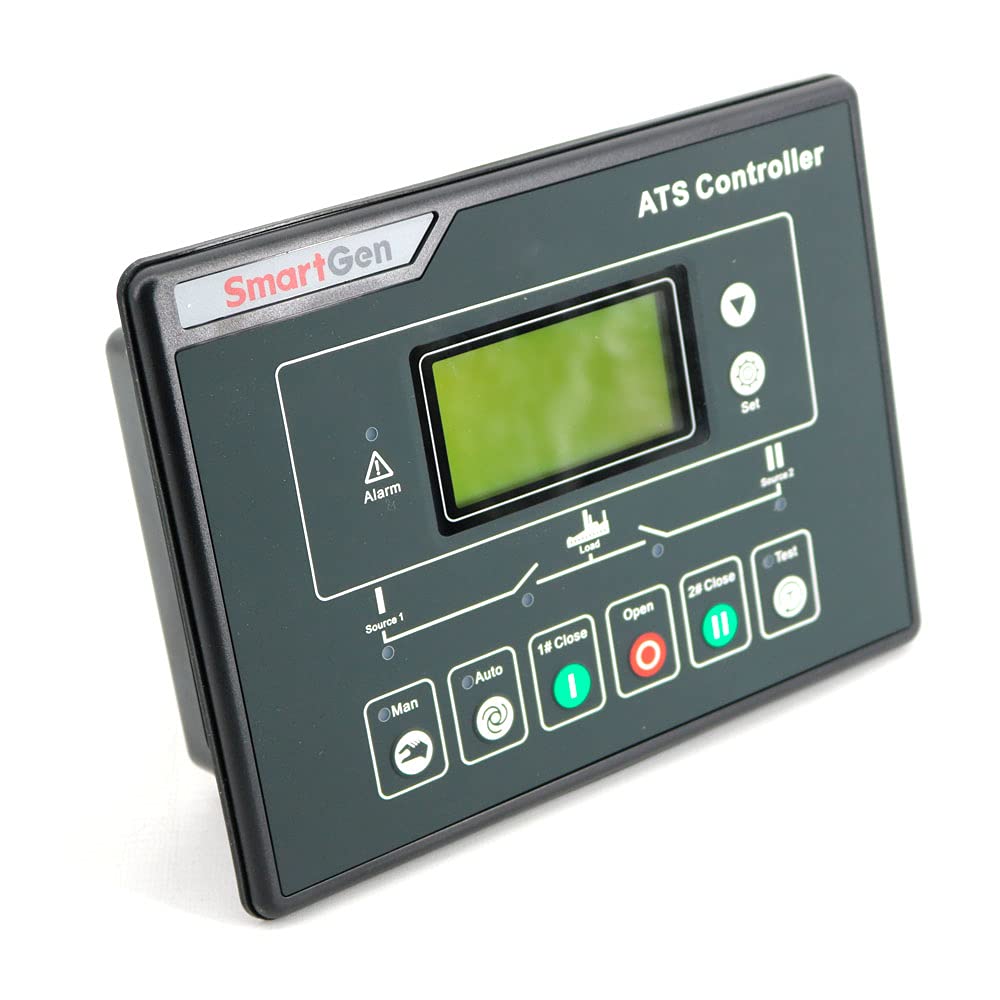

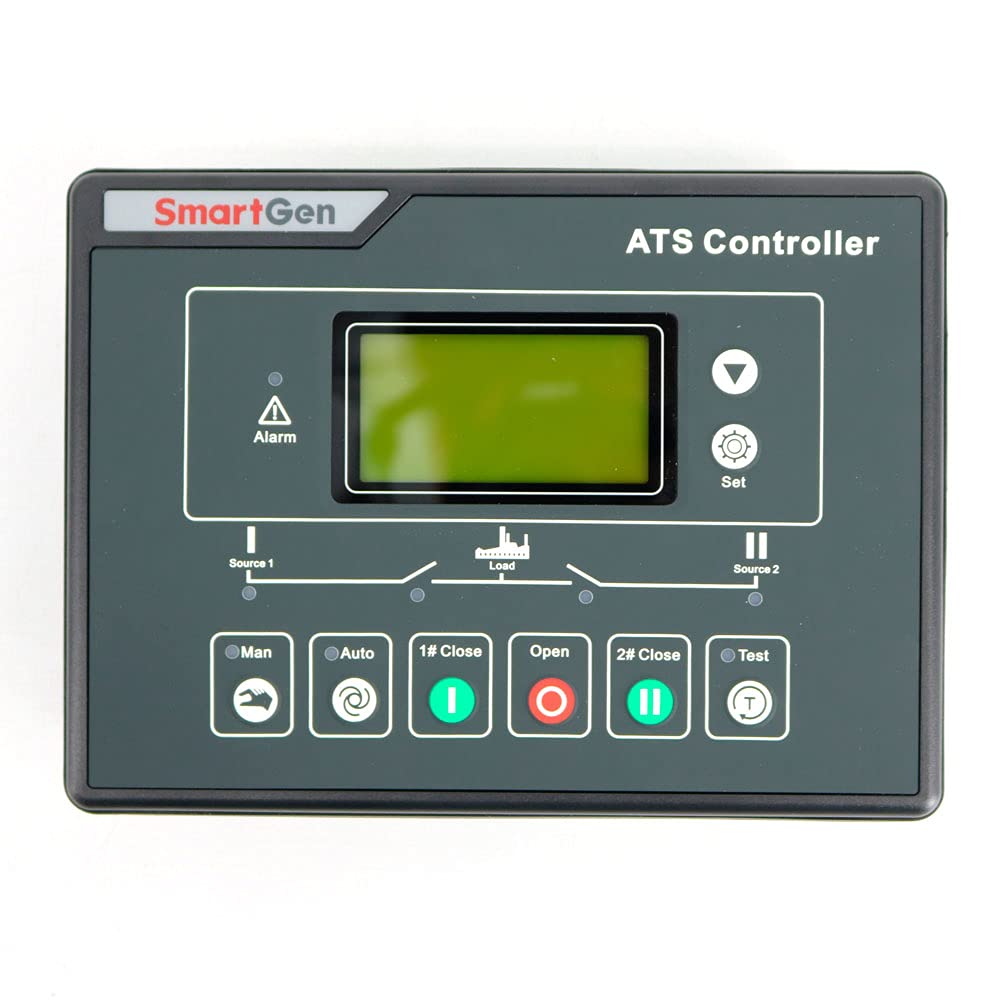

Backlit 128x64 LCD, optional Chinese and English display, push-button operation.
Measure and display active power, apparent power, power factor and 3 phase current;
Automatic/Manual mode. In manual mode, can force switch to close or open;
All parameters can be set on site. With Two different passwords which ensures authorized staff operation only.

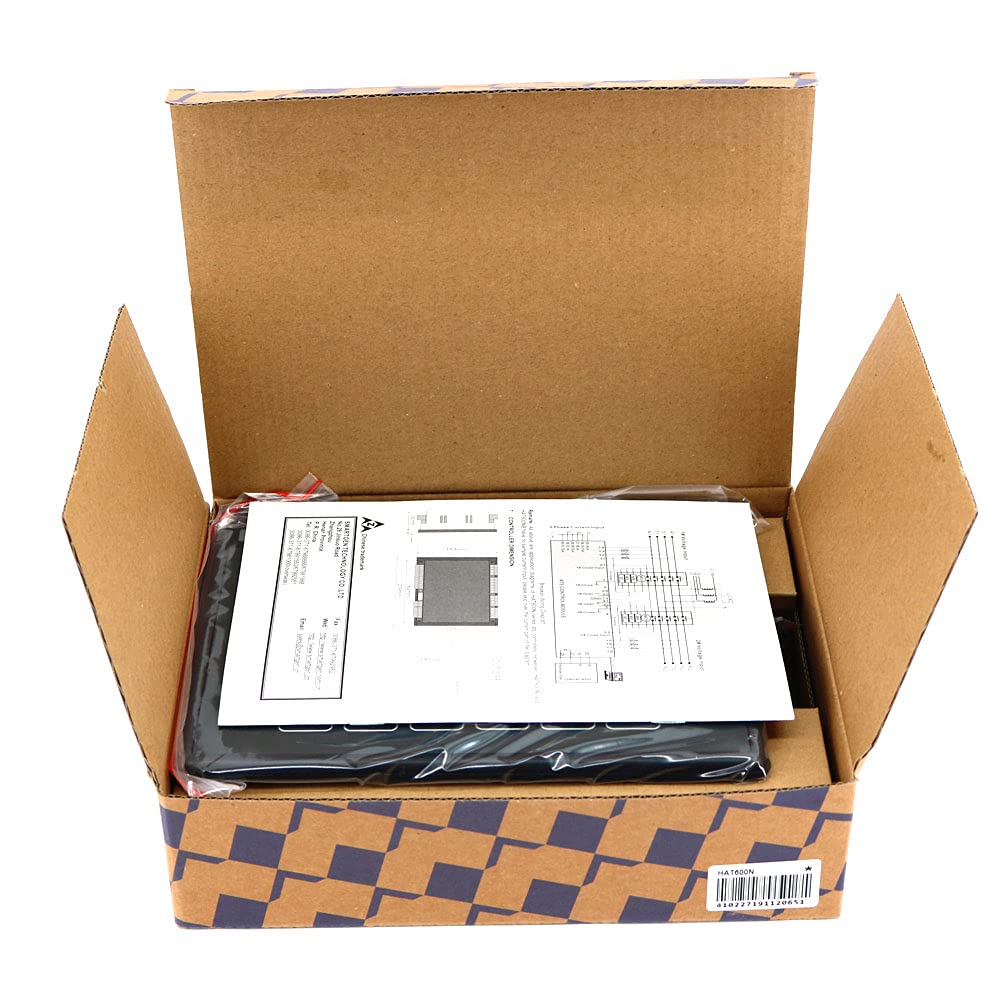

model number: HAT600N
Part Number: HAT600N
Details: HAT600N series ATS controller is made of microprocessor as its core, can accurately detect extended-spectrum 2-way-3-phase voltage and also make accurate judgment and output passive control switch under the abnormal voltage (over and under voltage, miss phase and over and under frequency). This controller has full consideration in various application of ATS (automatic transfer system) can be directly used for Intelligent ATS, Contactor ATS, Circuit Break ATS etc. It have compact structure, advanced circuits, simple wiring and high reliability, be widely used in electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, electrical devices, automatic control and testing system etc.
Function Item:Parameter
Display:LCD(128*64)
Language:Chinese/English
AC System:1P2W/2P3W/3P3W/3P4W
Alternator Voltage:（50～625）V(ph-N)
Alternator Frequency:50/60Hz
Monitor Interface:RS485
Programmable Interface:LINK/RS485
RTC(Real Time Clock):●
Scheduled Start Genset:●
Circulate Start Genset:●
Switch Over Priority:●
Applicable Switch Type:All types
DC Supply:DC(8～35)V
Case Dimensions(mm):209*153*55(L*W*H)
Panel Cutout(mm):186*141
Operating Temp.:(-25~+70)℃
