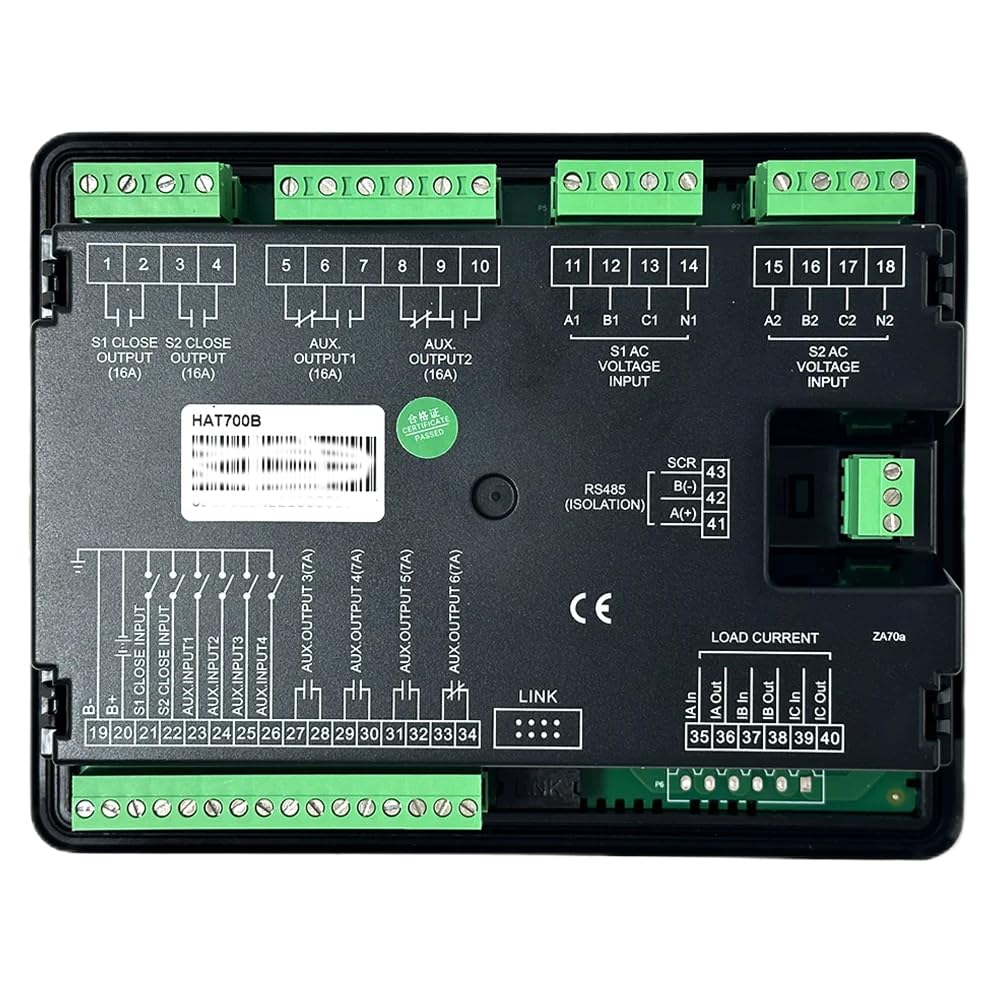

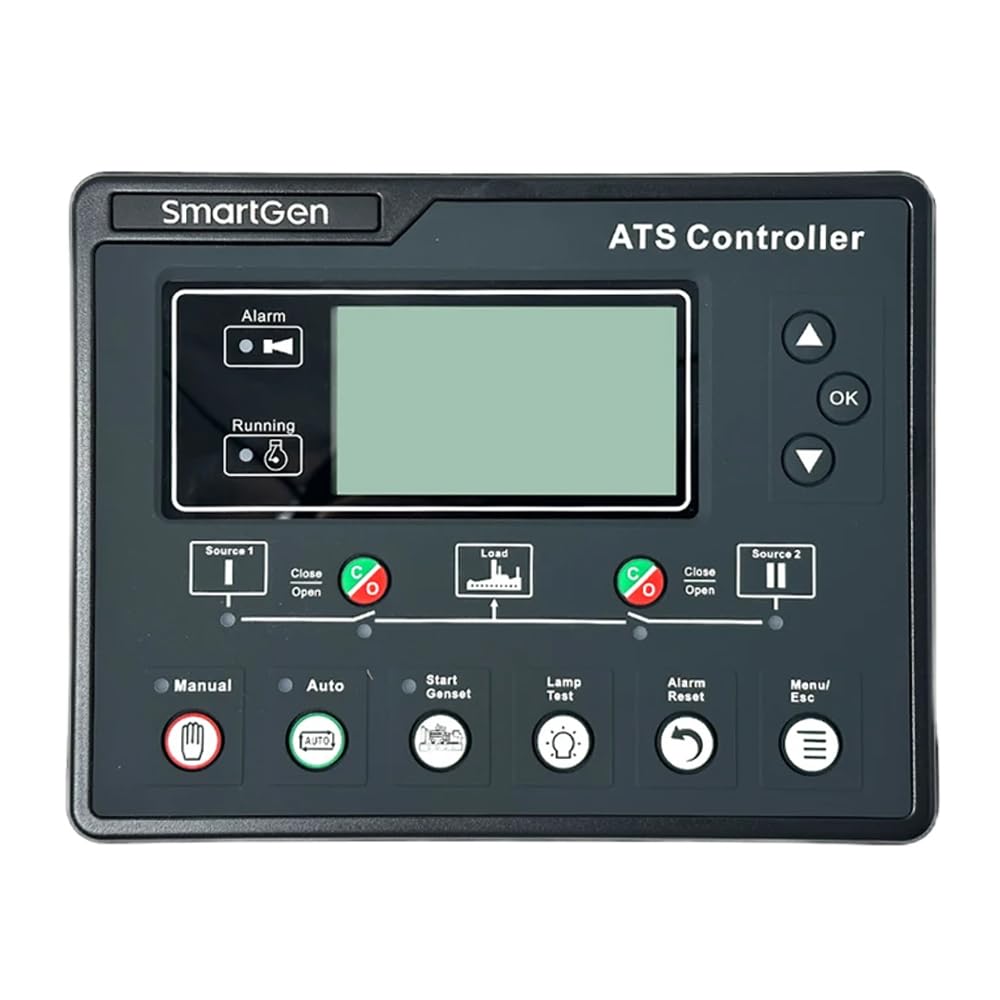

Smartgen HAT700B ATS Controller Intelligent Dual-supply Module Generator Controller SGQ Automatic Transfer System Controller Module

Brand: Graigar

Features:

• HAT700 series ATS controller is intelligent dual-supply module with configurable function, automatic measurement, LCD display, and digital communication. It combines digital, intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
• System type can set as: S1 (Mains) & S2 (Mains), S1 (Mains) & S2 (Generator), S1 (Generator) & S2 (Mains), S1 (Generator) & S2 (Generator).
• 132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages), push-button operation.
• Collect and display 2-way 3-phase Voltage, Frequency and Phase.
• Collect and display Active Power, Reactive Power, Apparent Power, Power Factor and Current. S1/S2 separated over current warning/ trip alarm.

model number: HAT700B

EAN: 0707457580535
