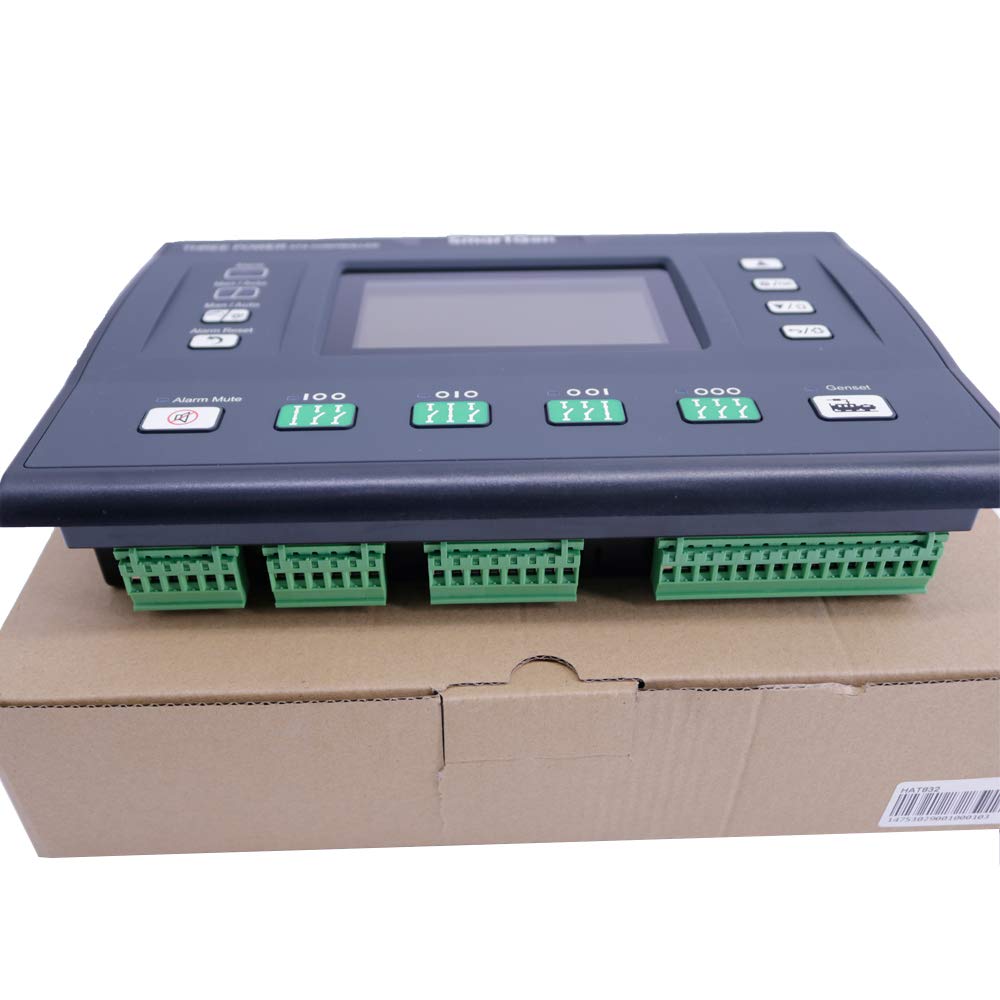

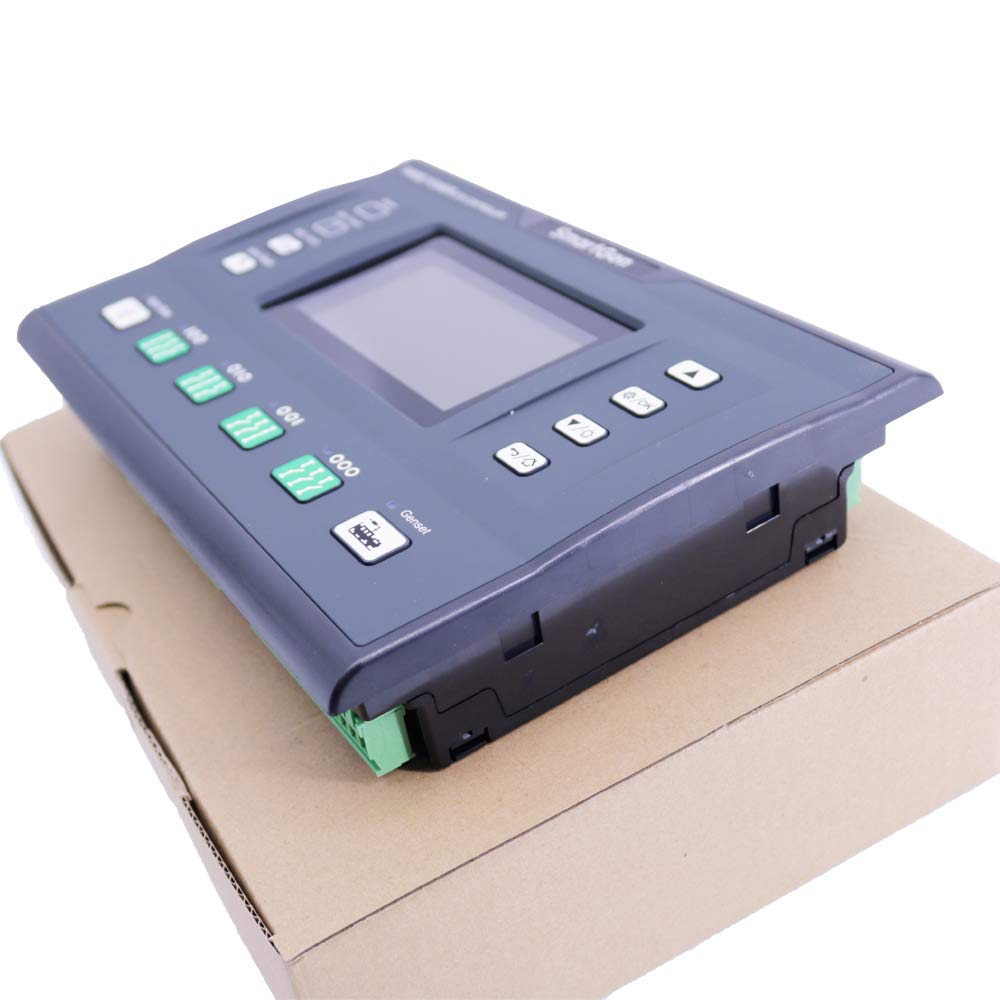

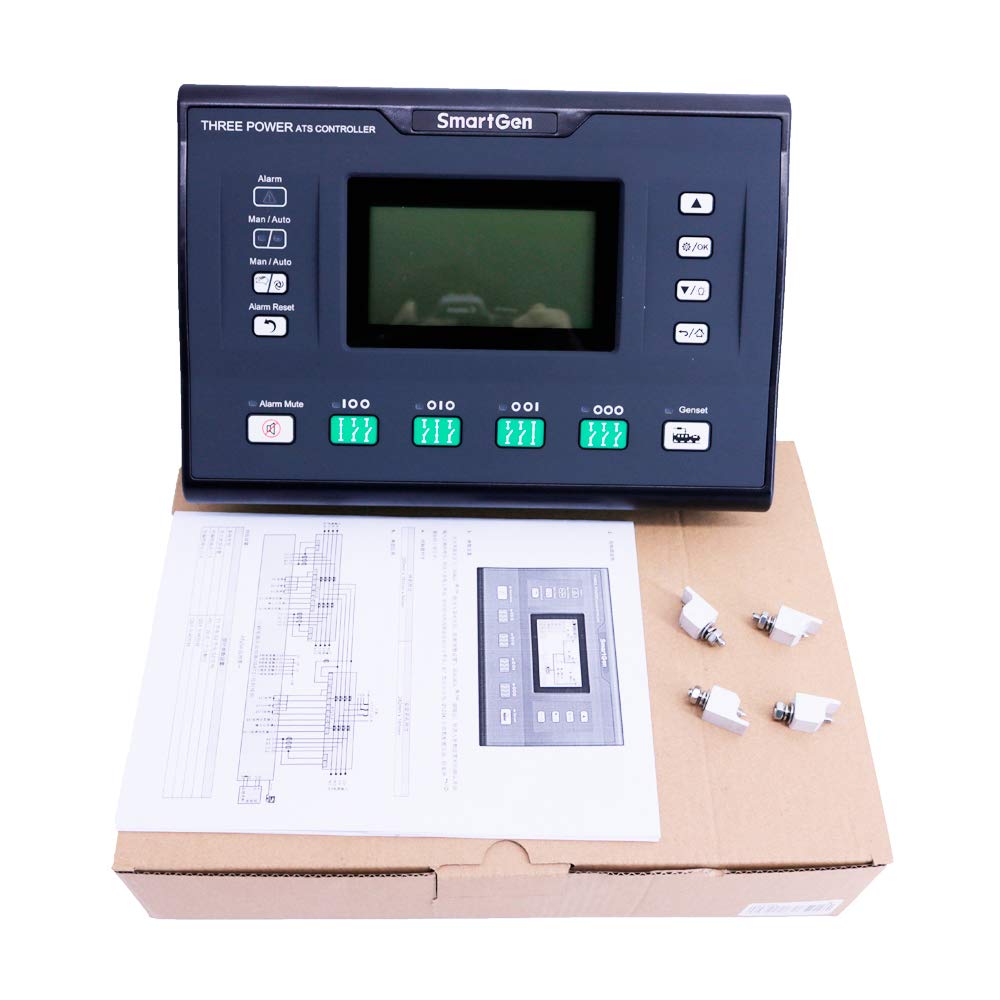

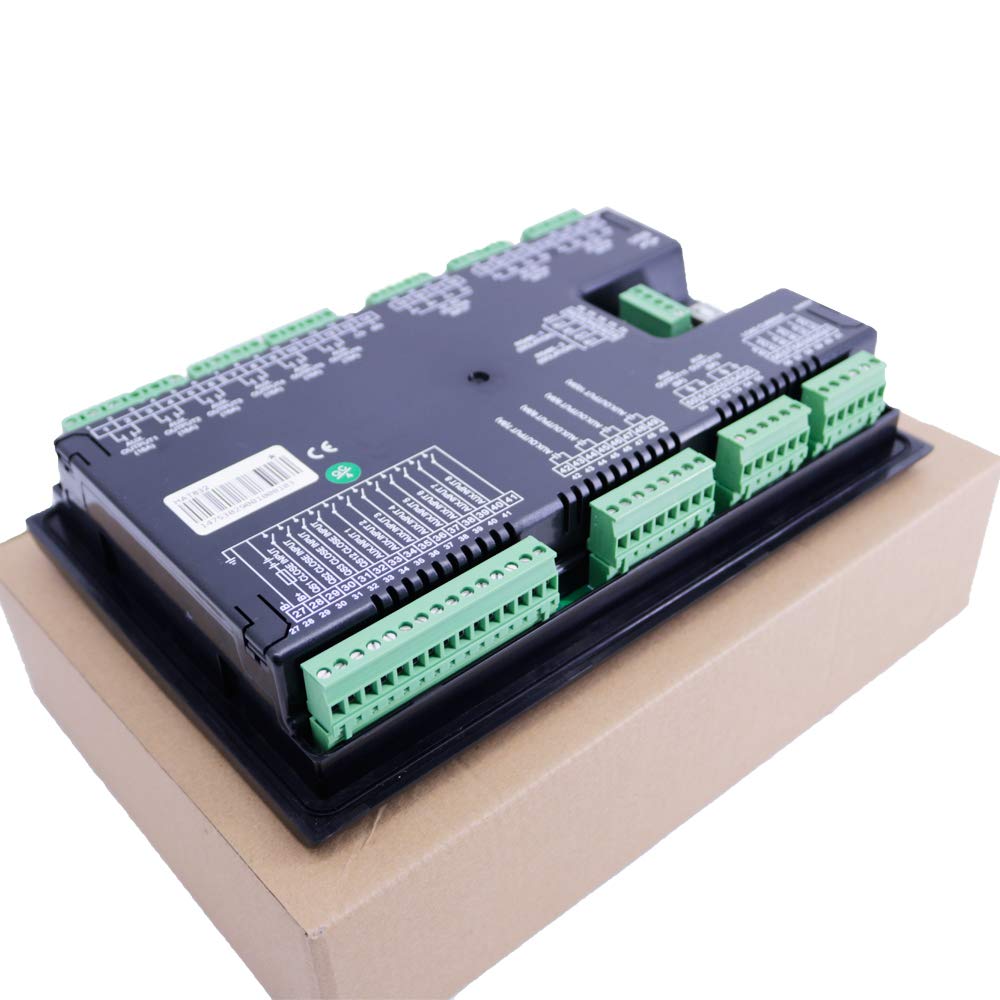

Smartgen HAT832 Intelligent Three Power ATS Controller Tri-supply Module Remote Genset Controller

Brand: Graigar

Features:

• System type can set as: Mains-Gen-Mains, Gen-Mains-Mains, Mains-Mains-Mains, Gen-Gen-Mains, Mains-Gen-Gen, Gen-Mains-Gen, and Mains-Mains-Gen;

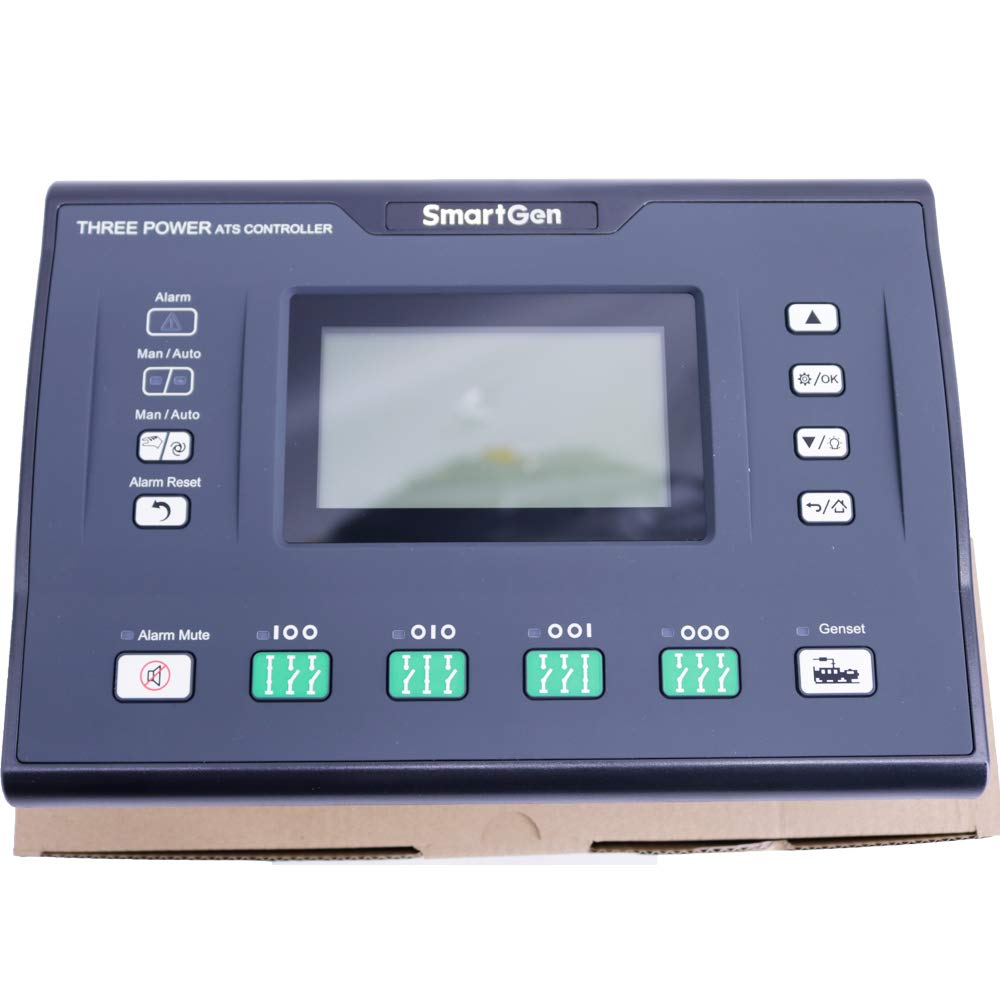

• 4.3 inchs solid color 240x128 LCD display with white backlight, multilingual interface (including English, Simplified Chinese, Other), push-button operation;
• Collect and display 3-way 3-phase voltage, frequency and phase sequence;
• Collect and display load active power, reactive power, apparent power, power factor and current;
• S1/S2/S3 separated over current warning/ trip alarm;

model number: HAT832

Part Number: HAT832

Details: The powerful Microprocessor contained within the unit allows for precision voltage (3-way 3-phase) measuring and make accurate judgment and the corresponding volt free digital output port will active when there is over/under voltage, over/under frequency, loss of phase, phase sequence wrong and other abnormal condition occurs. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electric device and automatic control system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, etc.
Function Item     Parameter
Display               LCD(240*128)
Language                  Chinese & English & Others
Programmable Input          8
Programmable Output        12
AC System          1P2W/2P3W/3P3W/3P4W
Alternator Voltage           (50～360)V(ph-N)
Alternator Frequency          50/60Hz
Volt Freq Protection●
Current and Power Display●
Over Current Warn●
Monitor Interface           USB/RS485-1/RS485-2
Programmable Interface            USB/RS485-1/RS485-2
RTC(Real Time Clock)●
Scheduled Start Genset●
Circulate Start Genset●
Switch Over Priority●
DC Supply           DC(8～35)V/AC(90-305V)
Case Dimensions(mm)   260*180*54
Panel Cutout(mm)    242*161
Operating Temp.     (-25~+70)℃

EAN: 0761272054459
