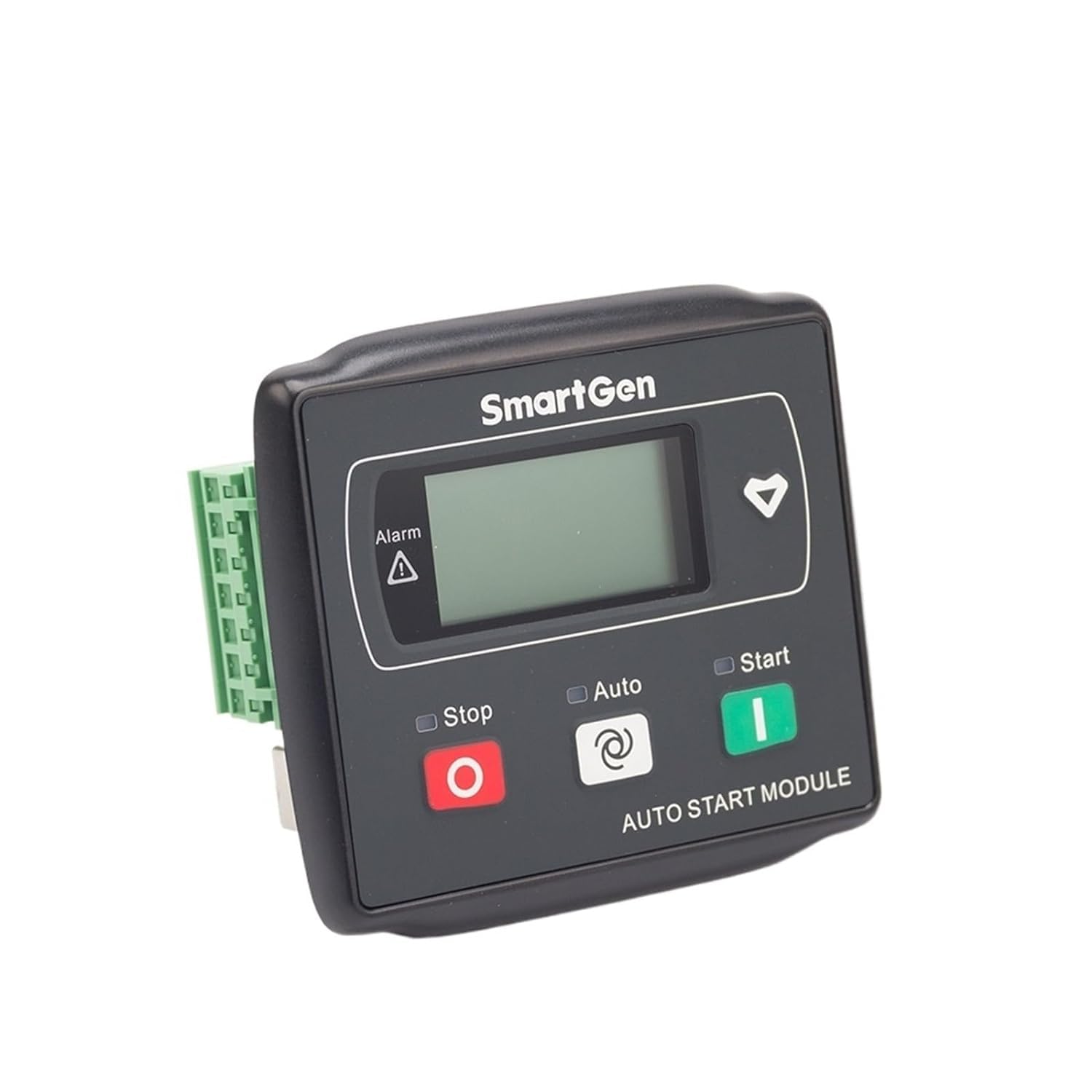

Smartgen HGM1790N Genset Controller Single Unit Automation and Monitoring Control Module Remote Start/Stop Controlling

Brand: Graigar

Color: Black

Features:

• Graphical LCD display (with backlight), LED indicator, touch-buttons operation;Hard screen acrylic material is used to protect screen.
• Silicone panel and buttons are adopted to increase high and low temperature adaption ability.
• Power supply range DC (8~35)V, compatible with 12V or 24V starting batteries;
• With genset fault protection and display functions.
• 3 working modes: manual, auto, stop;
• Compatible with multiple temperature, pressure, fuel level sensors, which can be user-defined and used directly; temperature sensors, pressure sensors can be used in parallel with annunciator, providing analog quantity and increasing protection level at the same time;

model number: HGM1790N

Part Number: HGM1790N

Details: HGM1790N genset controller is suit for single unit automation and monitoring control (also can be used for pumping unit). It can realize manual start/stop of genset, and it can also automatically start/stop genset by remote start signal. HGM1790N controller can supervise and protect genset operation by gathering and analyzing genset data like generate voltage, current, water temperature, oil pressure and so on, and it can indicate fault conditions and do maintenance as soon as possible. The graphical LCD and touch-button operation make it clear and intuitive. Moreover, parameter threshold and delay value can be adjusted via front panel or USB port (communicated with PC software).
Display:LCD (with backlight)
Operation Panel:Rubber
Language:English
Digital Input:1
Relay Output:5
Analogue Input:1
AC System:1P2W
Alternator Frequency:50/60Hz
kW/Amp Detecting & Display: Yes
Programmable Interface:USB
DC Supply:DC(8-35)V

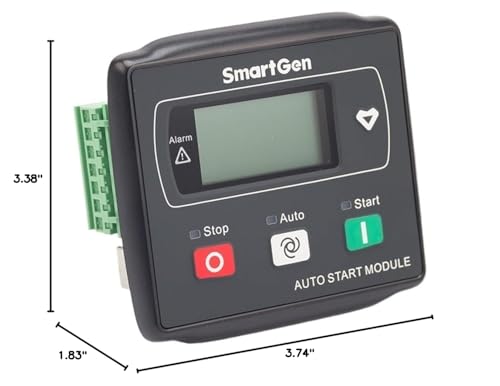

Case Dimensions(mm):95*86*46.5
Panel Cutout(mm):78*66
Operating Temp.:(-30~+80)℃
Working PowerRange : DC(8-35)V
Working Temperature : (-25~+70)℃
weight : 0.18kg

EAN: 0707457448514

Package Dimensions: 3.7 x 3.4 x 1.8 inches
