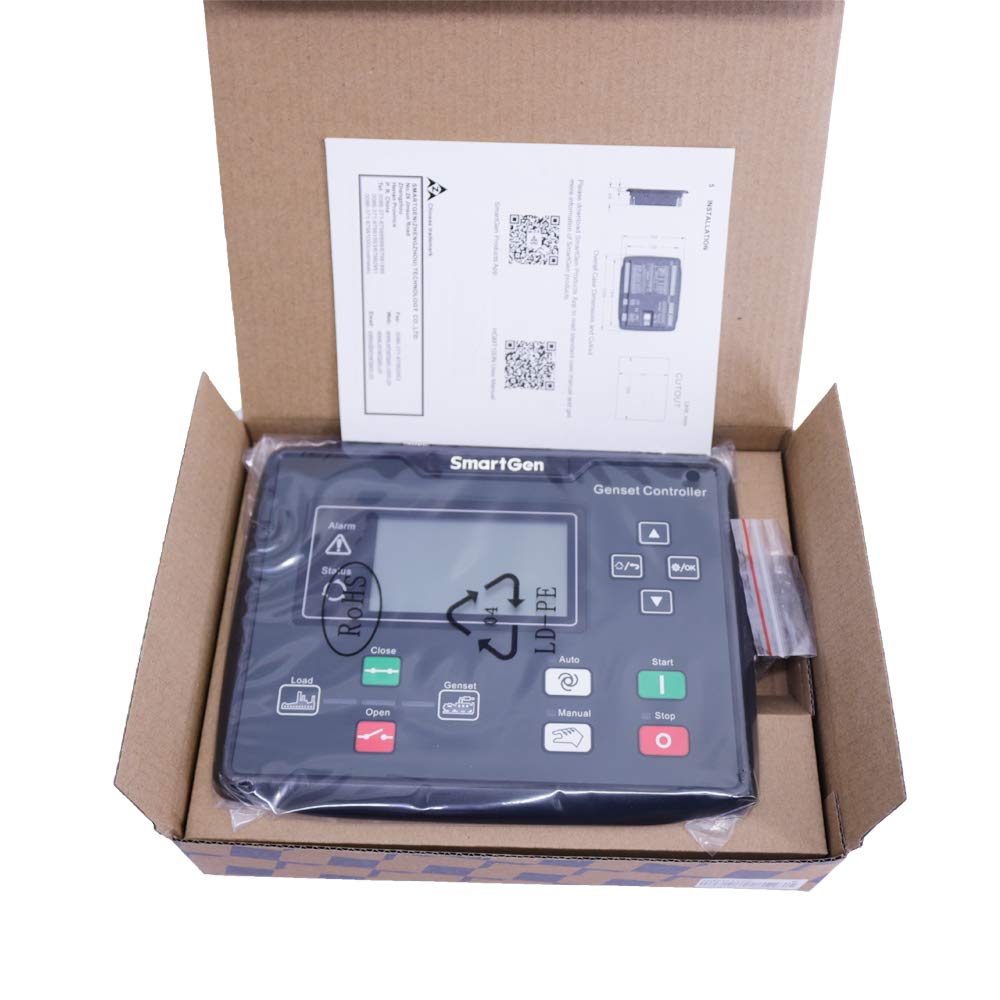

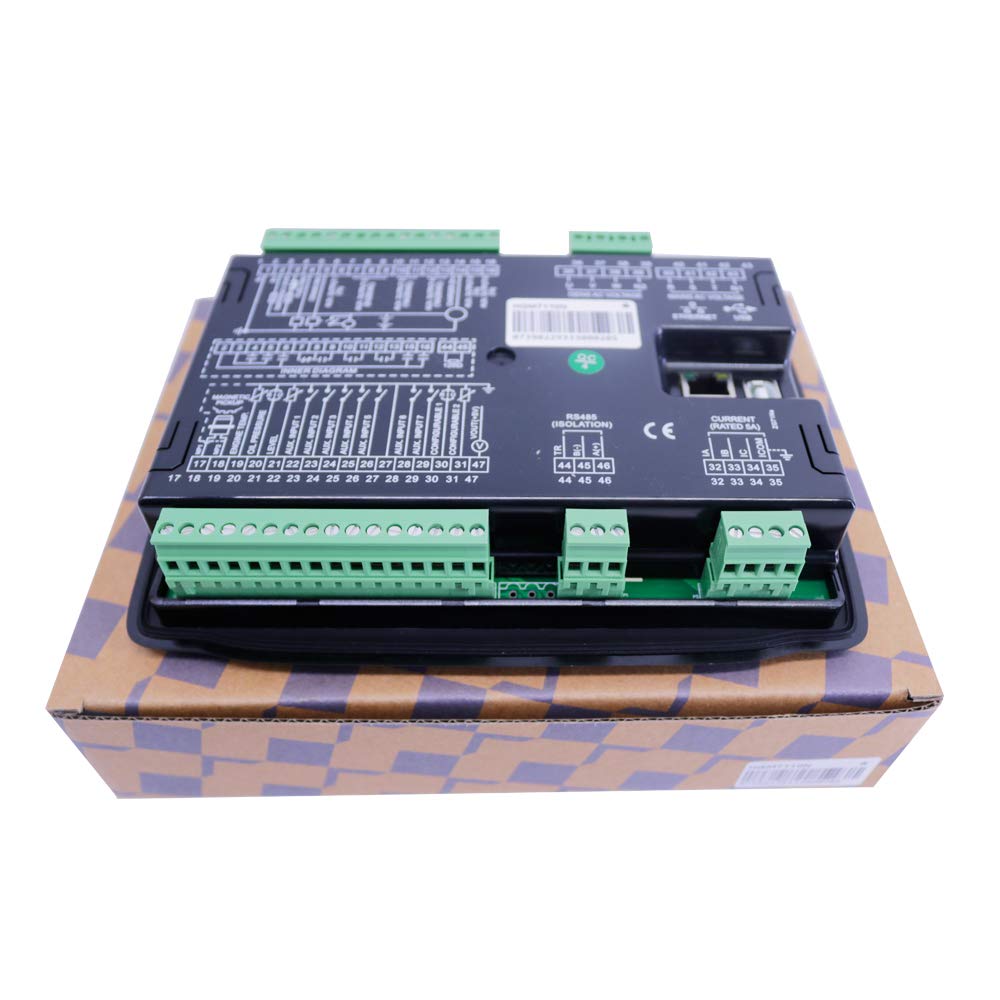

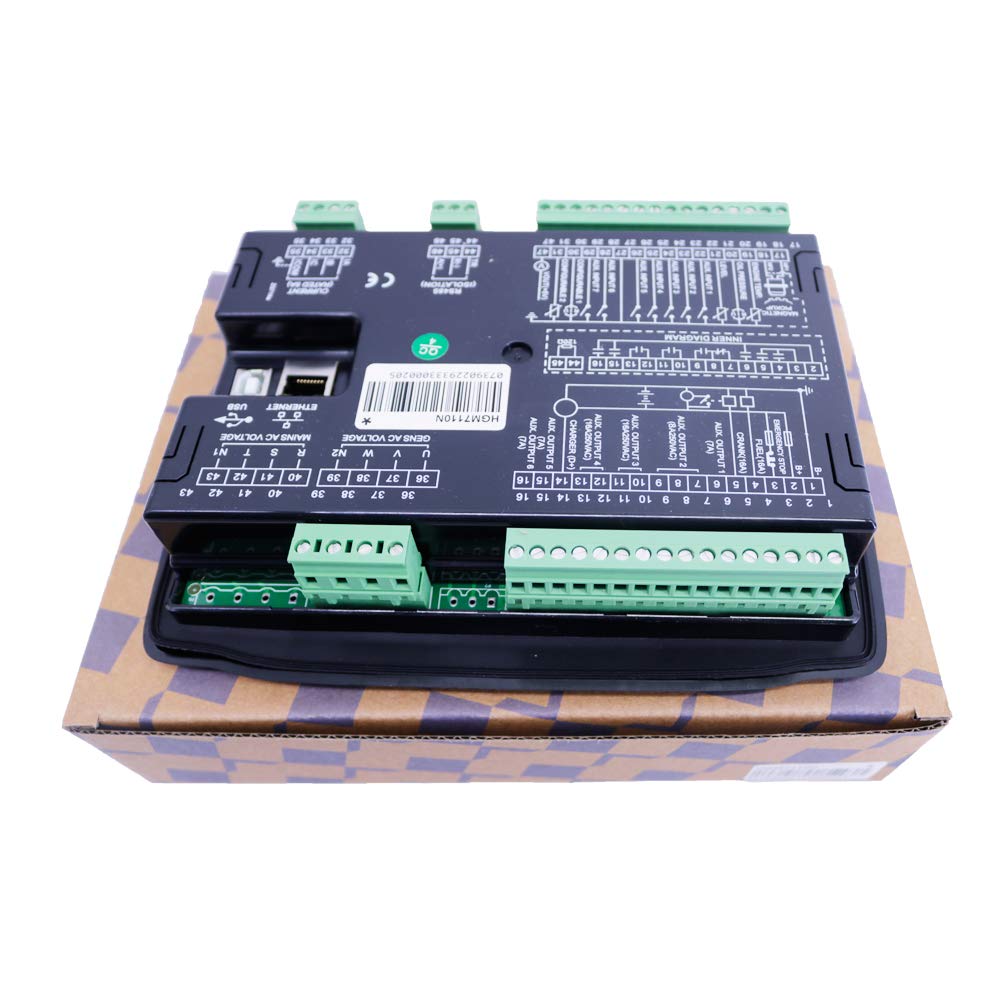

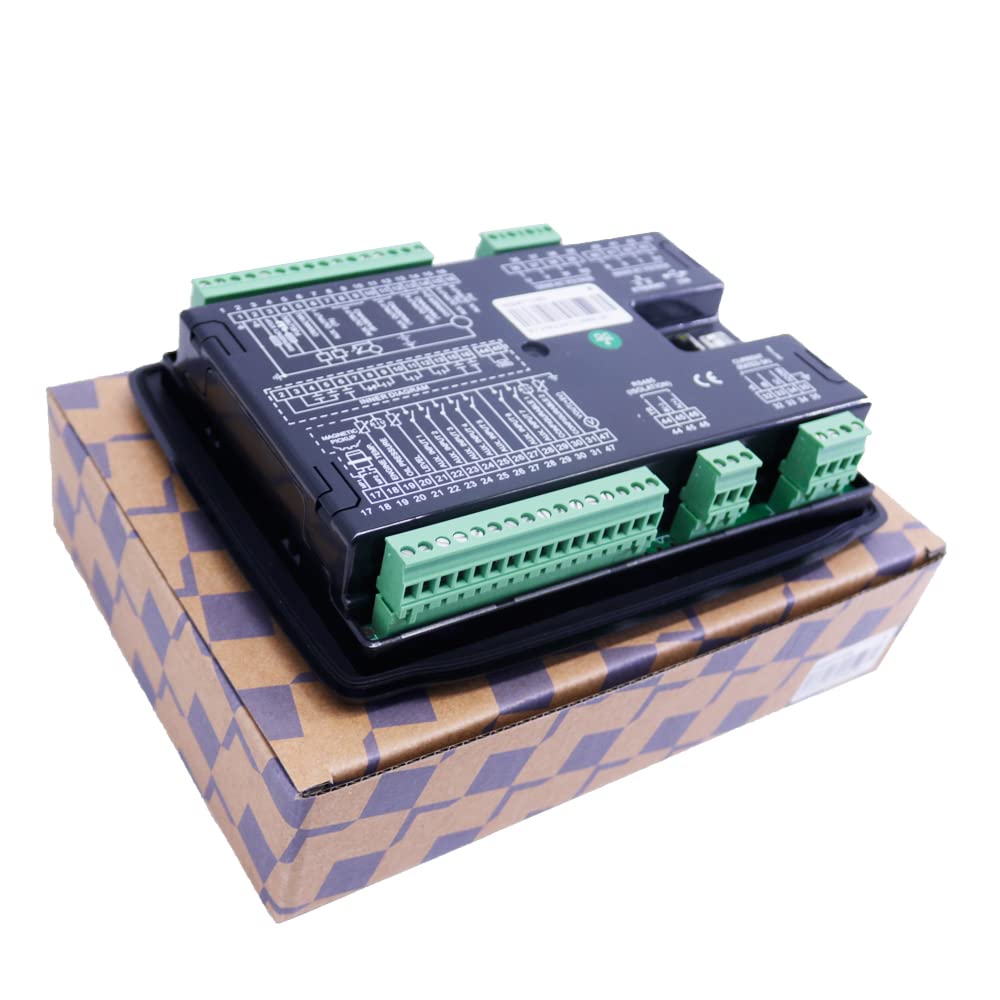

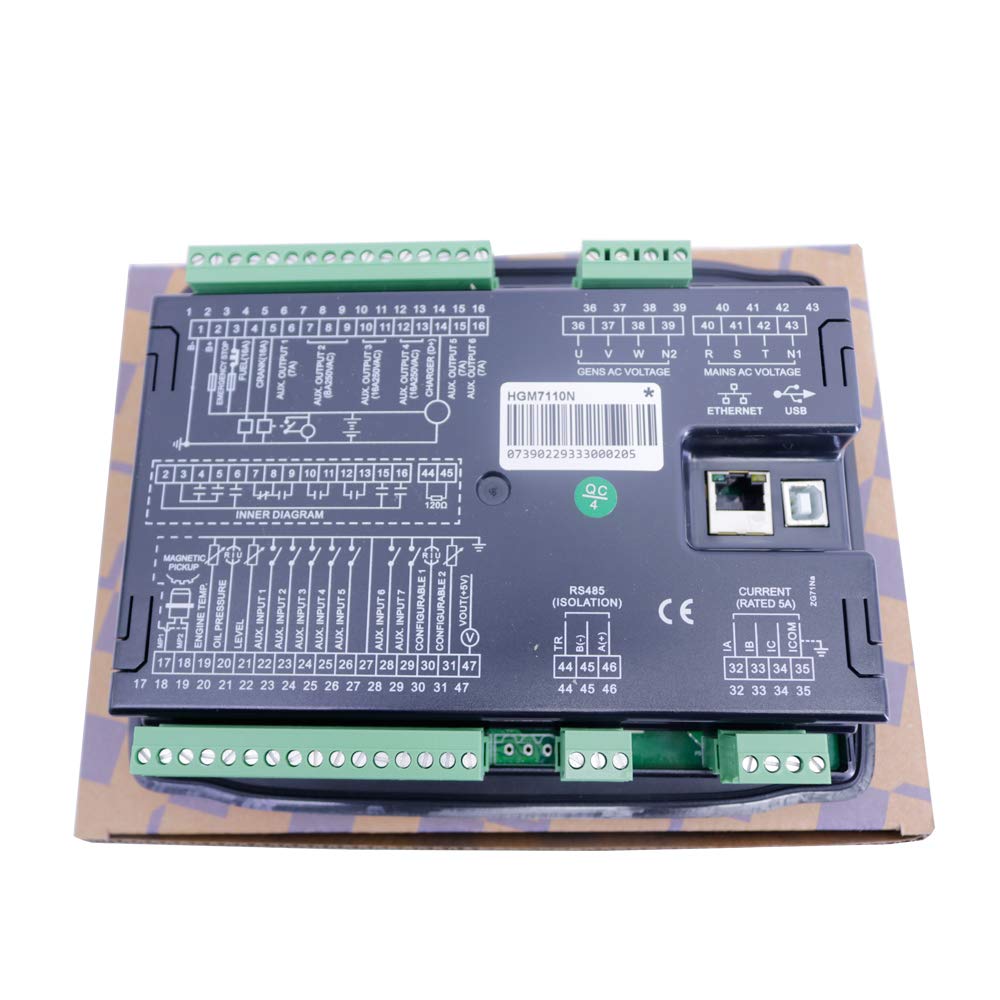

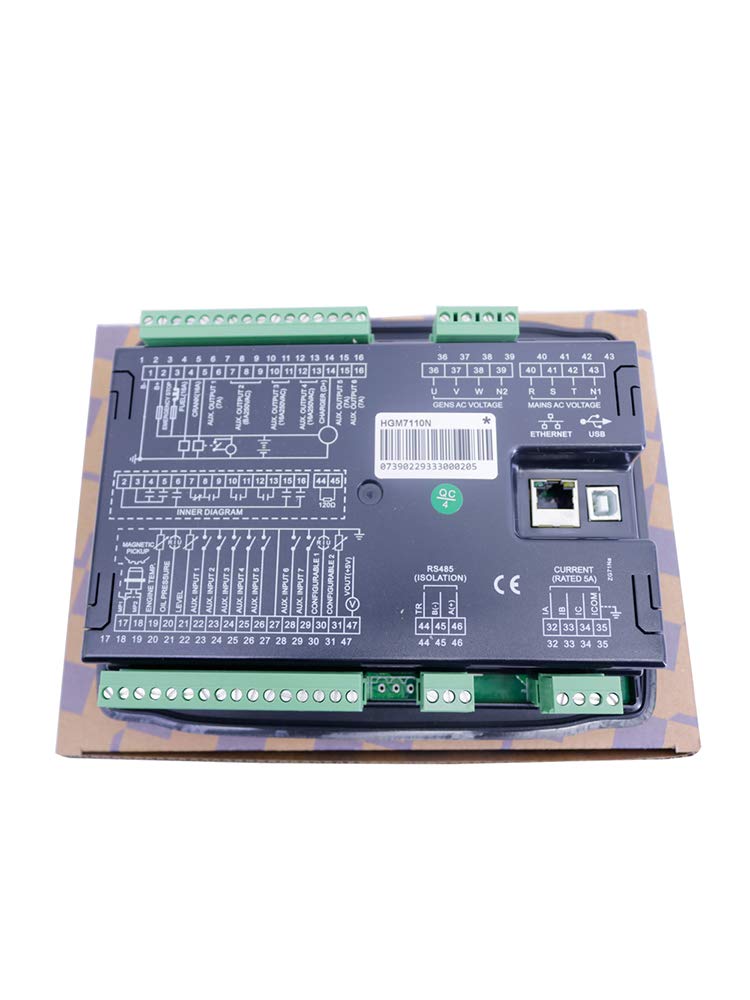

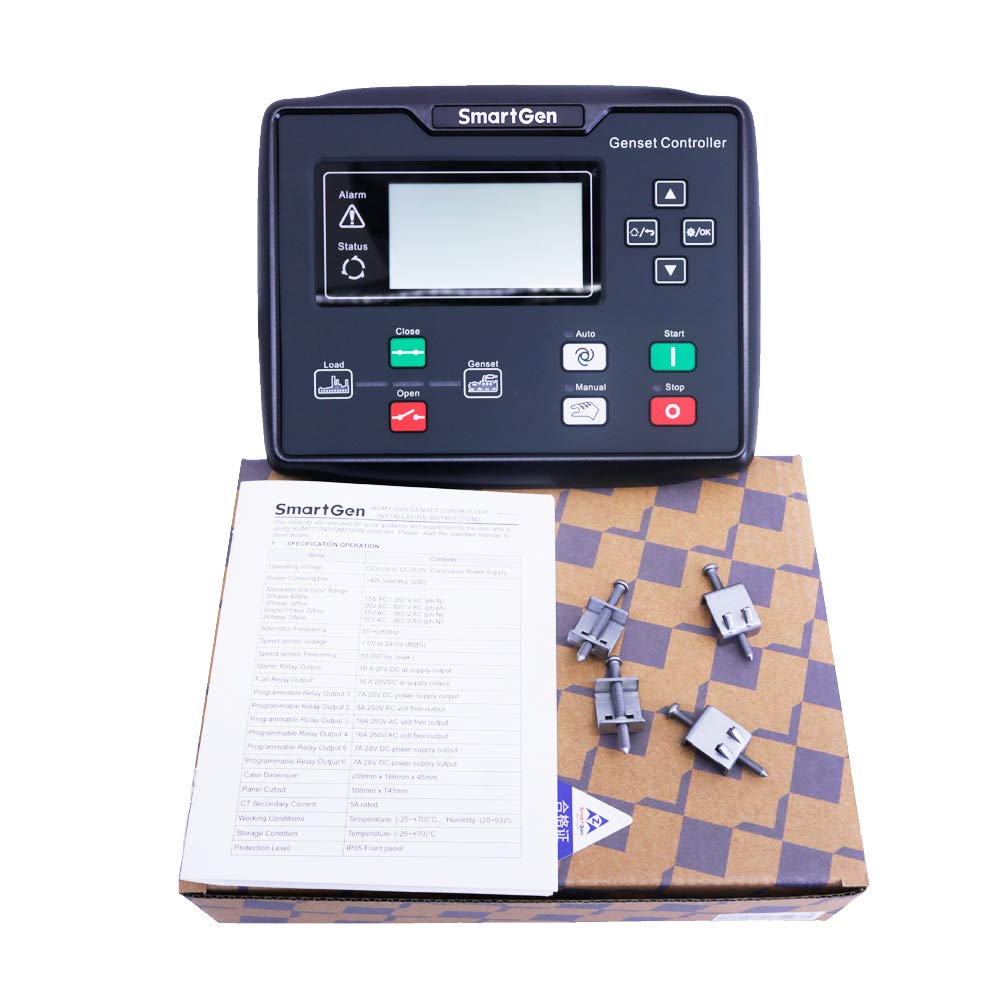

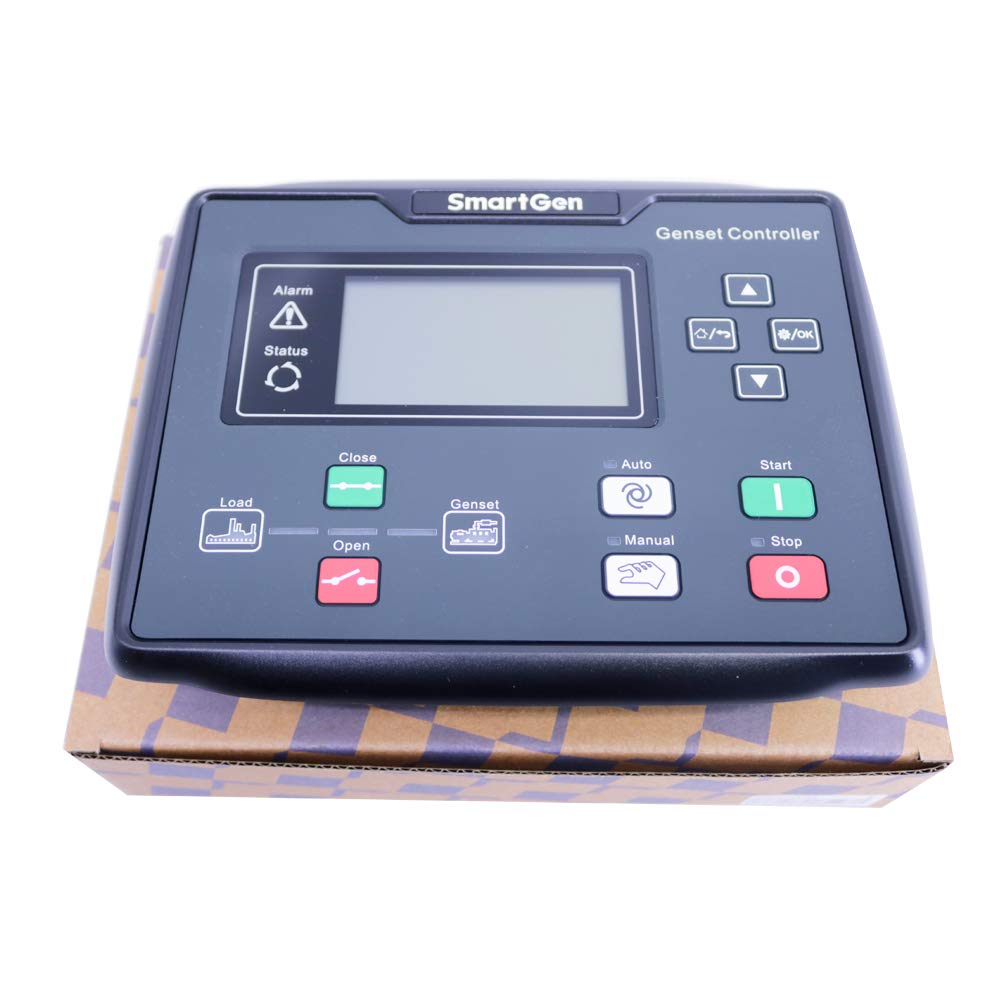

SmartGen HGM7110N Automatic Start Module Power Station Automation Controller ASM Genset Controller USB+RS485+ETHERNET

SmartGen HGM7110N Automatic Start Module Power Station Automation Controller ASM Genset Controller USB+RS485+ETHERNET

$269.00 USD
$269.00 USD
Sale Sold out
HGM7110N/HGM7120N series power station automation controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single diesel unit to achieve remote start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English and etc.), and it is reliable and easy to use.

HGM7110N/HGM7120N series power station automation controllers adopt 32-bit micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. Almost parameters can be configured from front panel of controller, and all parameters can be adjusted through PC software via USB/RS485 port and monitored through PC software via RS485. It can be widely used in all types of genset control automation system with compact structure, simple connections and high reliability.

HGM7110N: ASM (Automatic Start Module),it controls generator to start/stop by remote signal;

32-bit ARM microcomputer has been used with higher level of hardware integration and stability.

132x64 LCD with backlight and selectable language interface (Chinese, English, and other languages) that can be chosen on the spot. It is convenient for debugging personnel commissioning.

Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions.

Silicone panel and pushbuttons can be used in extreme temperature environment.

RS485 communication interface enable "three remote functions" (remote control, remote measuring and remote communication) according to MODBUS protocol.

Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;

Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.

Features:

  • 32-bit ARM microcomputer has been used with higher level of hardware integration and stability.
  • 132x64 LCD with backlight and selectable language interface (Chinese, English, and other languages) that can be chosen on the spot. It is convenient for debugging personnel commissioning.
  • Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions.
  • Silicone panel and pushbuttons can be used in extreme temperature environment.
  • RS485 communication interface enable “three remote functions” (remote control, remote measuring and remote communication) according to MODBUS protocol.
