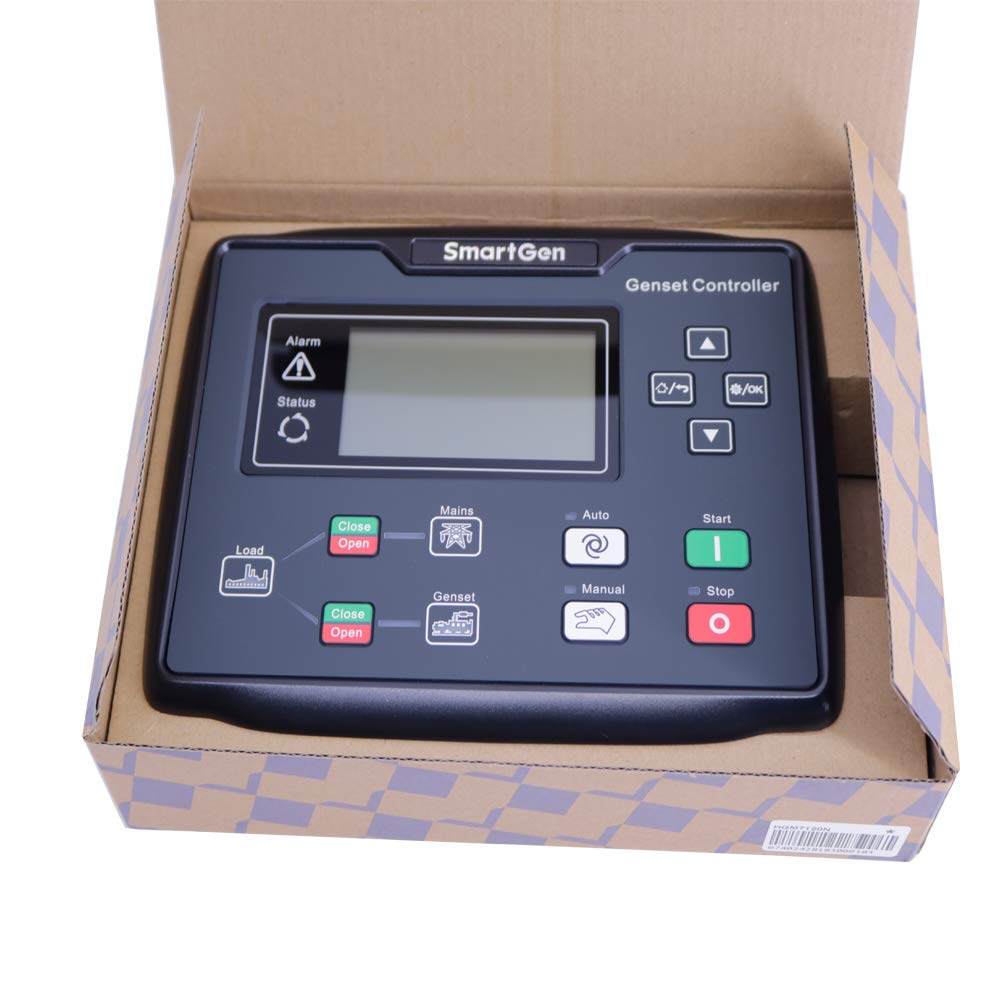

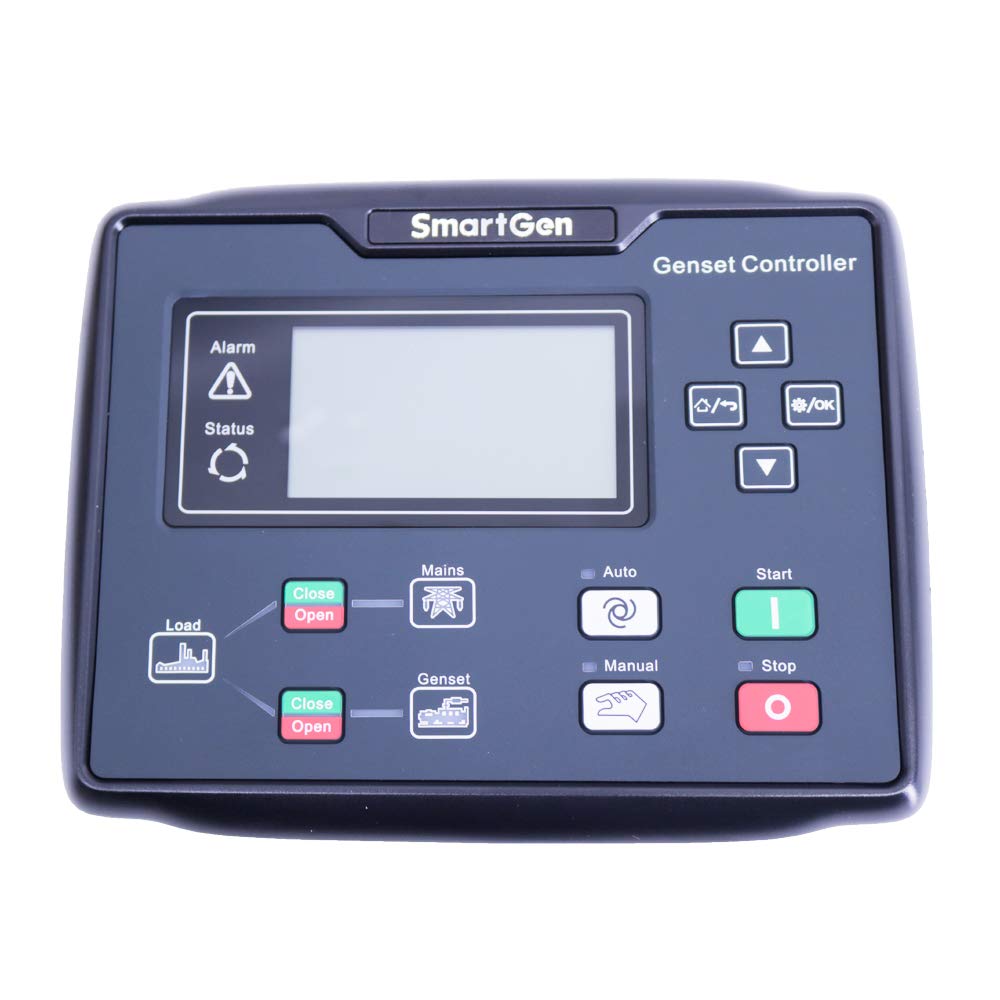

HGM7120N: AMF (Auto Mains Failure), updates based on HGM7110N, especially suit for automatic system composed by generator and mains.
32-bit ARM microcomputer has been used with higher level of hardware integration and stability.
132x64 LCD with backlight and selectable language interface (Chinese, English, and other languages) that can be chosen on the spot. It is convenient for debugging personnel commissioning.
Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions.
Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.

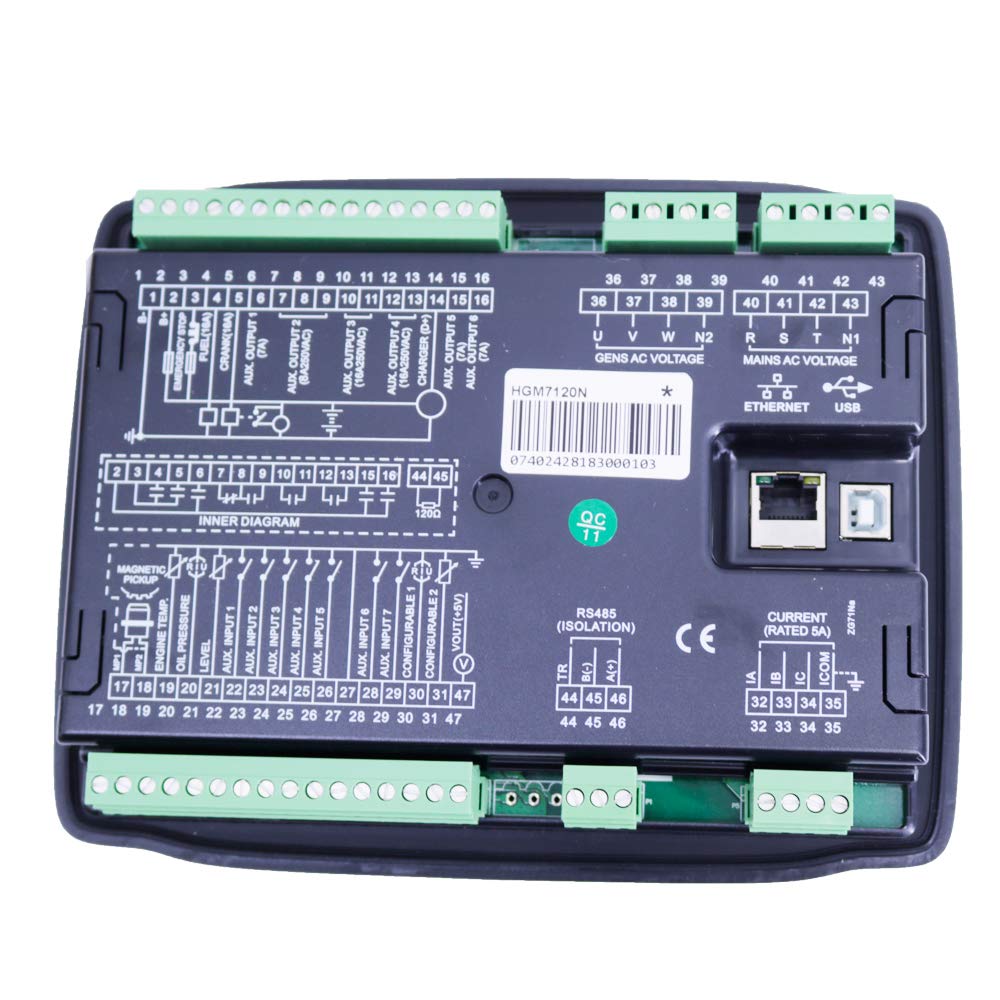

model number: HGM7120N
Part Number: HGM7120N
Details: Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.
Function Item Parameter
Display:LCD(132*64)
Operation:PanelSilicon Rubber
Language:Chinese & English & Others
Digital Input:7
Relay Output:8
Analogue Input:5
AC System:1P2W/2P3W/3P3W/3P4W
Alternator Voltage:(15～360)V(ph-N)
Alternator Frequency:50/60Hz
kW/Amp Detecting & Display:●
Monitor Interface:RS485/USB/Ethernet interface
Programmable Interface:RS485/USB/Ethernet interface
RTC & Event Log:●
Scheduled Start Genset:●
Maintenance:●
ULP:●
DC Supply:DC(8～35)V
Case Dimensions(mm):209*166*45
Panel Cutout(mm):186*141
Operating Temp:(-25~+70)℃
