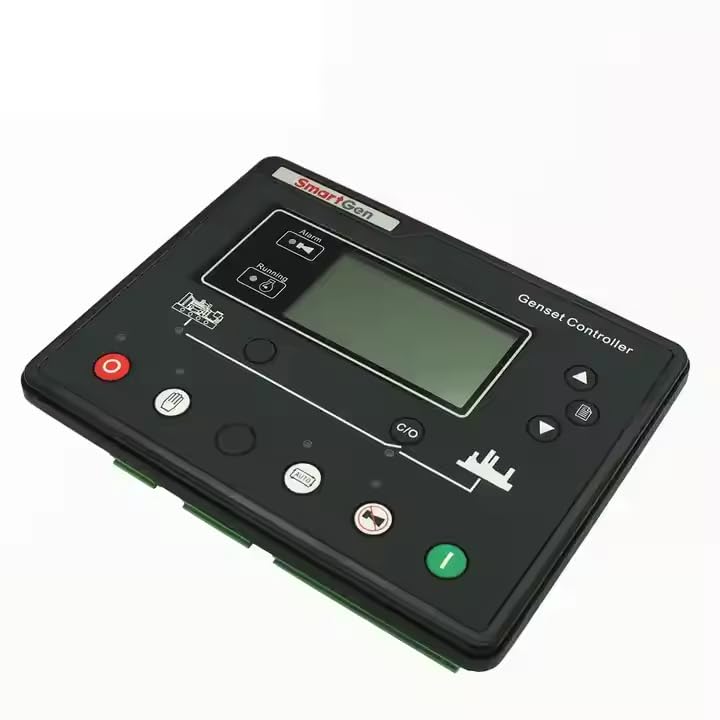

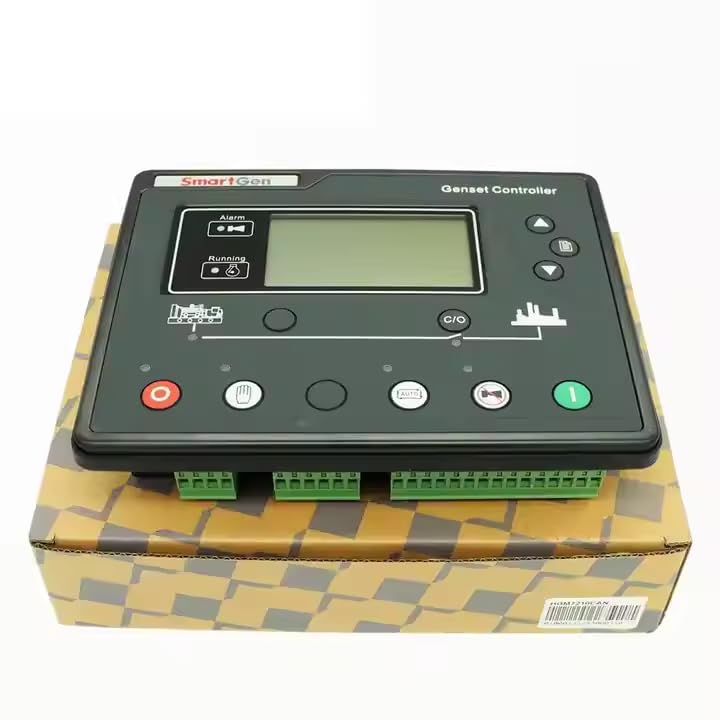

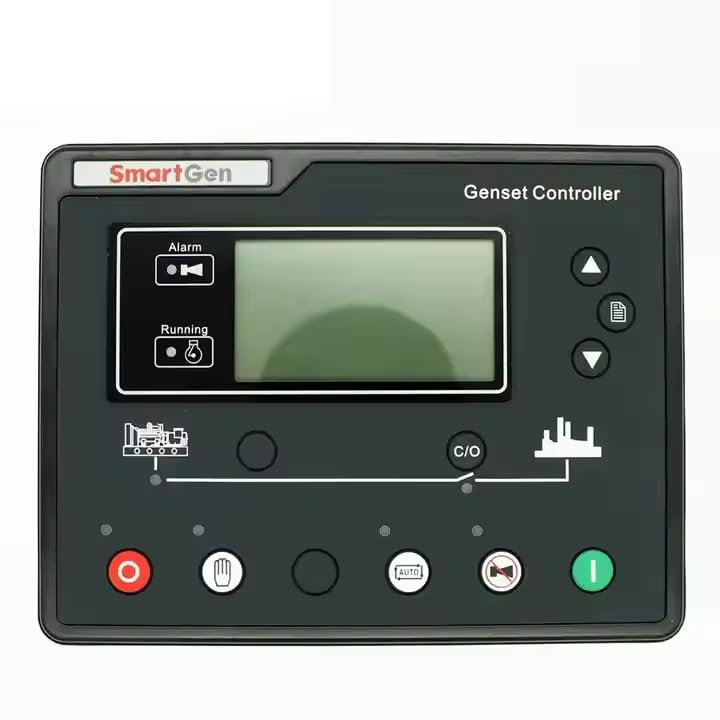

Smartgen HGM7210CAN EFI Controller Set Automatic Start/Stop Genset Monitor Controller Remote Generator Controller Module with USB/RS485

Brand: Graigar

Color: Black

Features:

• With ARM-based 32-bit SCM, highly integrated hardware, new reliability level; 132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel; Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
• Silicon panel and pushbuttons for better operation in high-temperature environment; RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol (controller with RS485 port only); Equipped with SMS (Short Message Service) function. When genset is alarming, controller can send short messages via SMS automatically to max. 5 telephone numbers. besides, generator status can be controlled and checked using SMS (controller with GSM port only);
• Equipped with CANBUS port and can communicate with J1939 genset. Not only can you monitoring frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown, speed raise and speed drop via CANBUS port (controller with CAN Bus port only);
• Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
• Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.

model number: HGM7210CAN

Part Number: HGM7210CAN

EAN: 0707457581310
