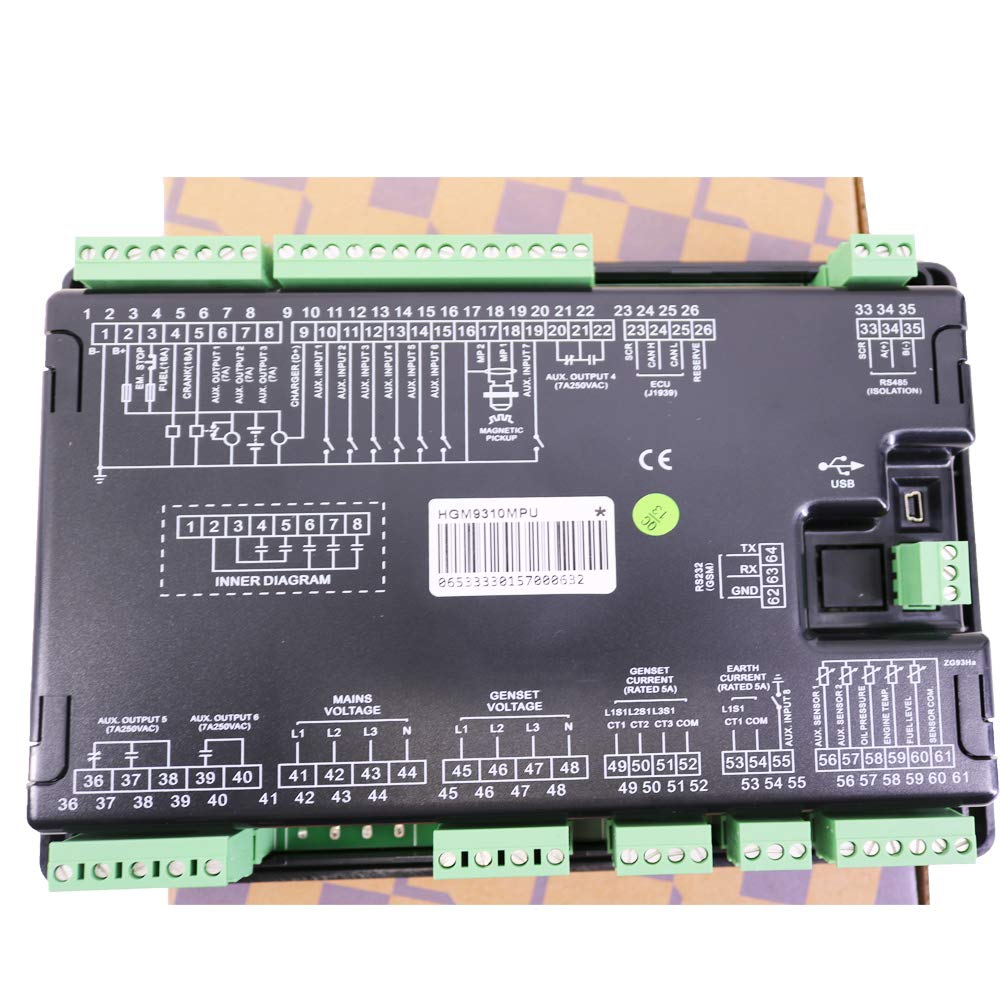

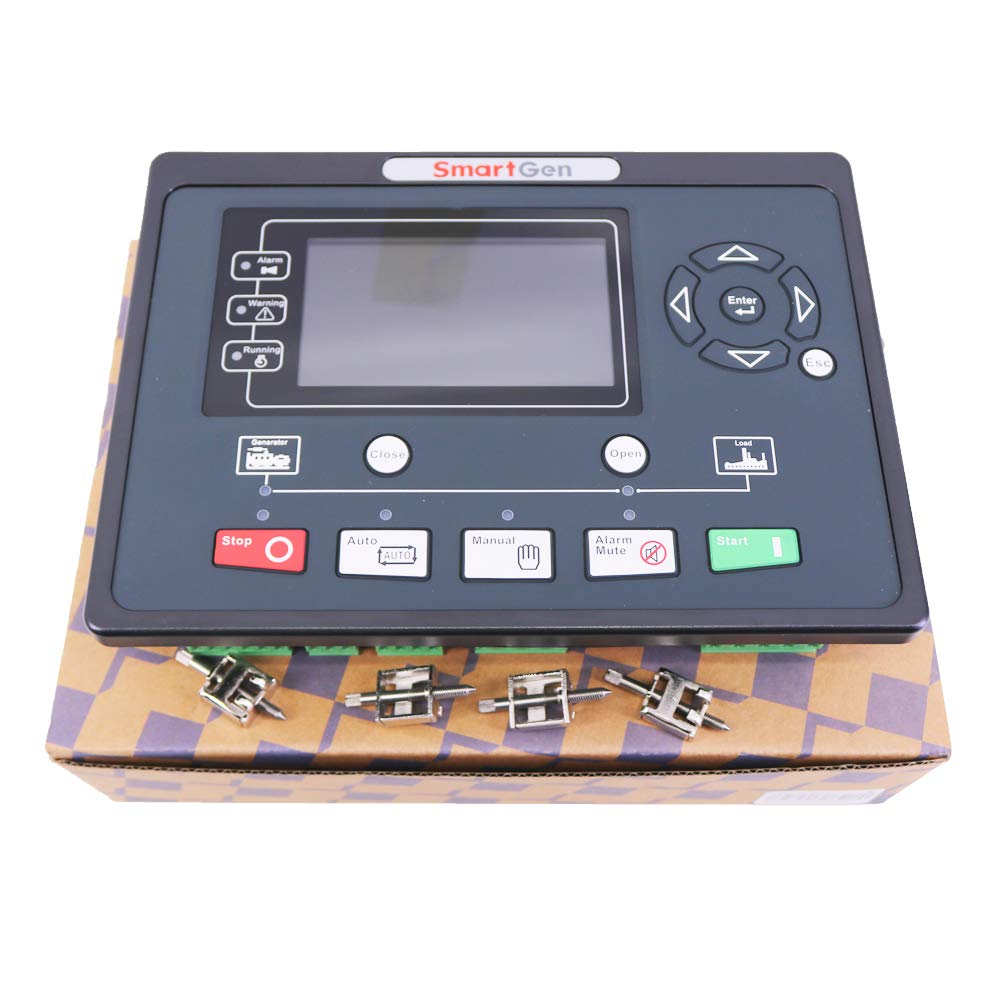

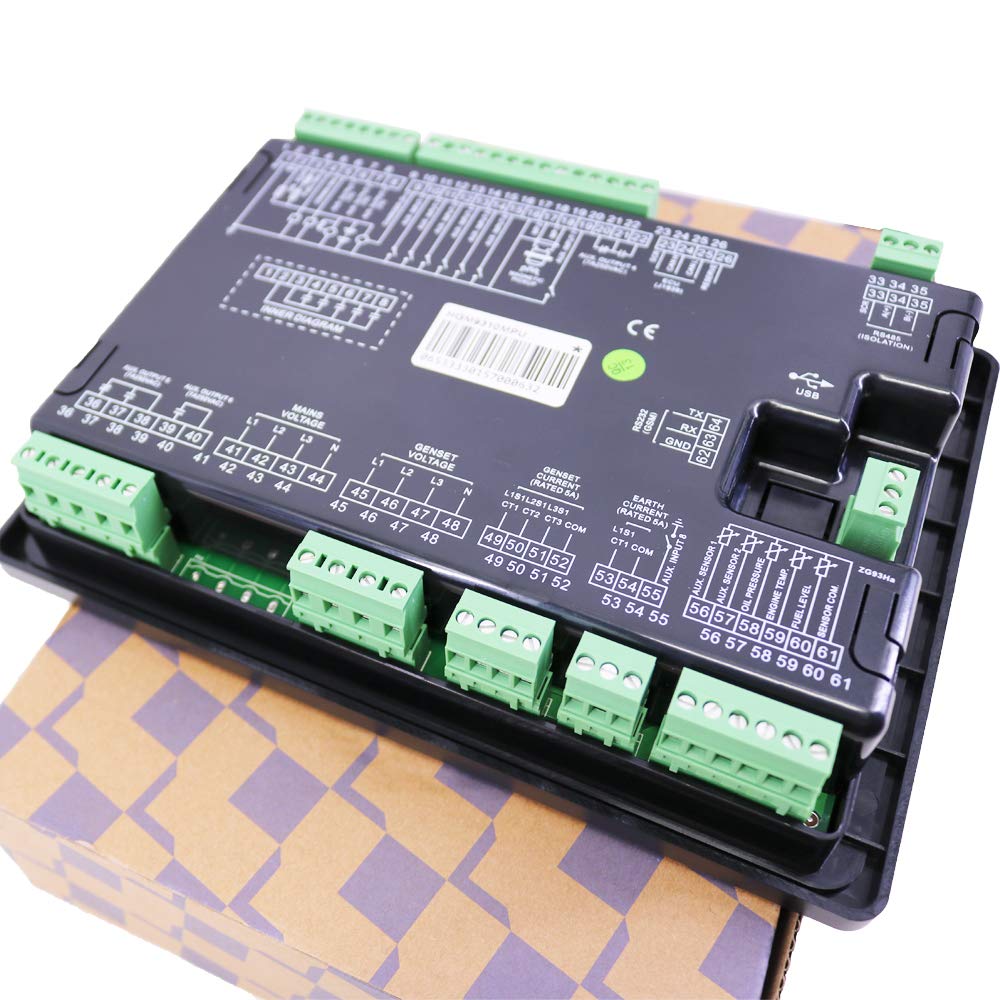

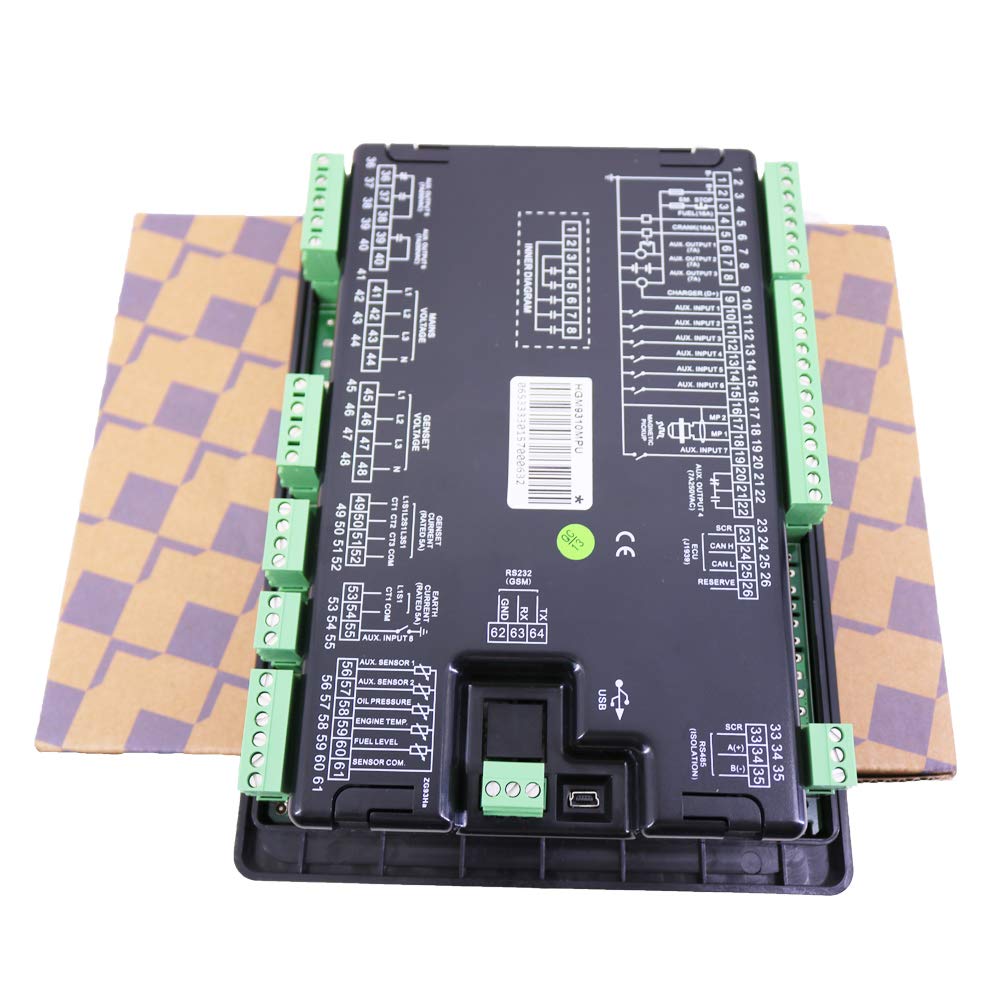

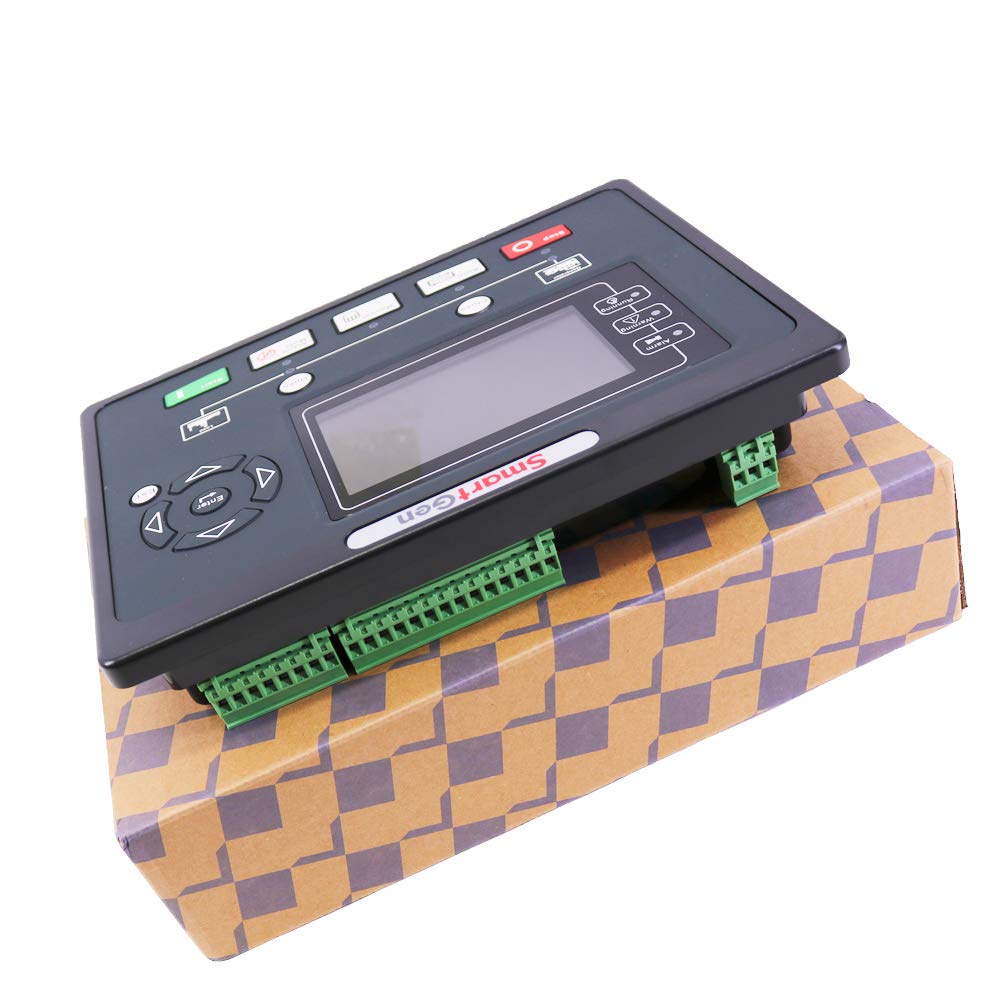

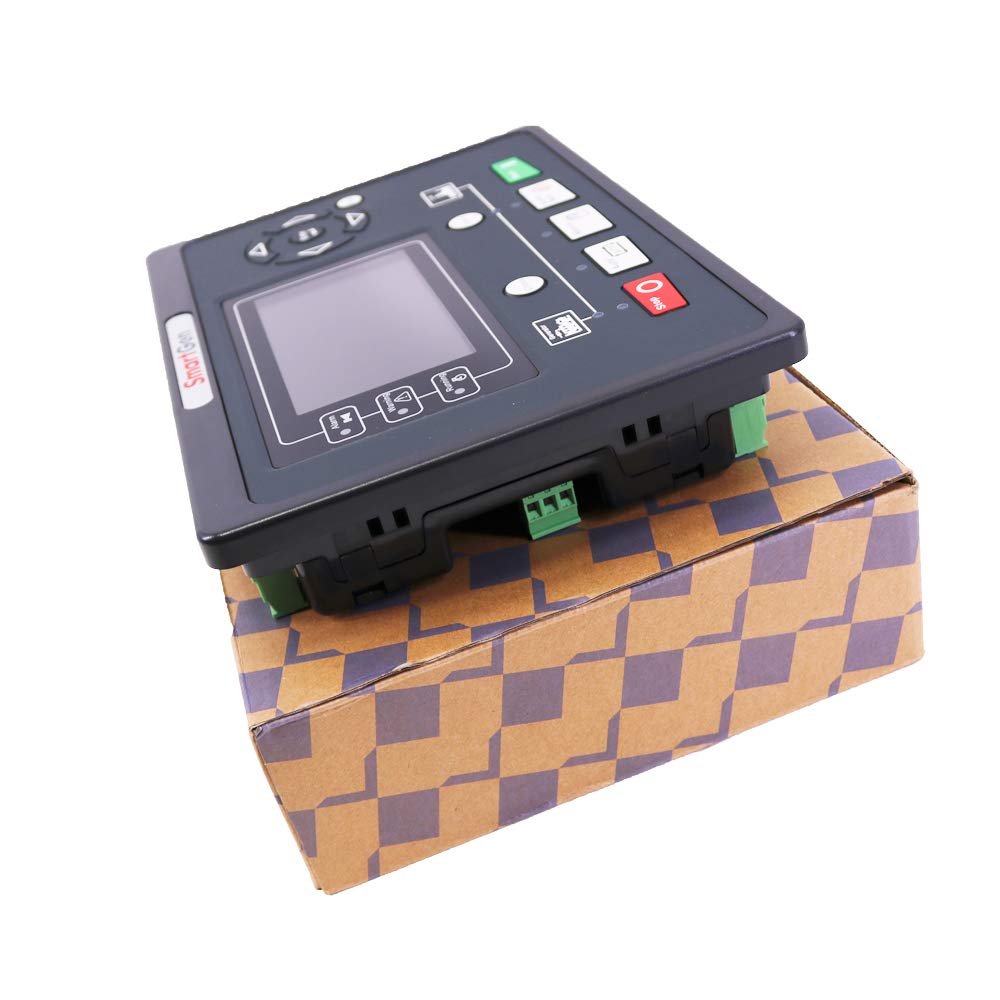

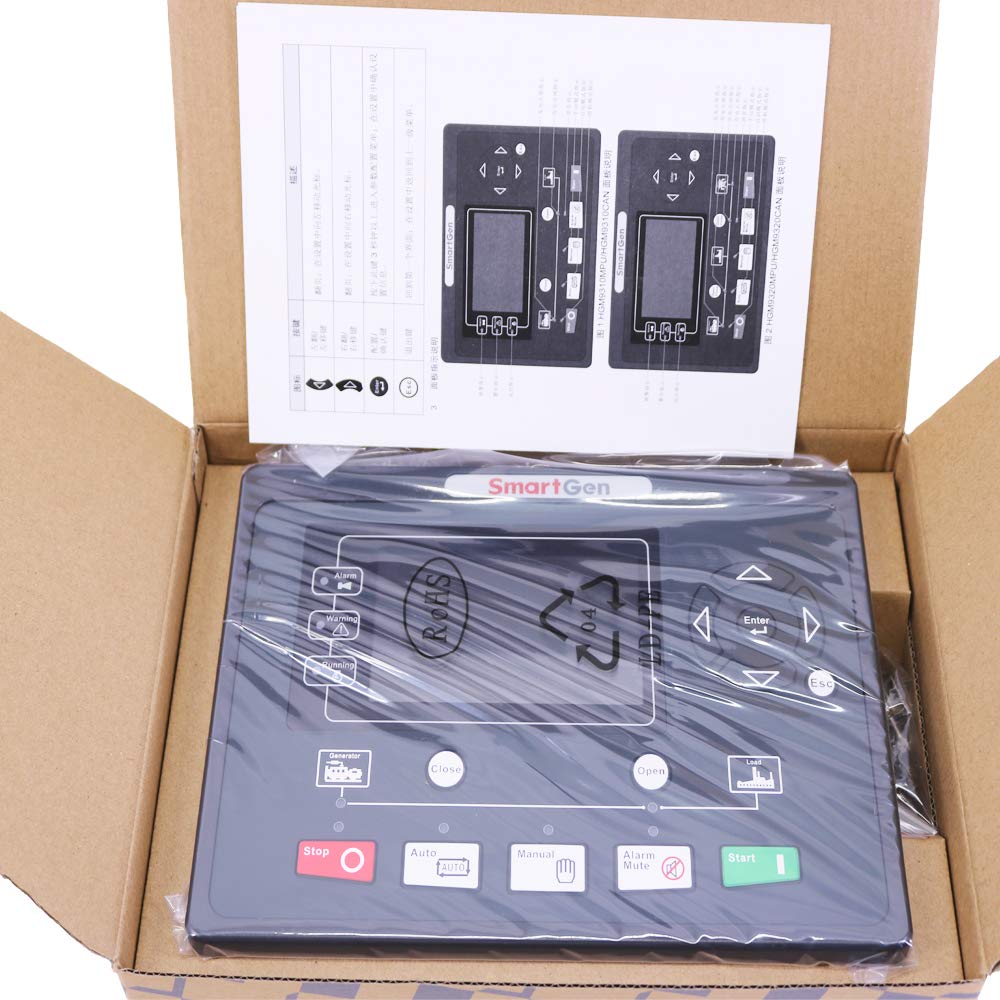

Smartgen HGM9310MPU Genset Controller Generator Controller Auto Start/Stop Control Module

Brand: Graigar

Features:

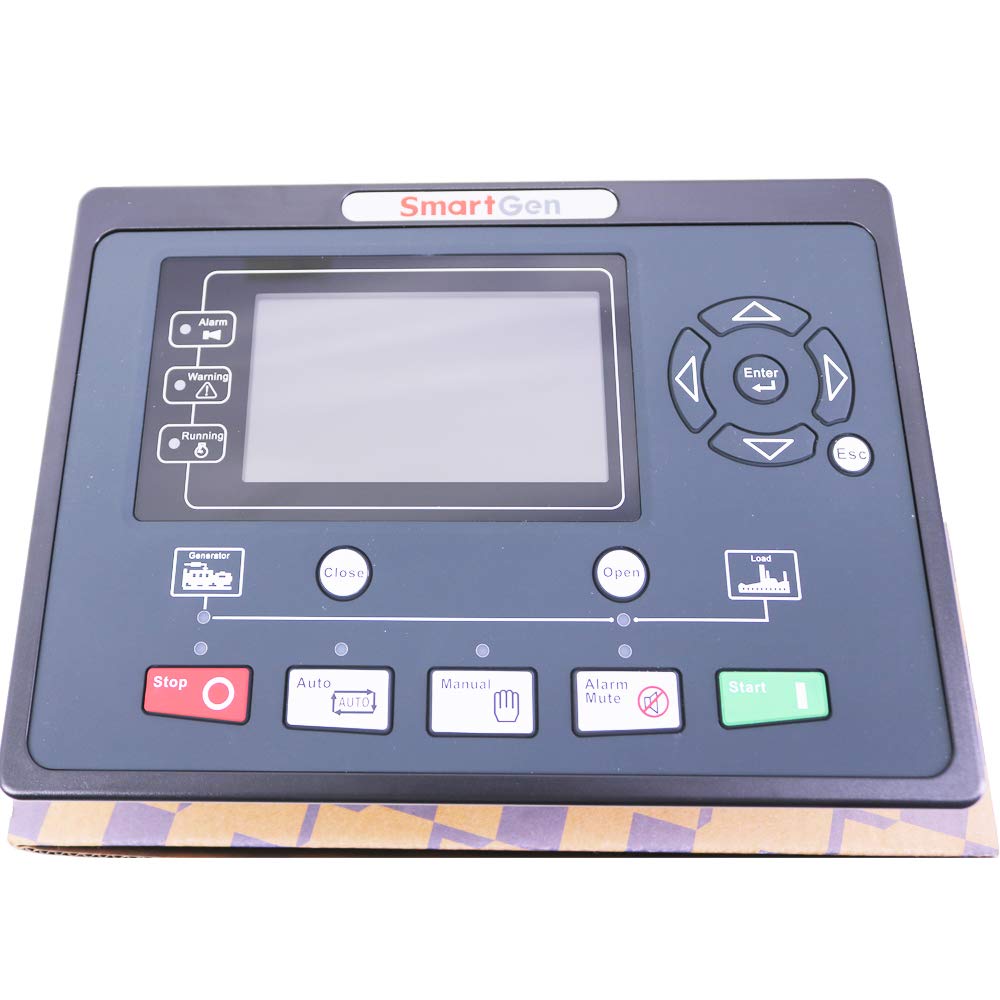

• 480x272 TFT LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
• RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol (RS485 communication port is needed);
• Equipped with SMS (Short Message Service) function. When genset is alarming, controller can send short messages via SMS automatically to max. 5 telephone numbers. besides, generator status can be controlled and checked using SMS(GSM port is needed);
• Parameter setting: parameters can be modified and stored in internal FLASH memory and cannot be lost even in case of power outage; most of them can be adjusted using front panel of the controller and all of them can be modified using PC via USB or RS485 ports.
• Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;

Part Number: HGM9310MPU

Details: Key characteristics

With ARM-based 32-bit SCM, highly integrated hardware, new reliability level.

Silicon panel and pushbuttons for better operation in high-temperature environment;

Equipped with CANBUS port and can communicate with J1939 genset. Not only can you monitoring frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control start, stop, raising speed and speed droop via CANBUS port(CAN BUS port is needed).

Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.;

3 fixed analog sensors (temperature, oil pressure and fuel level);

2 flexible sensors can be set as temperature sensor, oil pressure sensor or level sensor;

Precision measure and display parameters about Engine,

Protection: automatic start/stop of the genset, ATS(Auto Transfer Switch) control with perfect failure indication and protection function;

All output ports are relay-out;

More kinds of curves of temperature, oil pressure, fuel level can be used directly and users can define the sensor curves by themselves;

Multiple crank disconnect conditions (generator frequency, speed sensor, oil pressure) are optional;

Widely power supply range DC(8~35)V, suitable to different start battery voltage environment;

Event log, real-time clock, scheduled start & stop generator (can be set as start genset once a day/week/month whether with load or not);

PLC (programmable logic control) function allows for specific function can be user-defined.

Logon wallpaper and display time are user-defined.

Can be used on pumping units and as an indicating instrument (indicate and alarm are enable only, relay is inhibited);

EAN: 0761272050703
