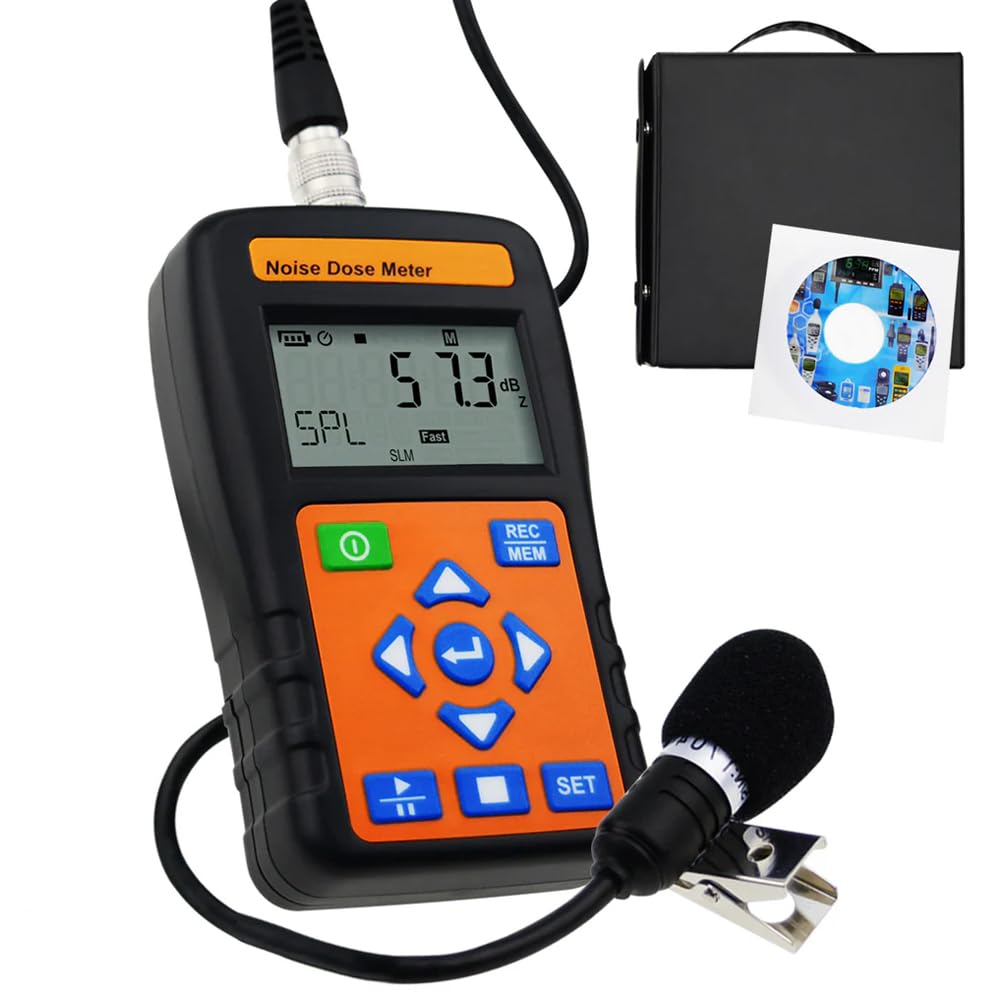

Tenmars ST-130 Noise Dose Meter Sound Level Meter with Data Logger Measurement Range 30dB to 140dB (A)

Brand: Graigar

Color: \

Features:

• Data logger up to 1,000,000 readings sampling times between 1sec and 24hr
• Stores up to 10,000 dose meter survey results
• Data includes start/stop time, %Dose, TWA8,LEP,8h,Leq,SEL,LN%, SPLMAX, SPLmin, peakMAX when used in the Dose meter mode
• In sound level mode, meter displays sound level, time-averaged sound level(Leq), peakMAX, and sound exposure level (SEL)
• Fast and easy on-site surveys help determine noise reduction requirements.The meter can also be used in SLM(sound level meter)mode.

model number: ST130

Part Number: ST-130

Details: Application
The SLM mode has a datalogging feature that can record up to 1000K readings which can be downloand to PC for analysis.
The built-in USB interface to connect PC.
Evaluation of environmental noise, Measurements of noise at workplaces, Assessment of product noise.
Features
Perform OSHA and IEC noise accumulation surveys
Six built-in standard dose measurement setups:OSHA,MSHA,DOD,ACGIH,ISO85,ISO90
One user-defined measurement setup
Adjustable criterion level, exchange rate, and threshold
USB interface with Windows XP /Vista /7/8/10
Specifications
Display:999999 count LCD
Display Refresh Rate:1 Time/sec
Standards:IEC 61252-1993/IEC 61672-1-2002/ANSI S1,25-1992/ANSI S1,4-1983/ANSI S1,43-1997
Microphone:½ inch Electret condenser microphone
Measurement Items(NDM):Does%,Lxyp,Lxmax,Lxmin,Lxeq,
SEL(LAE),Peak,LAVG,TWA,LEP,LN%
Measurement Items(SLM):Lxyp,Lxeq,SEL(LAE),Peak
Measurement Range:30dB to 140dB (A)/35dB to 140dB (C)/40dB to 140dB (Z)
Dynamic Range:60 dB
Accuracy:±1.5dB@94dB 1KHZ
Internal memory:MAX Datalogger data:10000(NDM);1000000(SLM)
Maximum Peak C Weighting Sound Level Measurement:90~143 dB
Time Weighting:Fast, Slow, Impulse, Peak
Frequency Weighting:A/C/Z
Frequency Range:20Hz~8KHz
Starting Time:＜10 Second
Dimension:113x65x34mm (LxWxH)
Weight:about 104g

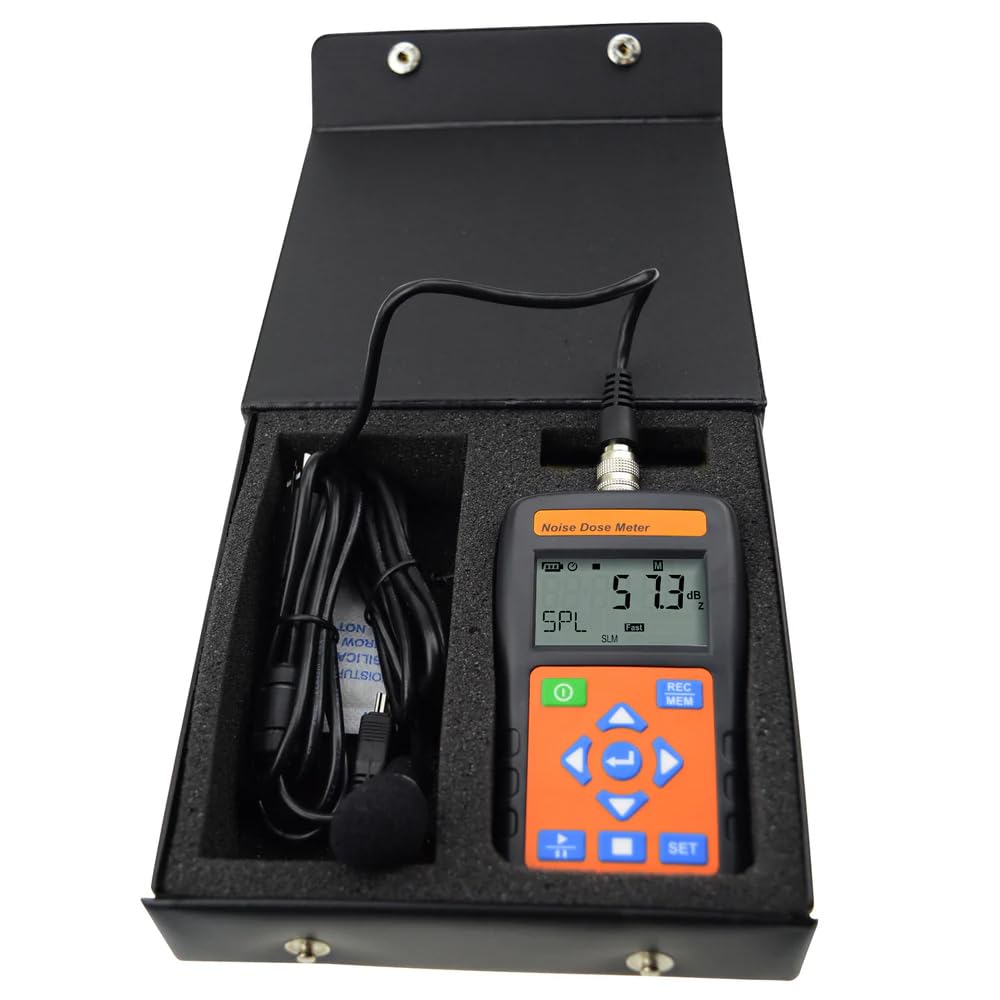

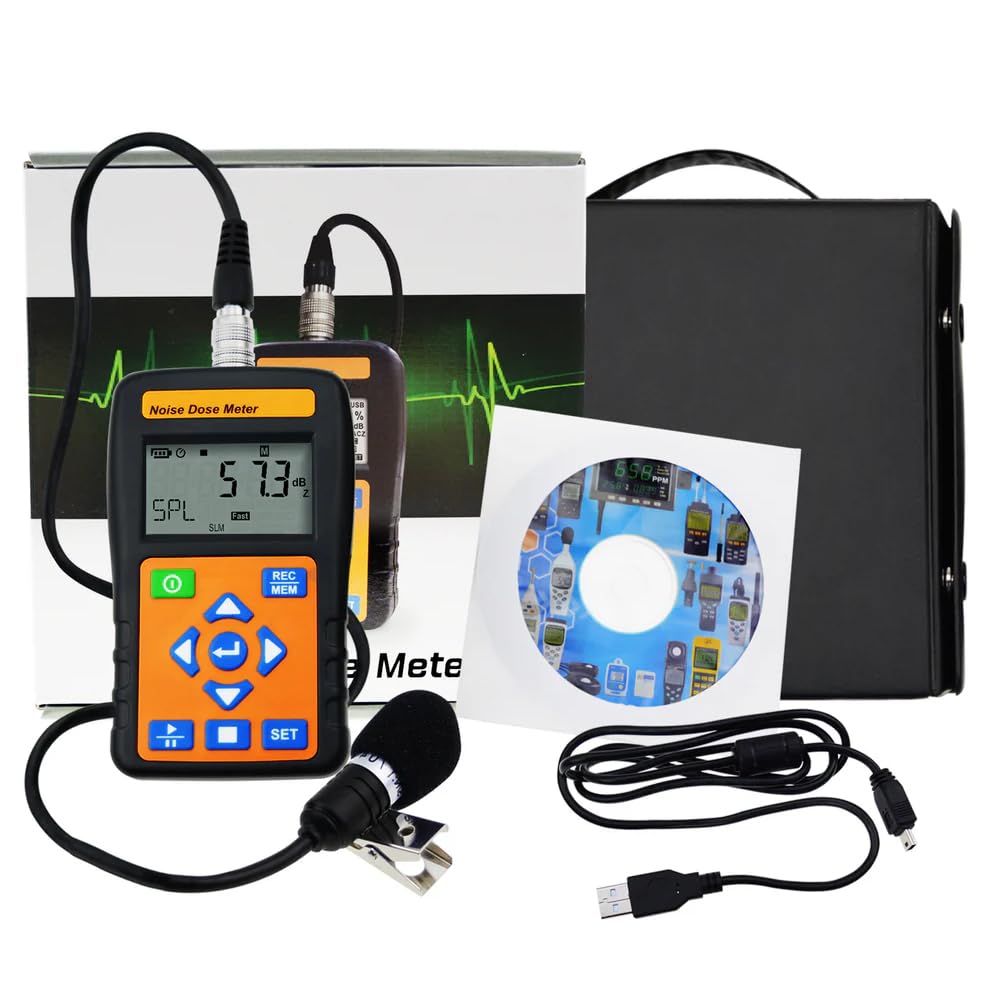

Accessories
User’s Manual
Carrying case
Diameter windscreen
Setup CD-Disk
MINI USB Cable(Mini B type)

EAN: 0707457451668
