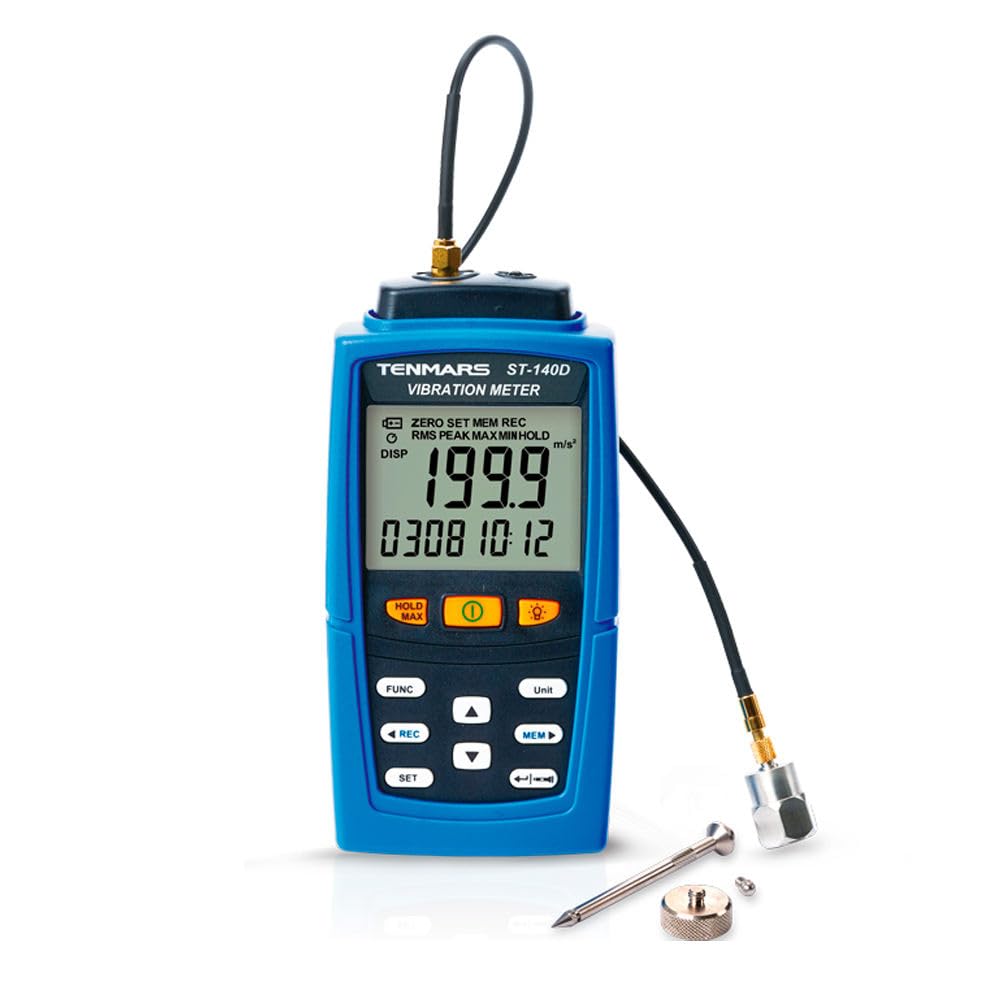

Tenmars ST-140D Digital Vibration Tester Vibration Meter Vibrometer Range 0.5~199.9 m/S2

Tenmars ST-140D Digital Vibration Tester Vibration Meter Vibrometer Range 0.5~199.9 m/S2

$845.00 USD
$845.00 USD
促销 售罄

Tenmars ST-140D Vibration Meter Vibrator 10Hz-1KHz with USB Interface



Application

This meter measures the vibrations of the rotating and reciprocating machines, as well as bearing damage, measurement items are acceleration, speed, displacement,  which can check if the machine is to be repaired or upgrade.


Features

  • The maximum display of the LCD is 1999.
  • Measurement item: VEL (velocity) / ACC (acceleration) / DISP (displacement).
  • Function: Acceleration (RMS, PEAK, MAX HOLD, HOLD).
    Velocity (RMS, PEAK, MAX HOLD, HOLD).
    Displacement (P-P, MAX HOLD P-P, HOLD).
  • Unit: Acceleration: m/s², g, ft/s². Velocity: mm/s, cm/s, inch/s. Displacement: mm, inch.
  • Vibration sensor with magnetic adapter on1.2M (47.2) cable
  • Frequency Lo range :10Hz~1KHz meets ISO 2954 measurement
                      Hi range : 10Hz~5KHz
  • Overload display: “OL”.
  • Offset adjustment used for zero function
  • Auto power (15 minutes) and disable auto power off.
  • Resolution:0.1m/s²,0.01g,1ft/s²,0.1mm/s,0.01cm/s,0.01inch/s,0.001mm,0.001inch
  • High sensitivity probe head for accurate measurement.
  • Provides long and short probe head.
  • Frequency LO range: 10Hz-1KHz
  • Stores 99records manually.(ST-140)
  • Data logger with 9999 records capacity.(ST-140D)
  • USB interface.(ST-140D)

Specifications

  • Dimensions:156x73x35mm(length x width x height).
  • Weight: Approximately 400 grams.(inchluding holster and accelerometer)
Electrical Specifications
Accurate environmental conditions are: 23°C ± 3°C and RH <80%
Acceleration (RMS,PEAK,MAX HOLD)    1g=9.81m/S²
 Range
0.5-199.9 m/S²
0.05-20.39g
2-656 ft/S²
 Resolution
0.1 m/s²
0.01g
1 ft/S²
 Accuracy
±(5%+5d)
@79.4Hz
and 158Hz
±(5%+5d)
@79.4Hz
and 158Hz
±(5%+5d)
@79.4Hz
and 158Hz
 Calibration point
50m/S²
(158Hz)
50m/S²
(158Hz)
50m/S²
(158Hz)
Velocity VEL (RMS, PEAK, MAX HOLD)
 Range
0.5-199.9mm/s
0.05-19.99
cm/s
0.02-7.87
inch/s
 Resolution
0.1 mm/s
0.01cm/s
0.01
inch/s
 Accuracy
± (5%+5d)
@79.4Hz and 158Hz
± (5%+5d)
@79.4Hz and 158Hz
± (5%+5d)
@79.4Hz and 158Hz
 Calibration point
50m/s
(158Hz)
50m/s
(158Hz)
50m/s
(158Hz)
Displacement DISP (P-P, MAX HOLD P-P)
Unit
mm
inch
 Range
0.005-1.999 mm
0.002-0.078 inch
 Resolution
0.001 mm
0.001 inch
 Degree of error
± (5%+5d)@79.4Hz
and158Hz
± (5%+5d)@79.4Hz
and158Hz
 Calibration   point
0.141mm
(158Hz)
0.141mm
(158Hz)



Accessories

  • User manual
  • Accelerometer
  • Low noise cable
  • Magnetic base
  • 1.5V UM4/AAA battery
  • Carrying case
  • 9V AC to DC adaptor
  • USB cable and Installation disk (ST-140D)
  • Handheld probe + round probe + pointed probe

Brand: Graigar

Color: Blue

model number: ST-140D

Details: Range0.5-199.9 m/S²0.05-20.39g2-656 ft/S²
Resolution0.1 m/s²0.01g1 ft/S²
Accuracy±(5%+5d)@79.4Hzand 158Hz±(5%+5d)@79.4Hzand 158Hz±(5%+5d)@79.4Hzand 158Hz
Calibration point50m/S² (158Hz)50m/S²(158Hz)50m/S²(158Hz)
Velocity VEL (RMS, PEAK, MAX HOLD)
Range0.5~199.9mm/s0.05~19.99cm/s0.02~7.87inch/s
Resolution0.1 mm/s0.01cm/s0.01inch/s
Accuracy± (5%+5d)@79.4Hz and 158Hz± (5%+5d)@79.4Hz and 158Hz± (5%+5d)@79.4Hz and 158Hz
Calibration point50m/s(158Hz)50m/s(158Hz)50m/s(158Hz)
Displacement DISP (P-P, MAX HOLD P-P)
Unitmminch
Range0.005~1.999 mm0.002~0.078 inch
Resolution0.001 mm0.001 inch
Degree of error± (5%+5d)@79.4Hzand158Hz± (5%+5d)@79.4Hzand158Hz
Calibration point0.141mm(158Hz)0.141mm(158Hz)
