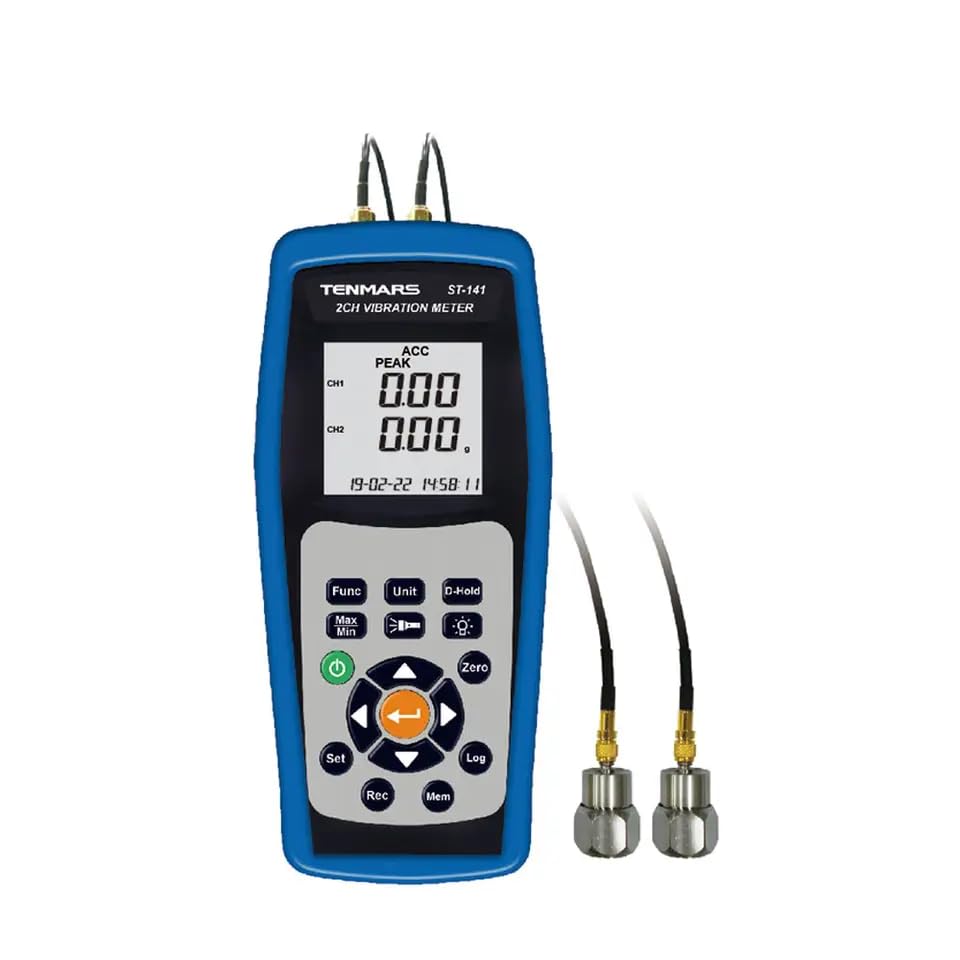

Tenmars ST-141 Dual Channel Vibration Meter Tester Digital Vibrometer Velocity Range 0.5~199.9mm/s

Tenmars ST-141/ST-141D Dual Channel Vibration Meter Vibrator 0.5-199.9 m/S² 10hz-5khz

Application

This meter measures the vibrations of the rotating and reciprocating machines, as well as bearing damage, measurement items are acceleration, speed, displacement,  which can check if the machine is to be repaired or upgrade.

Features

The maximum dots of liquid crystal display (LCD): 1999.

Measurement items: VEL (velocity), /ACC (acceleration), /DISP (displacement)

Function: acceleration (RMS, PEAK, MAX,MIN, HOLD) .
                velocity (RMS, PEAK, MAX, MIN, HOLD).
                displacement (P-P, MAX, MIN, HOLD).
                Unit:acceleration: m/s², g, ft/s².velocity: mm/s, cm/s, inch/s.
                displacement: mm, inch.

Frequency characteristics:

LO range: 10hz ~ 1khz. meet the international standard ISO 2954-2012.
HI range: 10hz ~ 5khz.

Auto power off and disable auto power off.

Over load sign: “OL”

The manual recording can be saved up to 199 data files (ST-141),
or the manual recording plus automatic recording can be saved up to 15000 data files  (ST-141D).

USB interface.(ST-141D)

Specifications

Dimensions:240x100x45mm(length x width x height).

Weight: Approximately 730 grams.(inchluding holster and accelerometer)

Electrical Specifications
The environmental temperature range of measurement: 23±3°C

Accessories

User’s Manual

Accelerometer

Low noise cable

Magnetic base

Carrying case

9V AC to DC adaptor

USB cable and Installation disk (ST-141D)

Handheld probe + round probe + pointed probe

Brand: Graigar

model number: ST-141
