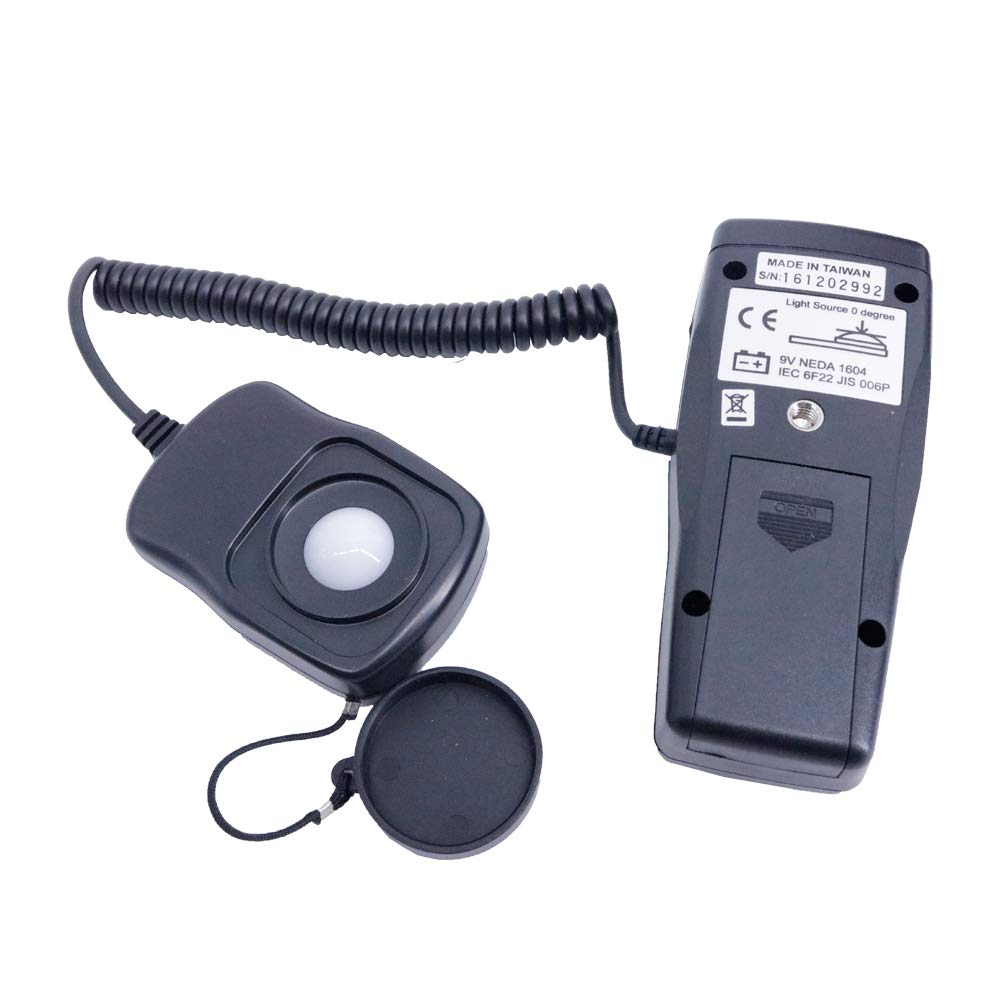

• According to JISC 1609 : 1993 and CNS 5119 general A class specifications • Spectral response close to CIE Luminous spectral efficiency • Measuring intensities of illumination in Lux or Foot-candle • Sensor : Silicon photo diode and filter • Cosine angular corrected • Data hold • 99 manual records
APPLICATION
Checking Multi-Color LED Light Intensity
SPECIFICATION
L0 - standard light source A
L1 - LED white day light
L2 - LED red light
L3 - LED amber (yellow) light
L4 - LED green light
L5 - LED blue light
L6 - LED purple light
L7 - L9 (default standard light source A)
Light Source Selecting
Tungsten/Daylight, Fluorescent, 0~9 select rating
Measuring range
40, 400, 4,000, 40,000, 400,000 Lux,
40, 400, 4,000, 40,000, Foot-candle
Accuracy
+/-3% (Calibrated to standard incandescent lamp 2856º K) and corrected LED day while-light spectrum.
