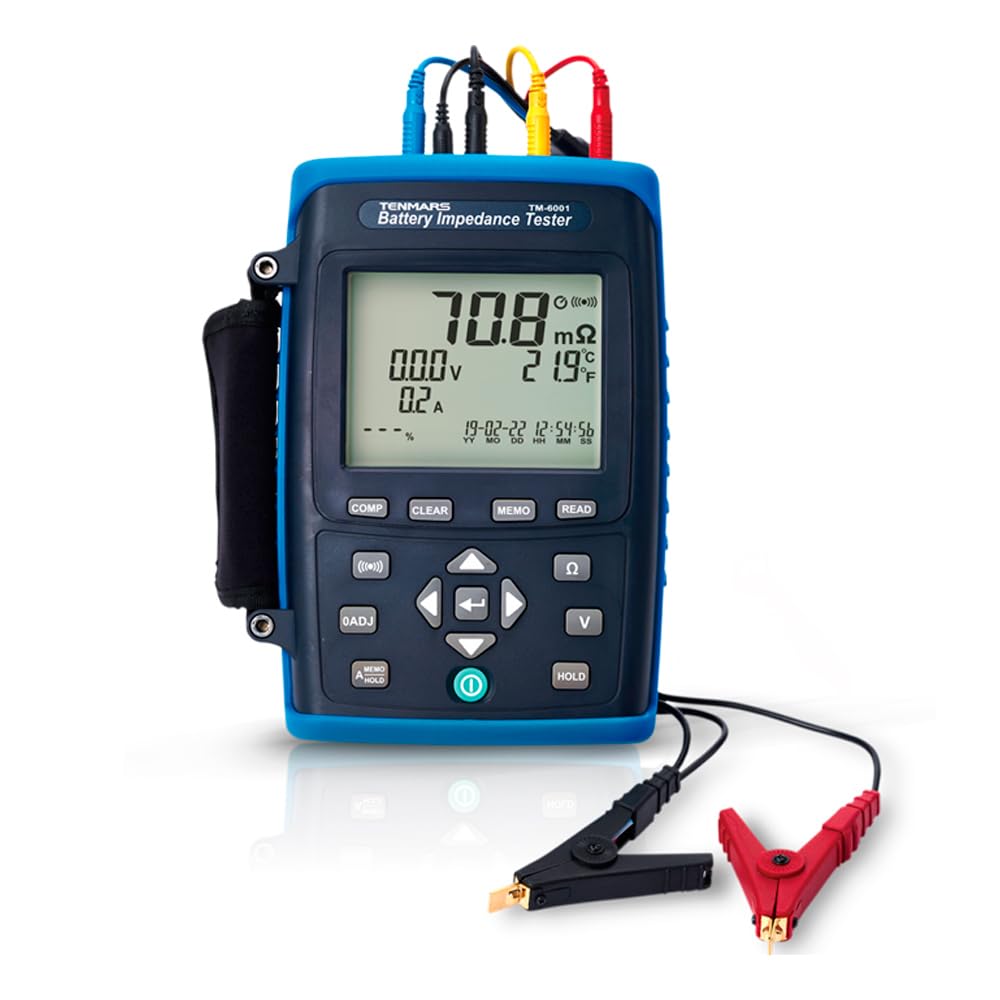

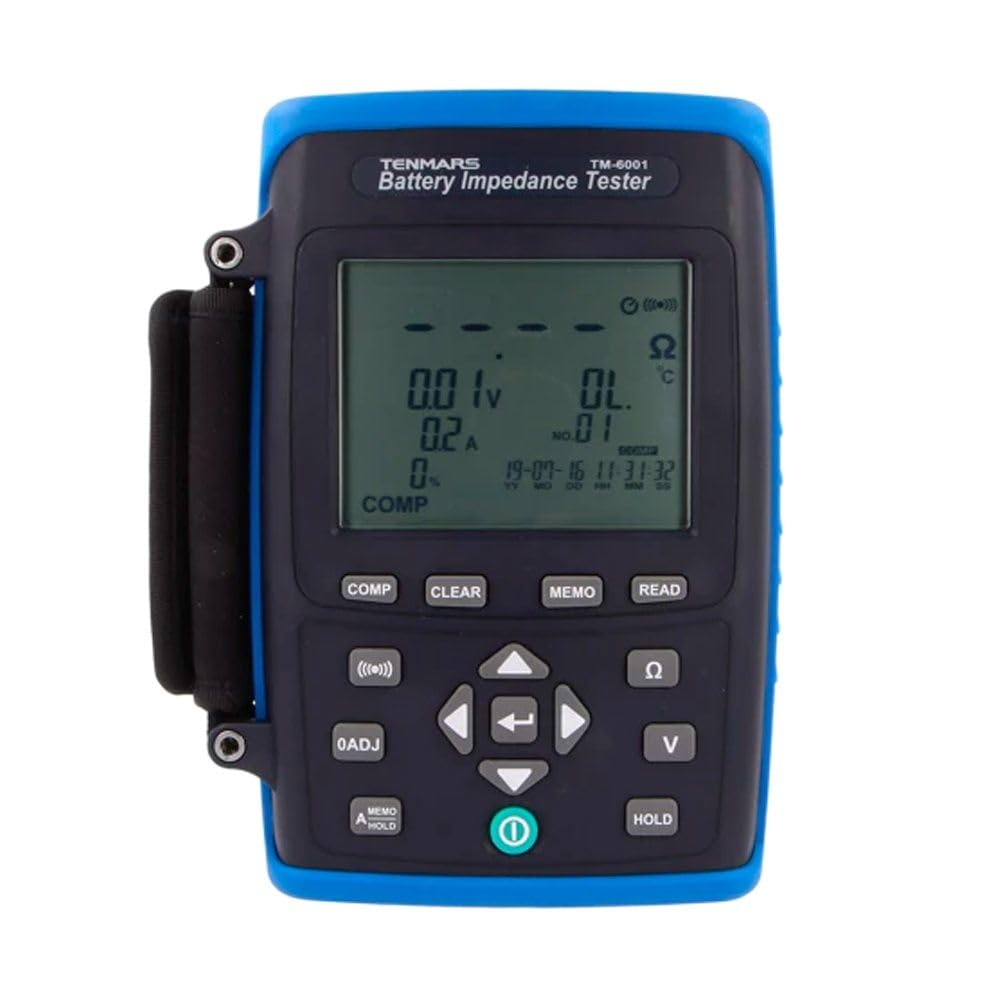

Tenmars TM-6001 Battery Impedance Meter Battery Tester Resistance Range 4mohm~400ohm
Tenmars TM-6001 Battery Impedance Meter Battery Tester Resistance Range 4mohm~400ohm
Couldn't load pickup availability
-TM-6001 is an ideal tester for automotive, UPS maintenance and telecommunication applications.
-Quick response time.
-Simultaneously display the results of battery Impedance,voltage measurements.
-Support the comparator function to rate the conditions as pass,warning or fail.
Specification
Measuring frequency :1KHz ±30Hz
- Resistance range: 4mΩ~400Ω (measuring frequency :1KHz±30Hz)
- Voltage range: 6.000V/60.00V
- Comparator: voltage, impedance
- K type thermocouple: -50°C~400°C
- Max. voltage measurement:60VDC (battery checker)
- Comparator :0~99 records. For battery internal impedance, voltage
- Support the comparator function to rate the conditions as PASS, WARNING or FAIL
- USB interface datalogger with 9999 records.

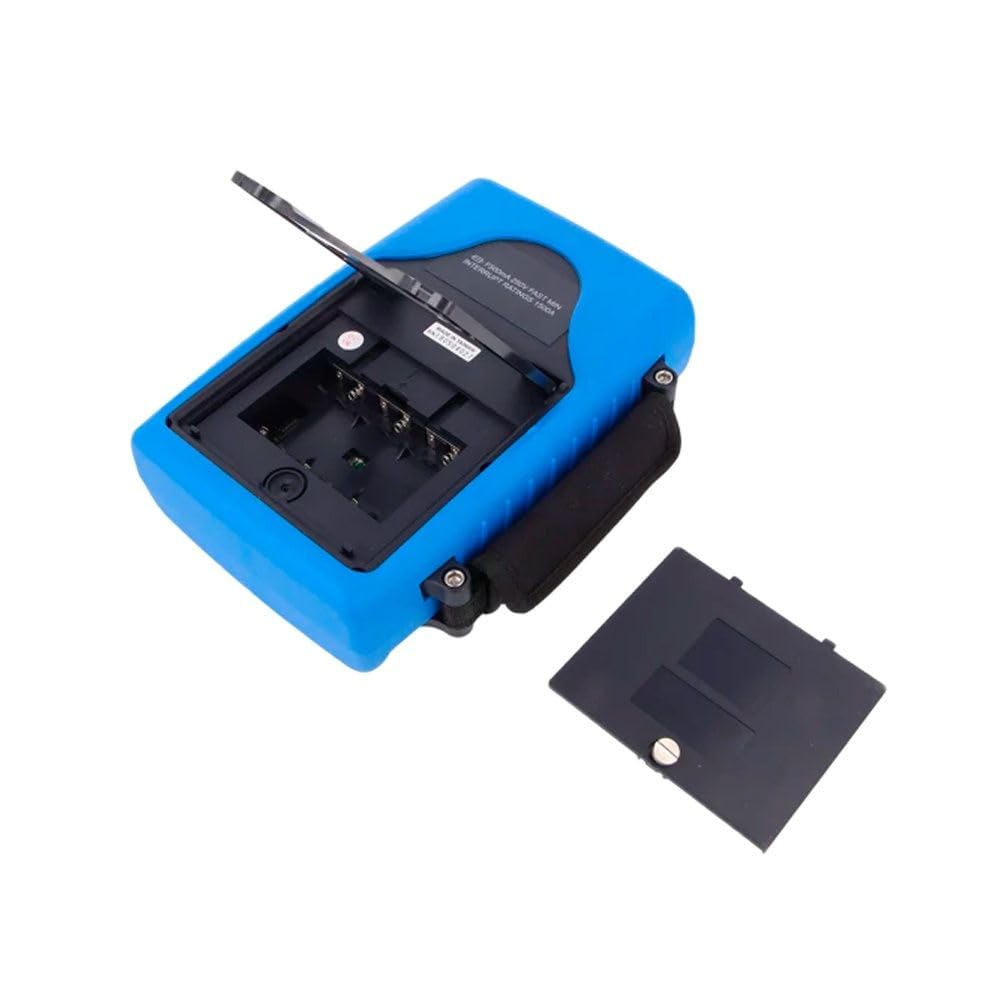

- Power supply: 1.5V AA alkaline battery x 6 pcs.
Impedance:
Impedance measurement’
Measuring frequency :1KHz ±30Hz
Resistance
|
Range |
4mΩ |
40mΩ |
400mΩ |
4Ω |
40Ω |
400Ω |
|
Resolution |
1µΩ |
10µΩ |
100µΩ |
1mΩ |
10mΩ |
100mΩ |
|
Current |
150mA |
50mA |
15mA |
1.5mA |
150µA |
|
|
Accuracy |
± (1% reading+20 dgt) |
± (0.8% reading+10 dgt) |
||||
Voltage
|
Range |
6.000V |
60.00V |
|
Resolution |
1mV |
10mV |
|
Accuracy |
± (0.1% reading+6 dgt) |
|
Temperature
|
Range (NTC) |
-20°C~60°C (-4°F~140°F) |
|
Resolution |
0.1°C / 0.1°F |
|
Accuracy |
±1°C / ±1.8°F |
|
Range (K Type) |
0.0°C~400°C (-32.0°F~752.0°F) |
|
Resolution |
0.1°C / 0.1°F |
|
Accuracy |
±2°C / ±3.6°F |
Accessories:
User’s manual

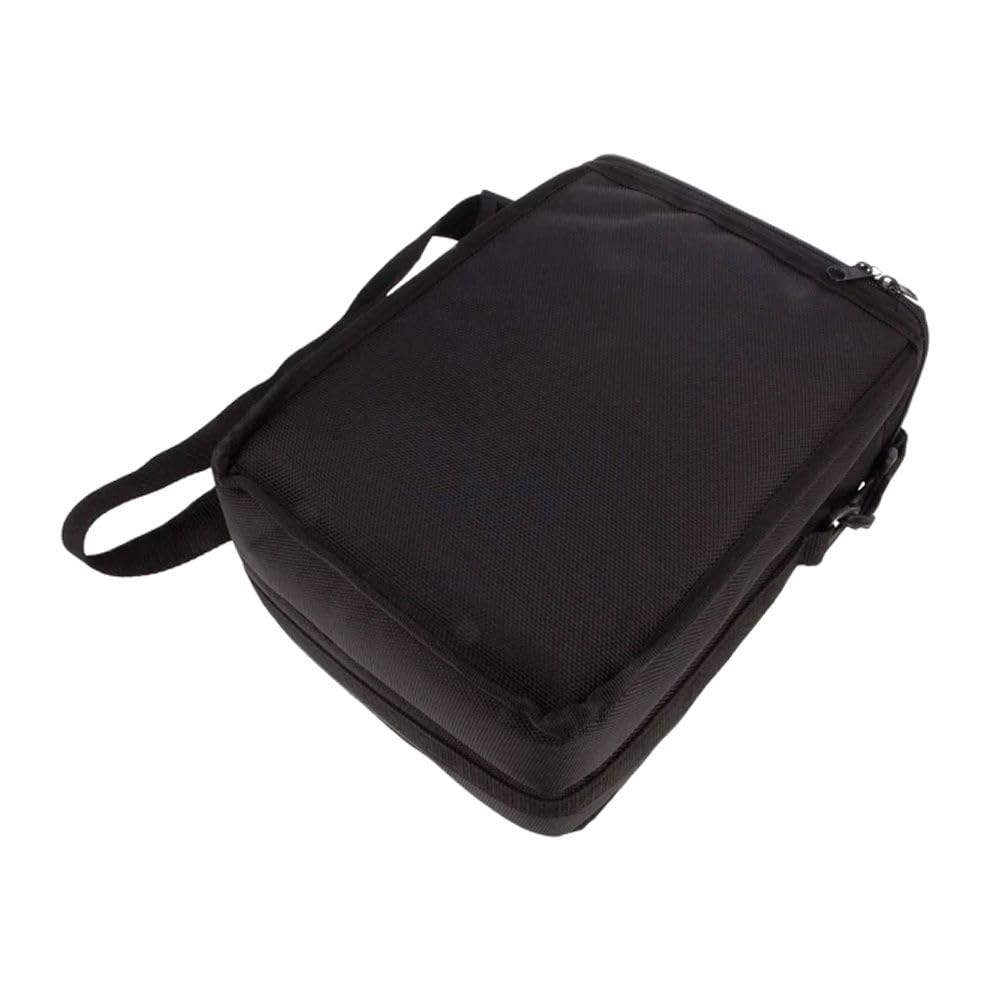

Carrying case
Clip type test leads set
Software CD
Adapter AC 100~240V to DC 9~12V/1A
USB cable
