Best for measuring : LEDs, Small lamps, Fiber illuminators.
model number: TES-133
Part Number: TES-133

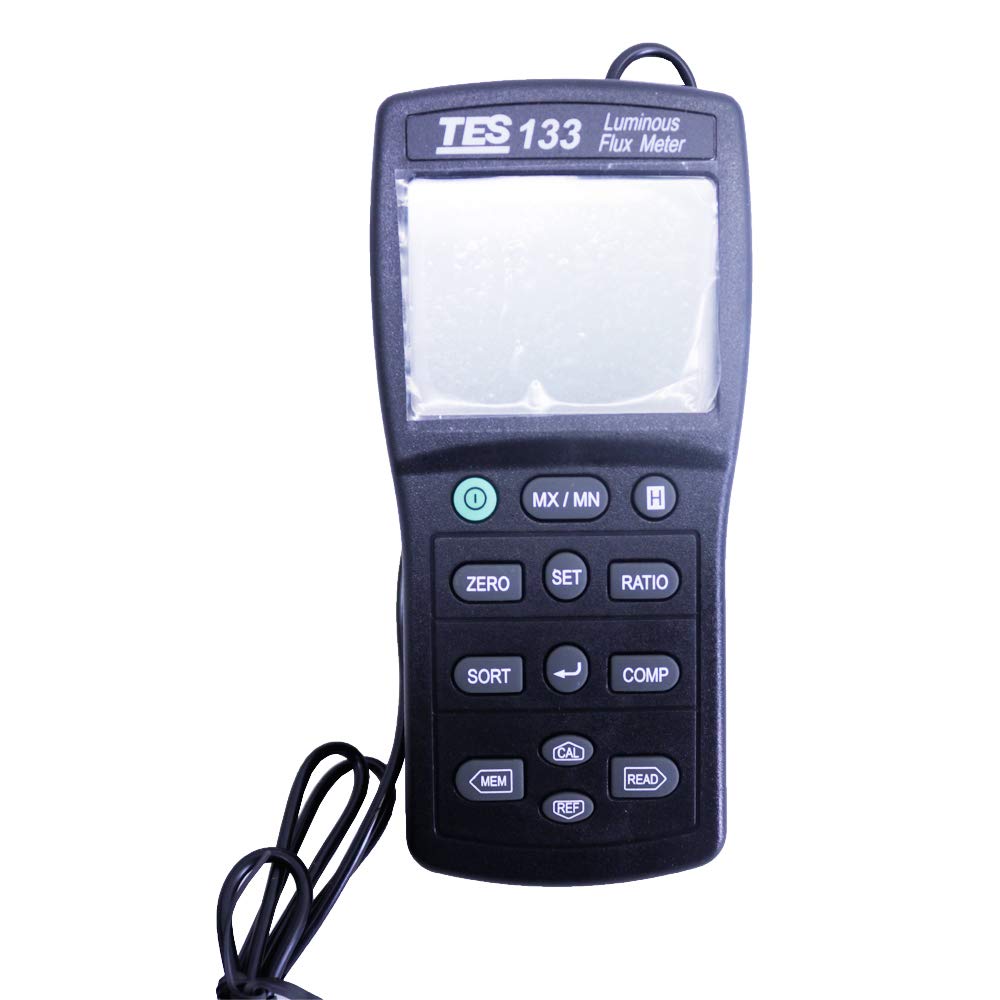

Details: 4-digit LCD reading.
Spectral Sensitivity close to CIE photopic Curve.
Auto ranging from 0.05 to 7000 lumens.
Accurate and Instant response.
Data Hold function.
Data memory and read function.
Zero function.
Ratio function.
Sort function.
Comparator function.
Best for measuring : LEDs, Small lamps, Fiber illuminators.
Auto power off function.
RS232 Interface.
Easy to use.

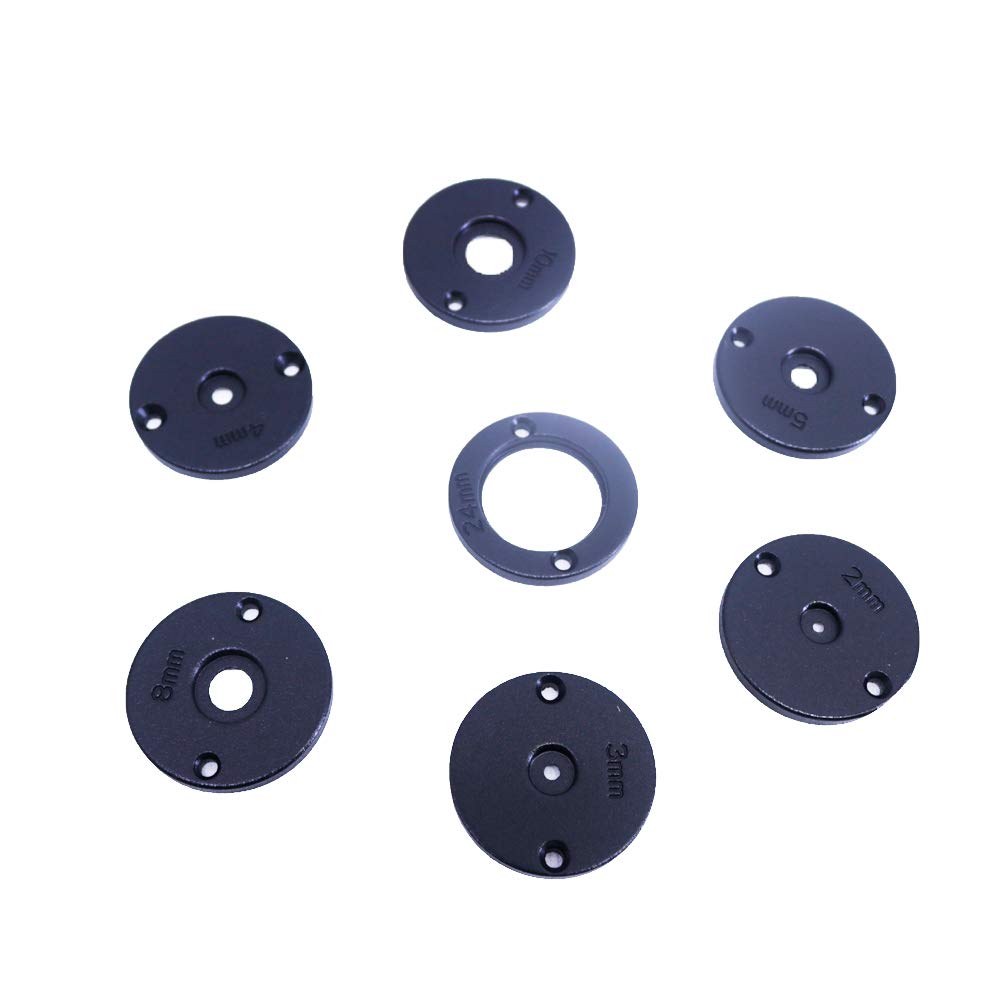

Adapters kit : 2/3/4/5/8/10m/m
Display：4 digit LCD read out
Measuring Range：9.999, 99.99, 999.9, 7000 lumens, Auto ranging (4 step)
Overrange Display：OL is displayed
Resolution：0.001 lumens
Accuracy：0.05 to 0.1 ±7%, 0.1 to 1000 ±1%, 1000 to 7000 ±3%

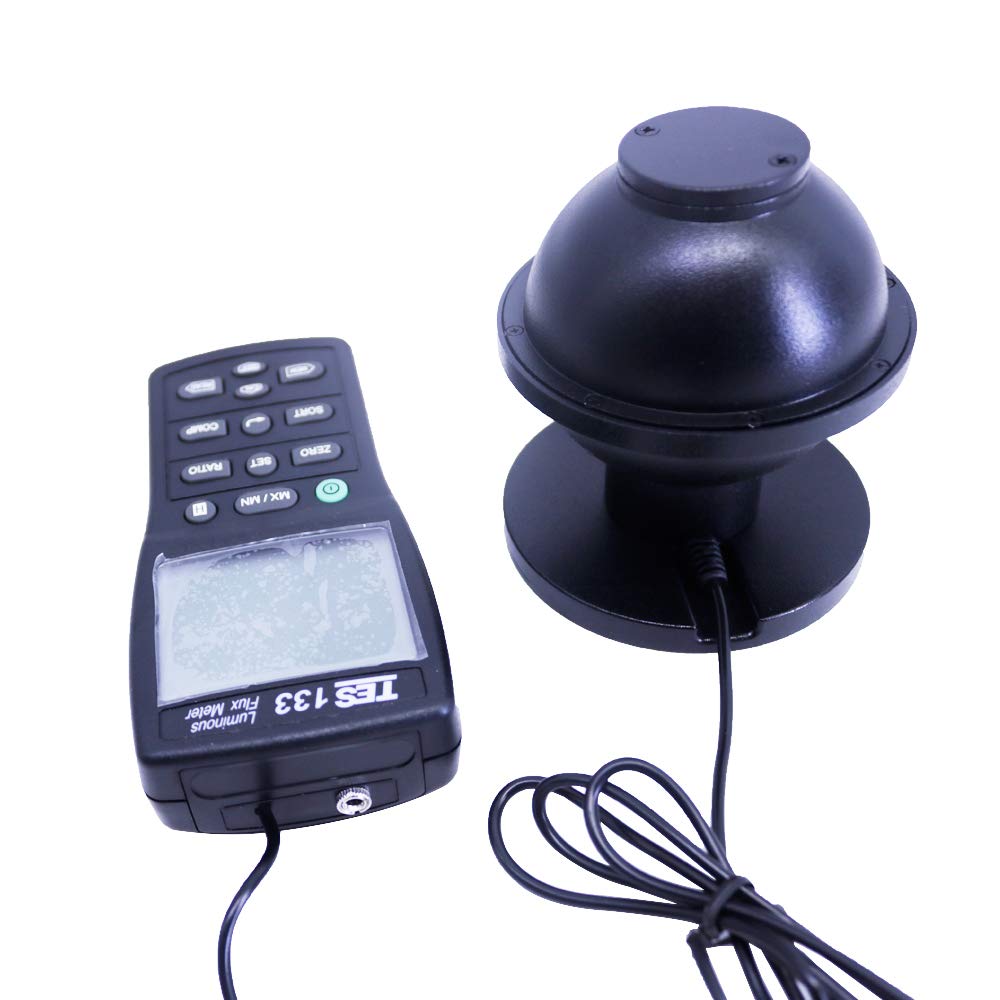

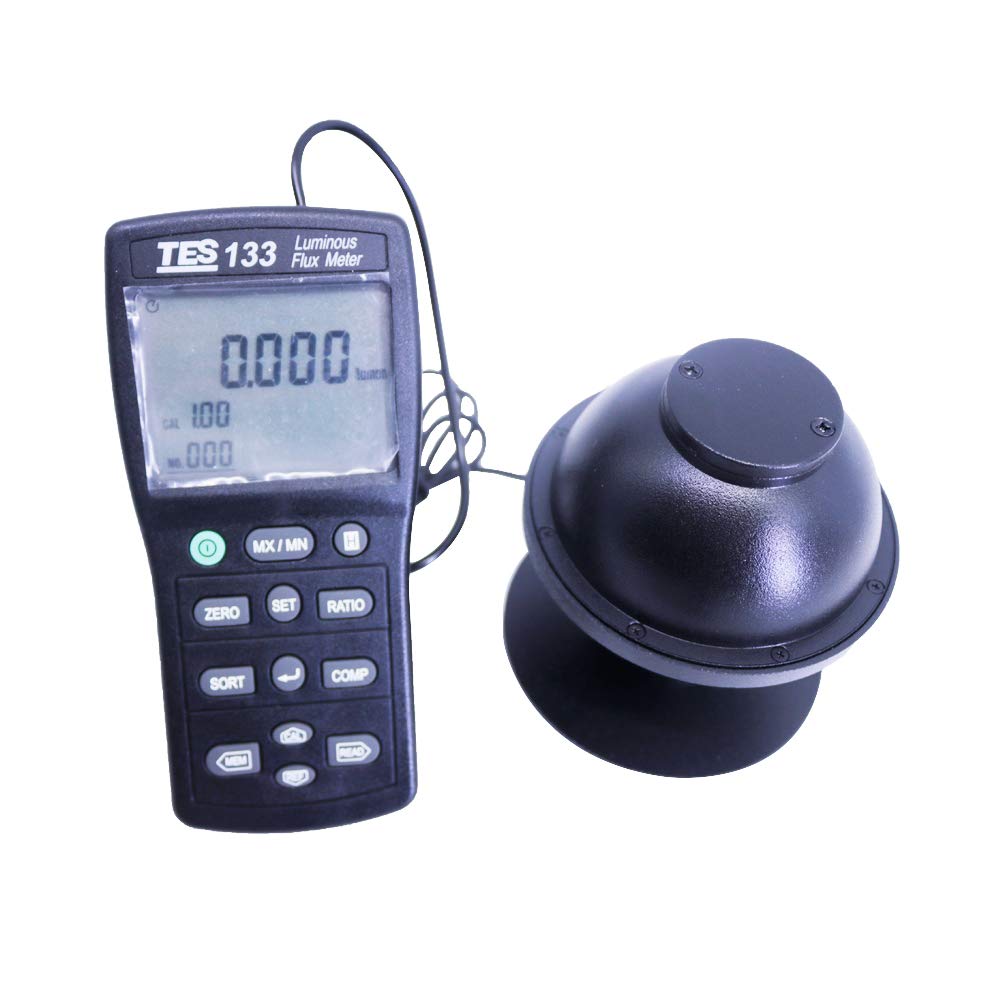

Integrating Sphere：Diameter：50mm
Sample pore：12.7mm diameter
CIE photopic f ’1：<6%
Temperature Characteristics：±0.1%/C
Measuring Rate：Approximately 5 time/sec
Photosensor：Silicon photodiodes
Data Memory Capacity：999 sets. (Direct reading from LCD display)
Data Logger Capacity：40000 sets
Operating/Storage Conditions：0C ~ 50C <80% RH , -10C ~ 60C <70%RH

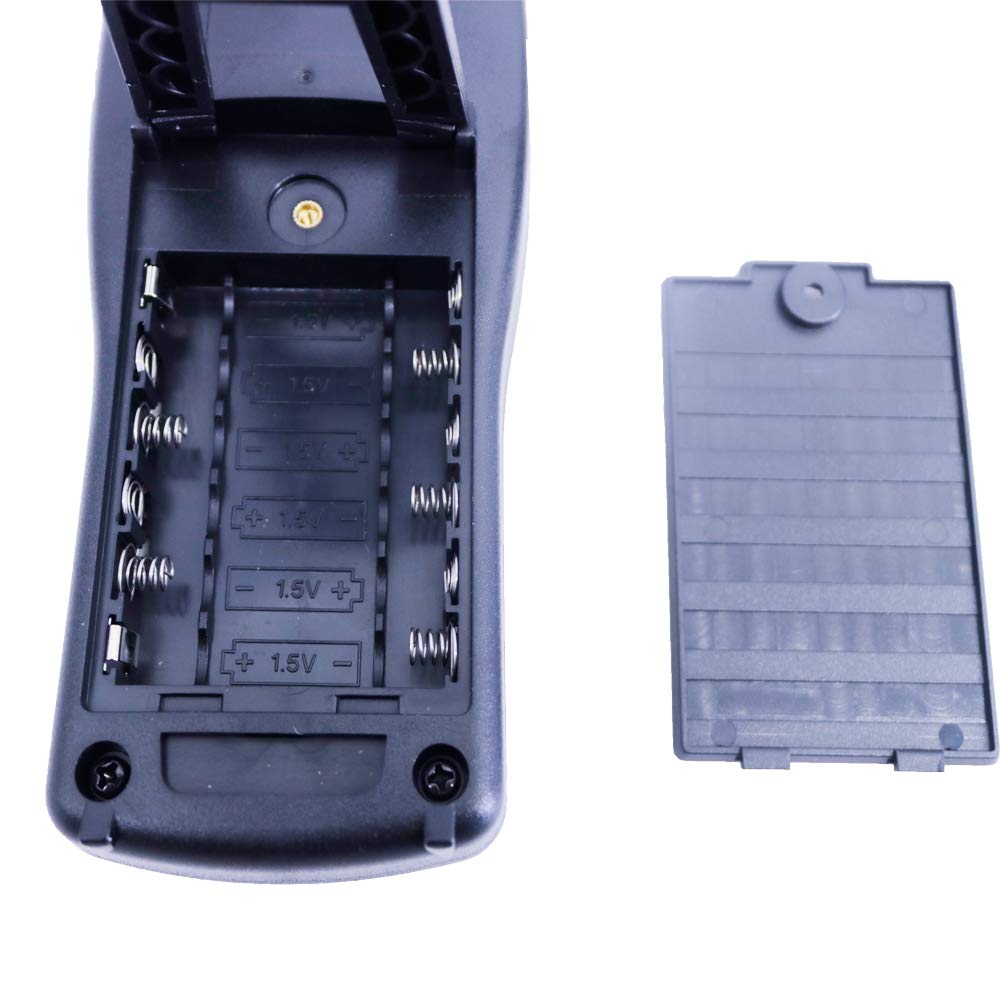

Power Source：6 pcs AAA size Battery(not included)
Battery Life (typical)：100 hours
Integrating sphere Lead Length：150 cm (approx.)
Integrating sphere Dimensions：68(Diameter) × 82(H)mm
Dimension：150(L) × 72(W) × 35(H)mm
Weight：470g

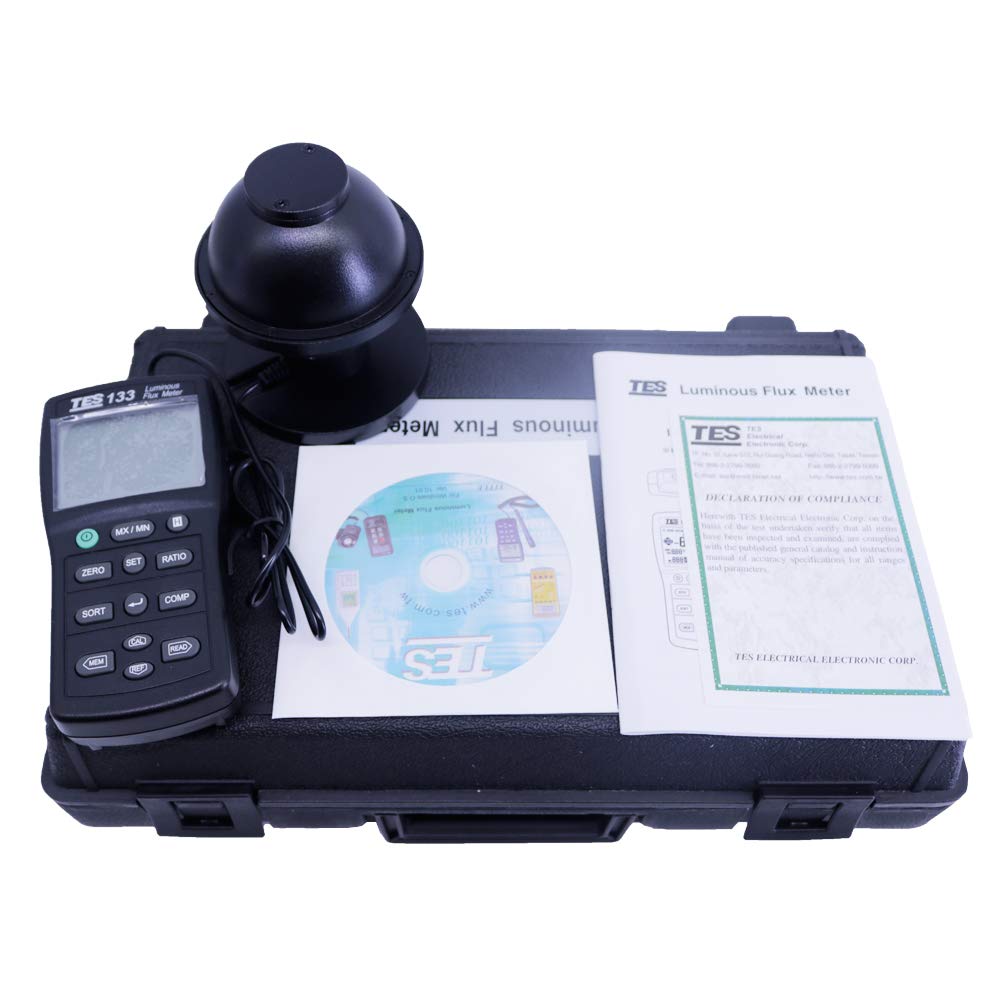

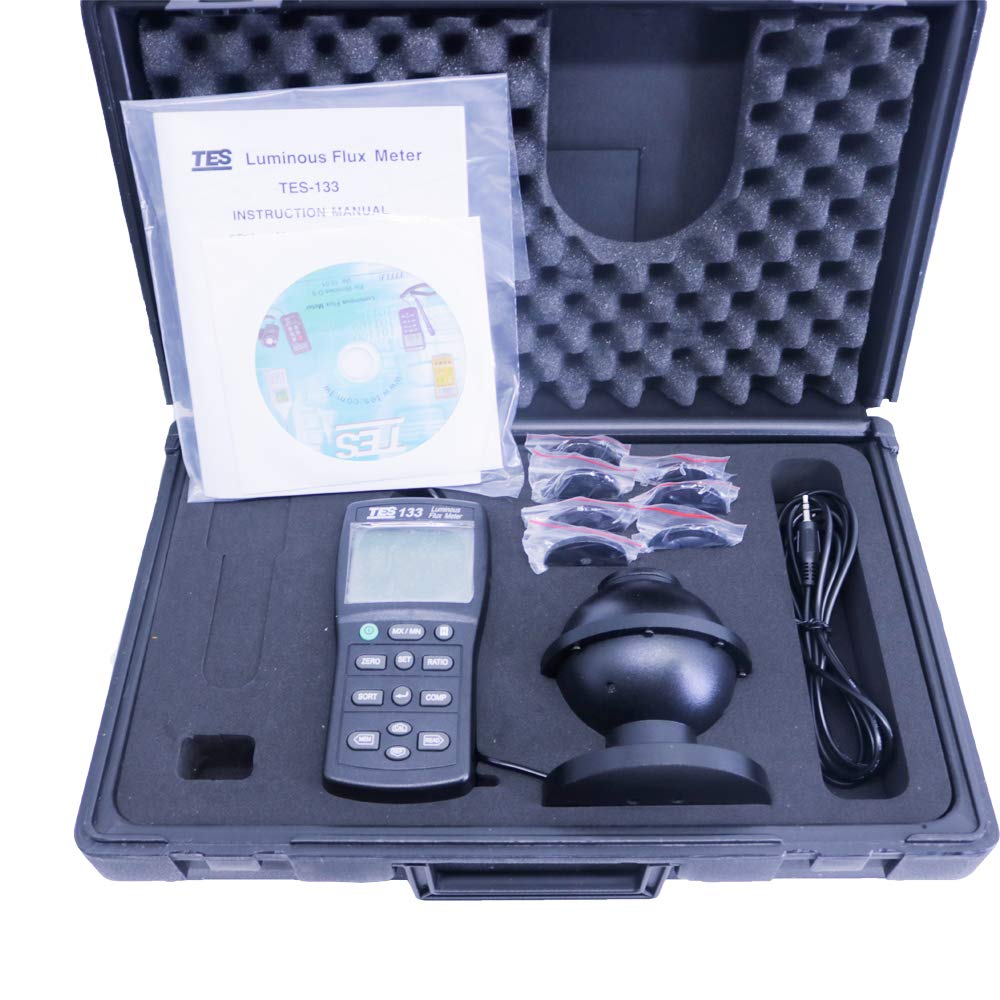

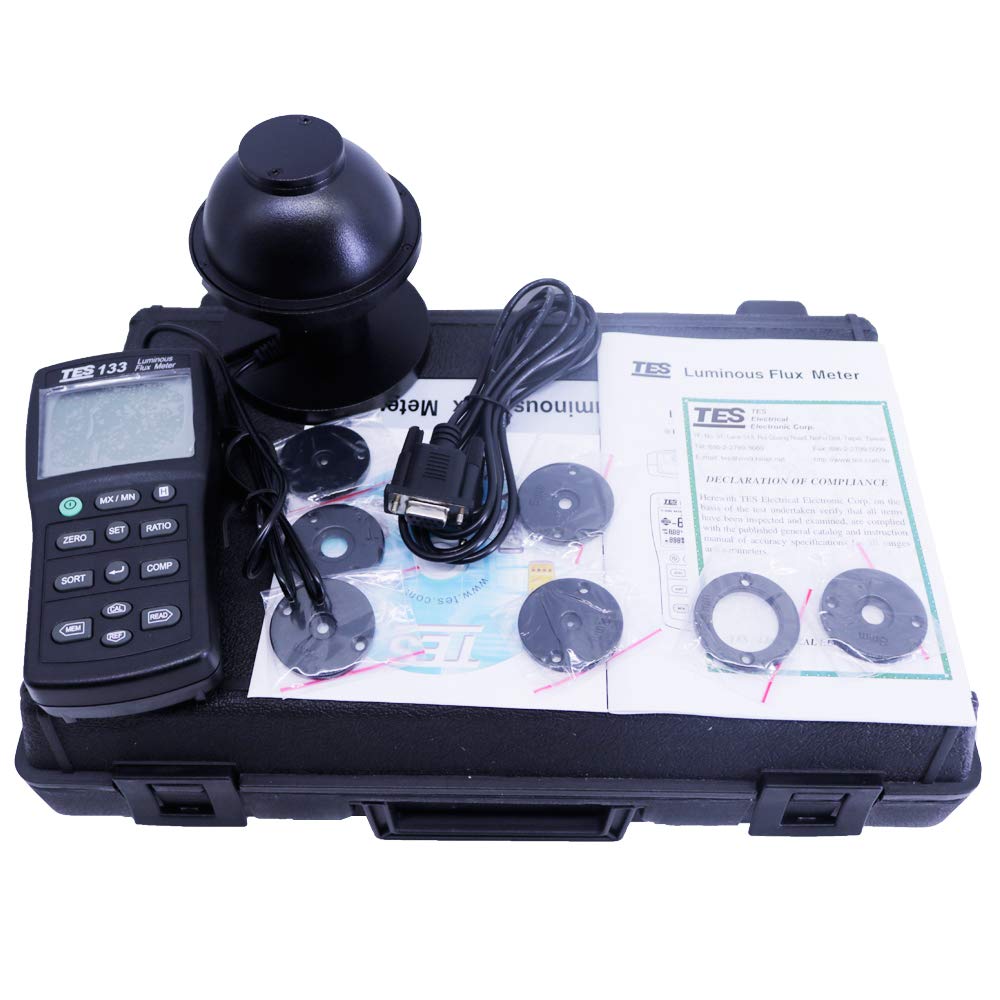

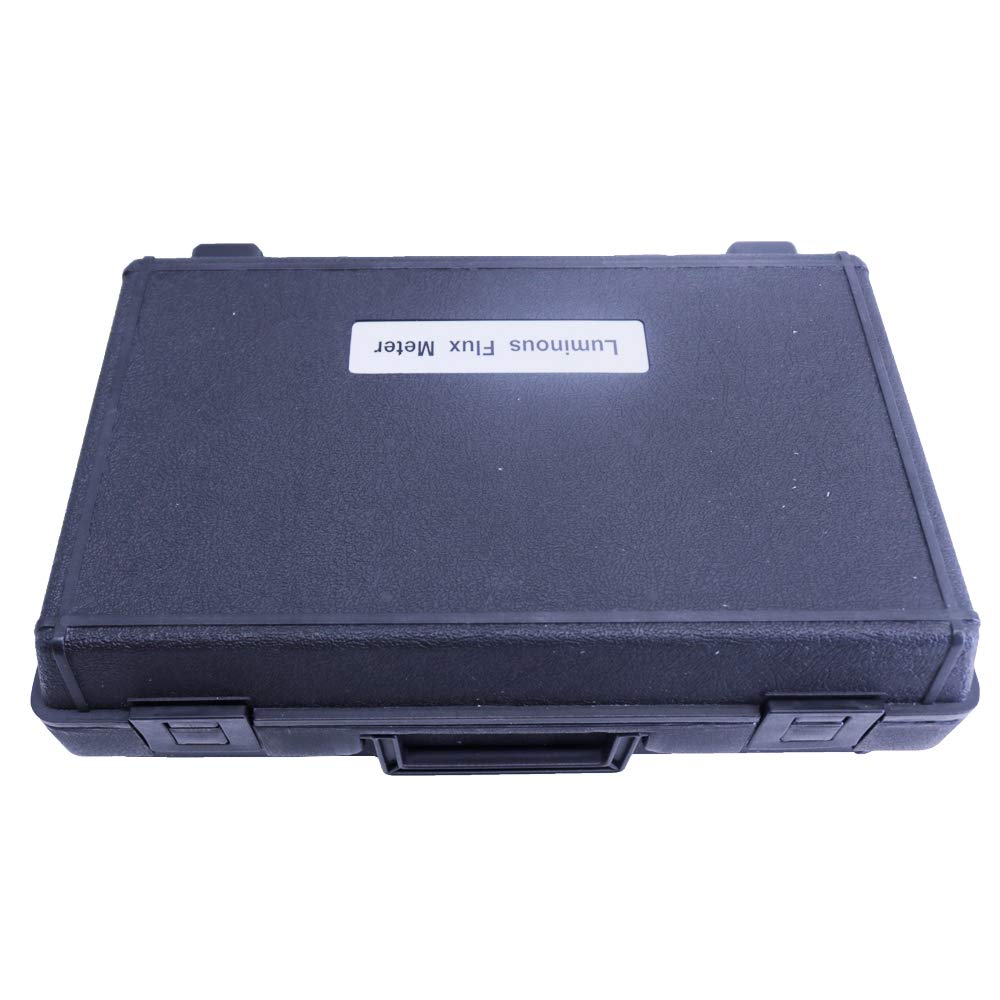

Accessories：Carrying case, Instruction manual, Battery, CD software, RS232 cable, AC adaptor, Adapter kit.
