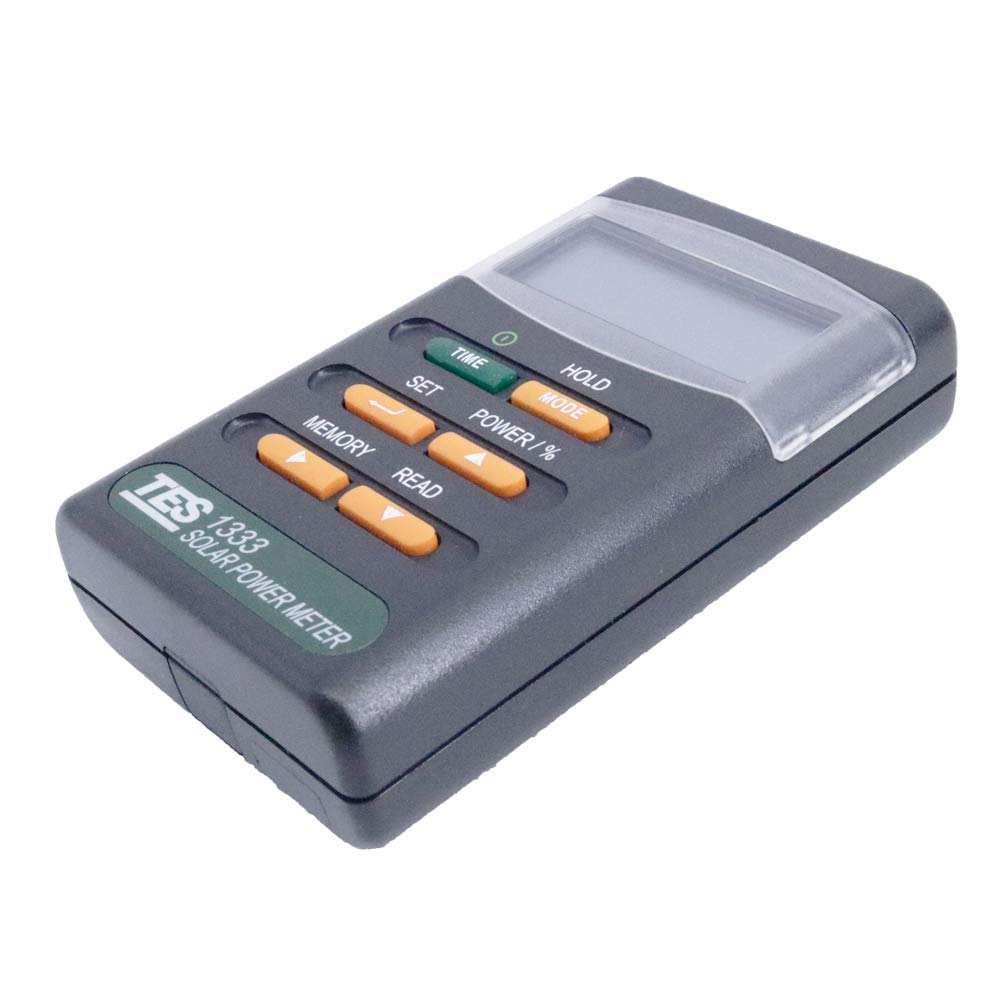

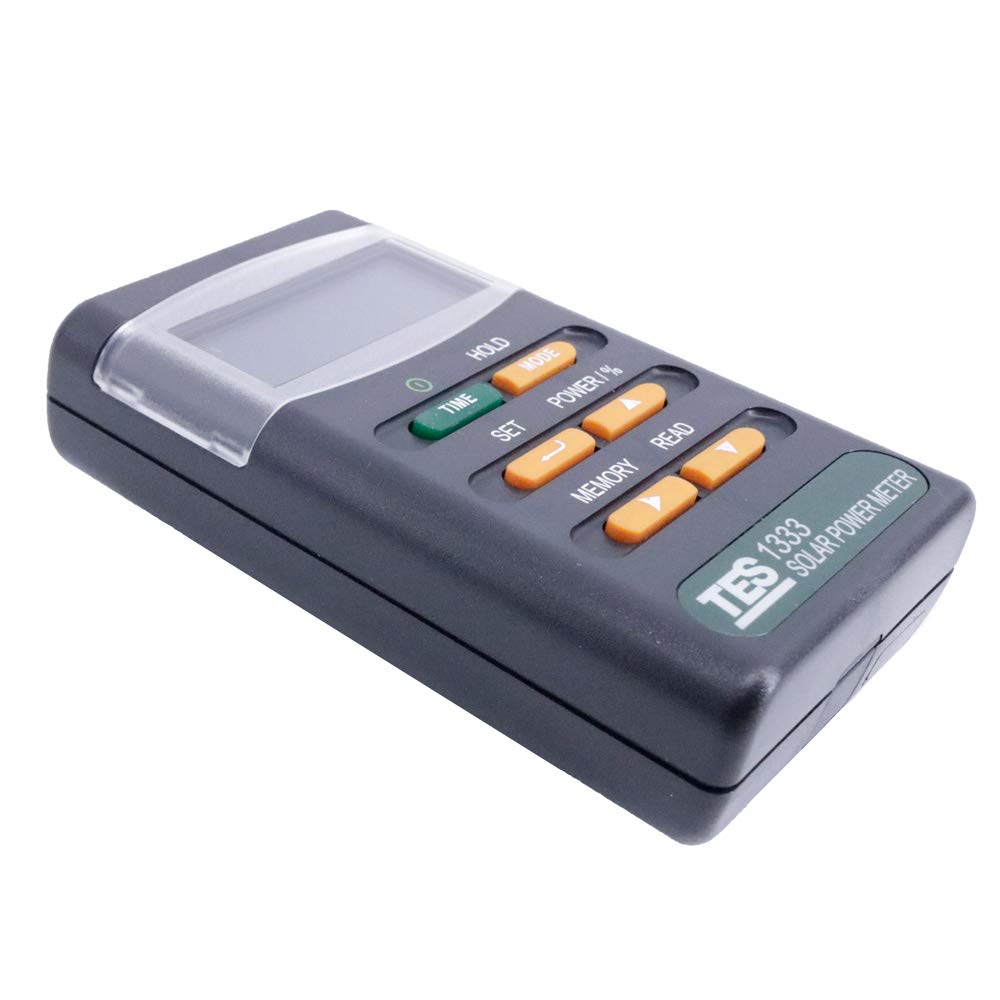

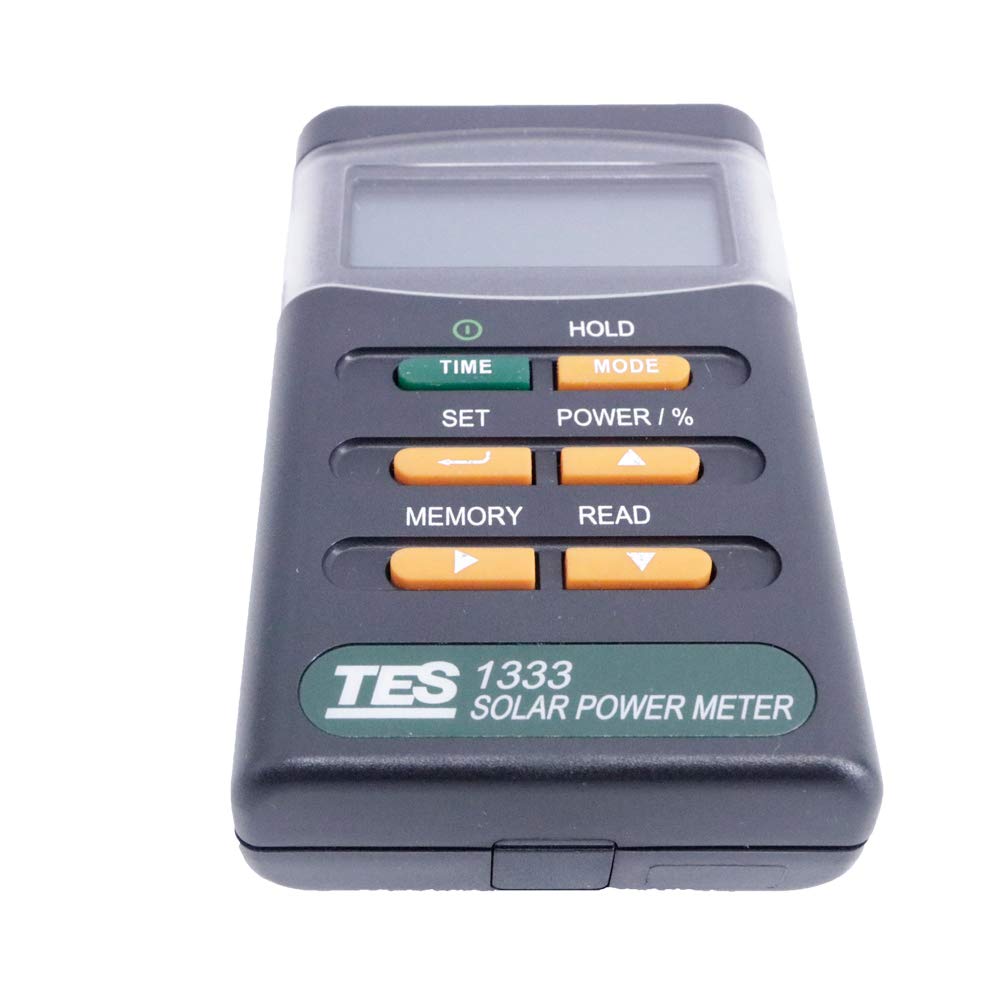

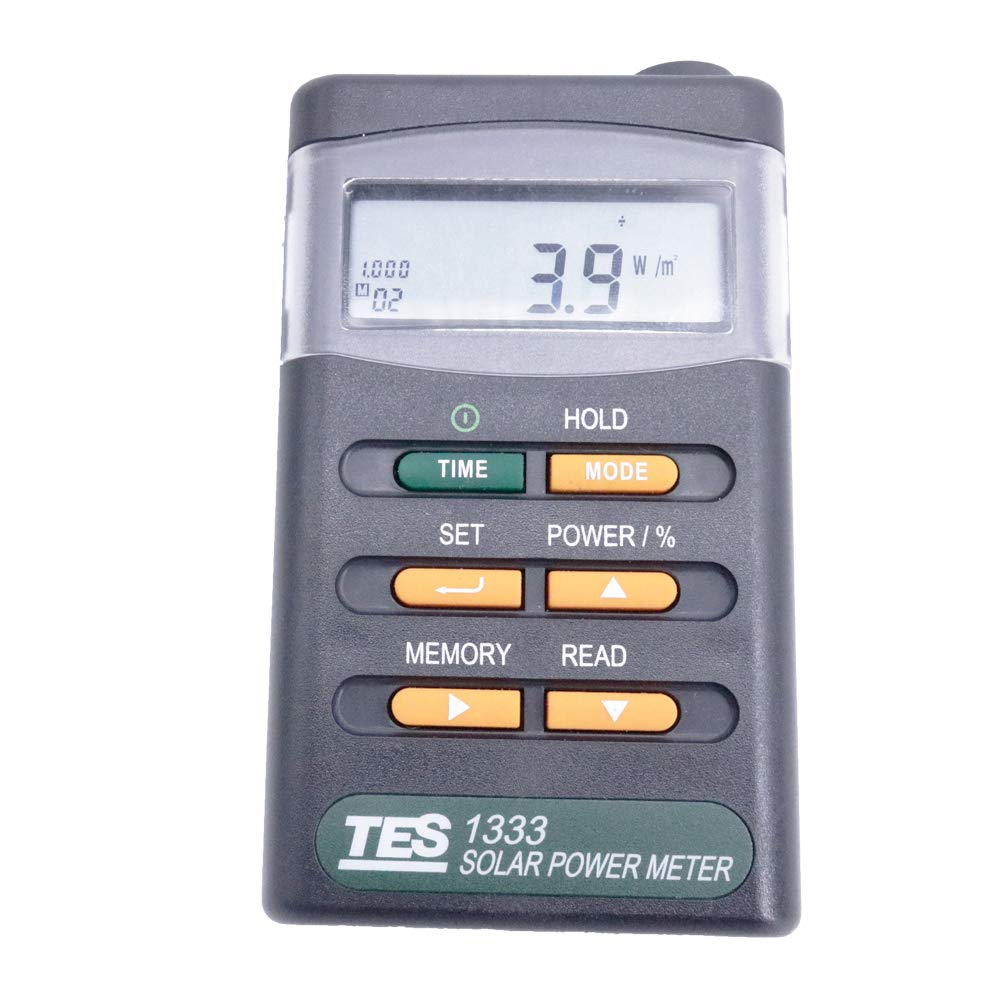

Protable Solar Power Meter Spectral Response 400-1100nm
Wide spectral range.
Excellent long term stability.
Select either W/m2 or Btu / (ft2*h) units
Data Memory and Read function. (99 sets.)
model number: TES-1333
Part Number: TES-1333
Details: Features
Light Transmittance of window film
Wide spectral range.
Excellent long term stability.
Cosine corrected.
Automatic transmission measurements.
Select either power or transmission.
Solar energy power or transmission.
Current time setting function.
User calibration factor setting function.

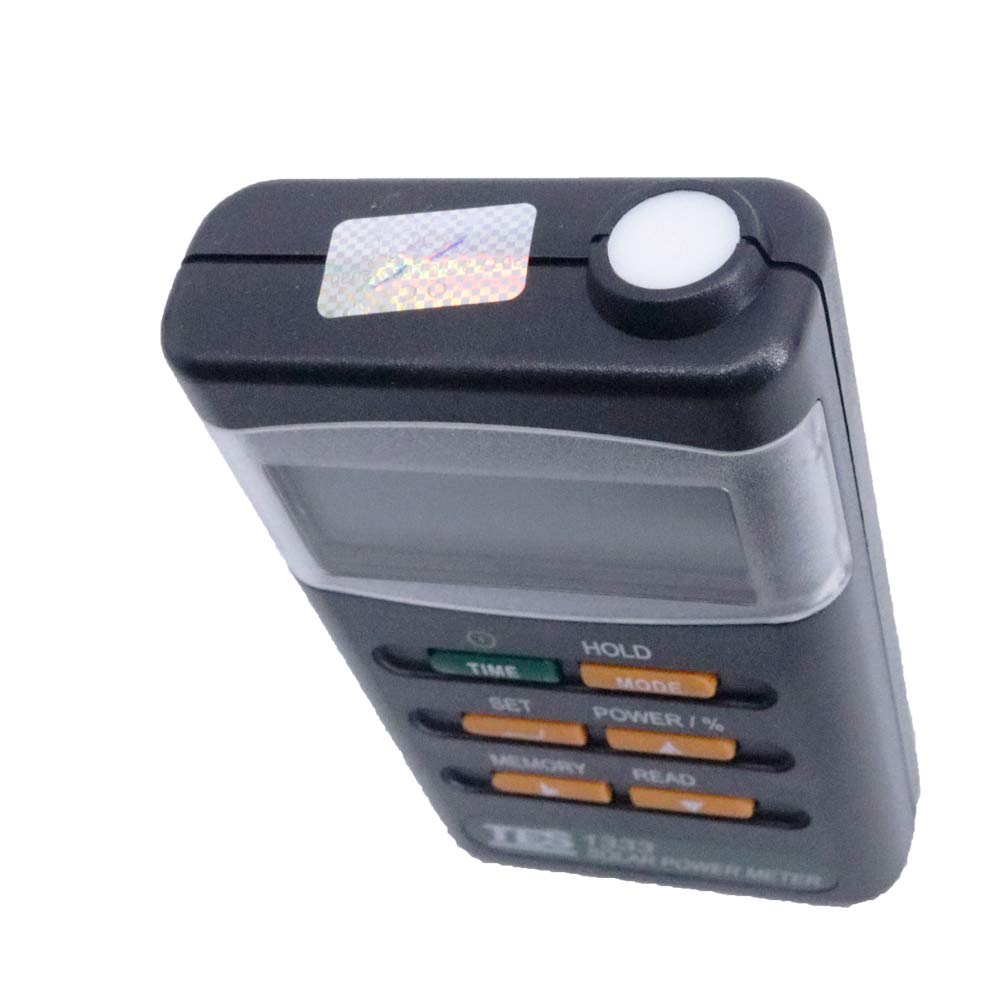

End-mount light sensor.
Select either W/m2 or Btu / (ft2*h) units
Data Hold / MAX / AVG modes.
Data Memory and Read function. (99 sets.)
Specification
Display:3-1/2 digits.Max.indication1999
Range:2000W/m ,2 634Btu/(ft 2 * h)
Resolution:1W/m21Btu/(ft2*h)
Spectral response:400-1100nm
Accuracy:Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / [ ±0.12 Btu / (ft2*h)/ ] from 25
Angular accuracy:Cosine corrected <5% for angles <60 °
Drift:<±2% / per year
Calibration:User recalibration available
Over-input:Display shows" "
Sampling Time:Approx. 0.4 second
Manu data memory and read:99 sets

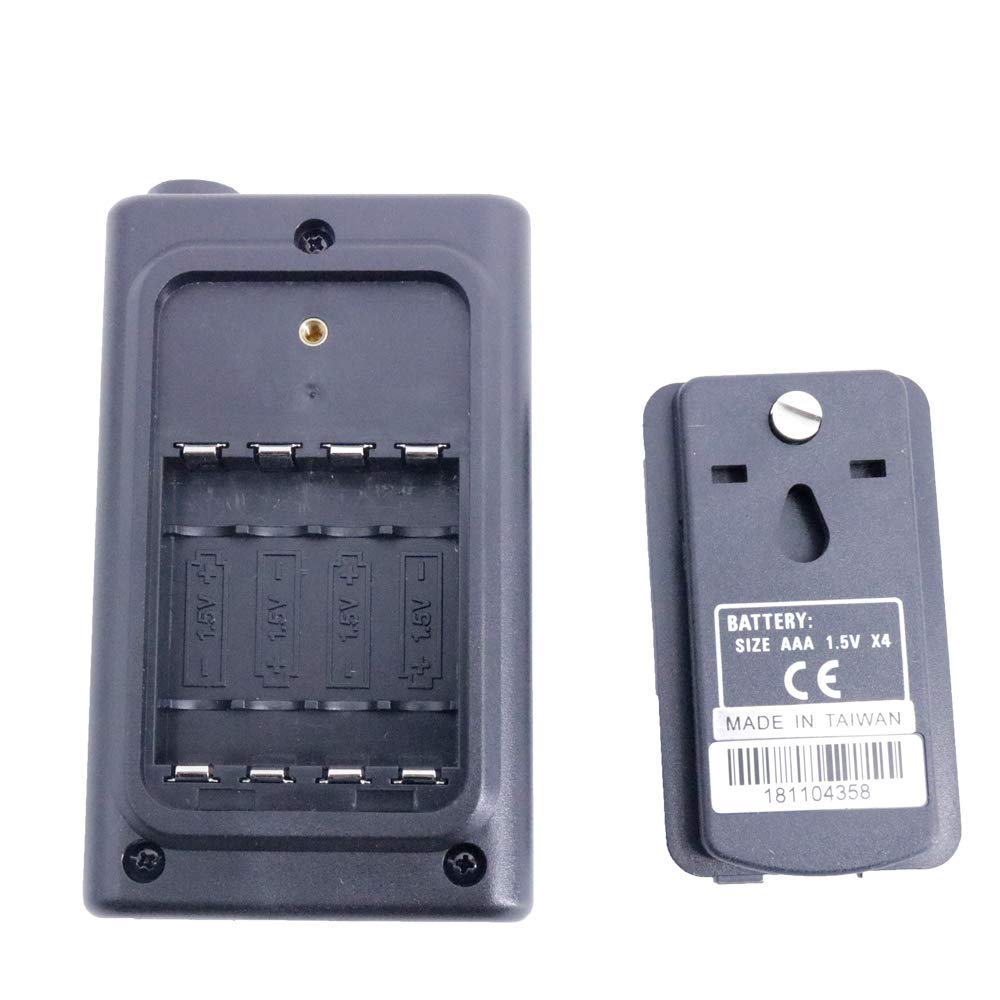

Battery:4pcs size AAA(Not included)
Battery Life:Approx. 100 hours
Operating temp and humidity:0 to 50 below 80%RH
Storage temp and Humidity:-10 to 60 below 70% RH
Weight:Approx. 165g
Dimension:111(L)*64(W)*34(H)mm

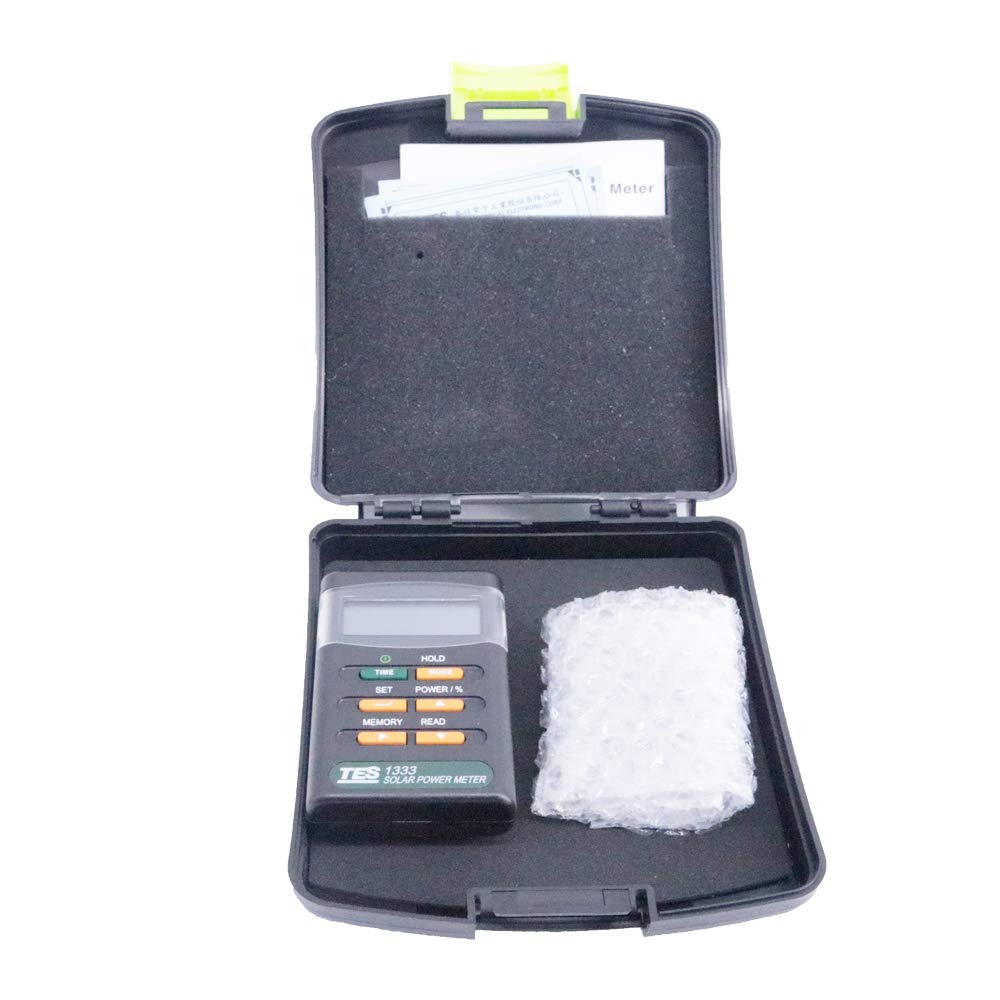

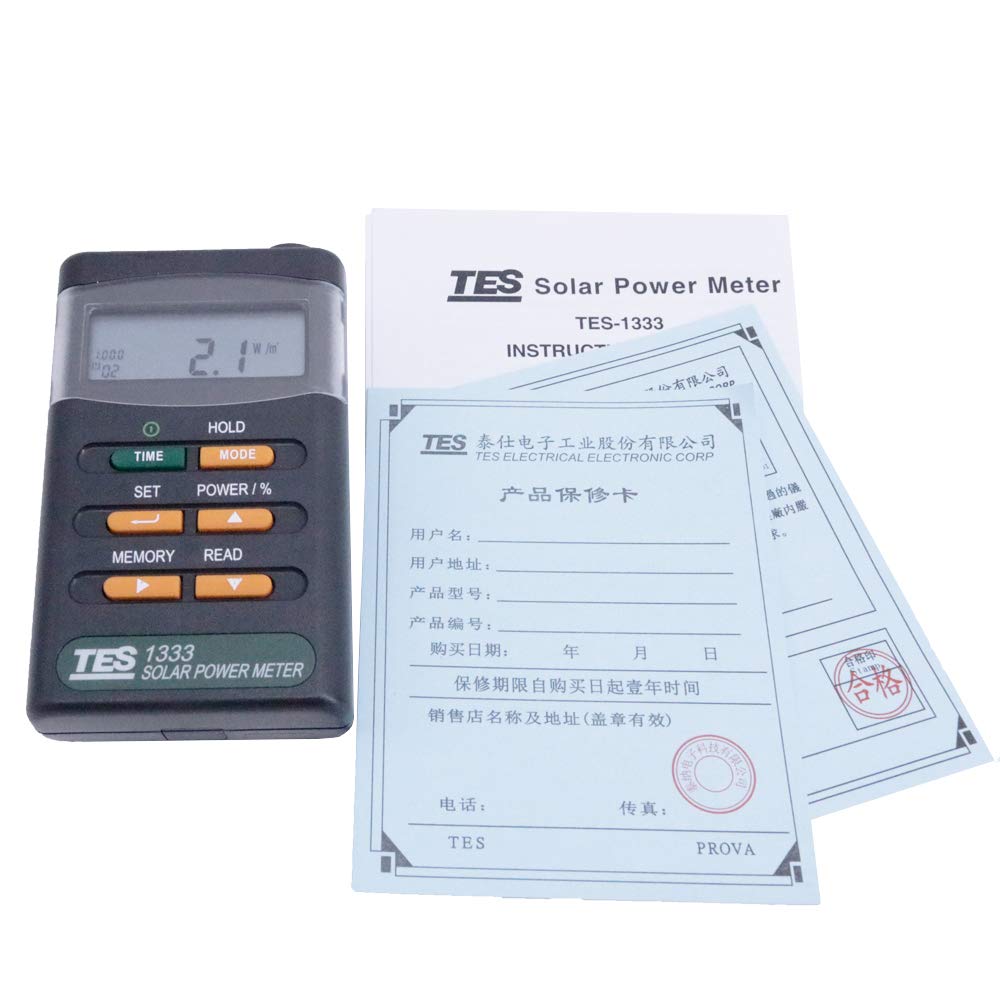

Accessories:Carrying Case, Operation Manual
