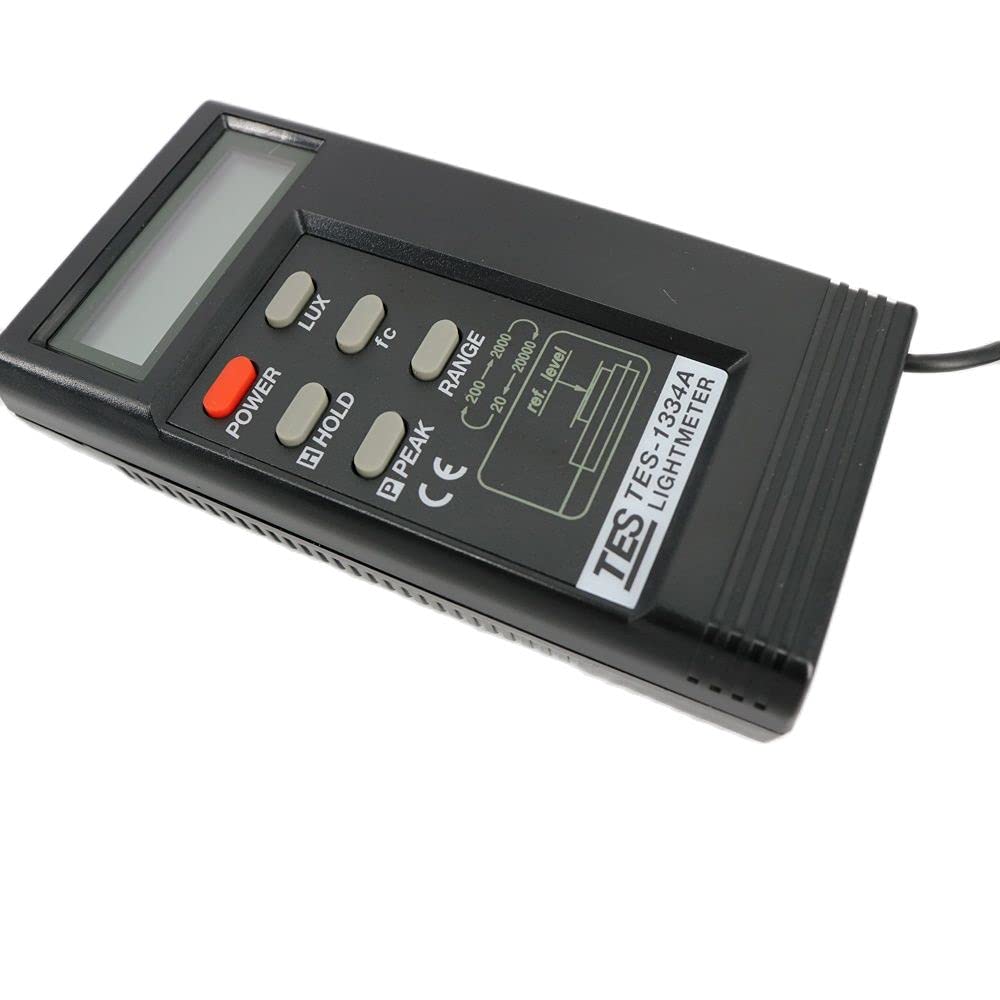

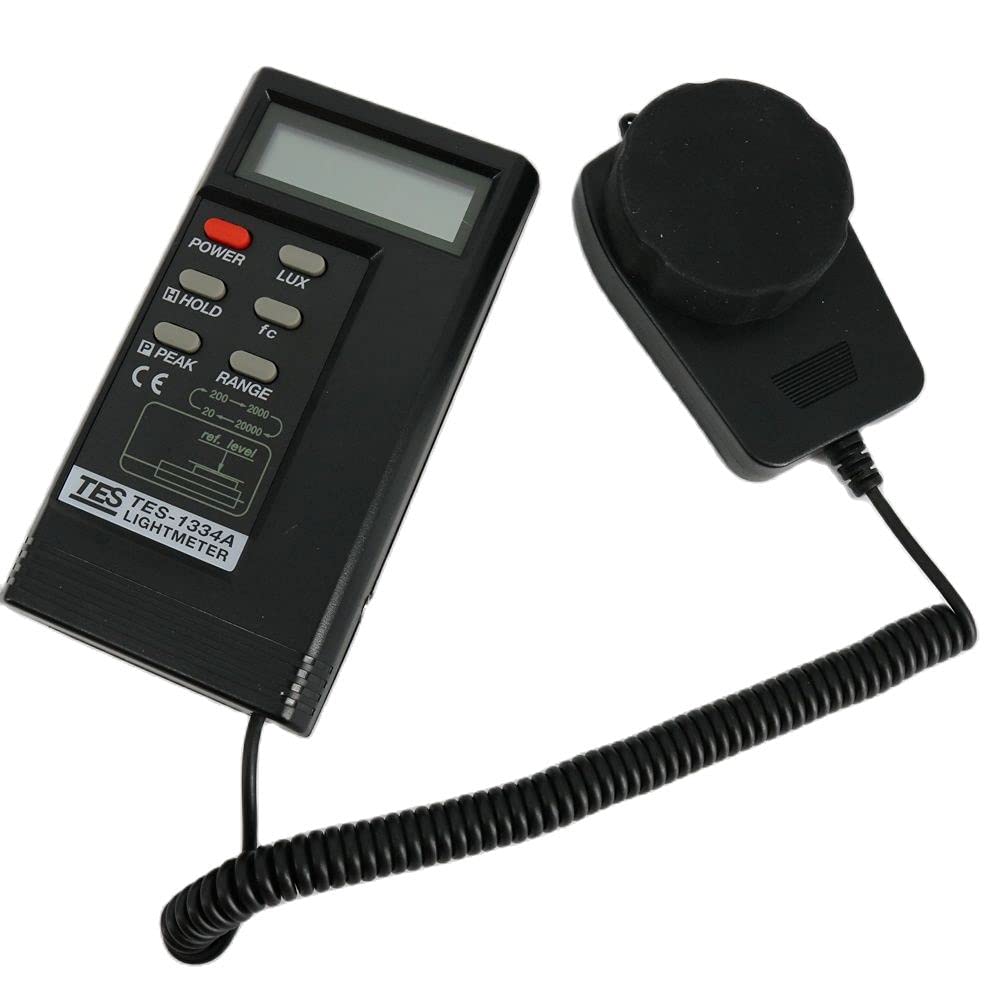

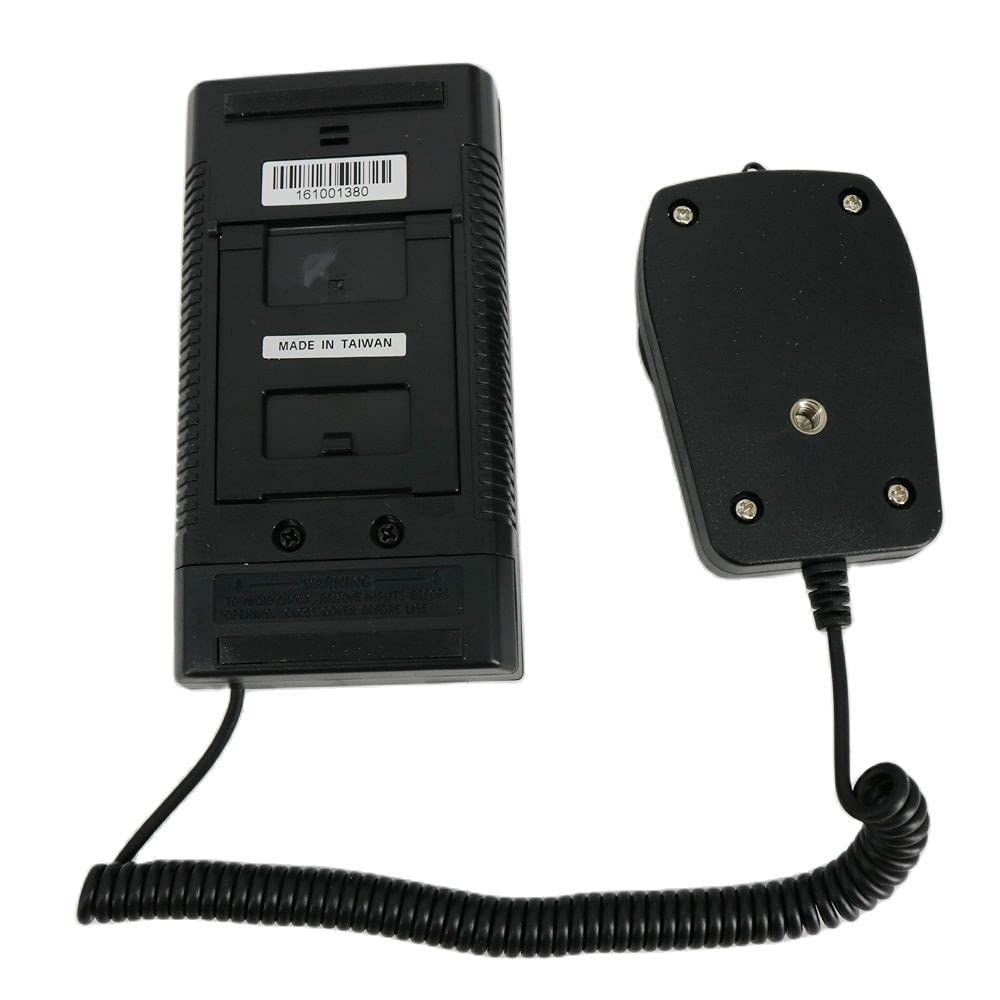

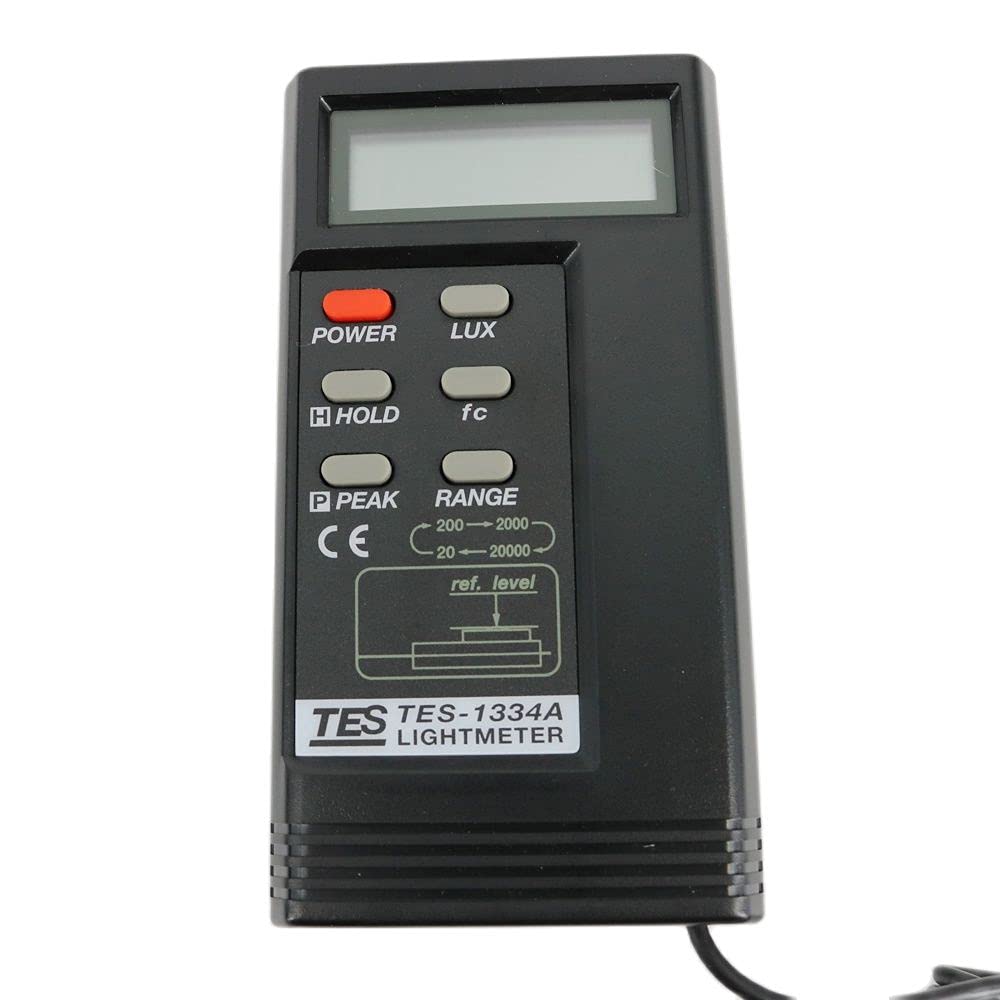

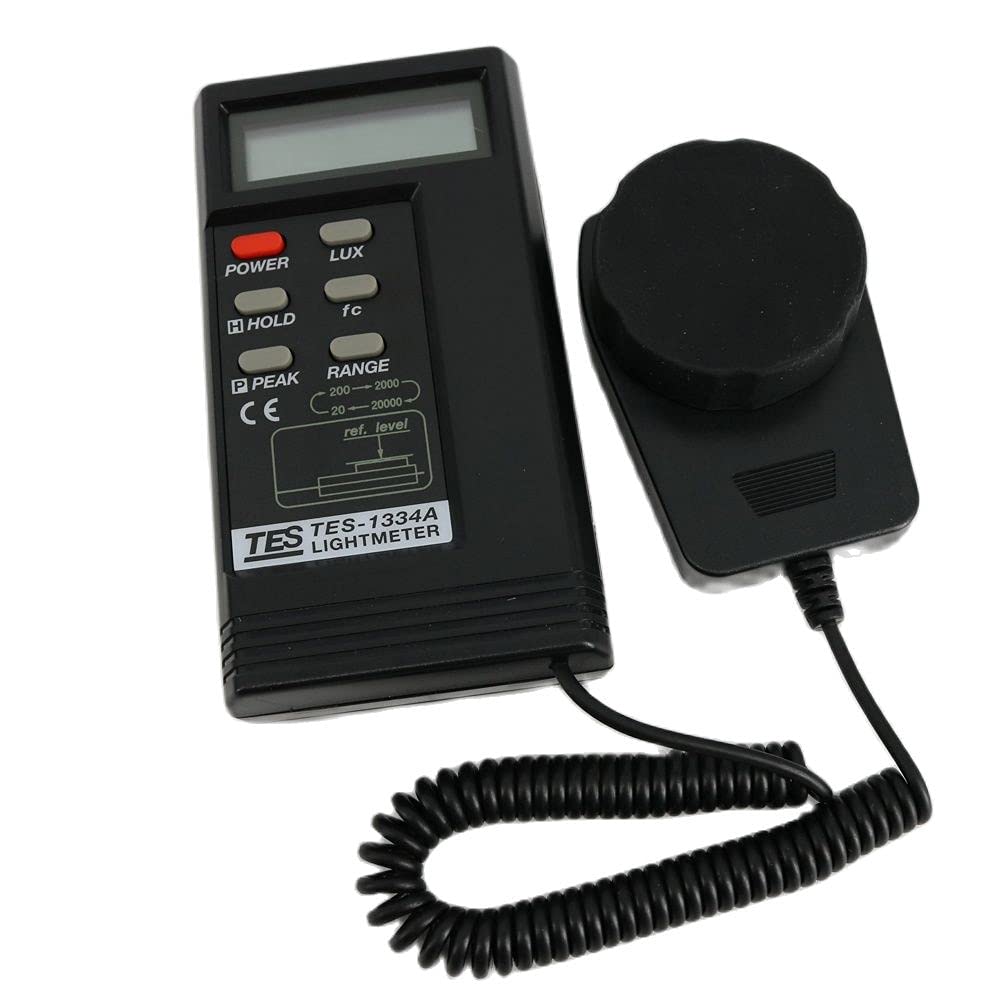

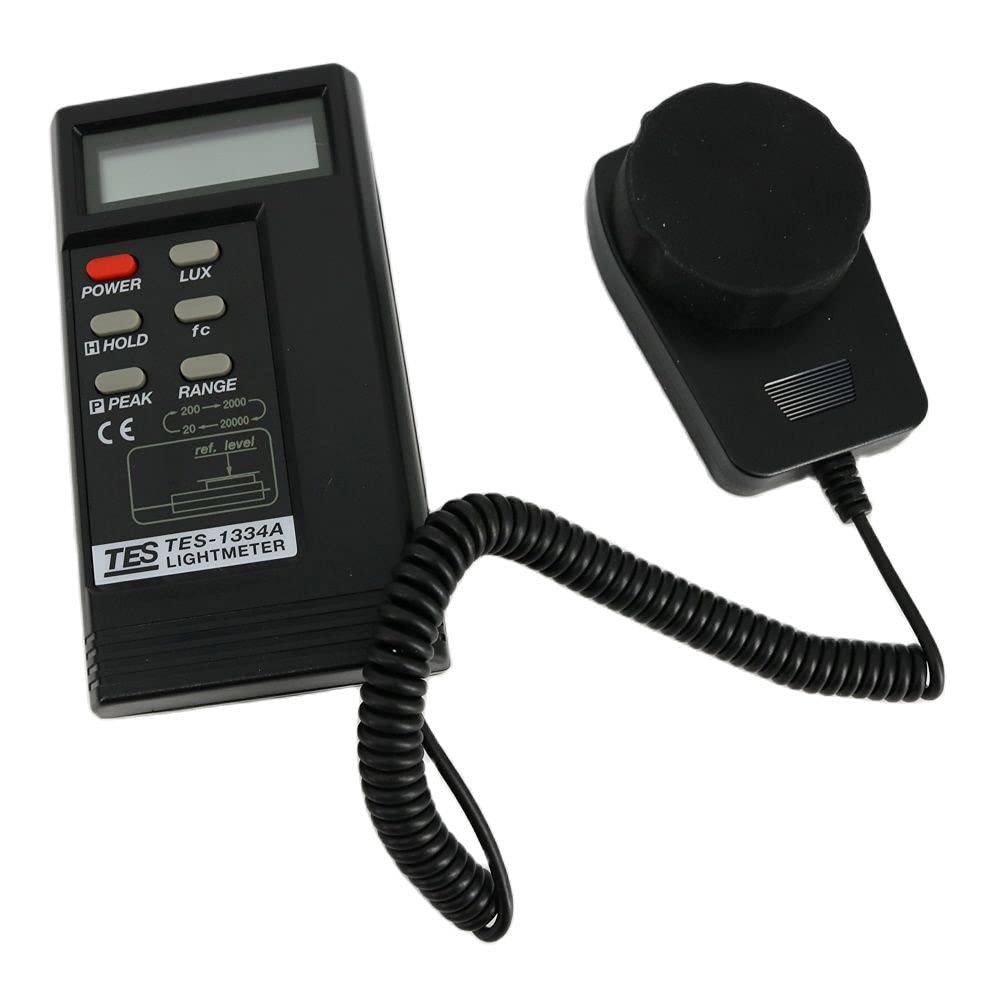

TES-1334A Digital llluminance Meter Lightness Tester Lux Meter 20/200/2000/20000 Lux Footcandle Brightness Tester

Brand: Graigar

Features:

• Measuring Levels Ranging 0.01 Lux to 200,000 Lux.Accurate and Instant response.
• Data Hold function.Spectral Sensitivity close to CIE photopic Curve
• Cosine Angular corrected
• Analog output jack for recording (TES-1332A/1334A)
• Peak Hold function for 1334A

model number: TES-1334A

Part Number: TES-1334A

Details: Display:3 1/2 digit LCD
Measuring Range:20/200/2000/20000 Lux (1330A, also Footcandle for 1334A),1 Footcandle = 10.76 Lux,1 Lux = 0.0929 Footcandle
Overrange Display:Highest digit of (1) is displayed.
Resolution:0.01 Lux (1330A, 1334A)
Accuracy:±3% rdg ±0.5% f.s. (<10,000 Lux)
±4% rdg ±10 dgt (>10,000 Lux)
(Calibrated to standard incandescent lamp, 2856°Κ)
Spectral Response:CIE Photopic. (CIE human eye response curve).
Spectral Accuracy:CIE Vλ function f ’1 ≦6%
Cosine Response:f ’2 ≦2%
Repeatability:±2%
Temperature Characteristics:±0.1%/℃
Measuring Rate:Approximately 2.0 time/sec
Photosensor:Silicon photodiodes
Operating Temperature and Humidity:0℃~40℃(32℉~104℉) 0~70% RH
Power Source:One 9 Volt battery, NEDA 1604, JIS 006P or IEC 6F22
Photosensor:Lead Length: 150 cm (approx.)
Photosensor Dimensions:100(L)×60(W)×27(H)mm (3.94”(L)×2.36(W)×1.06(H))
Dimension:135(L)×72(W)×33(H)mm (5.31”(L)×2.83”(W)×1.3”(H))
Weight:250g (8.8 oz)

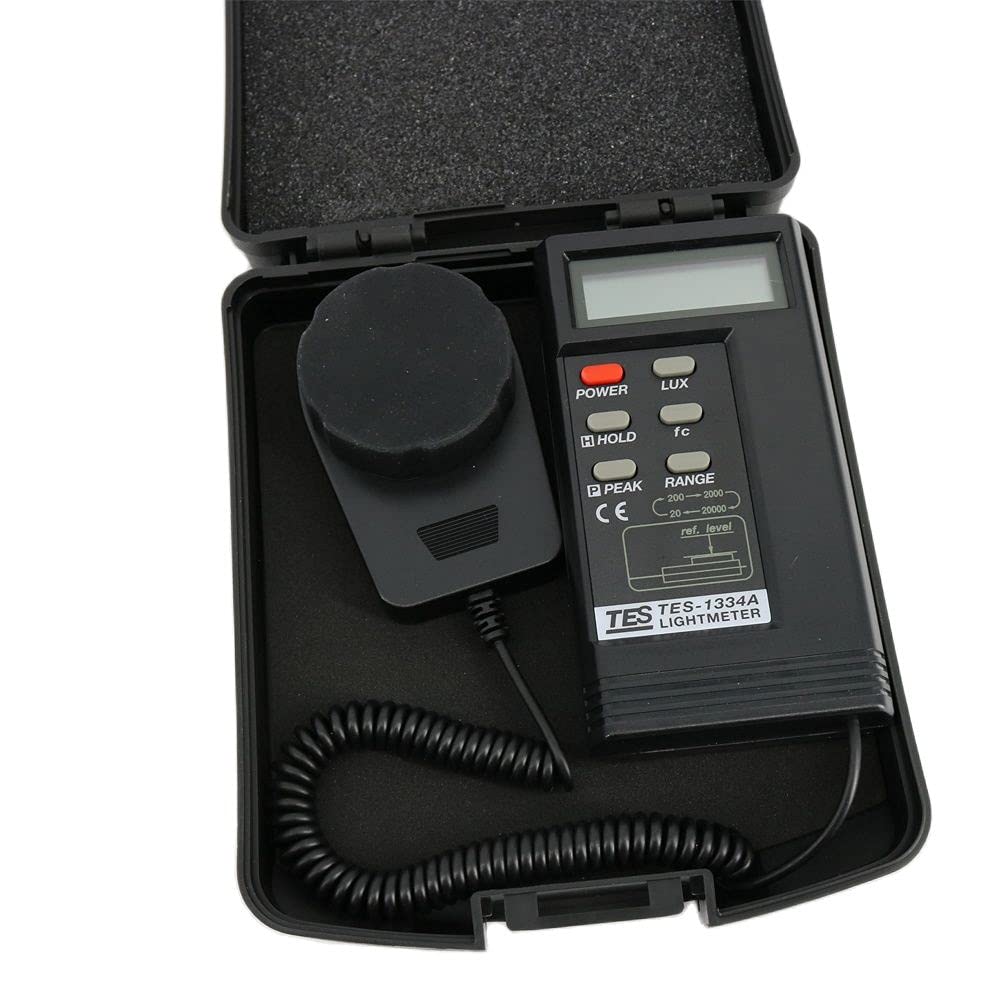

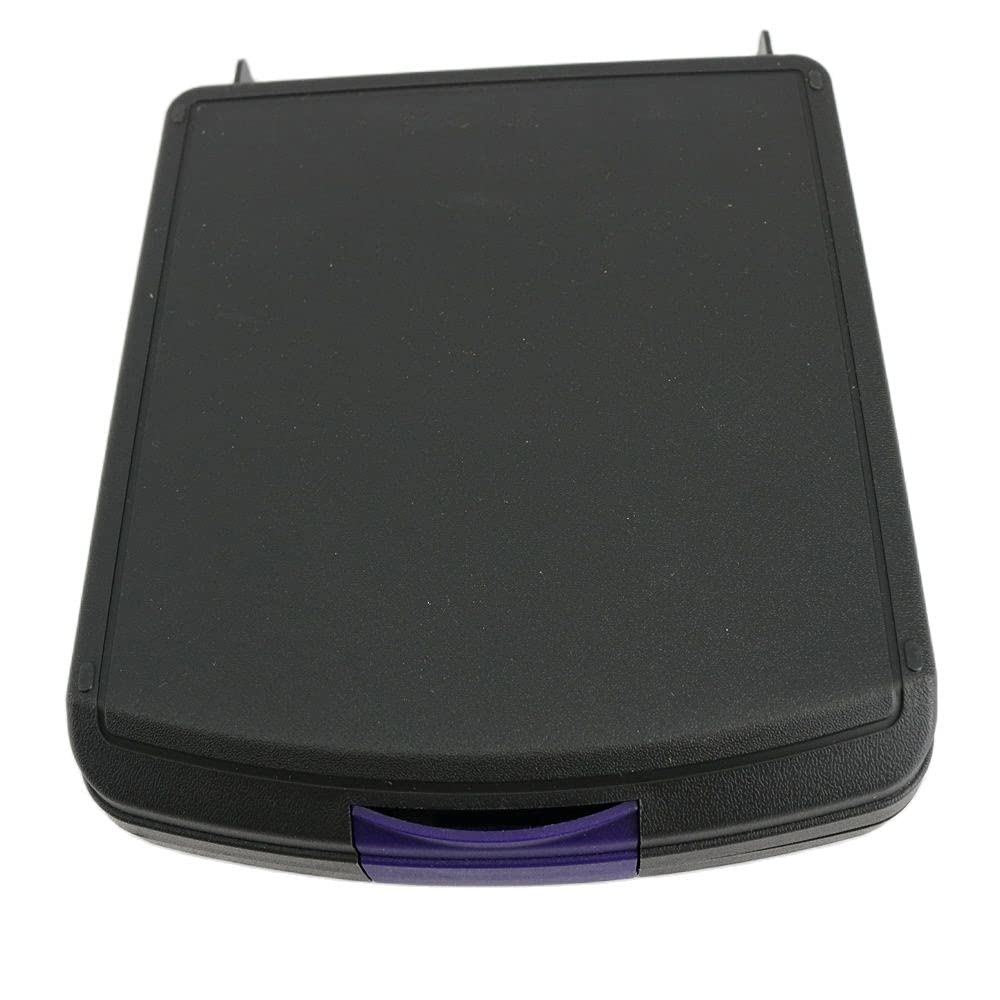

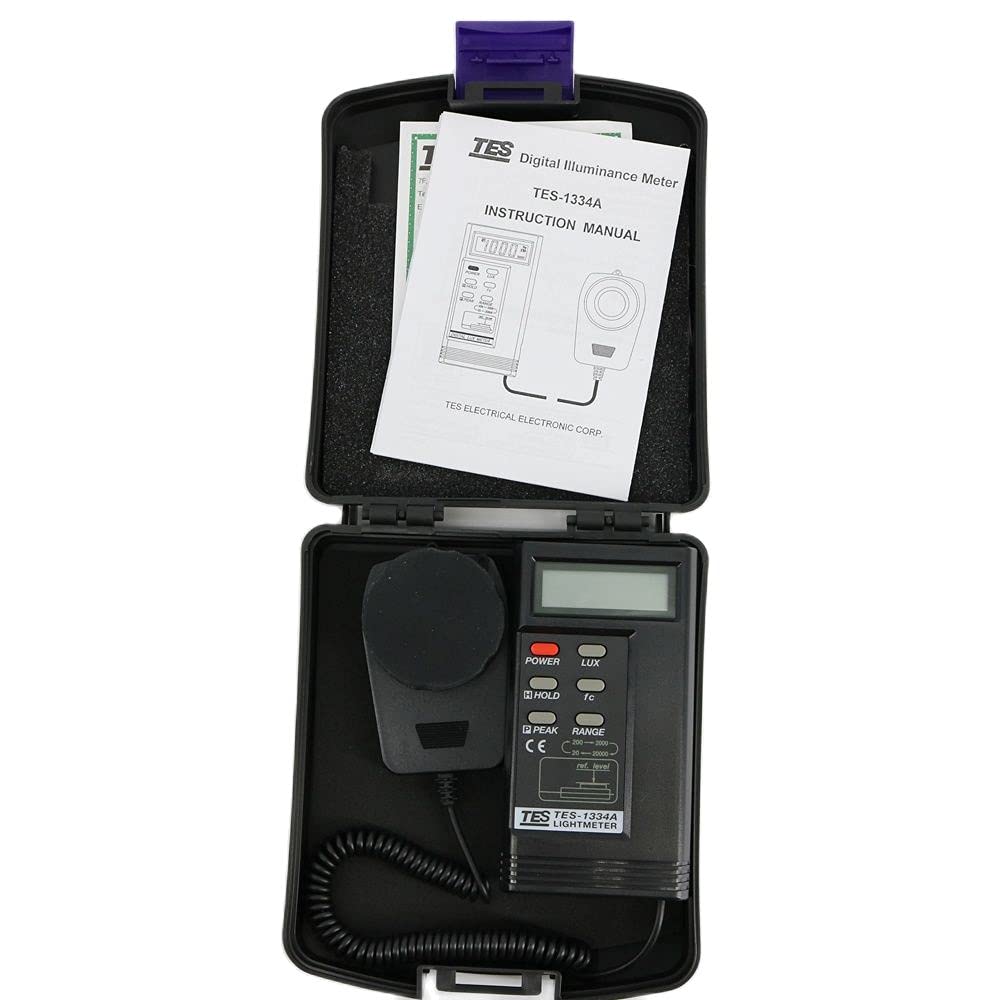

Accessories:Carrying case, Instruction manual

EAN: 0761272052257
