Fast & Slow dynamic characteristic models.Back-screw for tripod fixture.

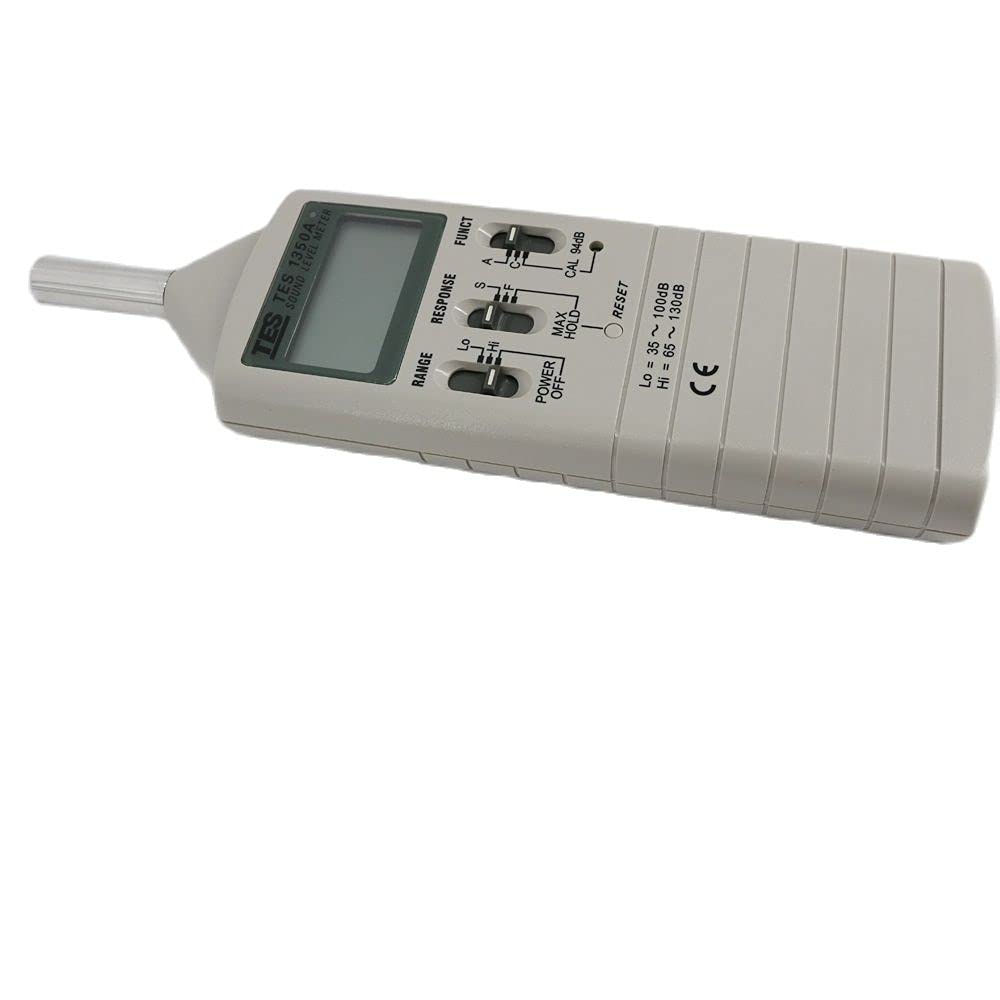

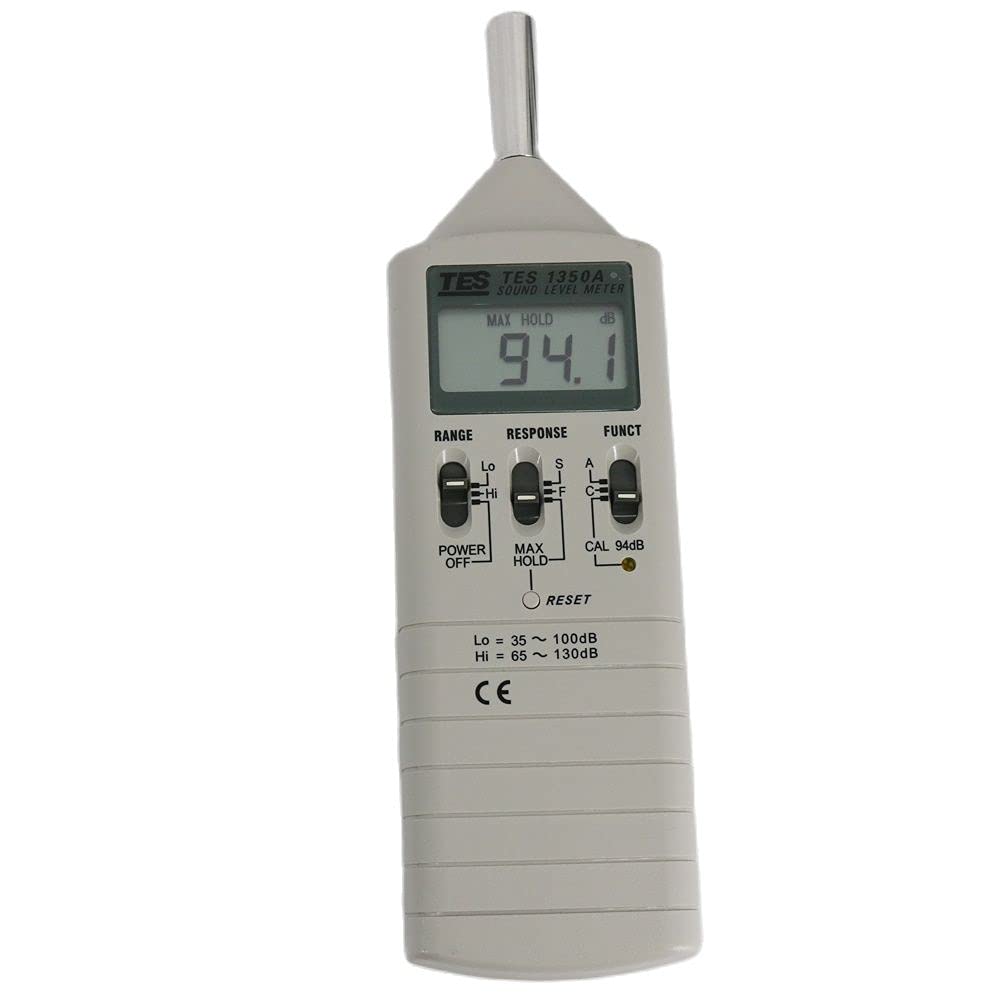

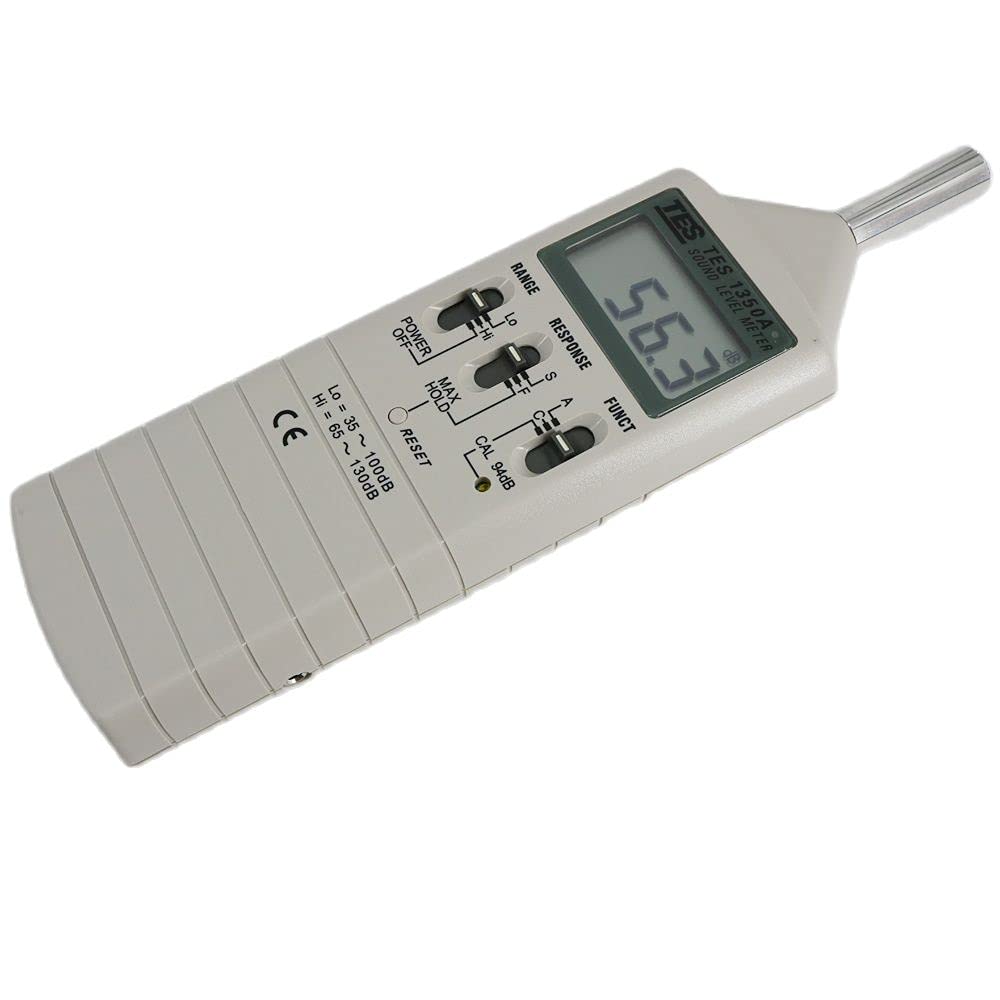

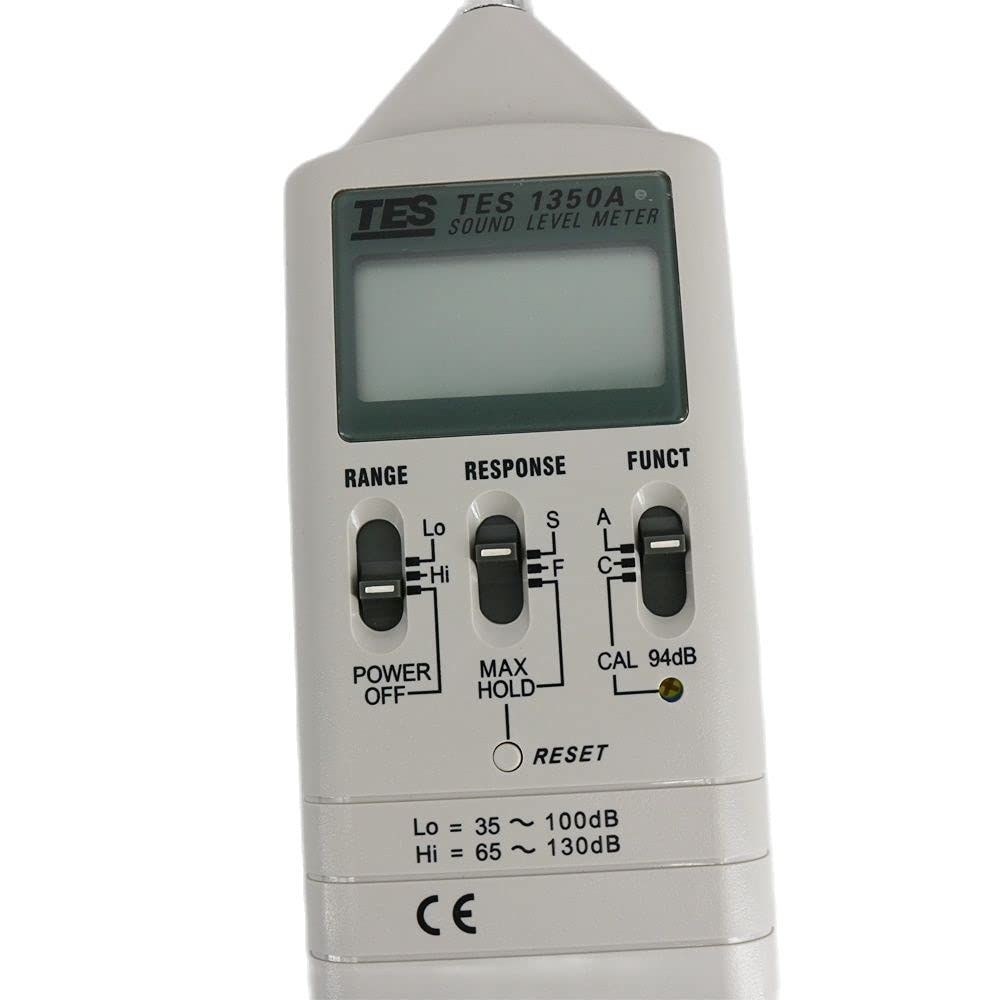

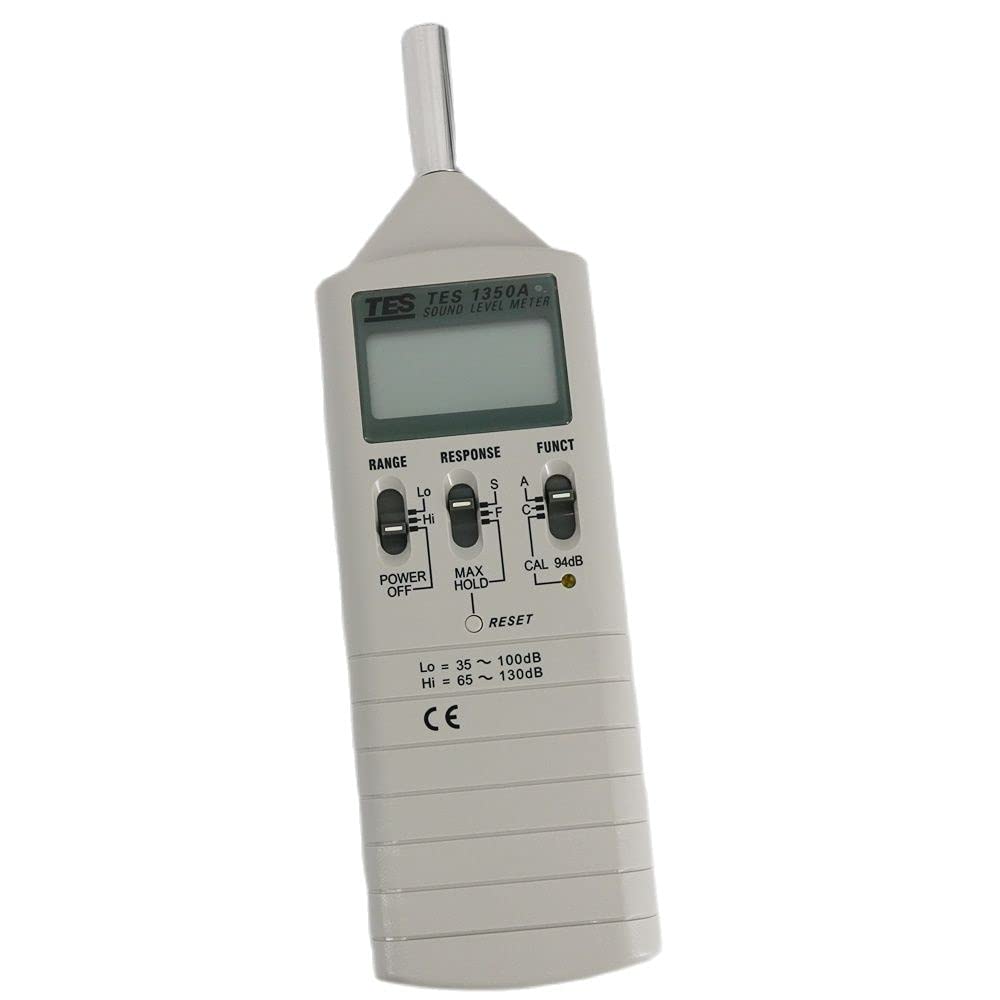

model number: TES-1350A
Part Number: TES-1350A
Details: Standard applied:IEC61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2
Display:4 digital LCD display
Measurement Range:A LO (Low) － Weighting : 35-100dB
A HI (High) － Weighting : 65-130dB
C LO (Low) － Weighting : 35-100dB
C HI (High) － Weighting : 65-130dB
Resolution:0.1dB
Typical instrument Frequency Range:31.5Hz to 8KHz
Accuracy:±1.0dB (ref 94dB @1KHz)
Dynamic Range:65dB
Frequency Weighting:A and C
Time Weighting:Slow and Fast
Maximum Hold:Decay <1dB/3min, Re-set button
Microphone:1/2 inch Electret condenser microphone
Calibration:Internal oscillation system (1KHz sine Wave general 94dB)
Auxiliary Outputs for Data Recording:AC condition, 0.65Vrms corresponding to each range step, Impedance : ≒ 600Ω.;AC condition, 10mV/dB (nominally) Impedance:≒100Ω.
Operating Temperature & Humidity:0℃ to 40℃, Below 80%RH
Storage Temperature & Humidity:-10℃ to 60℃, Below 70%RH

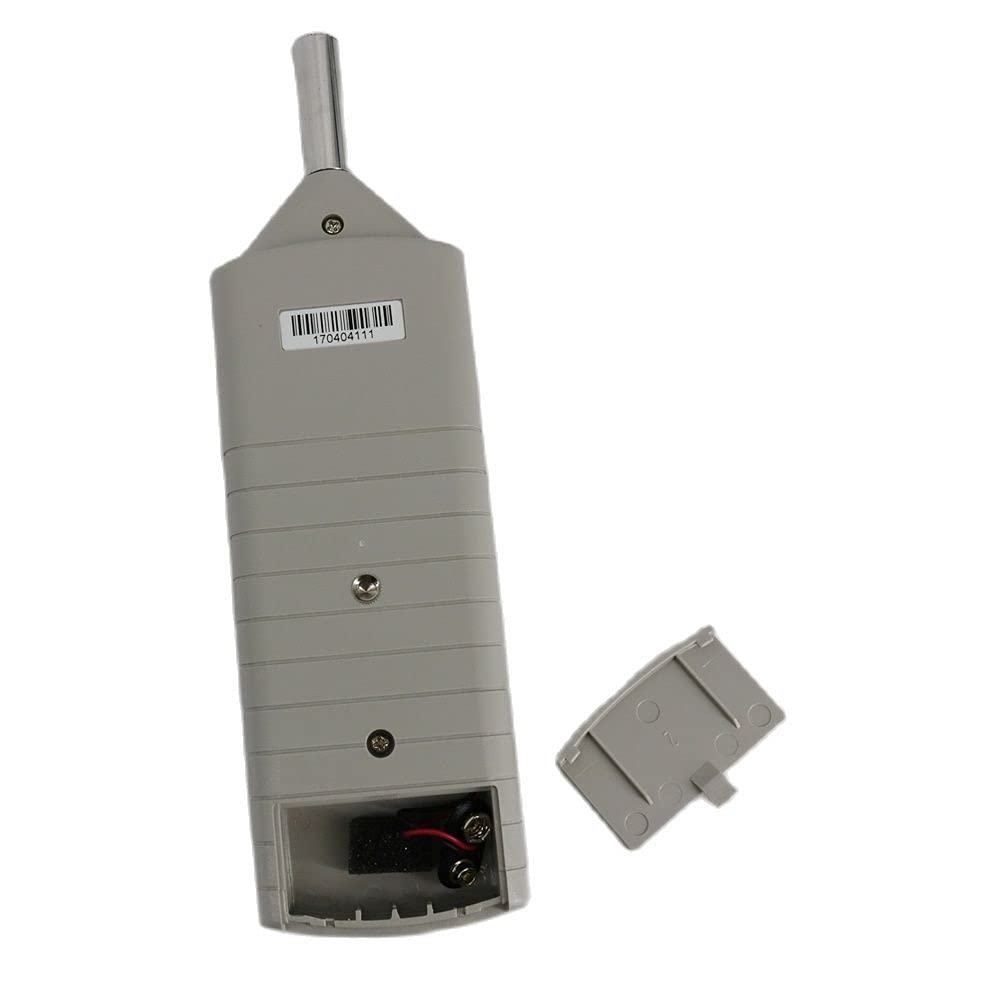

Power Supply:One 006P 9V or IEC 6F22 or NEDA 1604 Battery
Battery Life:Approx. 50 hours (Alkaline)
Dimensions:240(L)×68(W)×25(H)mm (9.45”L×2.68”W×0.98”H)
Weight:210g

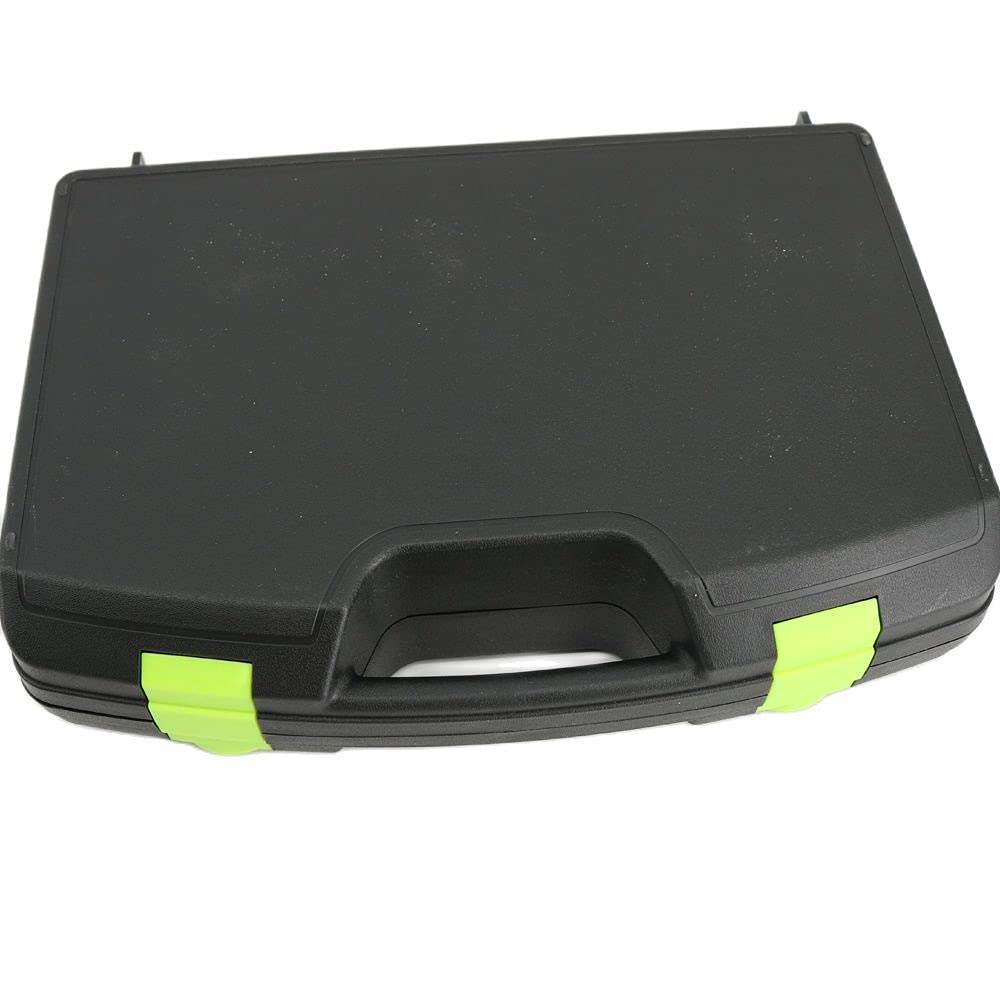

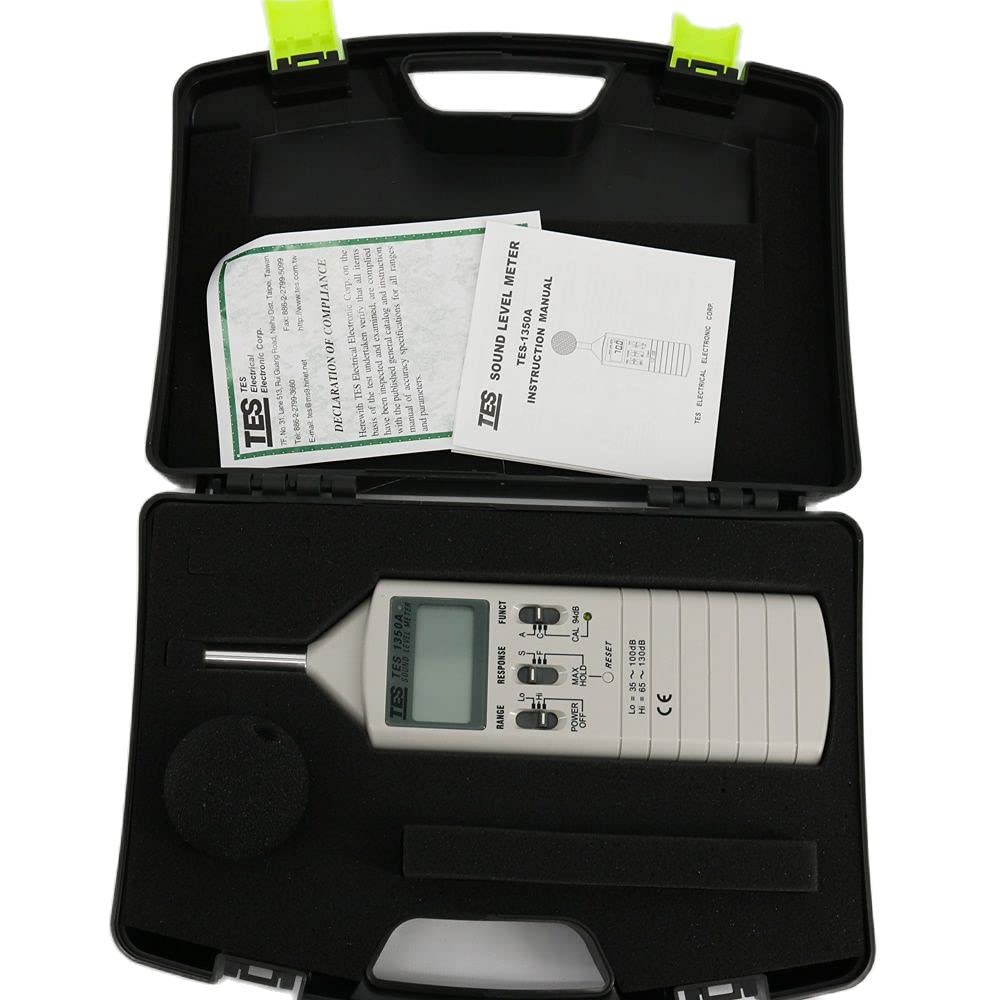

Accessories:Instruction manual, Carrying case, Adjustment screwdriver, windscreen.
