Digital Sound level meter, sound level meter, Sound Analyzer, digital level meter, noise meters
0.1dB Resolution
Maximum hold function
AUX OUTPUT JACKS
Range from 35 to 130 dB
model number: TES-1351B
Part Number: TES-1351B
Details: Standard applied:IEC 651 Type2
Range:A LO (Low) - Weighting: 35- 100dB
A HI (High) - Weighting: 65-130dB
C LO (Low) - Weighting: 35- 100dB
C HI (High) - Weighting: 65-130dB
Resolution:0.1dB
Frequency Range:31.5Hz to 8KHz
Accuracy:± 1.5dB (ref 94dB @1KHz)
Dynamic Range:65dB
Frequency Weighting:A,C
Time Weighting:Slow & Fast
Maximum Hold:Decay <1dB/3min
Microphone:Electret condenser microphone
Calibration:Electrical calibration by using the internal oscillator (1KHz sine Wave at 94dB)
Auxilitary Output:AC conditioned, 0.55Vrms corresponding to each range step, impedance: 600 W DC conditioned, 10mV/dB (nominally) impedance: 100 W
Operating Condition:0 ºC to 40 ºC <80% R. H.
Storage Condition:-10 ºC to 60 ºC <70% R.H.
Display:4 digitals

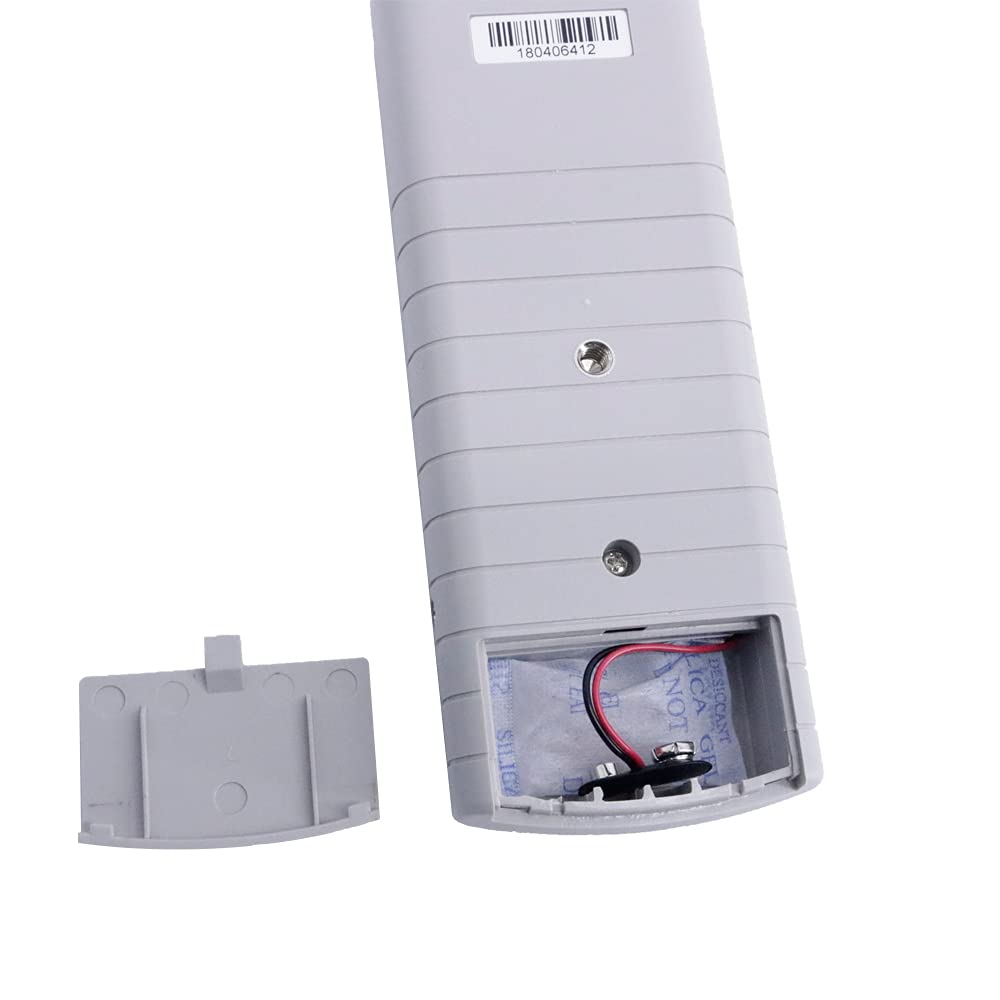

Power Supply:one 9V battery
Size:240mm(L)x68mm(W)x25mm(H)
Weight:210g

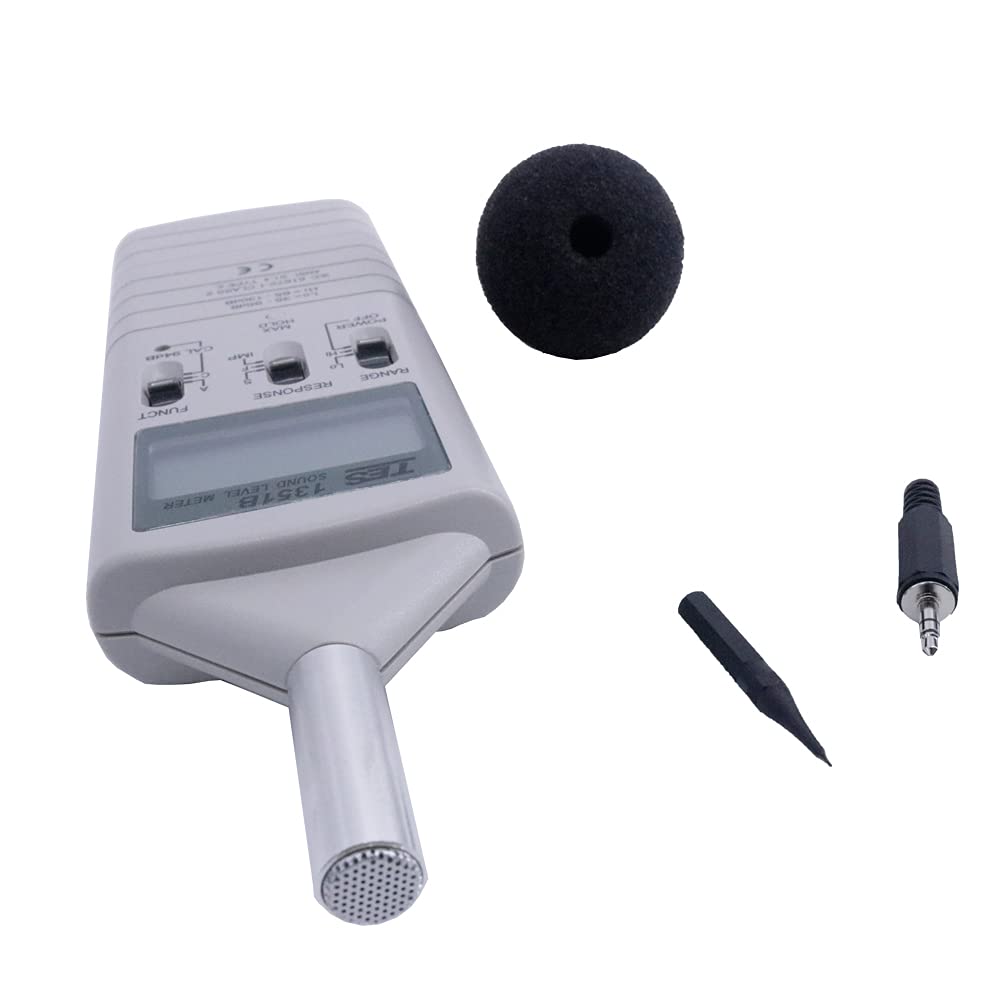

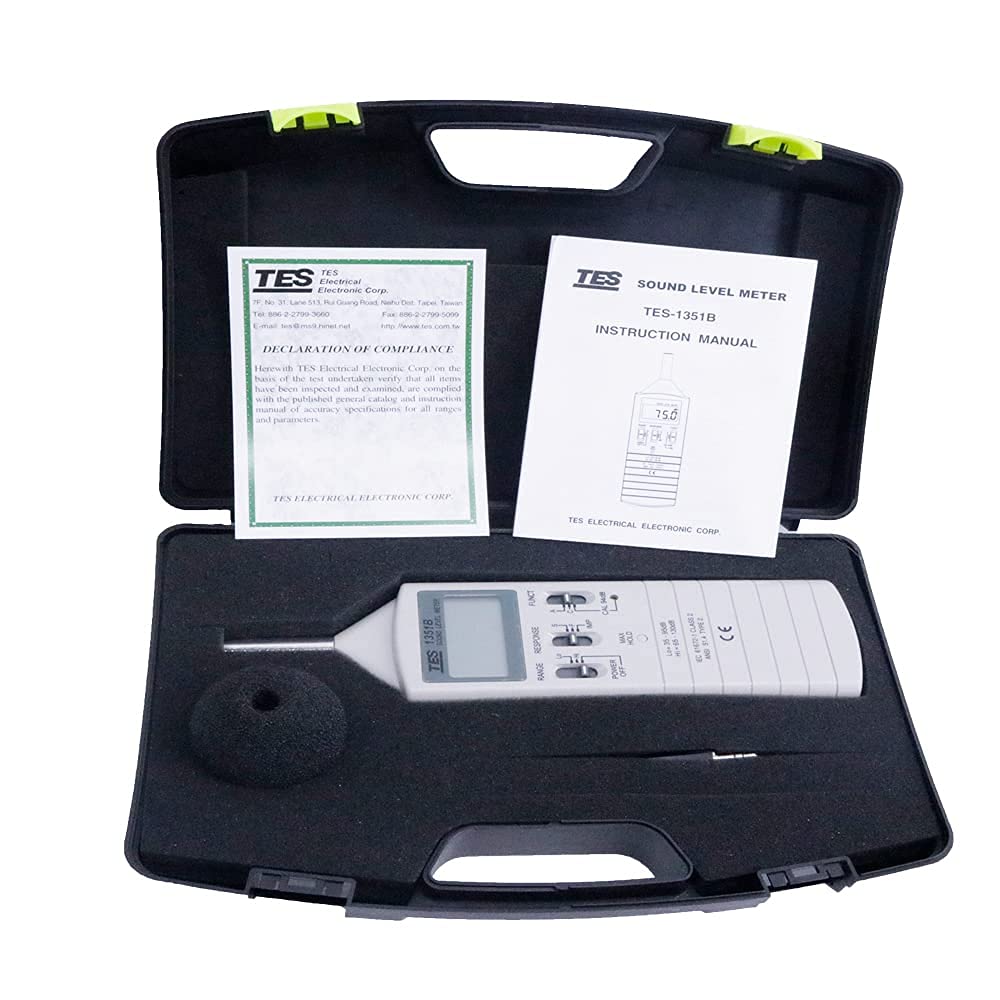

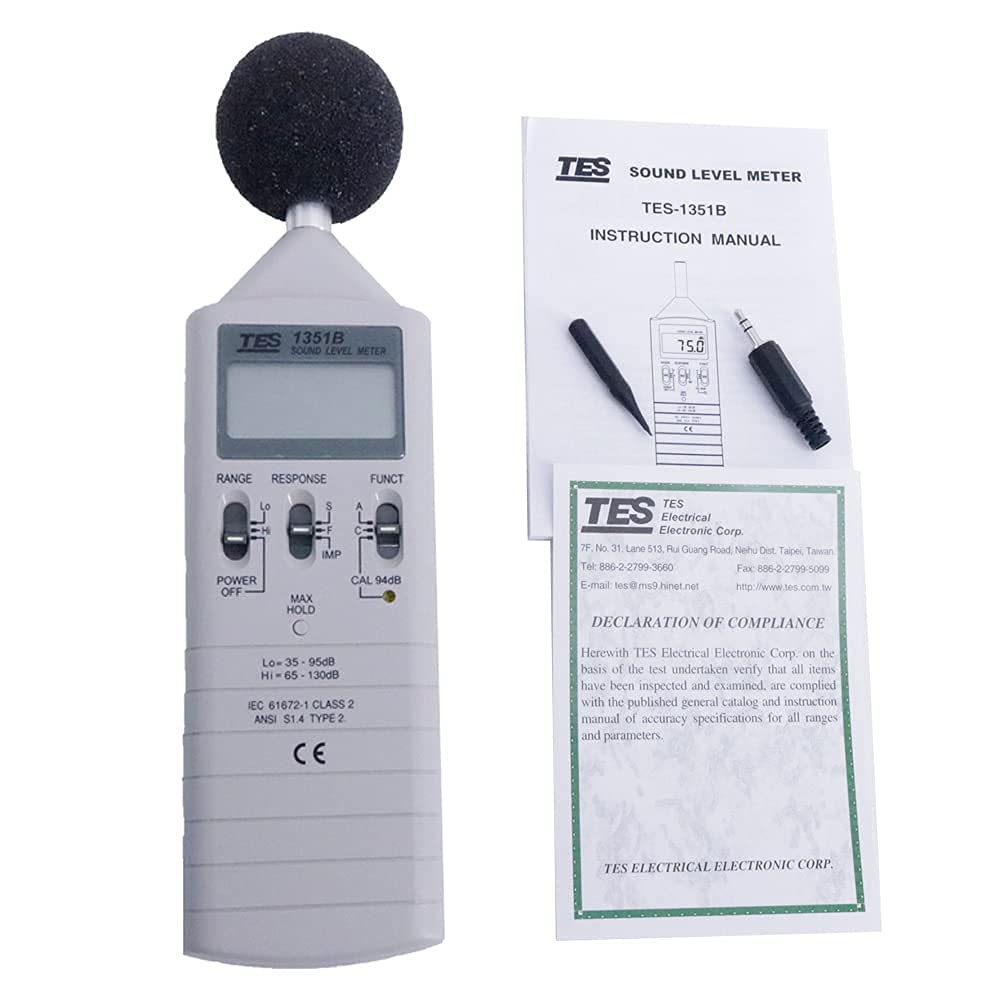

Accessories:Instruction Manual, Carrying Case, Screwdriver, Windscreen.
