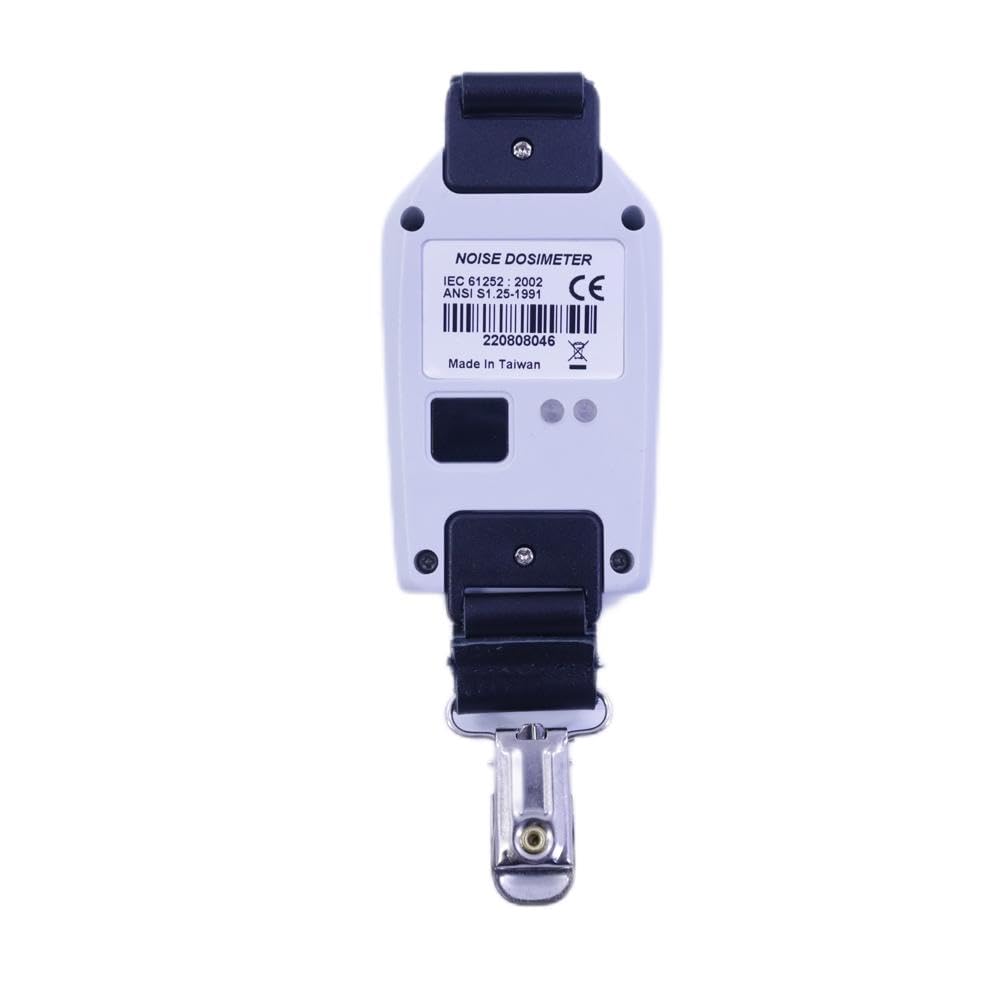

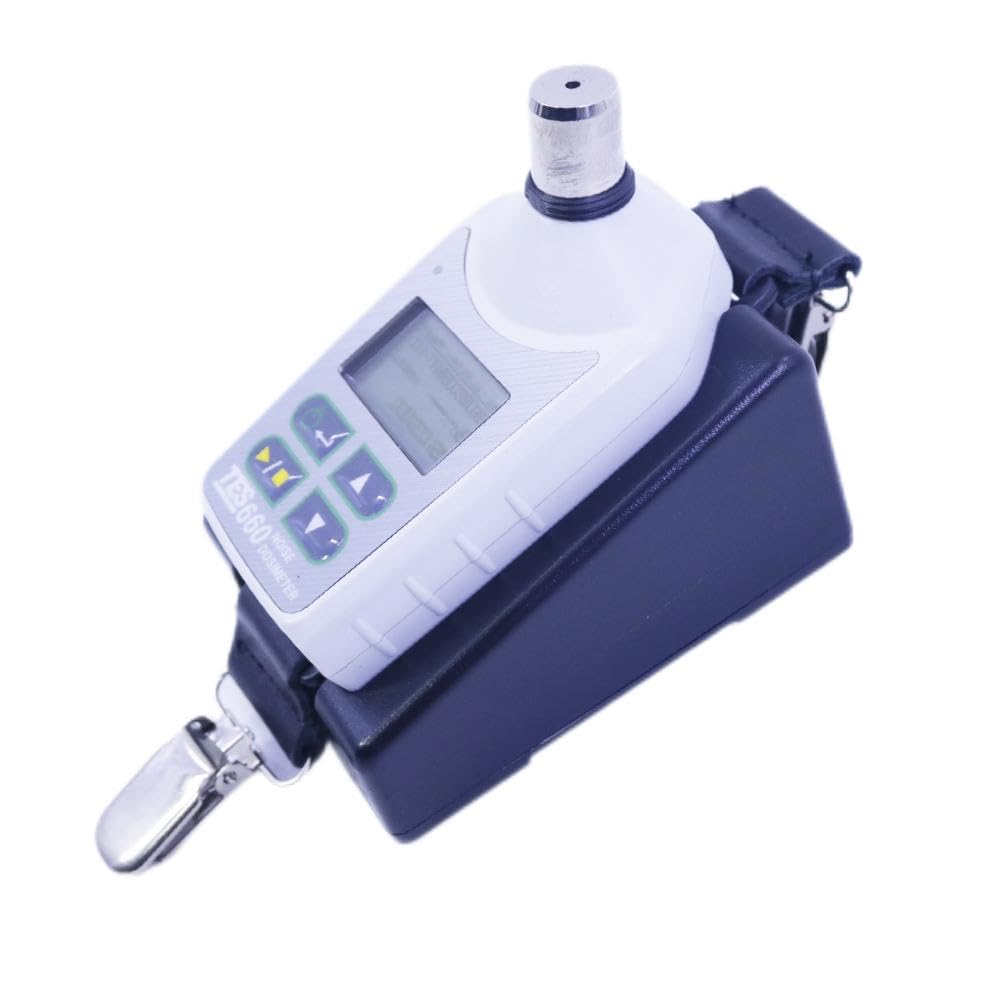

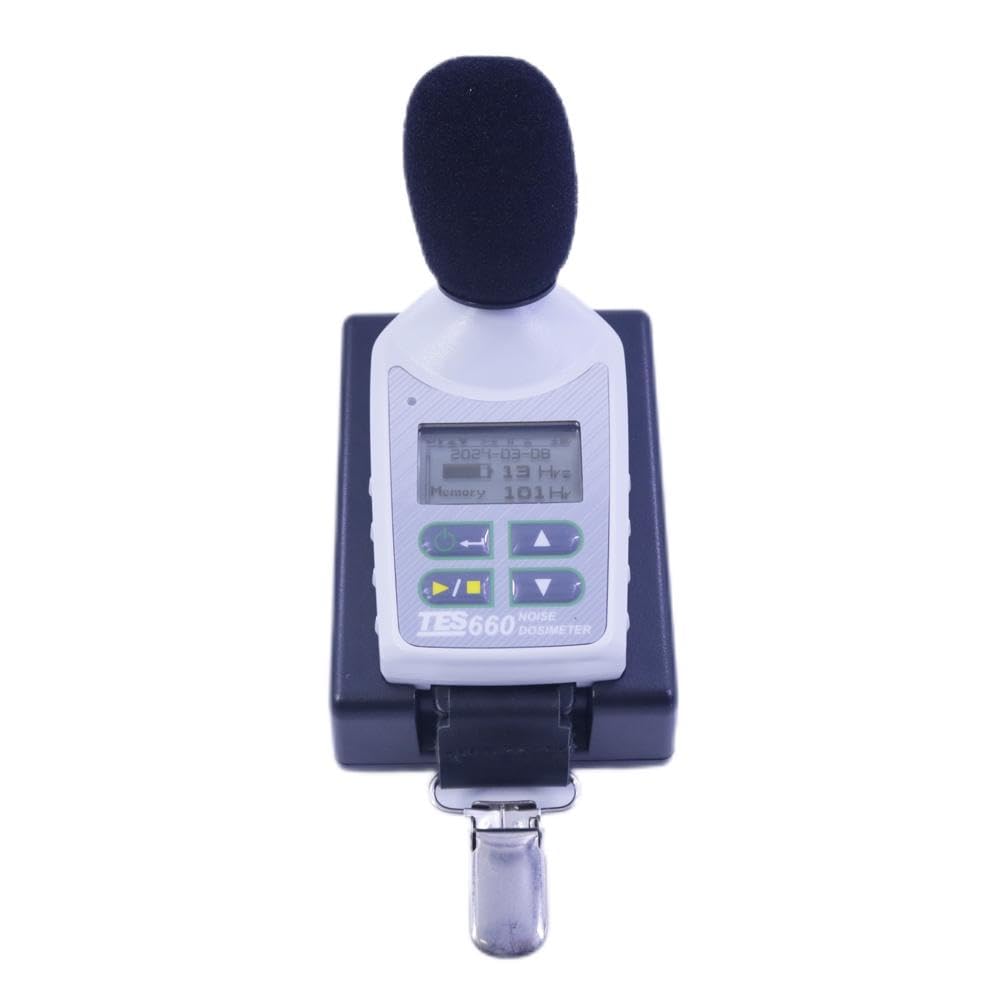

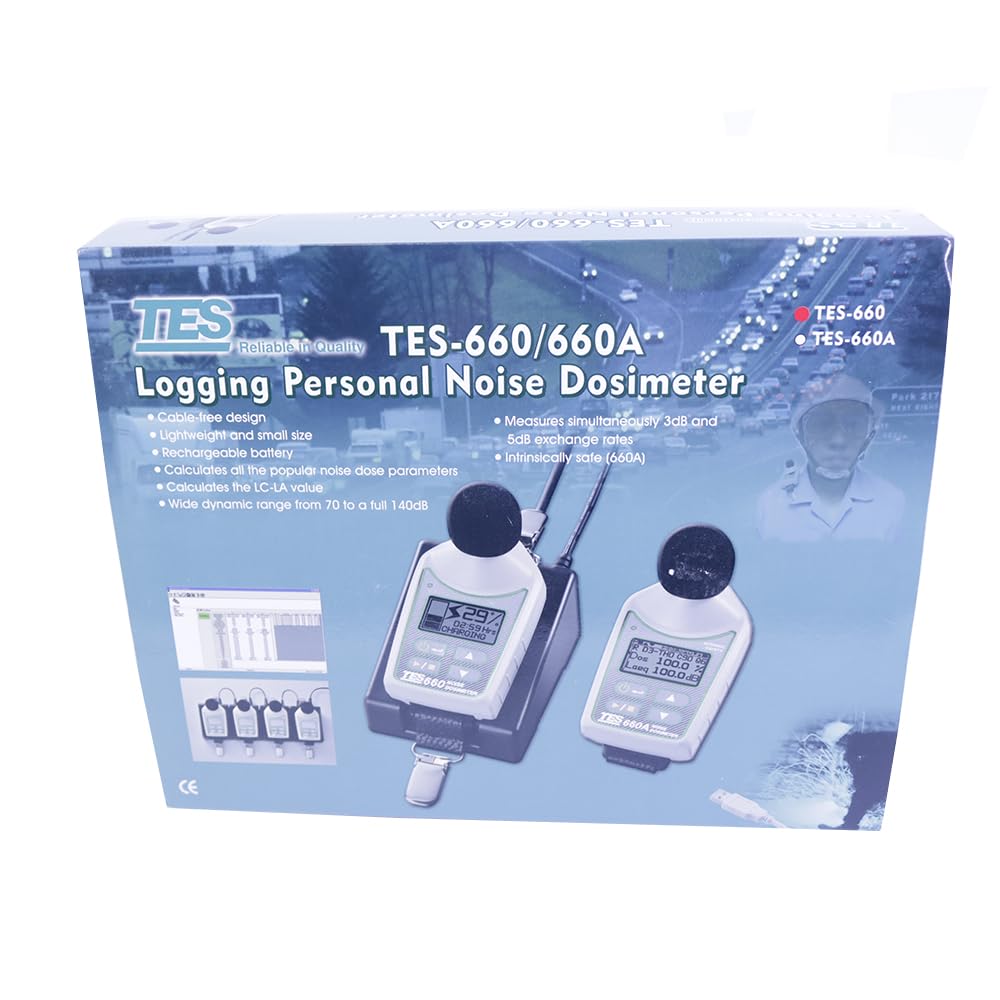

TES-660 Micro Noise Dosimeter(Badge Type) Personal Sound Exposure Meters Sound Level Meter

Brand: Graigar

Color: White

Features:

• *No Mic. Extension Cable required.Lightweight and small size
• Rechargeable battery
• Calculates all the popular noise doseparameters
• Wide dynamic range from 70 to a full140dB
• Measures simultaneously 3dB,4dB,5dB or6dB exchange rates

model number: TES-660

Part Number: TES-660

Details: Specification:
Microphone:1/2-inch electret field replaceable threaded microphone

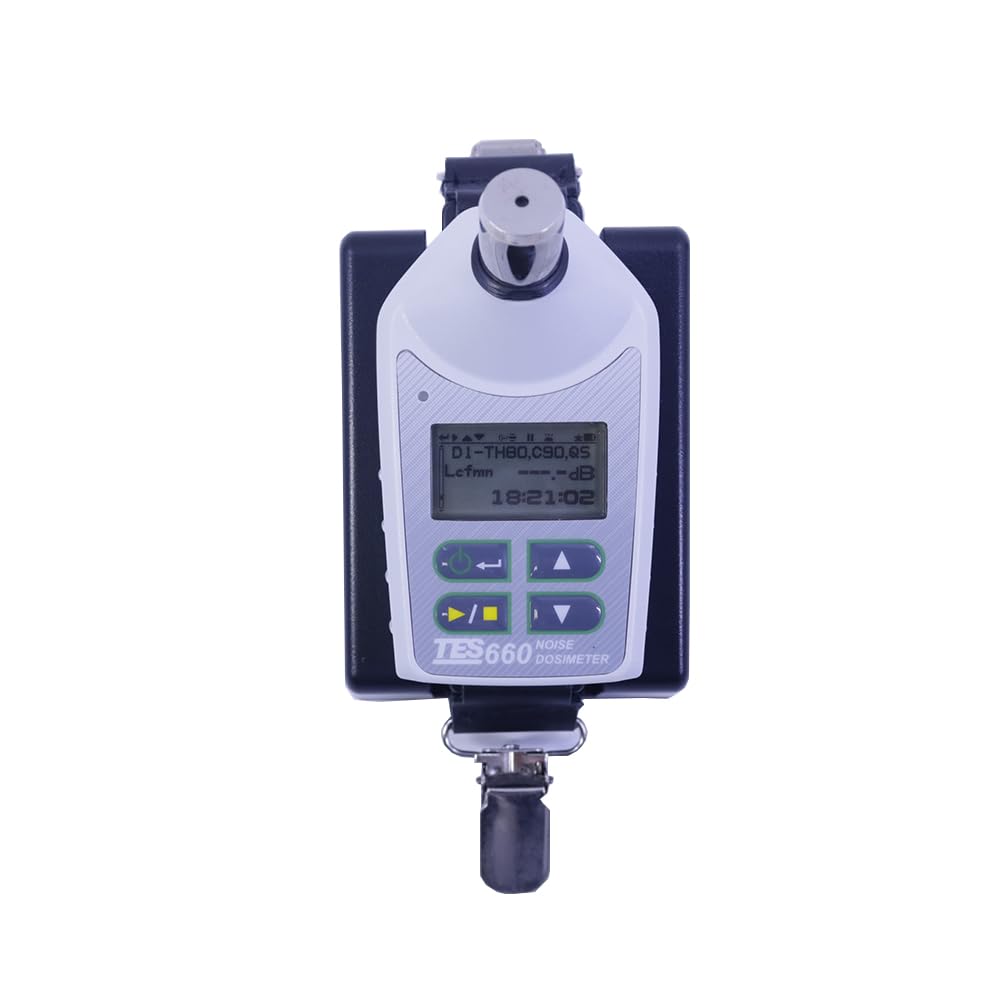

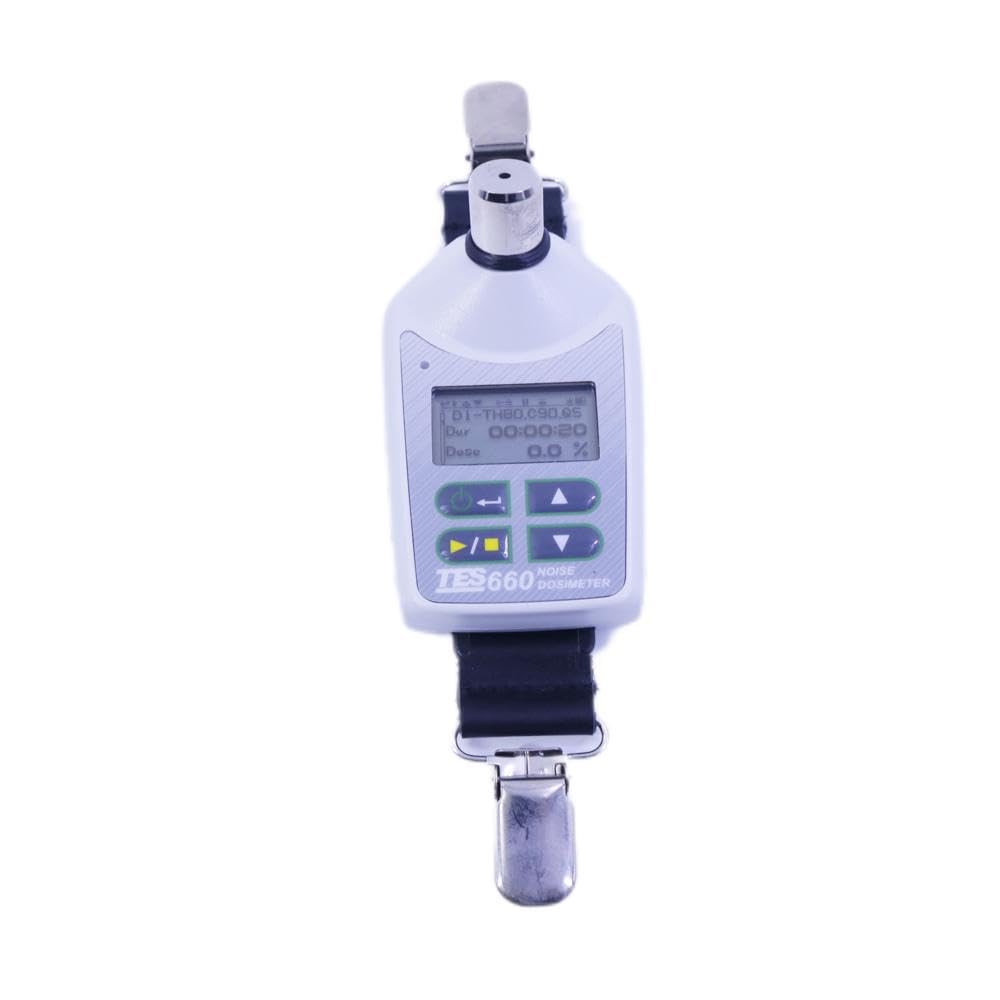

Display:128x64 pixel graphics LCD
Measurement Ranges:Dynamic Range: 70dB to 140dB/Peak Range: 103dB to 143dB
Frequency Weightings:A, C and Z, Type 2
Time Weightings:Fast,Slow and Impulse
Exchange Rate:3dB,4dB,5dB or 6dB
Threshold Level:70 - 90dB in 1dB steps
Criterion Level:70- 90dB in 1dB steps
Alarm warning indicators:LED showing level noise exceedances during run
Clock:Real-time clock with calendar.
Memory:Results from 30 measurements can be stored for later viewing anddownload.
Measurement Control:Measurement Duration: May be set 10 to 55 min in 5min steps ori to 24 Hrs in 1hr steps.
Timers:Up to 99 timers (automatic start and stop) can be set (maximumup to one month ahead of measurement time)./Timer Controller Starter/stop:Up to 16 timers can be set up from the PCsoftware or meter keypad.
Logging storage (results):At least 100 hours at 4 profiles every minute with unit showing remaining memory recording time in hours when switched on.
Stored profile values:Lavg, LZpk,Leq,LCpk
Storage interval:1,5,10,30minutes and 1or 2 hours can be set
Setup:Ten built-in (predefined) default setups are included./Nine additional user-defined setups can be stored.
Battery:Li polymer (3.7V/470mAh)

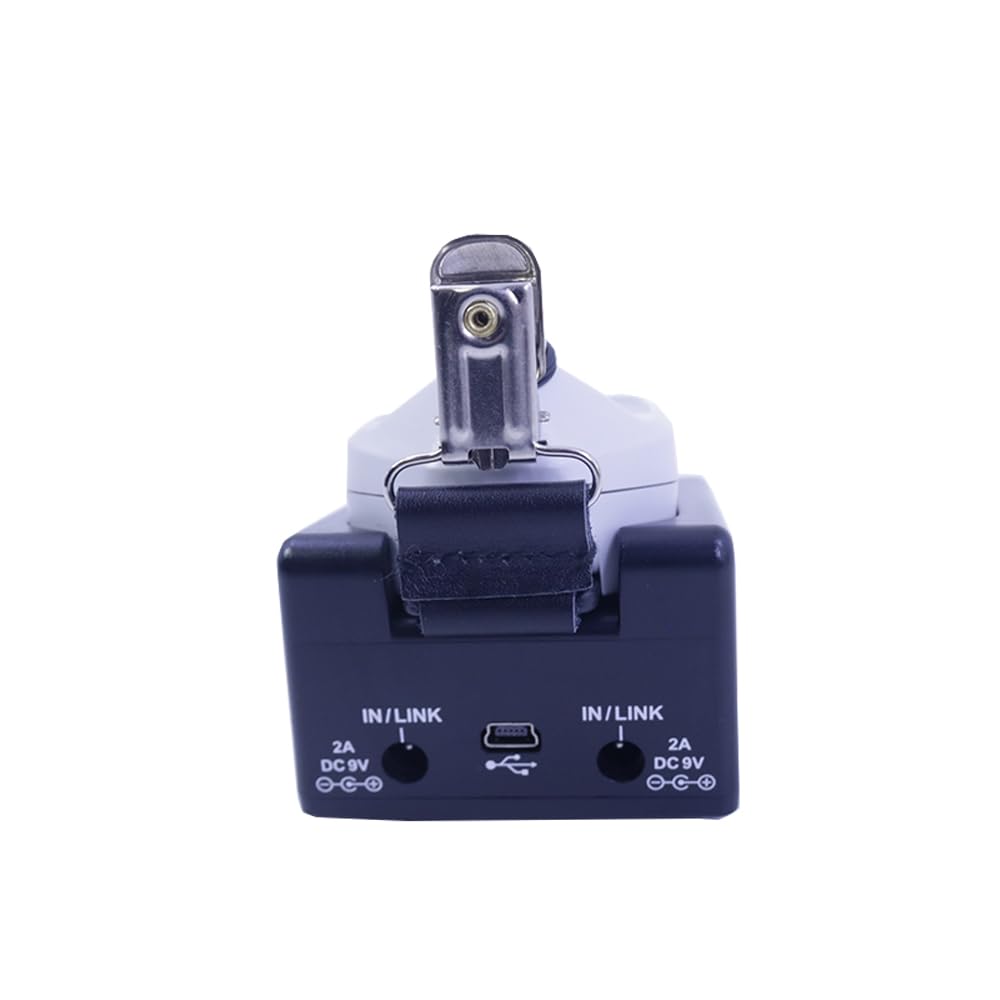

Charging unit / PC interface:Complete meter fits neatly into the charging unit (DS-01)./Quick battery recharge in less than 90 mins from completely empty./Communications via the charging unit (DS-01) and uSB to PC.
Operating / Storage Temperature & Humidity :0 to 50oC (32 to 122°F),10 to 90%RH / -10 to 60c (14 to140°F),10 to 75%RH
size :84(L)×49(W)×55(H)mm / 3.3(L)×1.9(W)×2.2(H)inch (withwindscreen)
Weight:Approx.77g (2.7oz), less mounting device

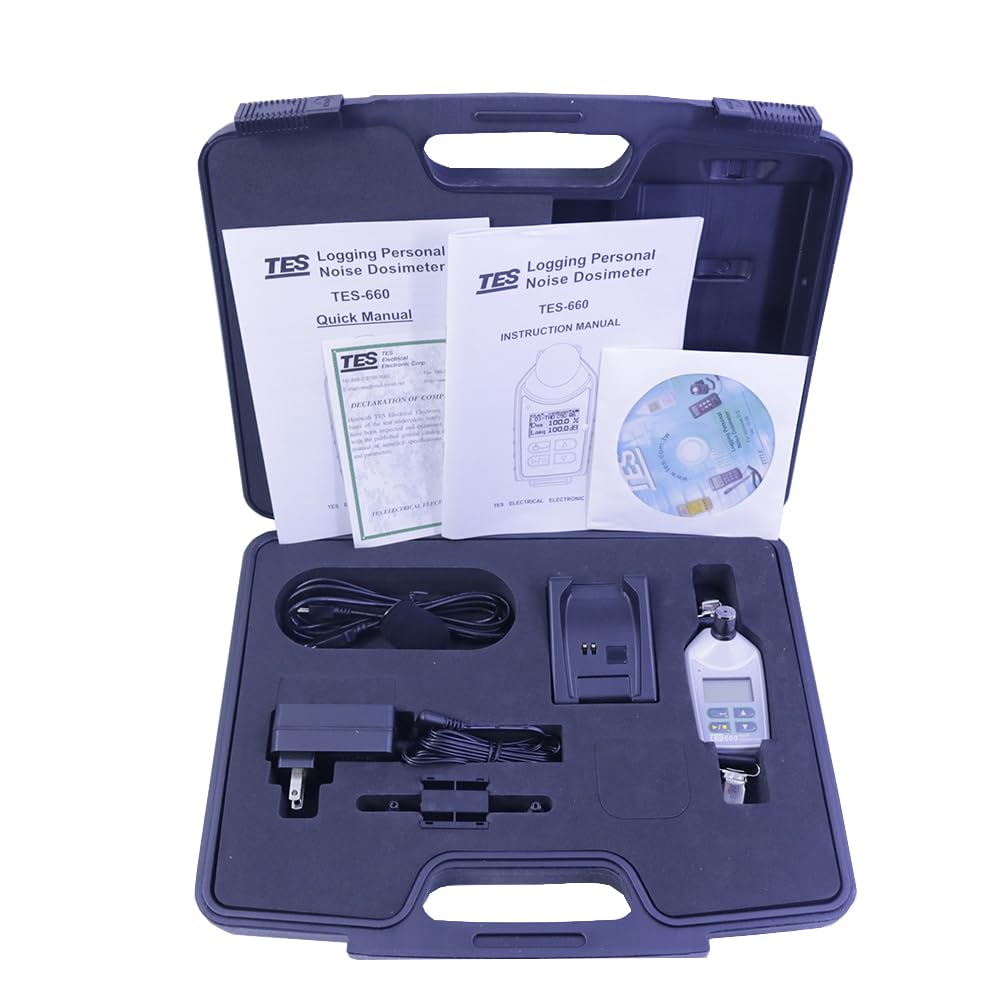

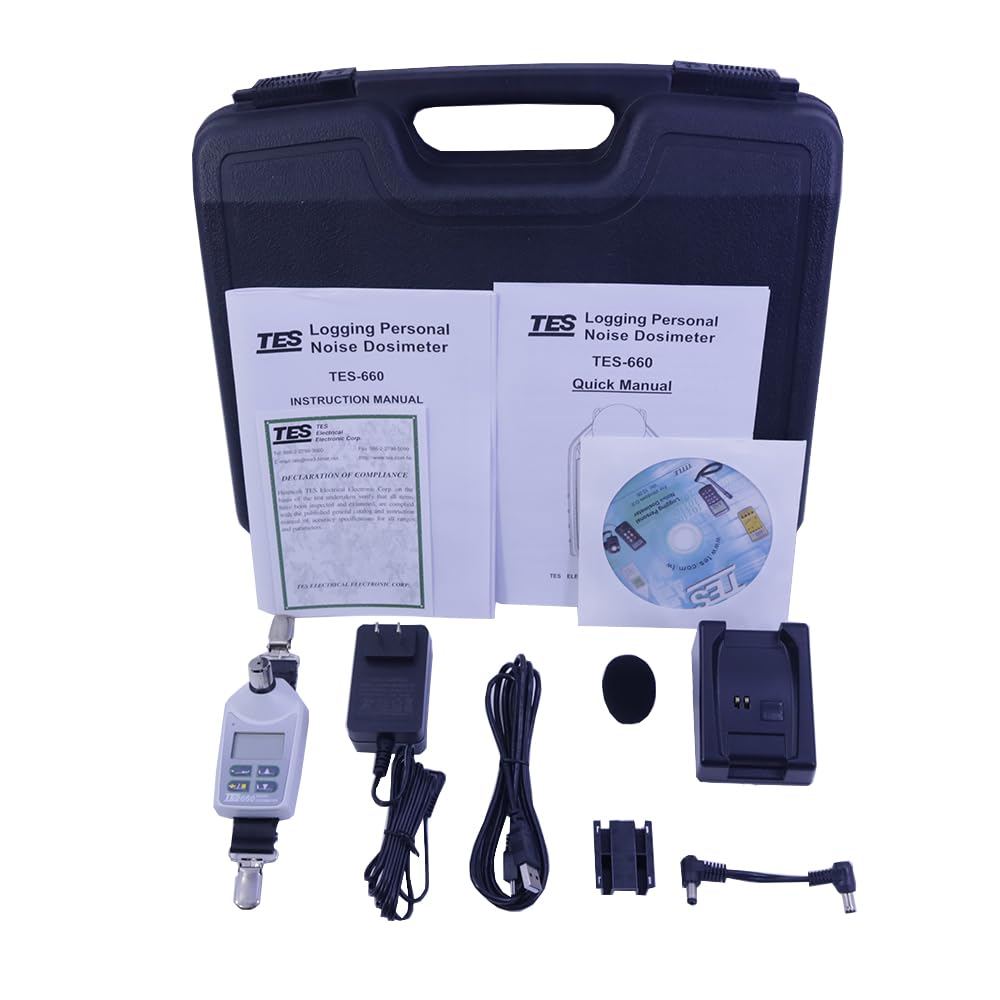

Accessories:
Instruction manual,
Carrying case,
Charging unit (DS-01),
AC adapter for DS-01(up to 4 linked DS-o1),
CD software,
USBcable.

EAN: 0707457451699
