TK100 Moisture Measuring Device Fiber Material Testing Portable Humidity Tester Meter for Corn Hay Straw Bran Oats Rapeseed Rough Rice Fibre Bales

TK100 Moisture Measuring Device Fiber Material Testing Portable Humidity Tester Meter for Corn Hay Straw Bran Oats Rapeseed Rough Rice Fibre Bales

$119.00 USD
$119.00 USD
促销 售罄

TK100 Multi-functional Moisture Meter Fiber Material Testing Portable Humidity Tester Meter for Corn Oats Rice 0-84%


Features:

  • Through the temperature and humidity compensation technology, it improves the measurement accuracy and stability.

  • Wide working range, probe-type sensor can be measured deep inside the material.

  • Measurement speed, can replace the traditional oven method, so that the moisture determination time is shortened, the whole process of operation is less than 1 minute, the measured value of instant display, greatly saving the valuable time of the inspector.

  • Small size, light weight, strong anti-interference performance, can be carried on the spot for rapid detection.

  • Backlight LCD technology, clear display, low power consumption.

  • Alarm function, the maximum value of the measured value to maintain the function.

  • Power saving function with automatic switch-off.

Specification:





  • Display 4 digital LCD

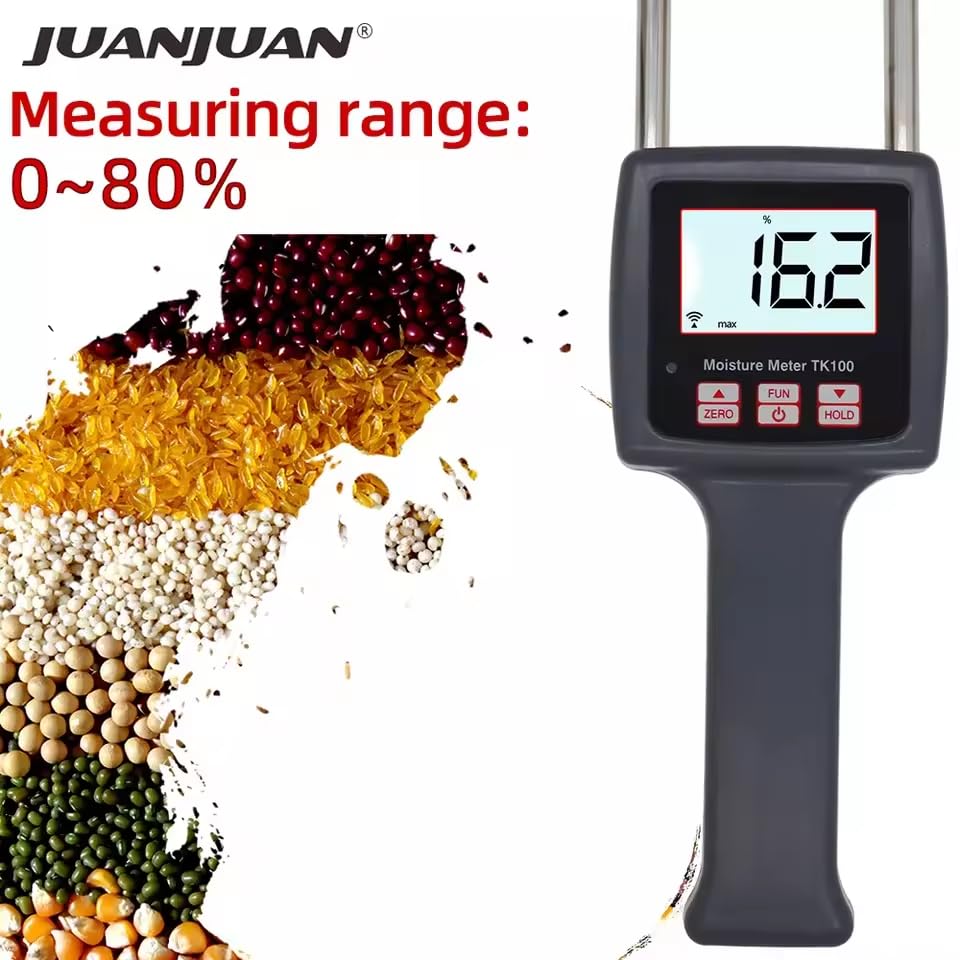

    Measuring range 0-80%
    Temperature 0-60
    Humidity 5%-90%
    Resolusion 0.1
    Accuracy ± 0.5%n
    Operation Electrical Resistance Method, Automatic temperature Compensation
    Power supply 4x1.5 AAA size (UM-4) battery

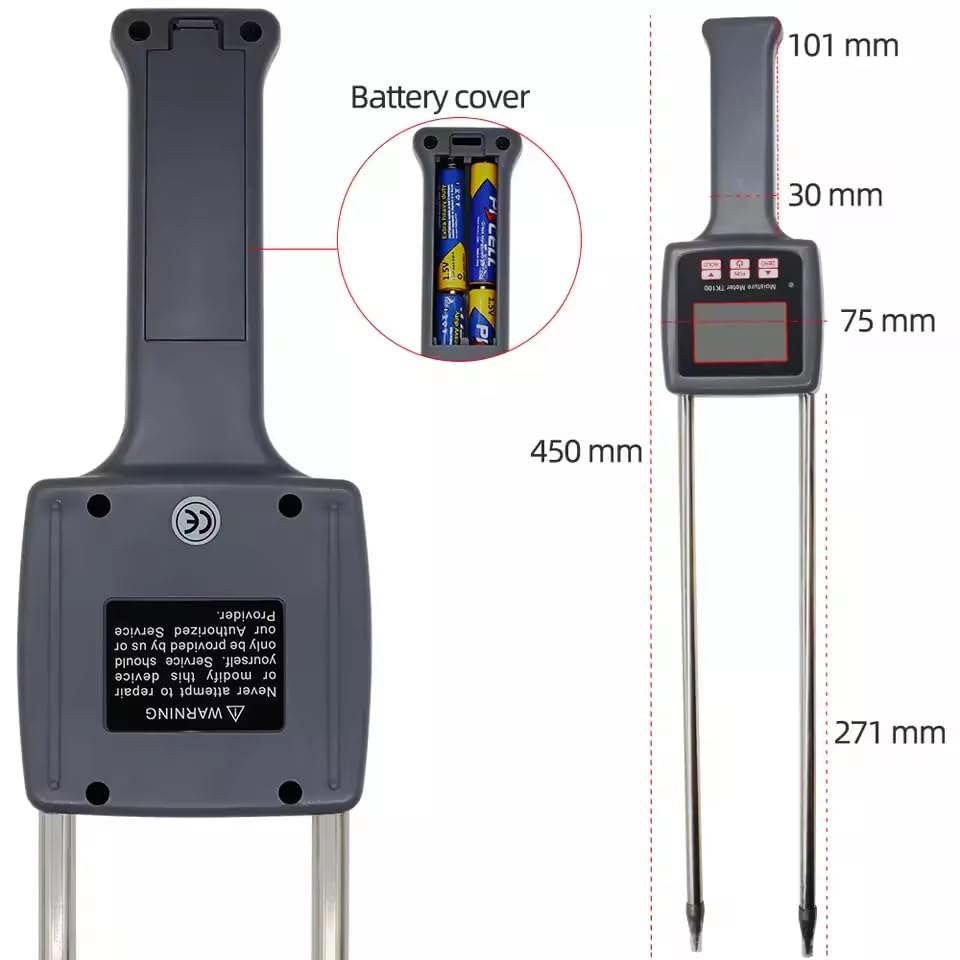

    Dimensions 460mm×75mm×35mm
    Weight 203g (not including batteries)
    Guarantee 1 year

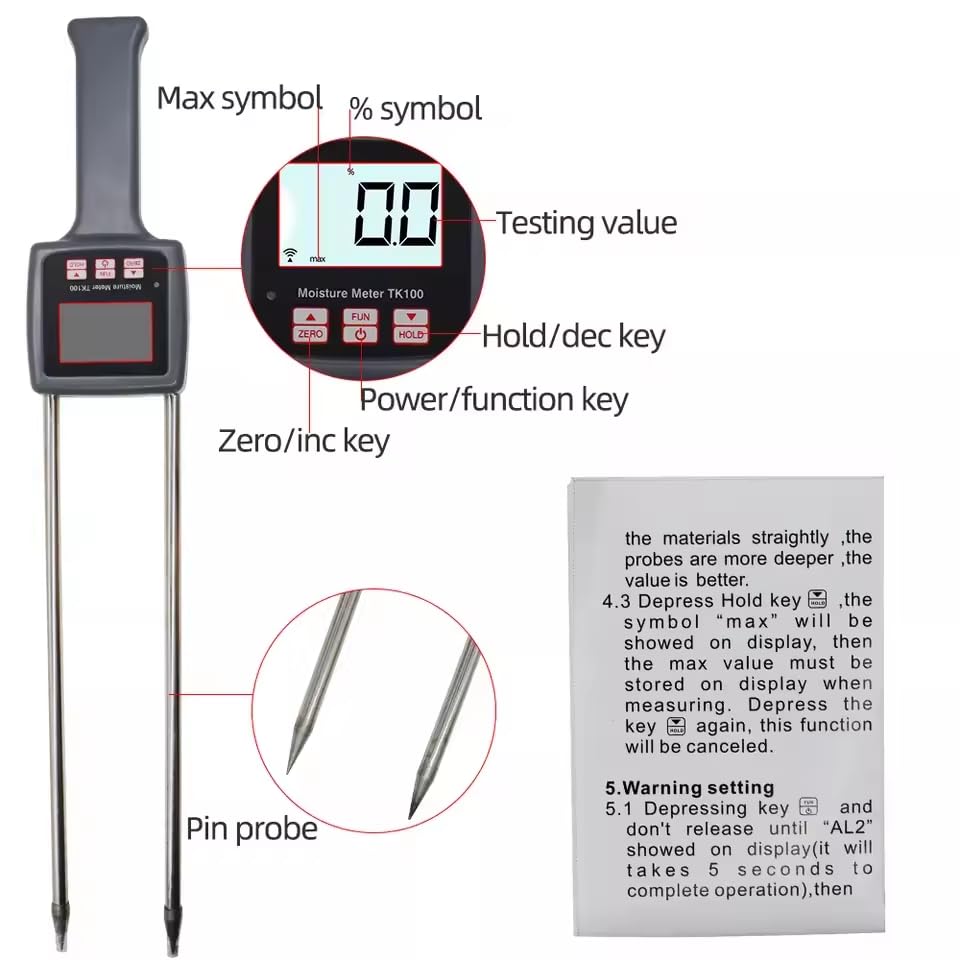

Operation

  • 1. press the power button 3-10 boot

The display shows zero, the measurement symbol is displayed
Shown in the lower left corner of the screen;
On the show is not zero, you need to school
zero. When the test is zero, please let the probe hang
Empty, press the zero key 3-6 to complete the zero.
In the process of zero calibration, the probe can not touch
Touch any object, otherwise the zero is not allowed
Indeed School zero can be eliminated due to ambient temperature
Humidity changes and other factors caused by the measurement
error.

  • 2. hand the instrument, the measurement probe will be vertical

Inserted into the measured object, to be digital stable
After the show the value of the sawdust
Of the moisture measurements. Probe inserted deep
The deeper the depth (please try all the probe
Insert), the more accurate the measured value,
The smaller the error.

  • 3. press the button 3-11, left on the screen

Side appears "MAX" symbol, measured
The maximum value will remain on the display
On the screen, if canceled, press again
3-11 key can be.

  • 4. manually shut down press the button 3-10 straight

To loose when the display appears OFF
Hand to shut down. 5 minutes machine
When the test is in operation, it is automatically turned off
Machine, to achieve energy-saving features.

  • 5. replace the battery

When the screen appears low voltage symbols
, Please replace the battery in time. hit
Open the battery cover, according to the positive and negative direction
Fitted with four batteries on the 7th.

Alarm set

  • 11, press the 3-10 key do not let go, straight

Packing List:

  • 1*TK100

  • 1* User Manual

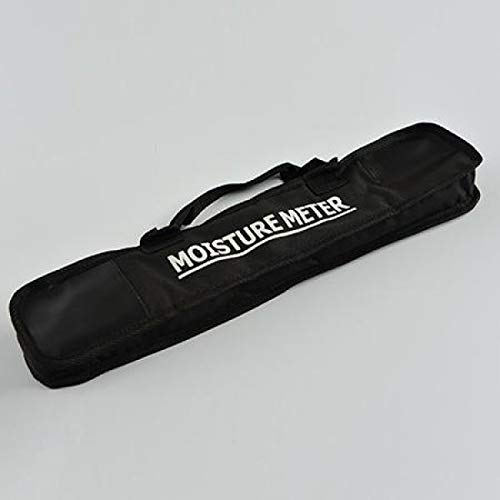

  • 1* Cloth Bag

Brand: Graigar

model number: TK100

Part Number: TK100
