Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Features
* Using the latest high performance and low power consumption microprocessor technology. * Automatic memory material code and sound velocity value, convenient to use. * Use USB/RS-232 data output to connect with PC.(Optional) * Provide Bluetooth data output choice.(Optional)

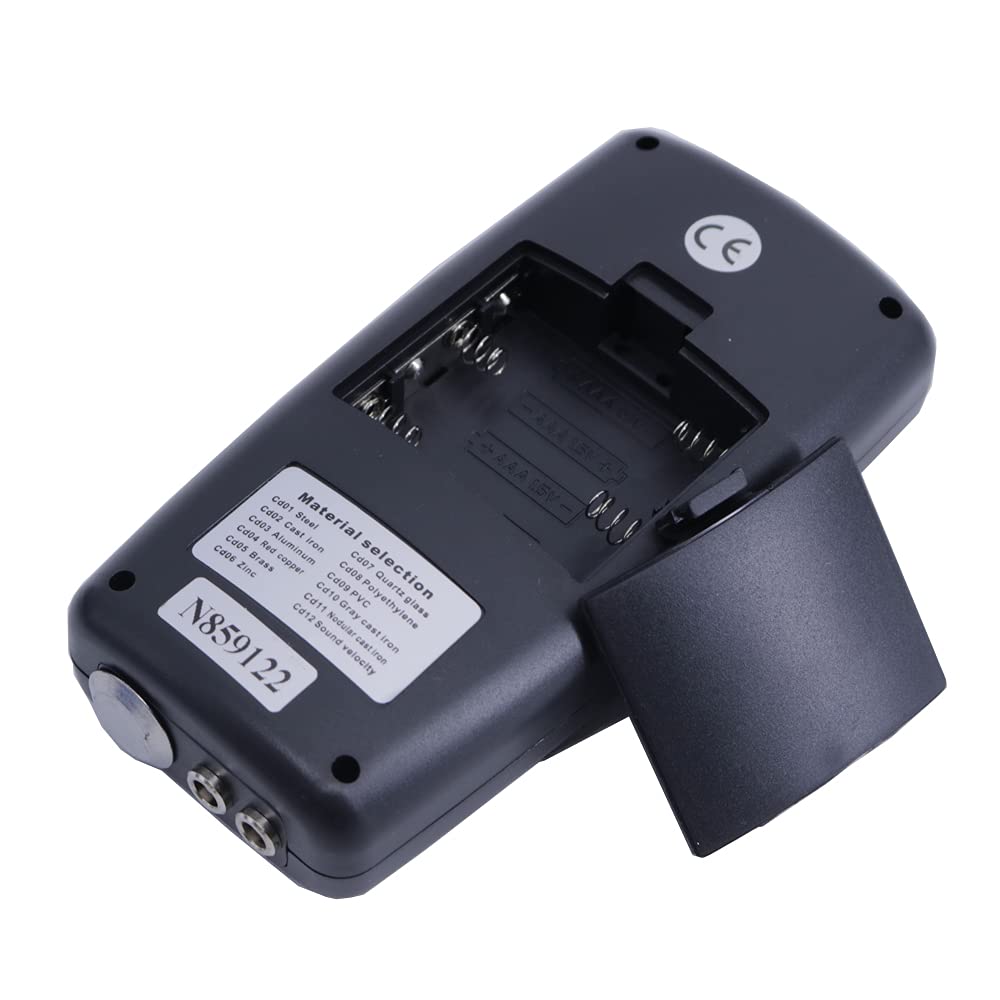

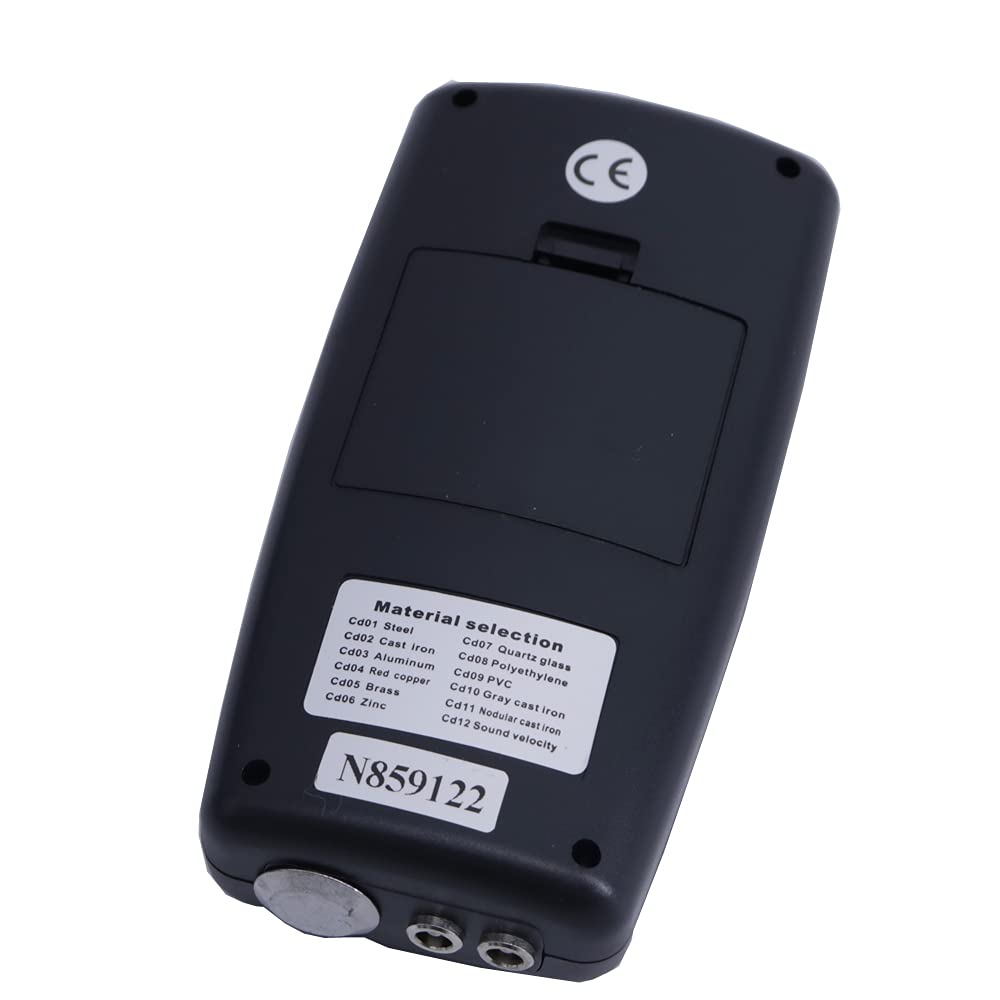

Material Selection
Code
Material
CD01
Steel
CD02
Cast Iron
CD03
Aluminum
CD04
Red Copper
CD05
Brass
CD06
Zinc
CD07
Quartz Glass
CD08
Polyethylene
CD09
PVC
CD10
Gray Cast Iron
CD11
Nodular Cast Iron
XXXX
Sound Velocity
Specifications

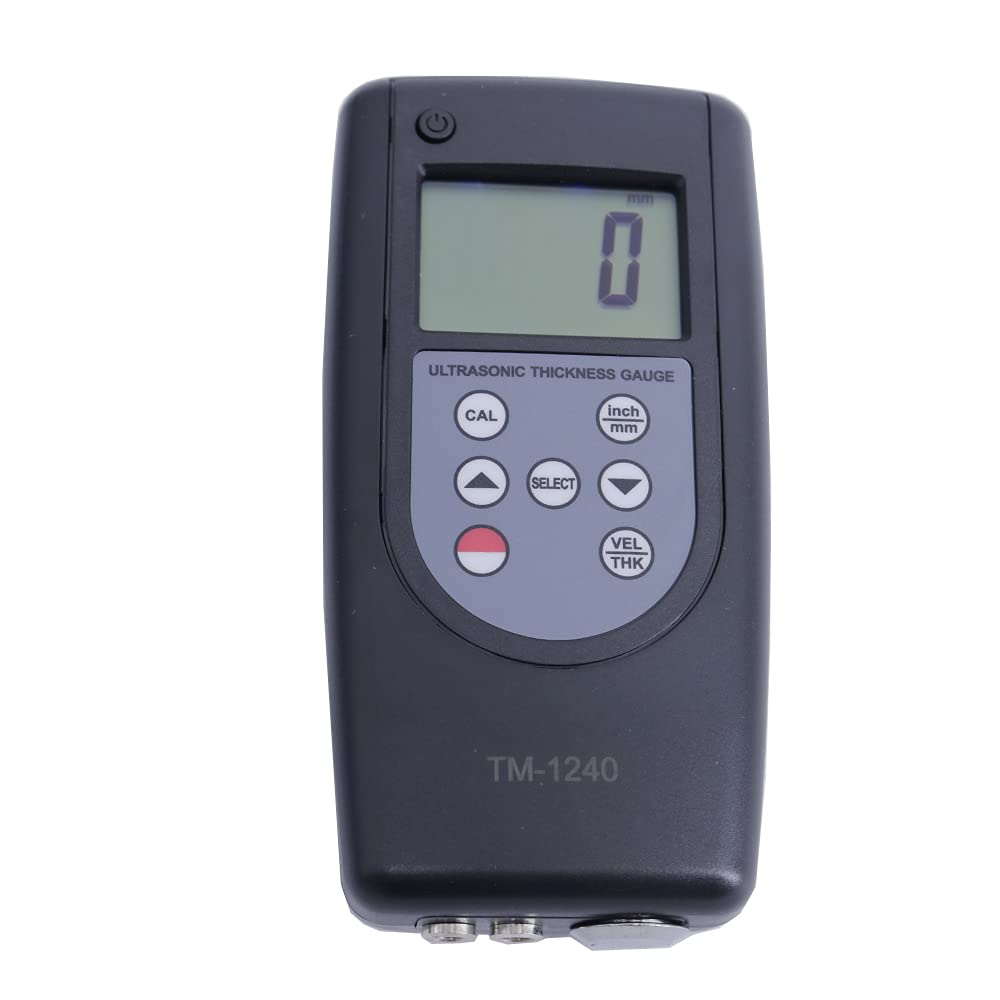

Display
LCD
Operating Principle
Ultrasonic
Measuring Range
0.75~400mm(45#steel)(Depend on Probe)
Resolution
0.1mm/0.01mm/0.001inch
Accuracy
±(0.5%n+0.1)
Lower Limit of Pipes
Φ15x2.0mm Φ20x3.0 mm
Determined By Transducer
Sound Velocity
1000~9999 m/s
Operating Conditions
Temperature:0~40ºC Humidity:<85%RH
Power Supply
4x1.5V AAA(UM-4)Battery
Dimensions
140x72x34mm
Weight
185g(Not Including Batteries)

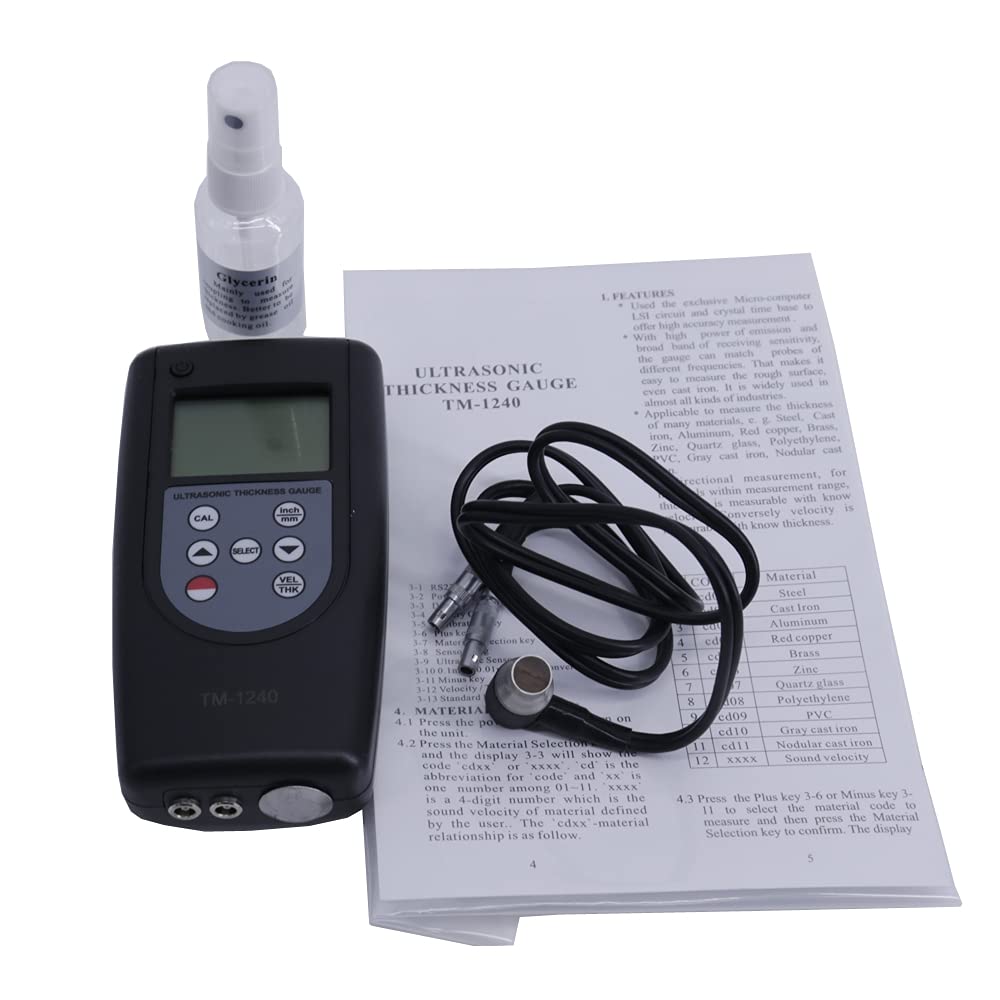

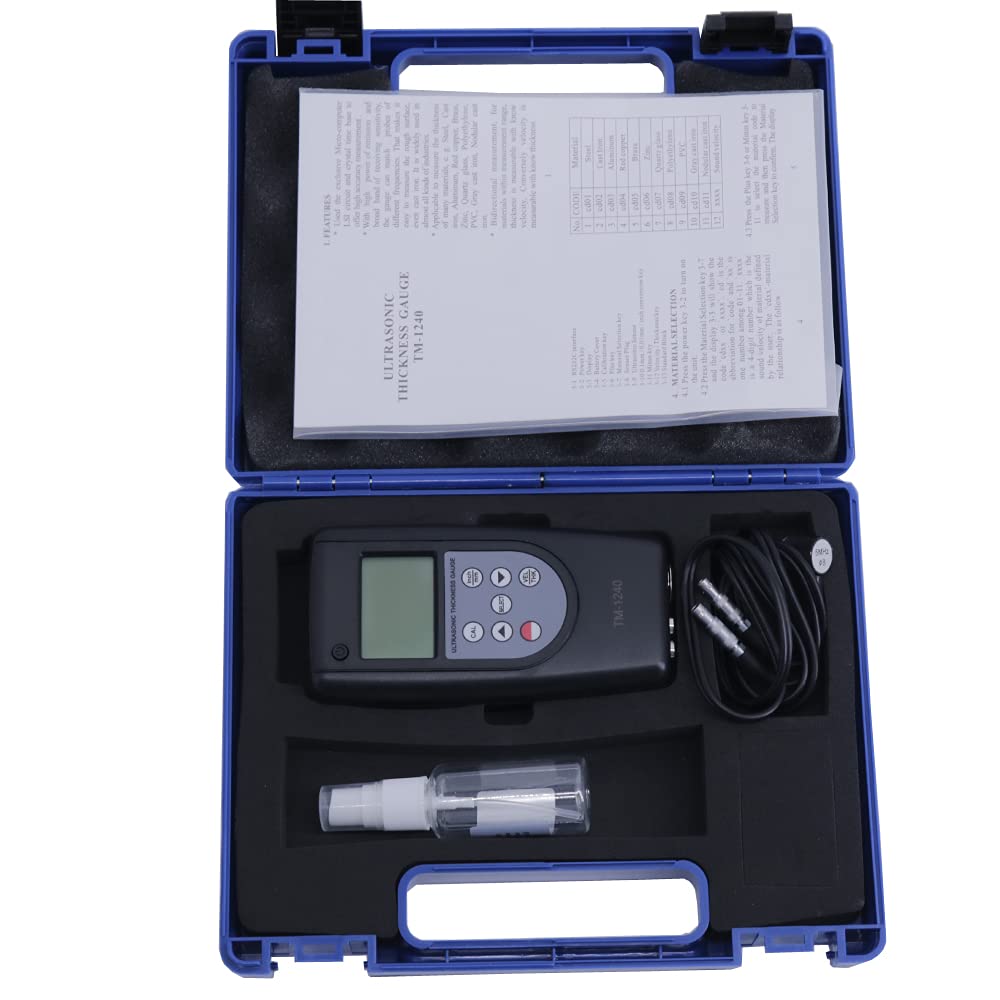

Standard Accessories
Main Unit
Standard Probe

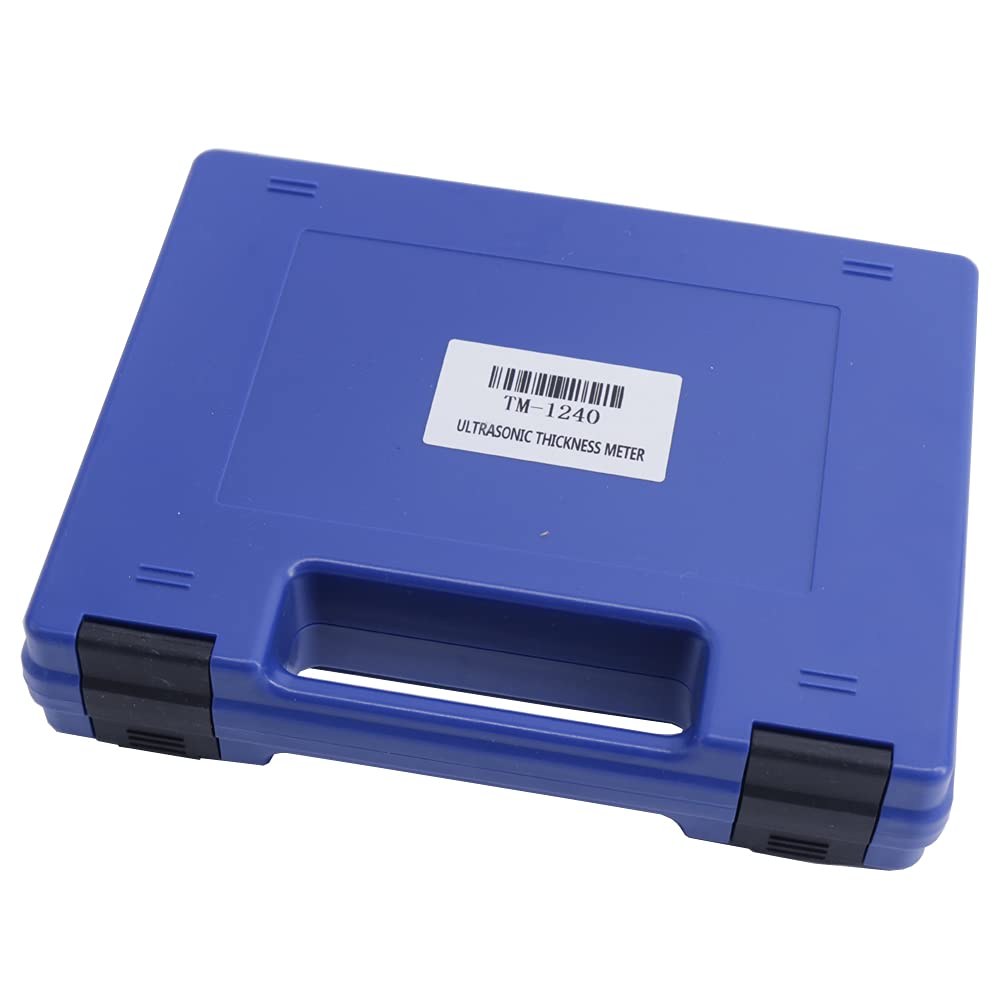

Carrying Case(B04)
Operation Manual
Optional Accessories
Other Special-purpose Probe
RS-232C Data Cable with Software
Bluetooth Data Adapter with Software
The Standard package has no Optional accessories,please feel freely to contact us if you need.
