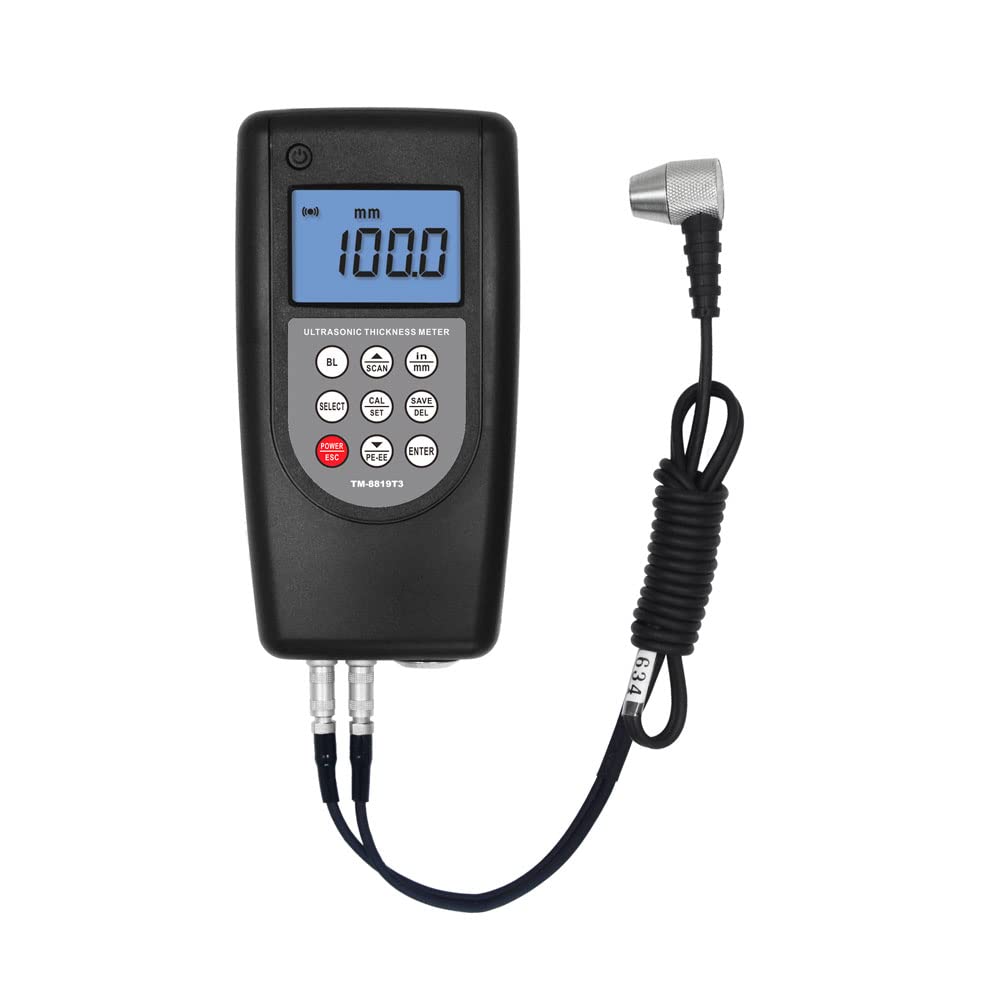

TM-8819-T3 Mul-ti Mode Ultrasonic Thickness Gauge Pulse-Echo and Echo-Echo Coating Thickness Gauge Metal Thickness Tester
TM-8819-T3 Mul-ti Mode Ultrasonic Thickness Gauge Pulse-Echo and Echo-Echo Coating Thickness Gauge Metal Thickness Tester
Couldn't load pickup availability
|
Spec: |
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing |
Principle
The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back travel path, and then multiplied by the velocity of sound in the material.
Features
* Multi-mode: Pulse-Echo mode (used for flaw and pit detection) and Echo-Echo mode (used for measurements eliminating paint or coating thickness).
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
Specifications
|
Unit System |
Metric system or British system (optional) |
|
Display |
LCD with backlight |
|
Range |
Pulse-Echo mode: (1.0~300)mm (in Steel) |
|
Echo-Echo mode: (3~30)mm |
|
|
Resolution |
0.1mm / 0.01mm / 0.001inch |
|
Accuracy |
±(0.5%n + 0.05mm), depends on materials and conditions |
|
Measurement Period |
4 times per second for single point mode and 10 times per second for scan mode |
|
Sound Velocity |
1000m/s~9999 m/s |
|
Memory for up to 20 files(99 values for each file)of stored values |
|
|
Working Mode |
There are two working modes of thickness measurement: single mode and scan mode |
|
Operating Conditions |
Temperature:0~40ºC Humidity:<85%RH |
|
Power Supply |
4x1.5V AAA(UM-4)Battery |
|
Dimensions |
142mmx72mmx34mm |
|
Weight |
175g(Not Including Batteries) |
|
Standard Accessories |
Main Unit |
|
Standard Probe |
|
|
Coupling Agent |
|
|
Carrying Case(B04) |
|
|
Operation Manual |
|
