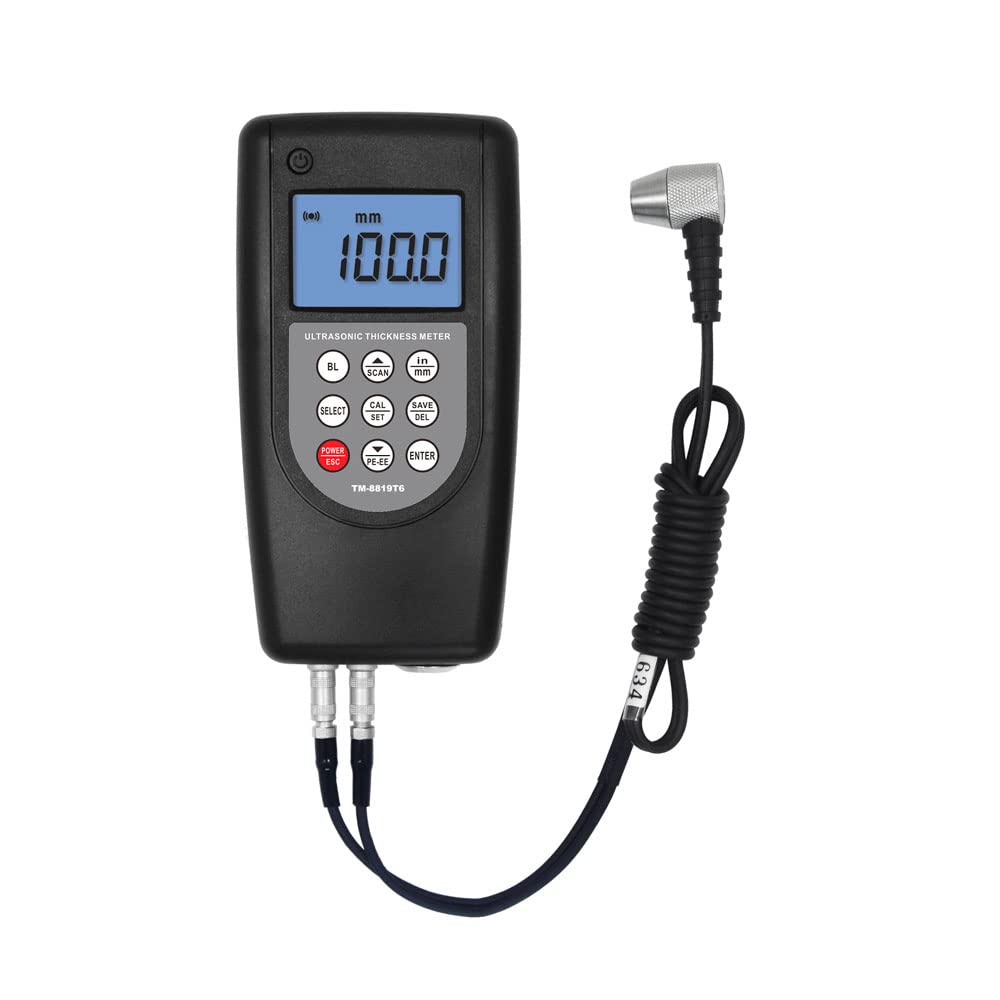

TM-8819-T6 Mul-ti Mode Ultrasonic Thickness Gauge Pulse-Echo and Echo-Echo Coating Thickness Meter
TM-8819-T6 Mul-ti Mode Ultrasonic Thickness Gauge Pulse-Echo and Echo-Echo Coating Thickness Meter
Couldn't load pickup availability
Features
* Multi-mode: Pulse-Echo mode (used for flaw and pit detection) and Echo-Echo mode (used for measurements eliminating paint or coating thickness).
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
Principle
The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back travel path, and then multiplied by the velocity of sound in the material.
Specifications
|
Unit System
|
Metric system or British system (optional)
|
|
Display
|
LCD with backlight
|
|
Range
|
Pulse-Echo mode: (0.65~600)mm (in Steel)
|
|
Echo-Echo mode: (3~60)mm
|
|
|
Resolution
|
0.1mm / 0.01mm / 0.001inch
|
|
Accuracy
|
±(0.5%n + 0.05mm), depends on materials and conditions
|
|
Measurement Period
|
4 times per second for single point mode and 10 times per second for scan mode
|
|
Sound Velocity
|
1000m/s~9999 m/s
|
|
Memory for up to 20 files(99 values for each file)of stored values
|
|
|
Working Mode
|
There are two working modes of thickness measurement: single mode and scan mode
|
|
Operating Conditions
|
Temperature:0ºC~40ºC Humidity:<85%RH
|
|
Power Supply
|
4x1.5V AAA(UM-4)Battery
|
|
Dimensions
|
142mmx72mmx34mm
|
|
Weight
|
175g(Not Including Batteries)
|
|
Standard Accessories
|
Main Unit
|
|
Standard Probe
|
|
|
Coupling Agent
|
|
|
Carrying Case(B04)
|
|
|
Operation Manual
|
|
