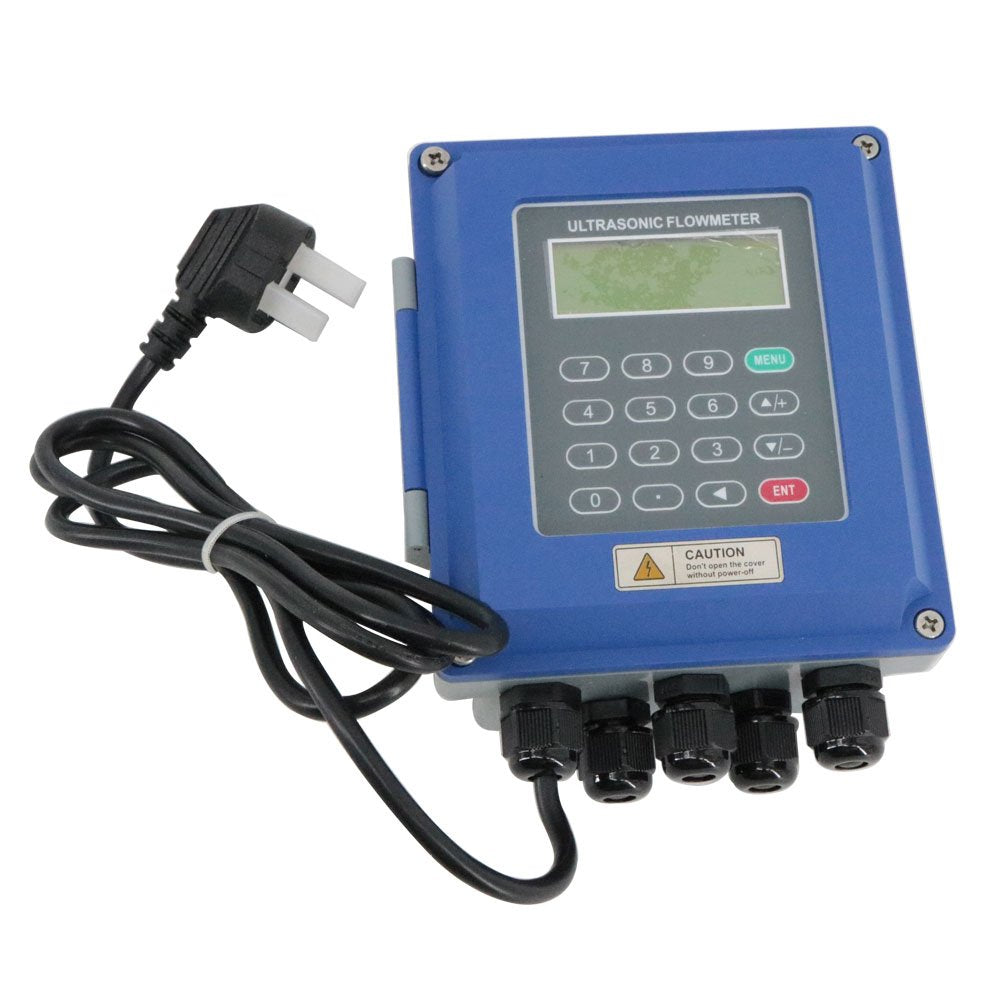

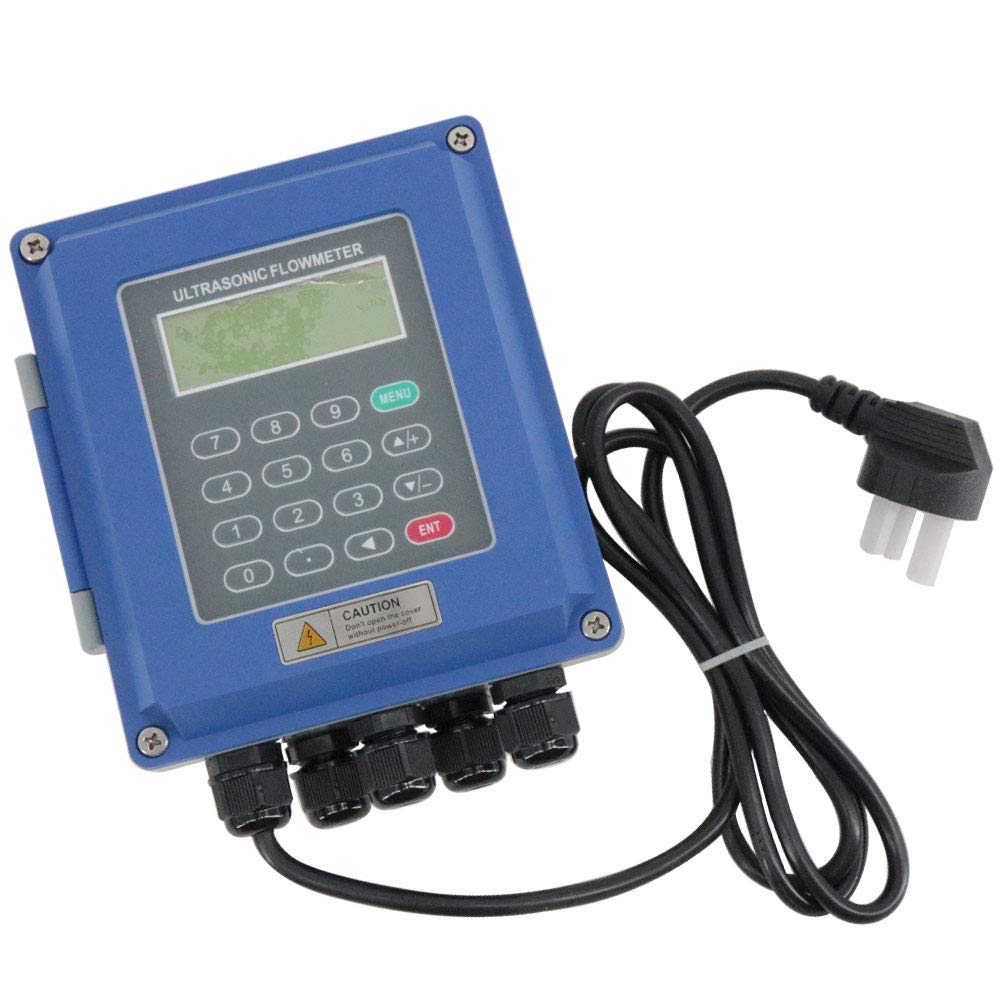

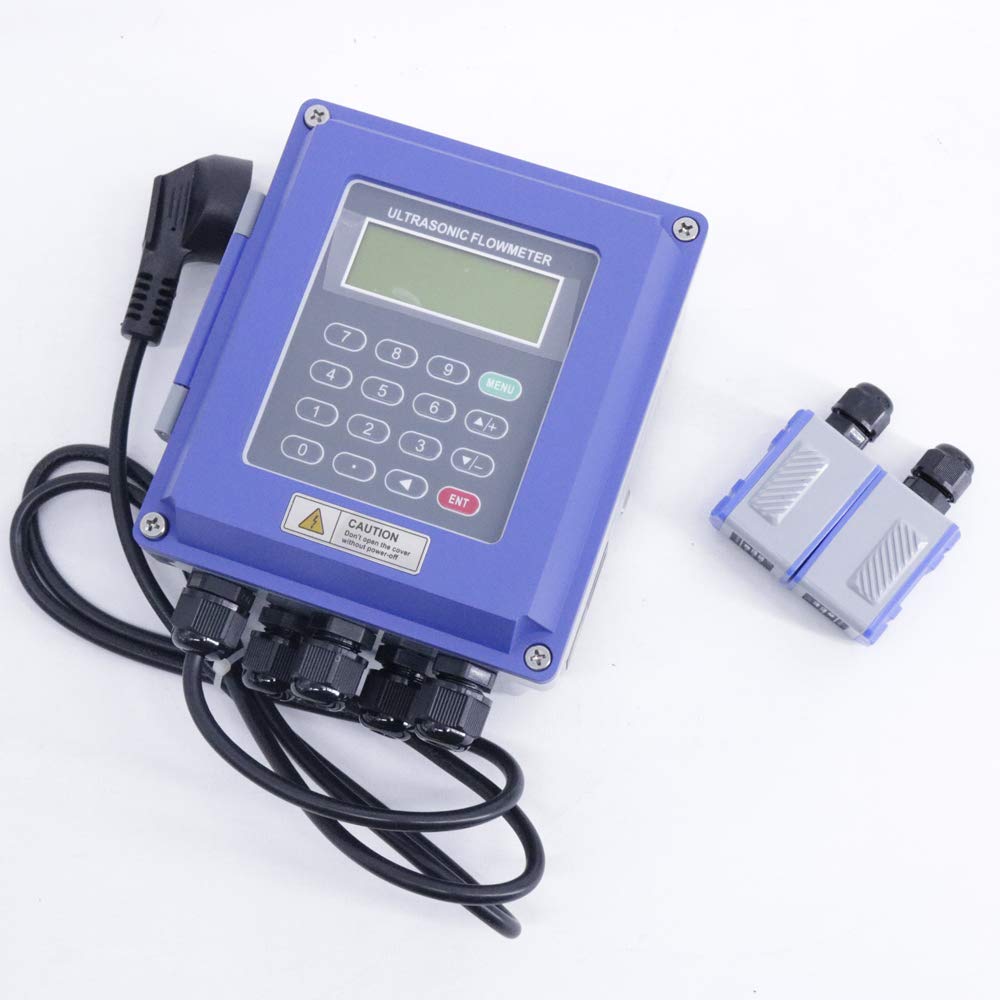

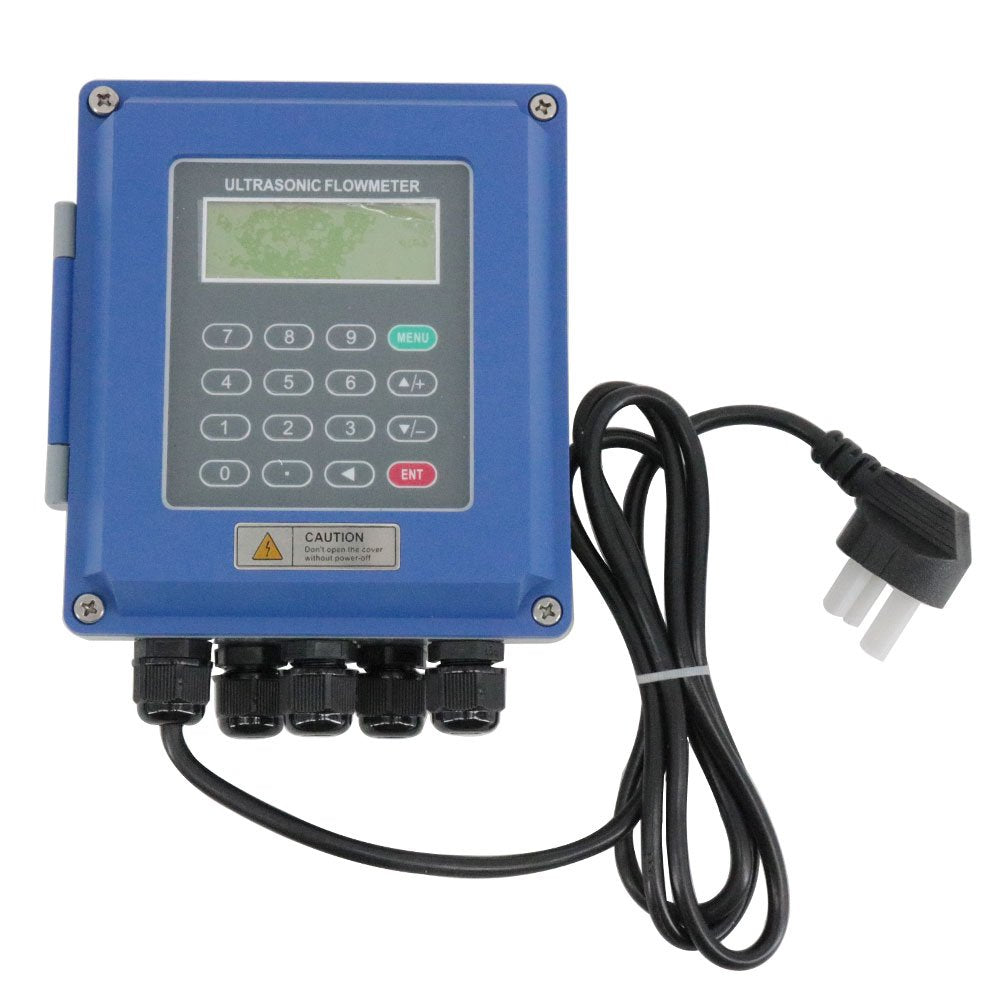

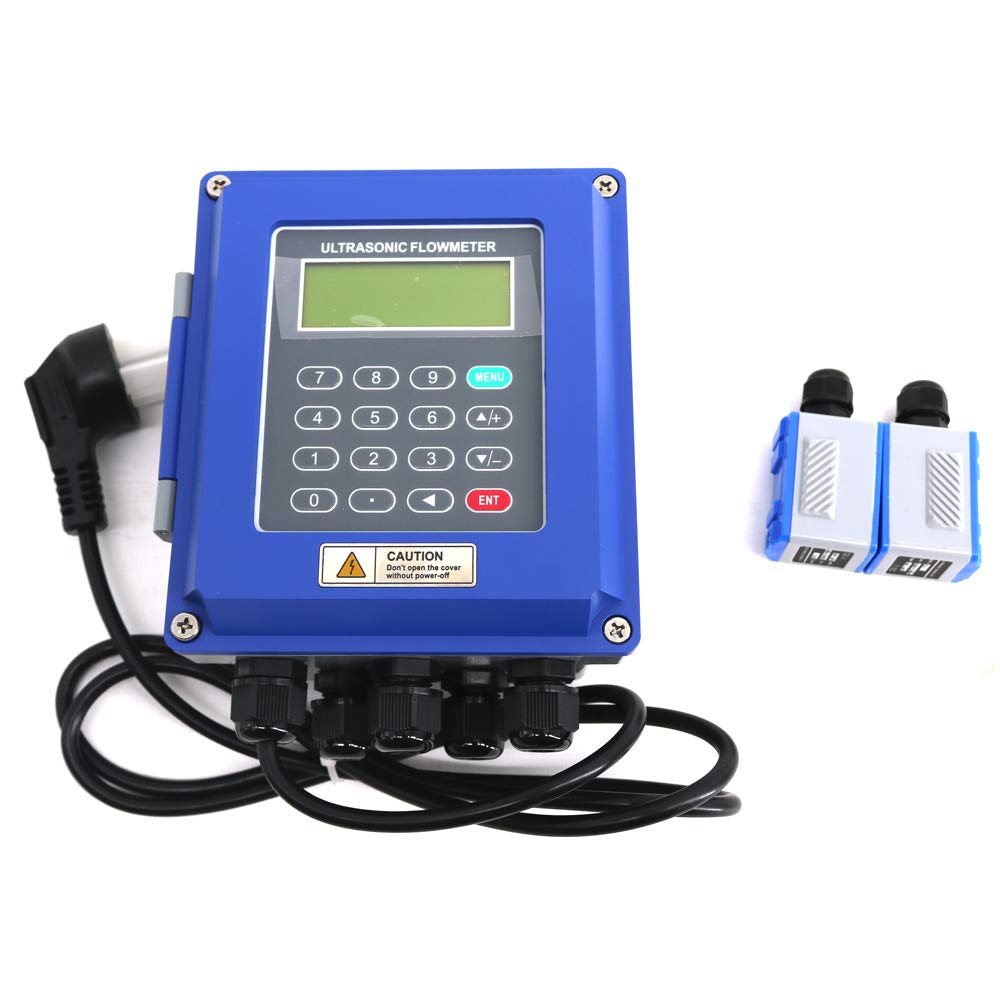

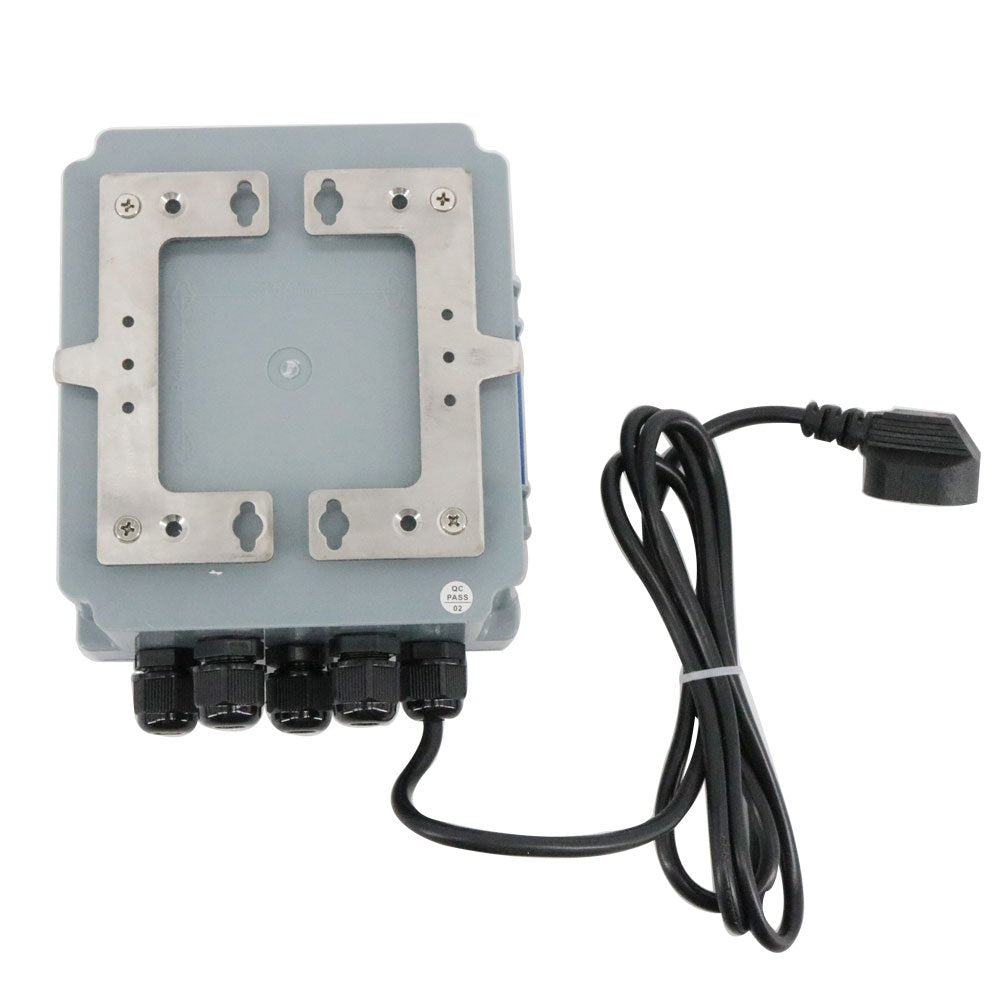

TUF-2000B+TS-2 Digital Ultrasonic Liquid Flowmeter Range DN15mm-100mm Wall Mounted Type IP67 Water Flow Meter for 0.6inch to 3.93inch Pipe
TUF-2000B+TS-2 Digital Ultrasonic Liquid Flowmeter Range DN15mm-100mm Wall Mounted Type IP67 Water Flow Meter for 0.6inch to 3.93inch Pipe
Couldn't load pickup availability
TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc
|
Performance &Parameter |
||
|
Convertor
|
Principle |
Transit-time ultrasonic flowmeter |
|
Accuracy |
±1% |
|
|
Display |
2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish |
|
|
Signal output |
1way 4-20mA output, electric resistance 0-1K, accuracy0.1% |
|
|
1 way OCT pulse output(Pulse width-1000ms, default is 200ms)) |
||
|
1 way Relay output |
||
|
Signal input |
3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level |
|
|
Connect the temperature transducer P100, can finish the heat/energy measurement. |
||
|
Data Interface |
Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS. |
|
|
Special Cable |
Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m |
|
|
Pipe Installation Condition |
Pipe material |
Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed |
|
Pipe diameter |
25-6000mm |
|
|
Straight pipe |
Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump. |
|
|
Measuring Medium |
Type of liquid |
Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc |
|
Temperature |
-30-160℃ |
|
|
Turbidity |
No more than 10000ppm and less bubble |
|
|
Flow rate |
0-±7m/s |
|
|
Temperature |
Convertor; -20-60℃; Flow Transducer: -30-160℃ |
|
|
Humidity |
Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m |
|
|
Working Environment |
Temperature |
Convertor; -20-60℃; Flow Transducer: -30-160℃ |
|
Humidity |
Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m |
|
|
Power Supply |
DC8-36V or AC85-264V(Optional) |
|
|
Power Consumption |
1.5W |
|
|
Dimension |
132*150*85mm(convertor) |
|

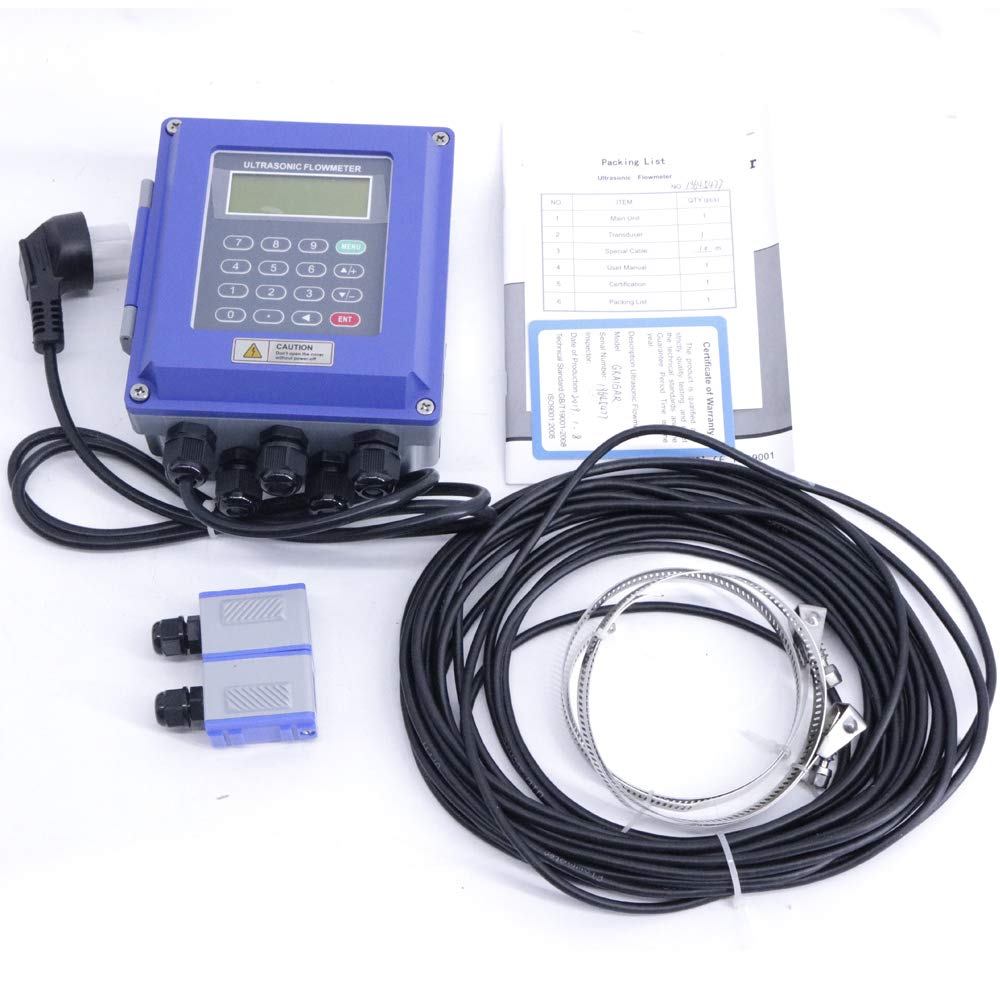

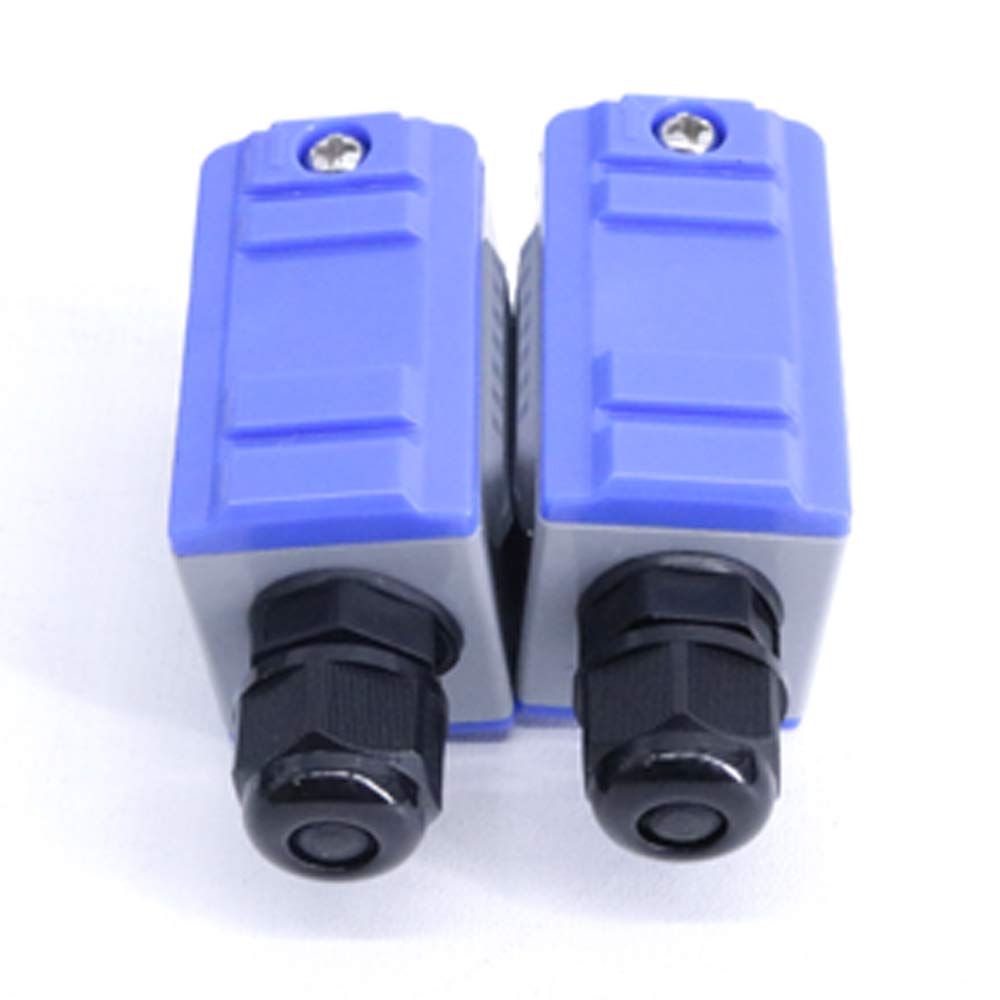

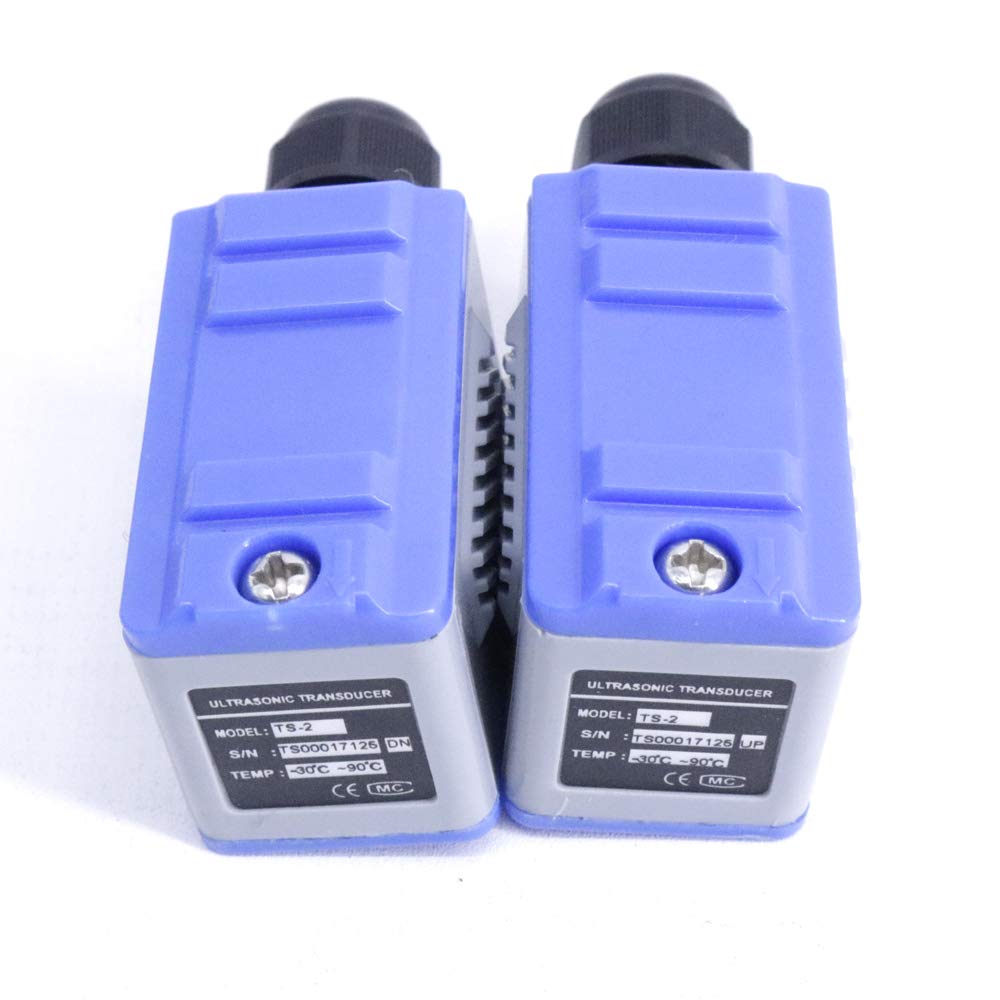

2 x 5m Flow Signal CableOptional Transducers:
