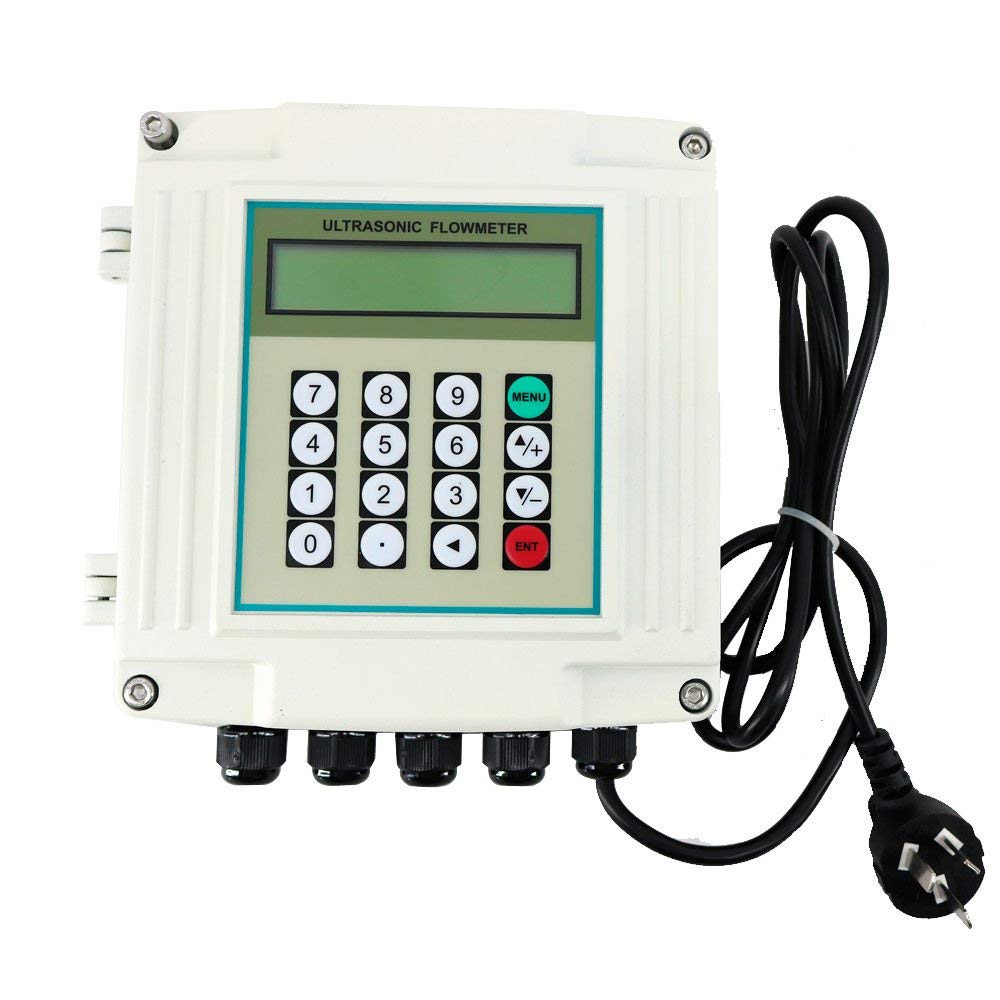

TUF-2000SW+TS-2 Fixed Ultrasonic Flow Meter for DN15-100mm Pipe Liquid Flowing Measuring 0.59-3.93inch Pipeline

Brand: Graigar

Features:

• Principle:transit-time ultrasonic flowmeter
• Accuracy: Flow: over 1%-2%(battery-powered supply over ±2% ),Heat: over ±2%,Repeatability: over 0.2%
• Display: 2×20 character LCD with backlight, support the language of Chinese, English. Convertor dimension:170*180*56cm
• Operation:Support 16 key light touch keyboard and the Simulation keyboard software
• Pipe Diameter:15---100mm(0.59-3.93inch)

model number: TUF-2000SW+TS-2

Part Number: TUF-2000SW+TS-1

Details: Signal Output:
1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)
1 way Relay output
Input:
3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level.
Connect the temperature transducer Pt100, can finish the heat/energy measurement.
Data interface:Insulate RS485 serial interface, upgrade the flew meter software by computer, support the MODBUS, METER-BUS etc.
Automatically remember the previous flew/energy data of 512 days, 128 months and 10 years，and check it.
Automatically remember the previous 32 times power on/off time and flow rate
Special Cable:Twisted-pair cable, generally, the length under 50 meters;Select the RS485 communication. The transmission distance can over 1000m.
Pipe Material:Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
Straight length pipe:Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
Type of Liquid:Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids
Turbidity:No more than 10000ppm and less bubble
Flow rate:0--±7 m/s
Main Unit working temperature : -20--60℃
Flow transducer working: -30--90℃;
Main Unit: 85% RH; Flow Transducer: Ip67
Power Supply:DC 24V or AC 85-264V
Power Consumption:1.5W

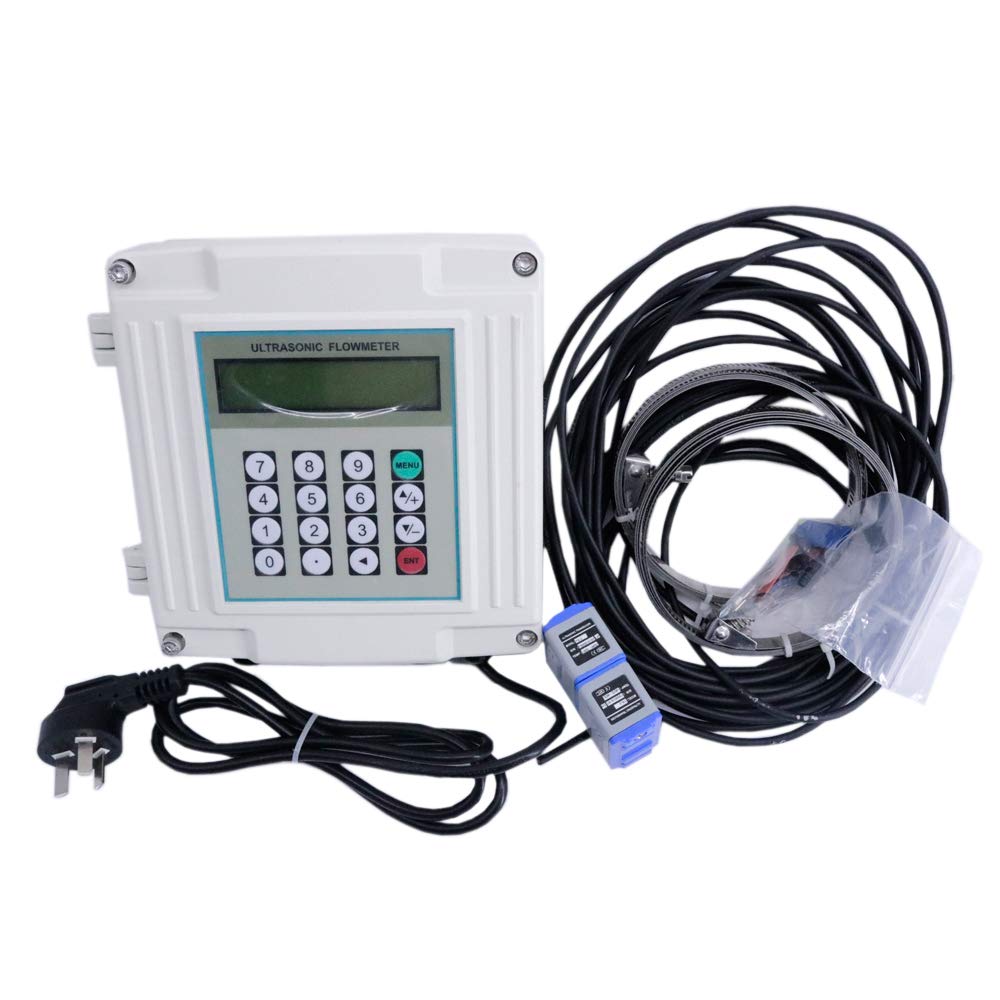

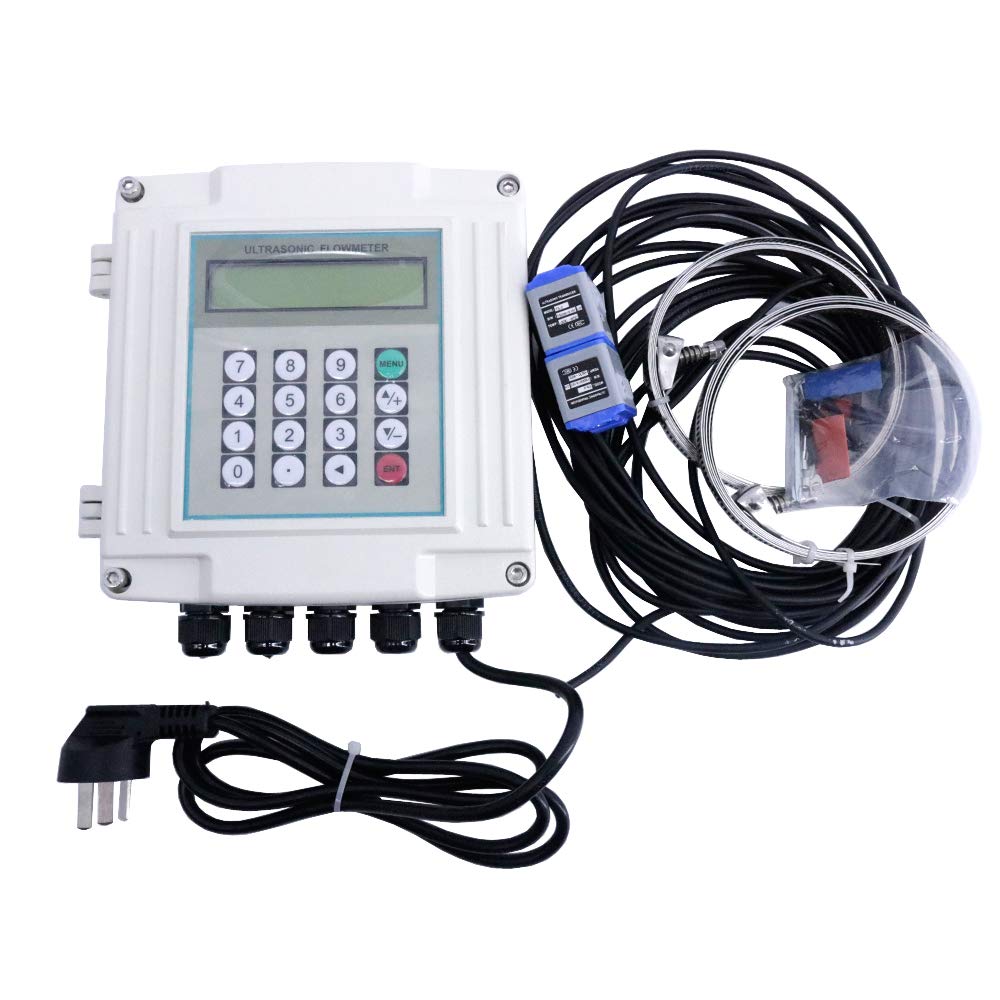

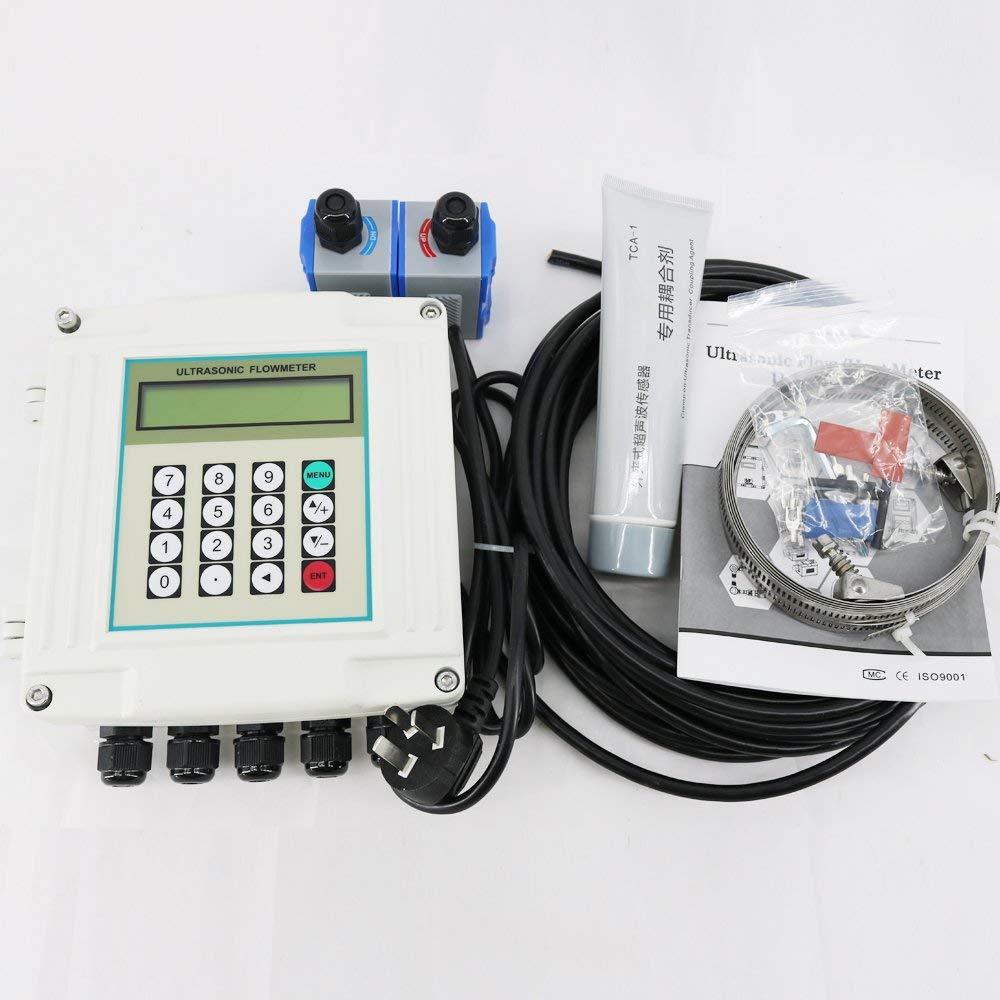

Standard Packing:

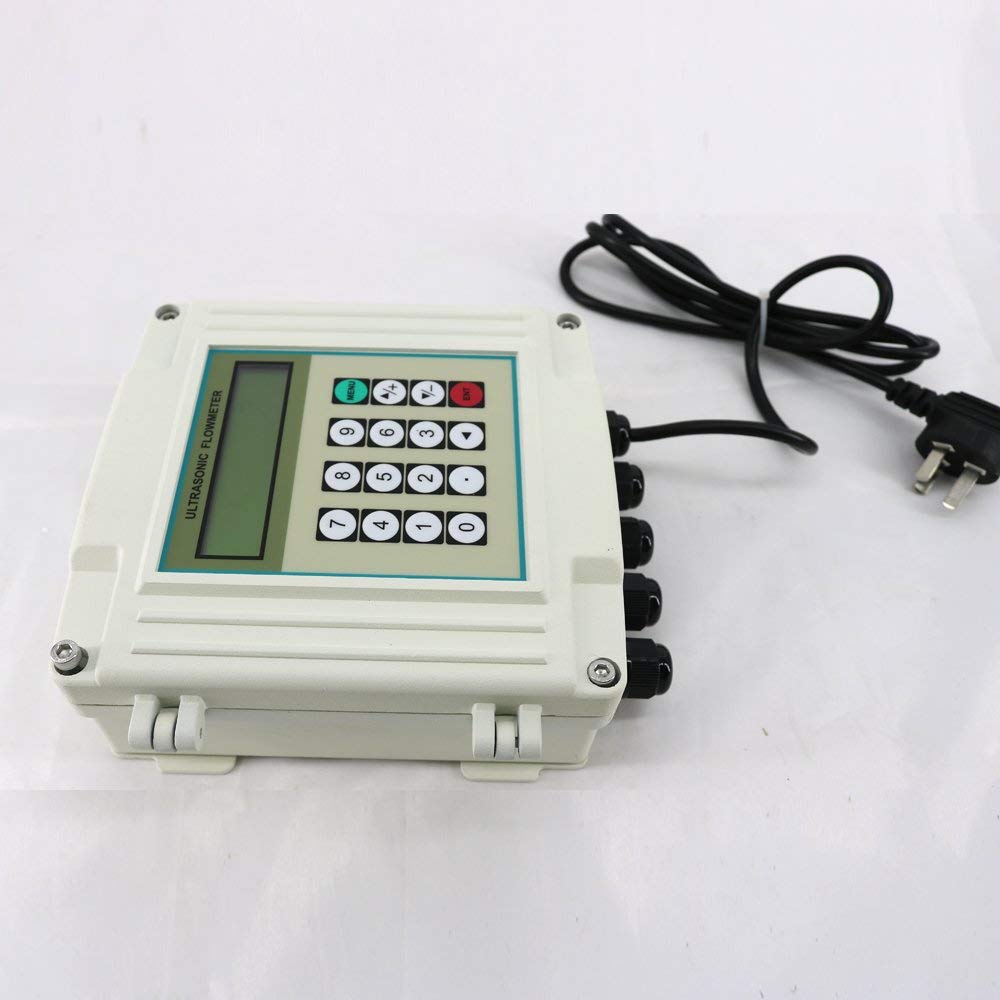

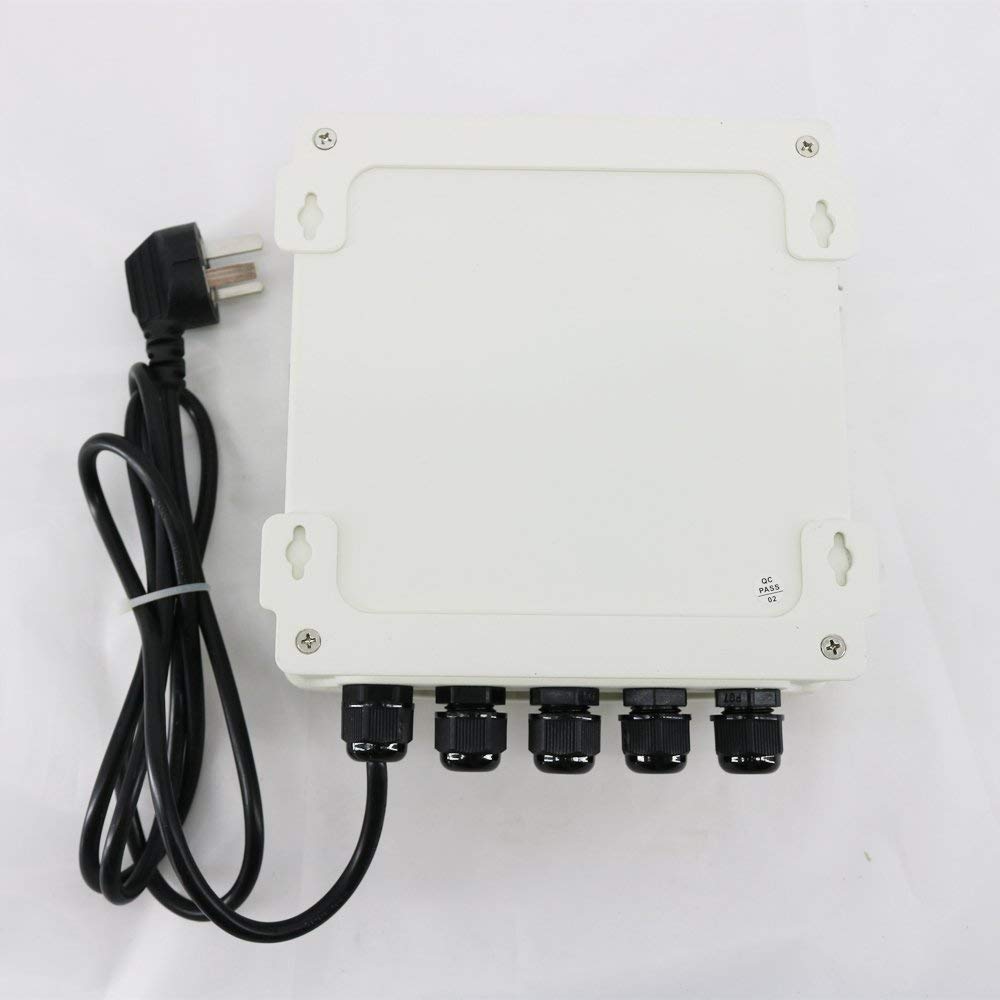

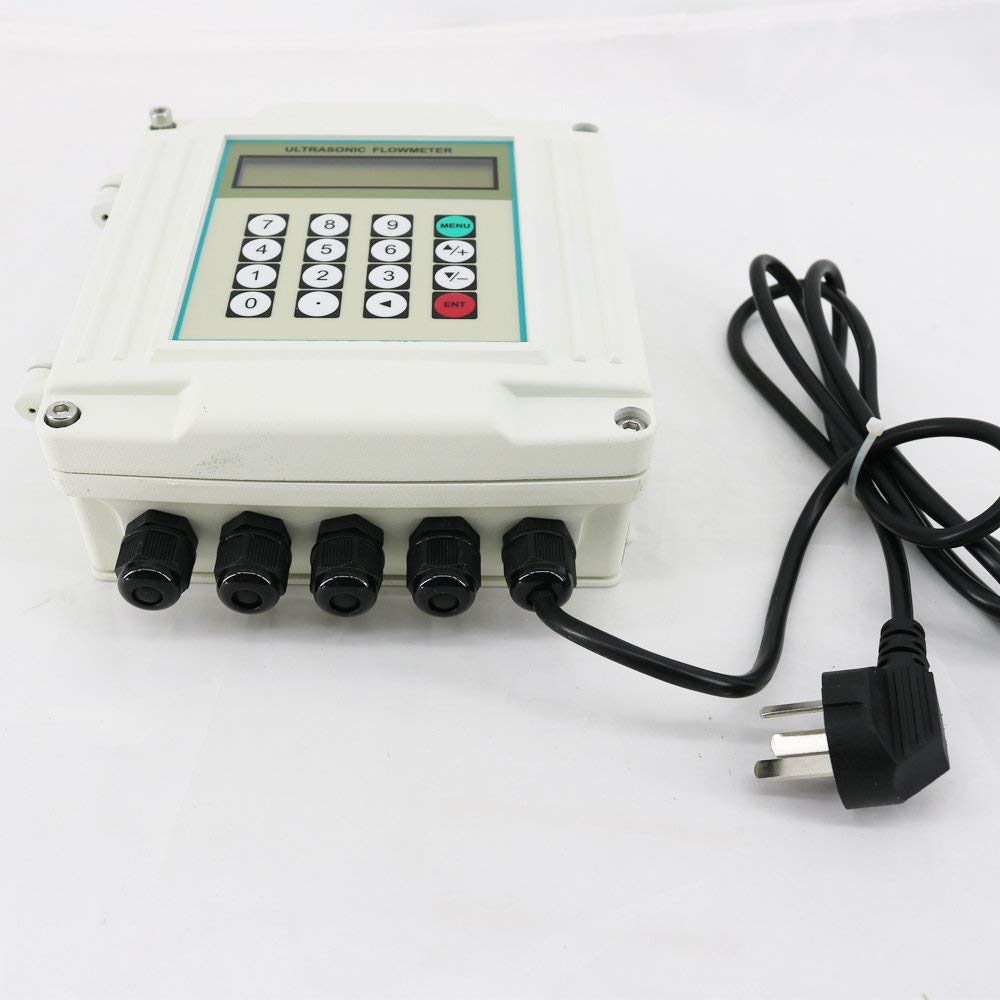

TUF-2000SW Ultrasonic Flowmeter

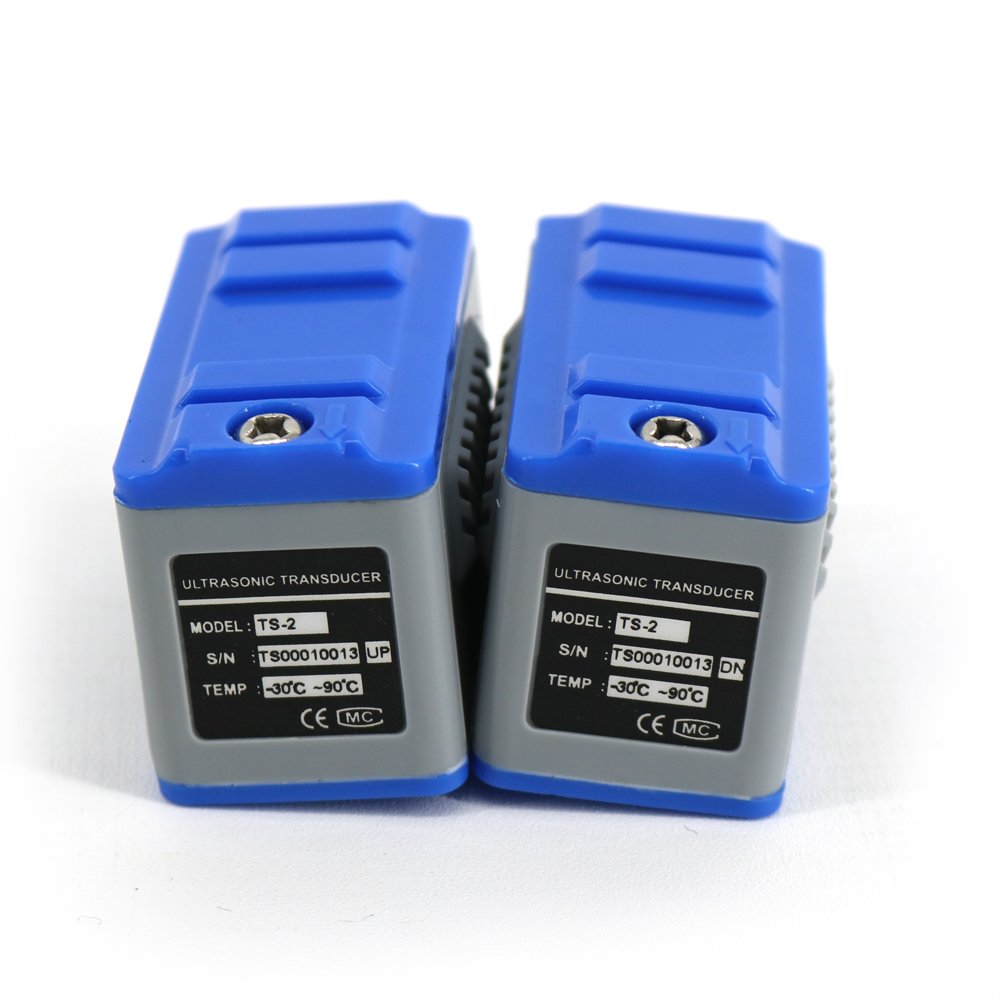

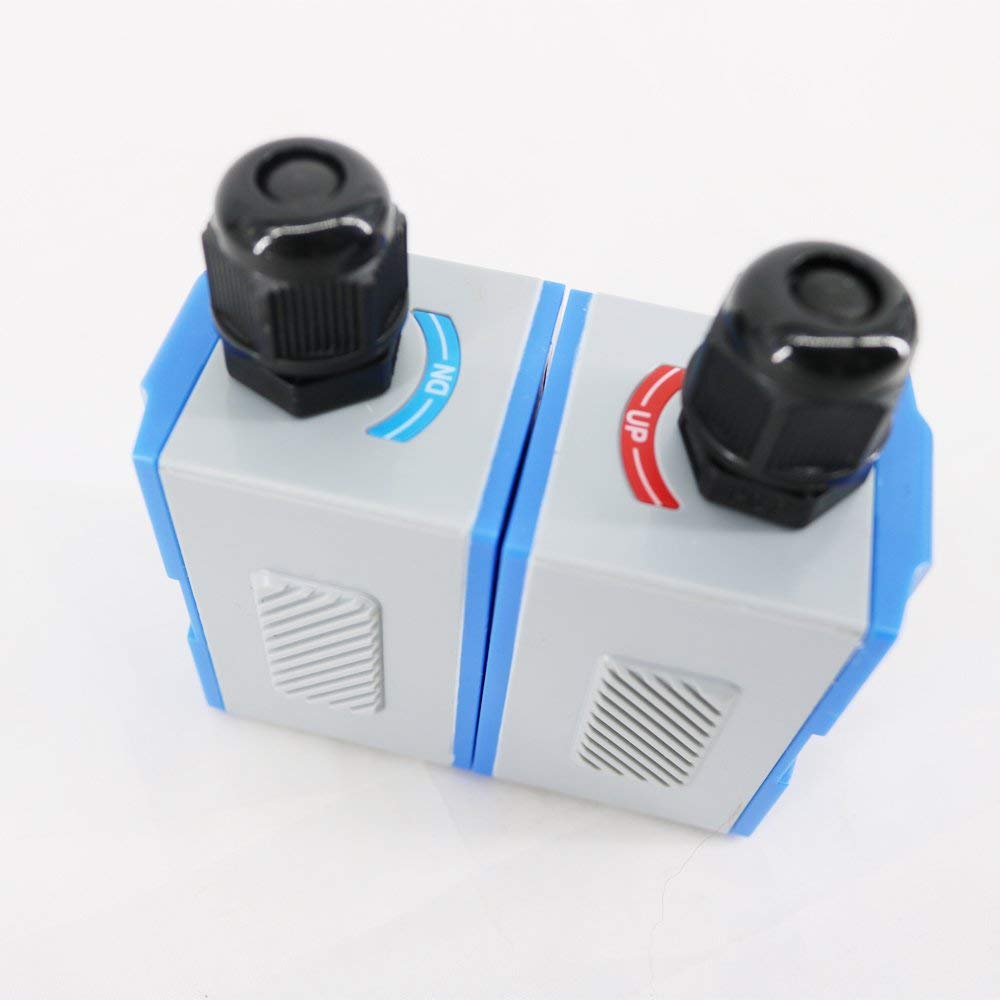

TS-2 Transducer
2 x5m Signal cable
Steel Belt
Certificate of Warranty

User Manual

EAN: 0761272050888

Package Dimensions: 15.4 x 10.6 x 6.7 inches
