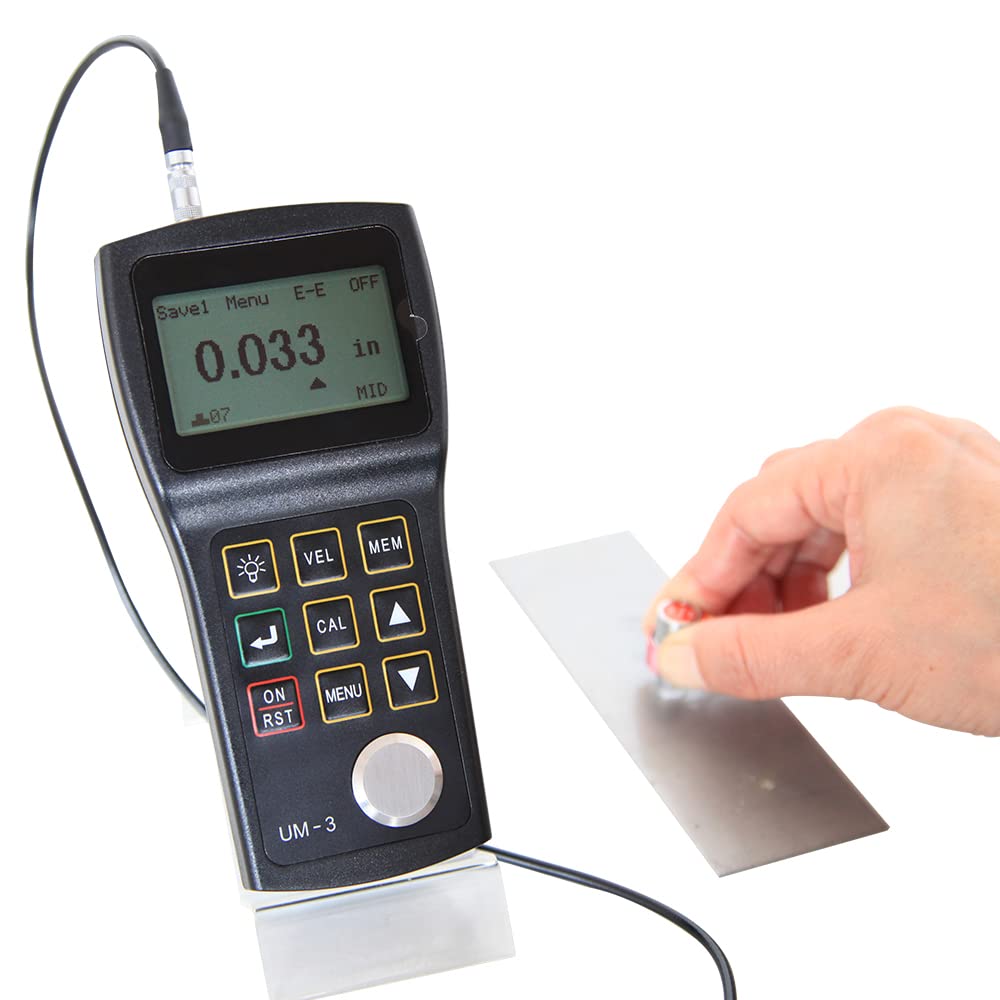

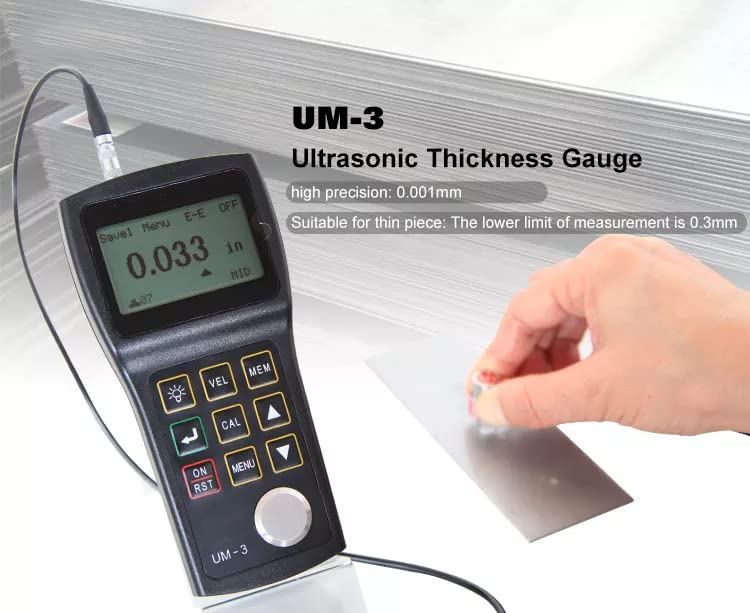

Graigar UM-3 Digital Ultrasonic Thickness Gauge for Thin Steel Plate Thickness Measurement 0.001mm Resolution with D15A Probe

Graigar UM-3 Digital Ultrasonic Thickness Gauge for Thin Steel Plate Thickness Measurement 0.001mm Resolution with D15A Probe

$1,769.00 USD
$1,769.00 USD
促销 售罄

Features:

  • UM-3 precision ultrasonic thickness gauge adopts single element delay line probe, improves accuracy by multiple echoes, the resolution up to 0.001mm ,lower limit of measurement to 0.30mm.
  • UM-3 has both common and precision operating modes. The common mode adopts the interface wave-echo mode,the measuring range is 1.5mm - 20mm; The precision mode adopts echo - echo mode, the measurement range is 0.30mm- 10mm.
  • High Precision, 0.001mm Resolution
  • Lower limit of measurement to 0.30mm
  • Through coating function, it can through like the skin of paint, and no need to polish the paint on the material
Display Type
128×64 dot-matrix LCD screen with EL backlight
Operating Principle
l-E(interface-echo) mode with single-crystal delayed probe E-E(echo-echo) mode with single-crystal delayed probe
measuring range
0.3mm to 10mm in E-E mode 1.5mm to 20mm in lE mode

Indication error
E-E mode:±0.01 H≤3mm ，±0.05 3＜H＜10mm
l-E mode: ±0.05 H＜10mm ±(0.5%H+0.01) H≥10mm H: Thickness of measured material
Resolution:
H<10mm : 0.001mm/0.01mm/0.1mm H≥10mm : 0.01mm/0.1mm
inch ：0.0001 ，0.001 ，0.01
Units
Inch or Millimeter
Update Rate
4Hz
Material Velocity Range
1000 ~ 9999 m/s (0.0394 to 0.3937in/us)
Memory Function
5 arrays are divided to store 500 thickness values
Minimum Value
Move the probe along the surface of the testing material, the gauge is able
Checking
find the thinnest point automatically.
Warning Function
If the measured value exceeds the pre-set thickness limit,the warning tone will start.
Velocity Storage
Velocities of 5 different materials can be stored totally
Languages
English and Chinese
Communication Port
USB port or Serial RS 232 port (Optional)
Application Software
UmView Software for transmission,storage,analysis and documents editing (Optional)
Power Requirements
Two 1.5V AA alkaline batteries (Warning with low battery voltage)
Operating Time
Up to 200 hours with alkaline batteries (without backlight)
Instrument Shut-off
AUTO OFF after 5 minutes of inactivity
Operating Temperature
-10 °C to +50 °C , -20 °C in special requirements
Size
149mm X 73mm X 32mm(H X W X D)
Weight
210g including batteries

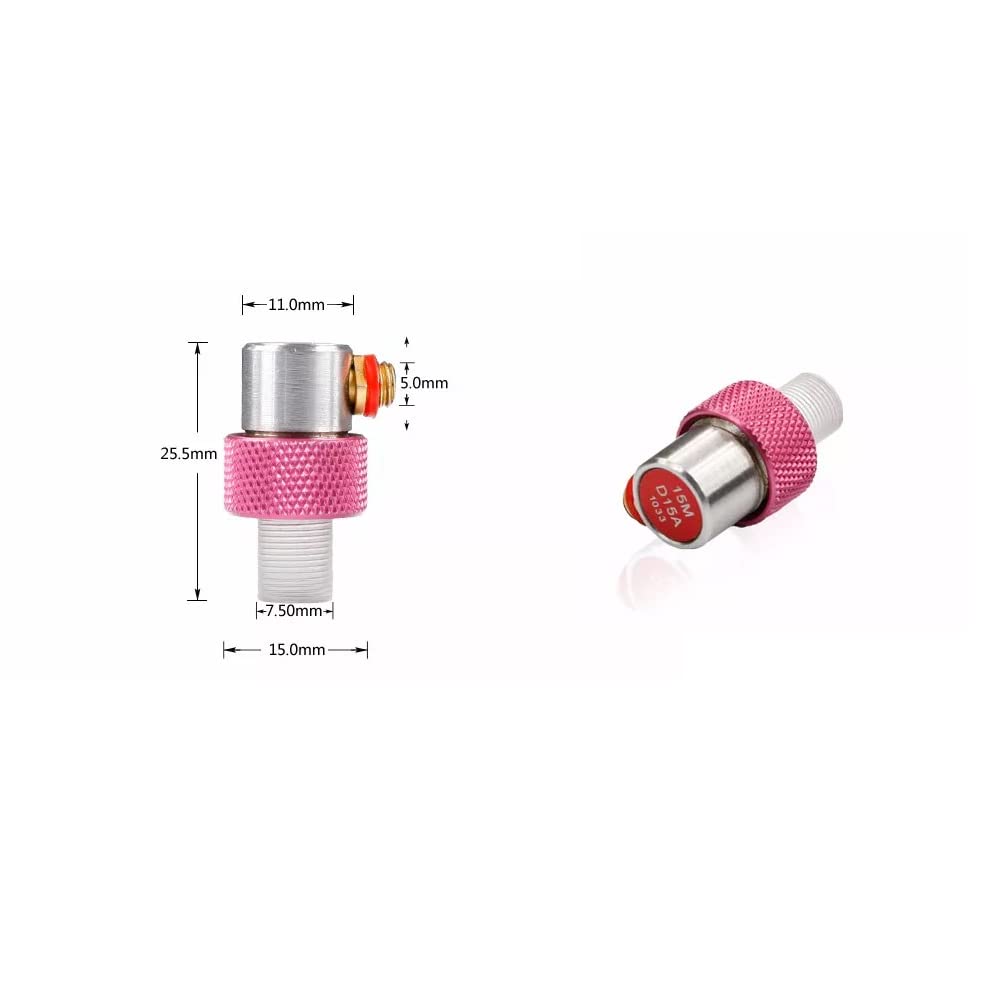

Probe
Model: D15A
Frequency: 15MHz
Crystal Size: 6mm
Crystal Material: PZT/PT
Probe Shell Material: 304 Stainless Steel + Zn-Al Alloy
Delay Line: Imine
