UM-4DL Digital Ultrasonic Thickness Gauge Tester Meter Through Paint Coating Thickness Meter 0.025'' to 20'' with TC510 Probe

Brand: Graigar

Features:

• UM-4DL ultrasonic thickness gauge with same features as the UM-4D, Plus Data Logger(Stores 100,000 readings),Units includes Transfer Cables & Software
• Snapshot A-Scan. Gain:Low, Medium and High.
• Multi Languages Color 320 x 240 Pixels High Resolution Display, measuring range 0.025'' to 20''
• Up to 40 hours operating time with two AA alkaline batteries, Alternative Auto-Off time
• Display Modes: Normal, Minimum / Maximum Capture, Differential and Rate of reduction.

model number: UM-4DL

Part Number: UM-4DL

Details: Technical Specifications

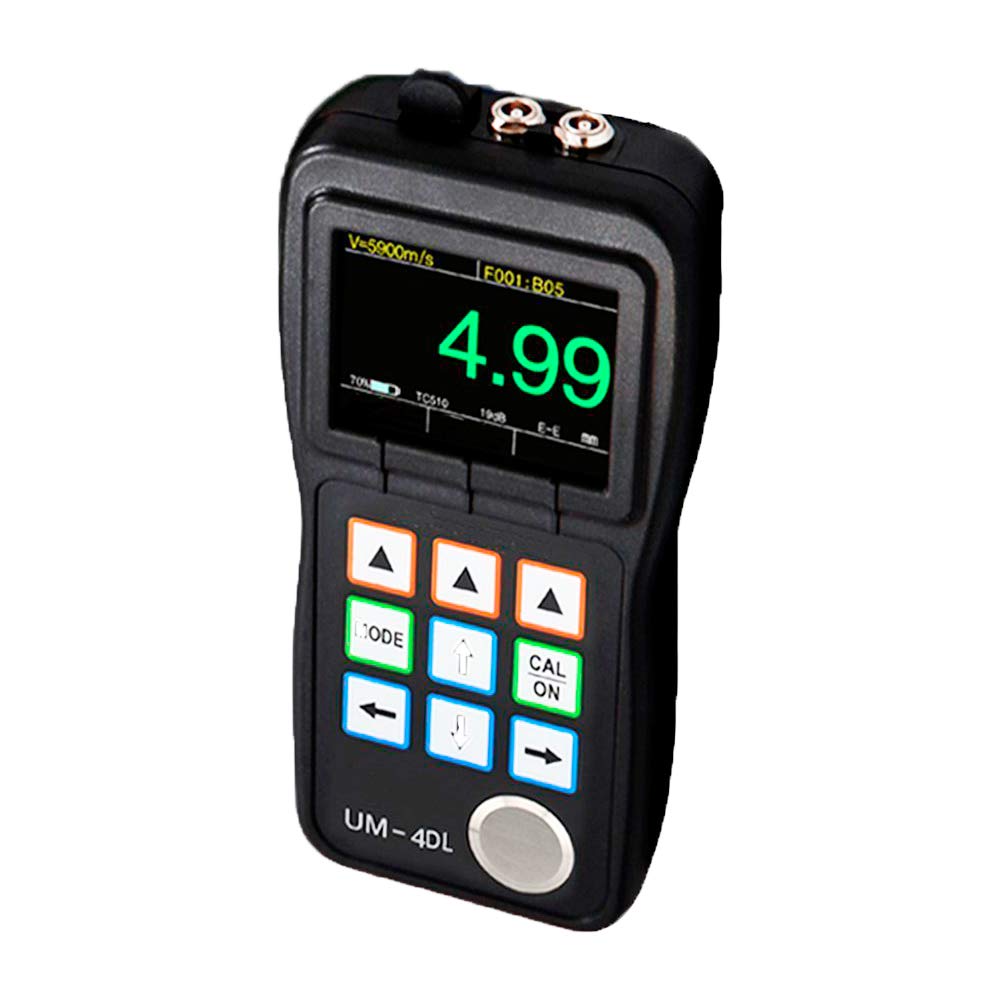

*Display Type: 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
*Operating Principle: Pulse echo with dual element transducers
*Measuring Range: 0.60 - 508mm (0.025" - 20.00"inch ), depending on material, probe and surface condition; Coating mode: 3-25mm (for measuring the net thickness of the substrate that does not remove the paint layer)
*Measuring Resolution: Selectable 0.01mm, 0.1mm (selectable 0.001", 0.01"in)
*Units: Inch or Millimeter
*Indication error: ±0.05mm (below 10mm ) ; ±(0.5% H+0.01 ) (over 10mm), H is the thickness of the tested object
*Material Velocity Range: 500-9999m/s，0.0179-0.3937in/us
*Display Mode: Normal, Minimum / Maximum capture, DIFF/RR%
*V-Path Correction: Automatic
*Update Rate: Selectable 4Hz, 8Hz, 16Hz
*Alarm Settings: Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00").Dynamic waveform color change on alarm

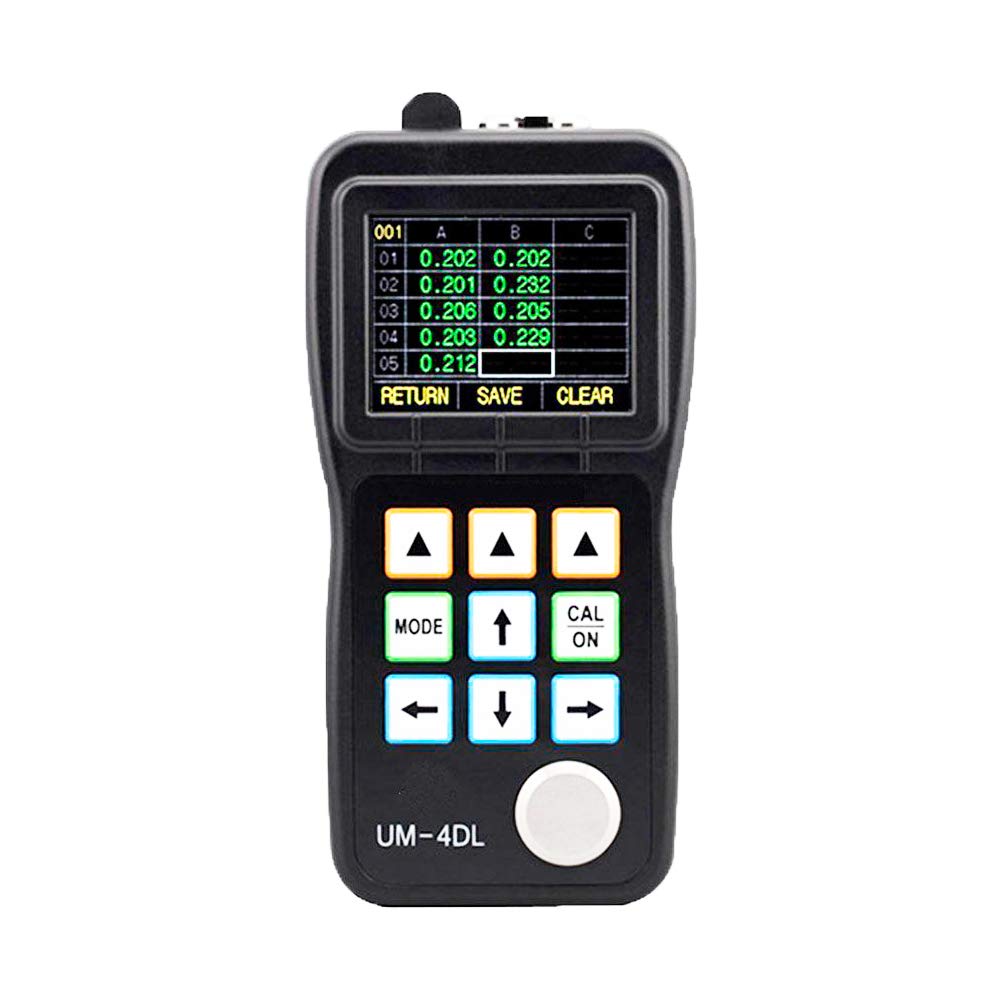

*Storage: it can store 100 thousand thickness values, and can connect the computer to export data for easy viewing.
*Power Requirements: 2 AA size batteries（Battery not included in the package）
*Operating Time: Approximately 40 hours
*Instrument Shut-off: Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
*Operating Temperature: -10°C to +50°C

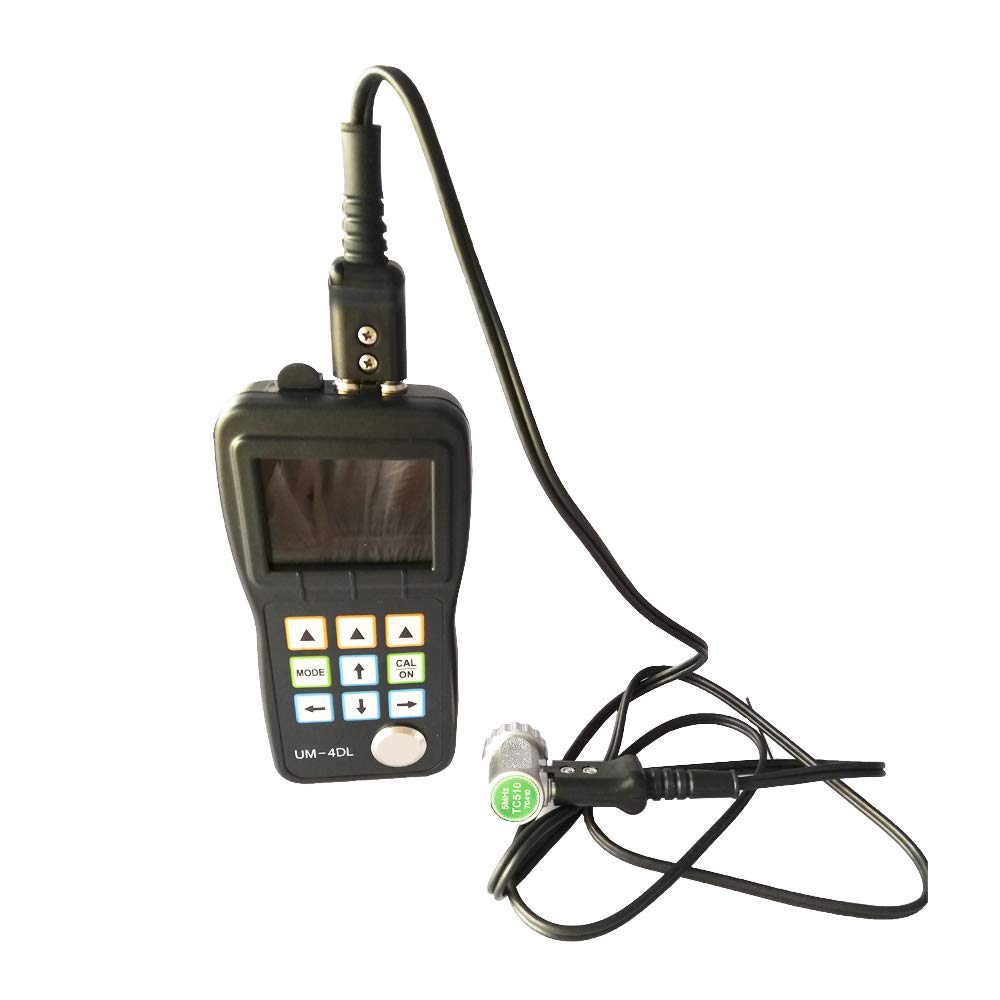

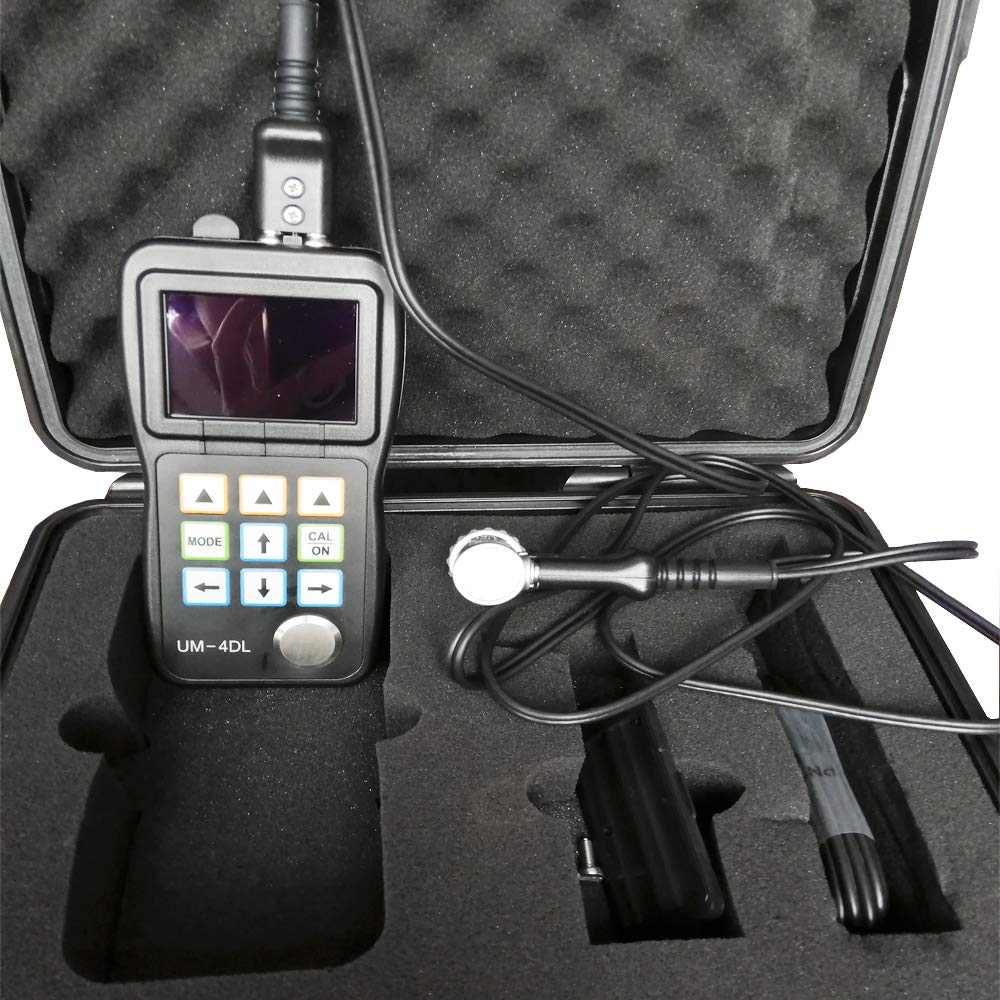

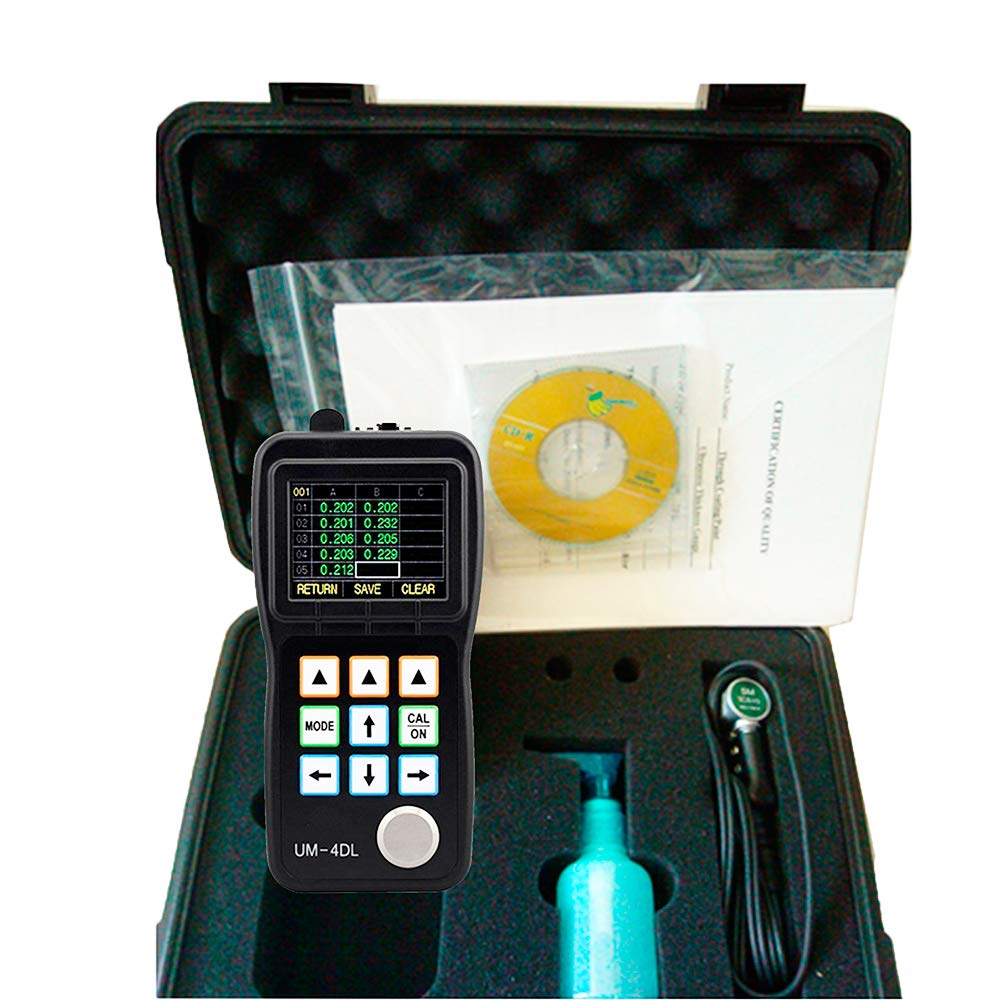

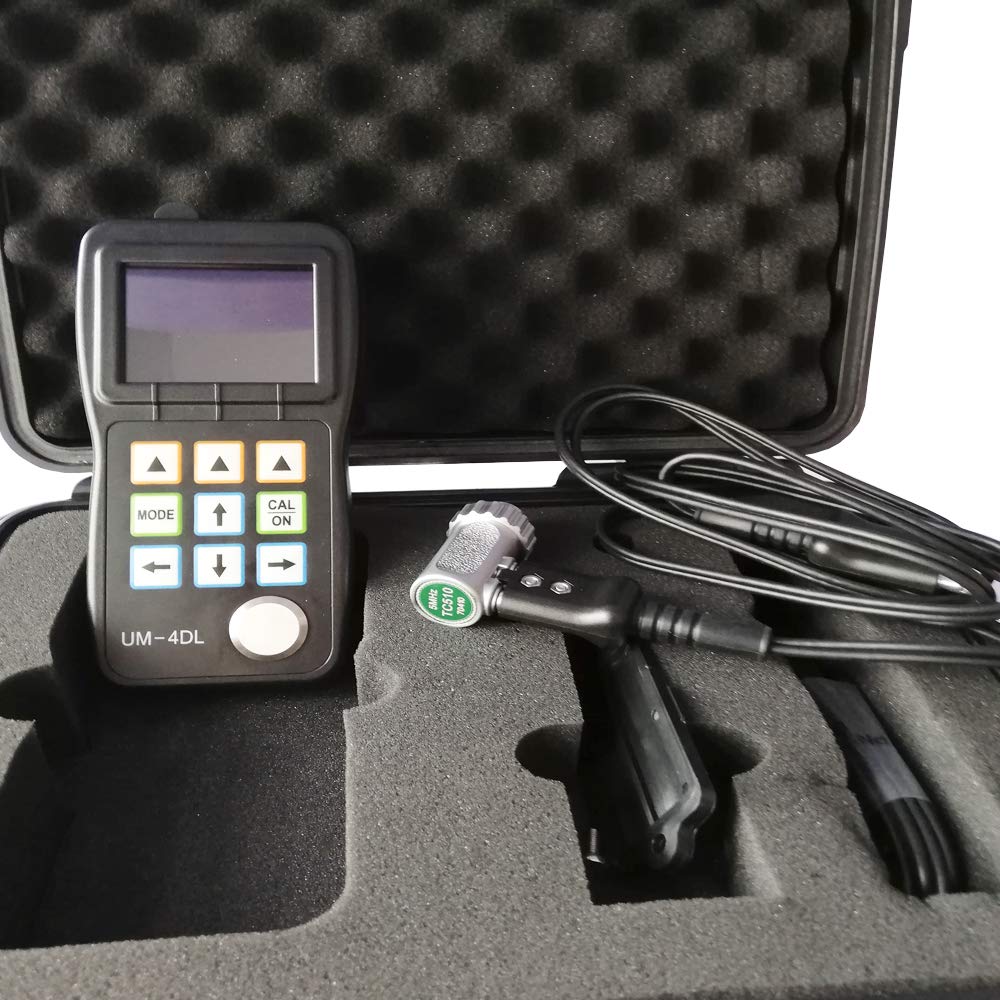

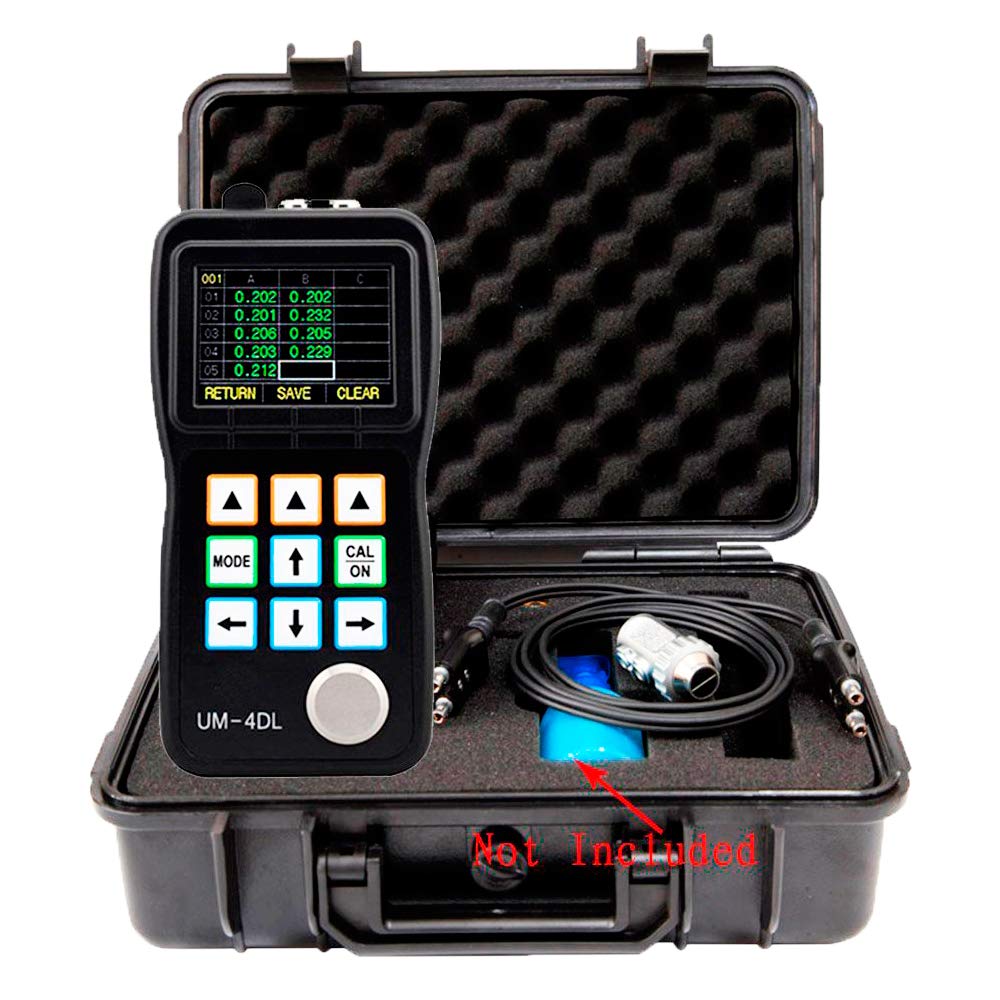

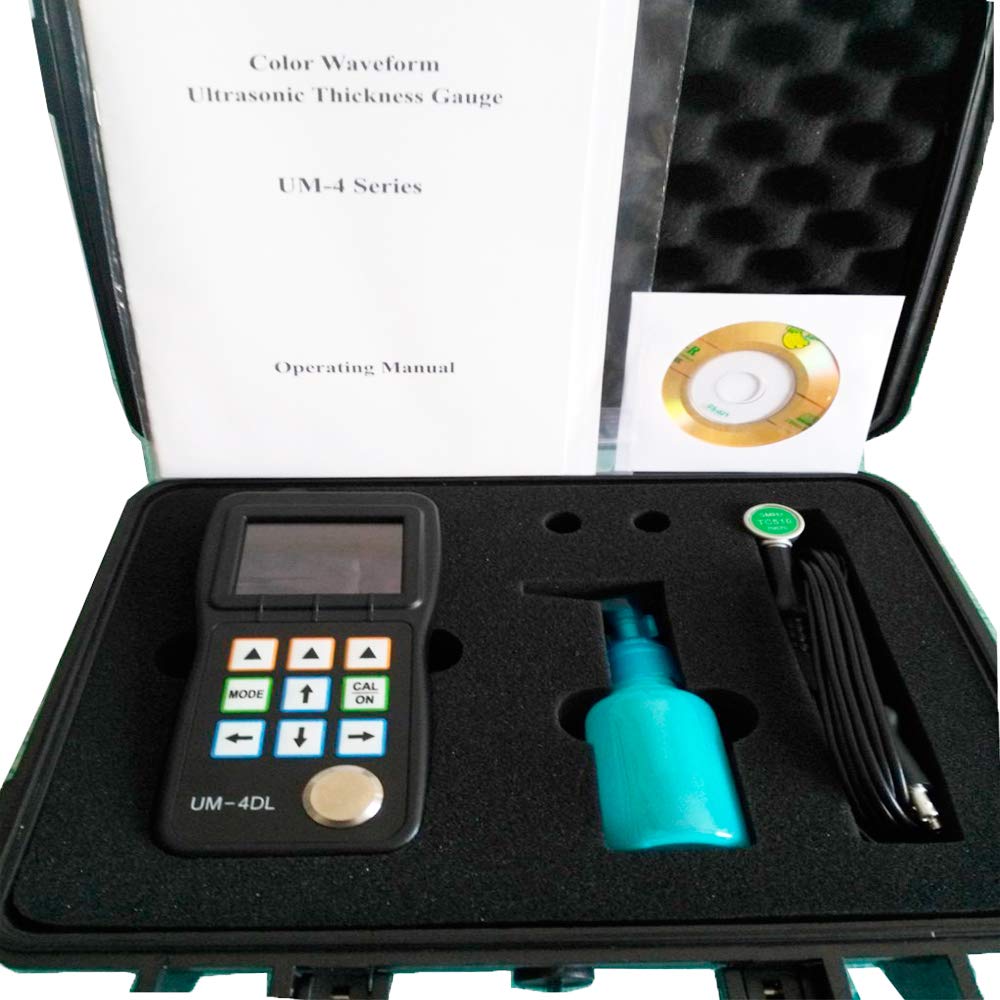

* Standard package: UM-4DL thickness gauge, Standard probe(1.2 to200.0mm TC510), Carrying case, Operating manual, Application software with Data transmission cable
* Optional Accessaries : Rubber Sheath; Numeral probes on request

EAN: 0761272056996
