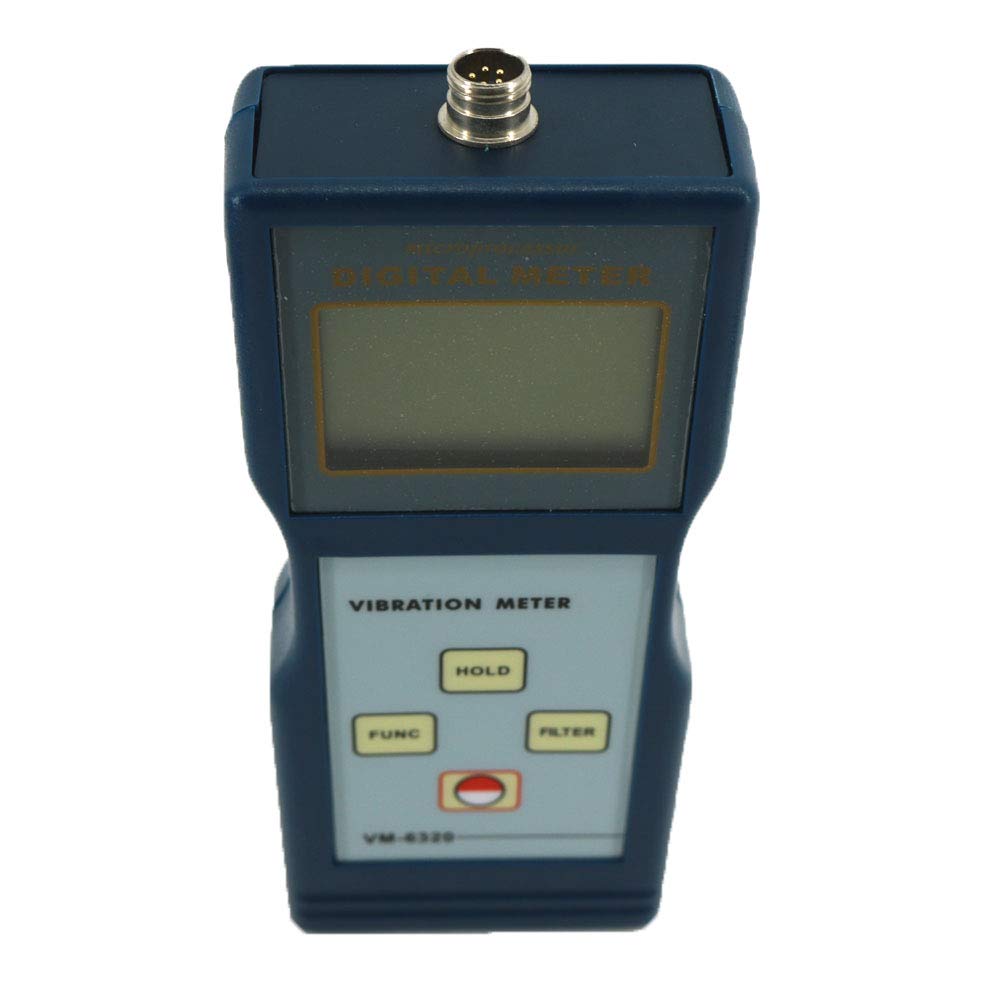

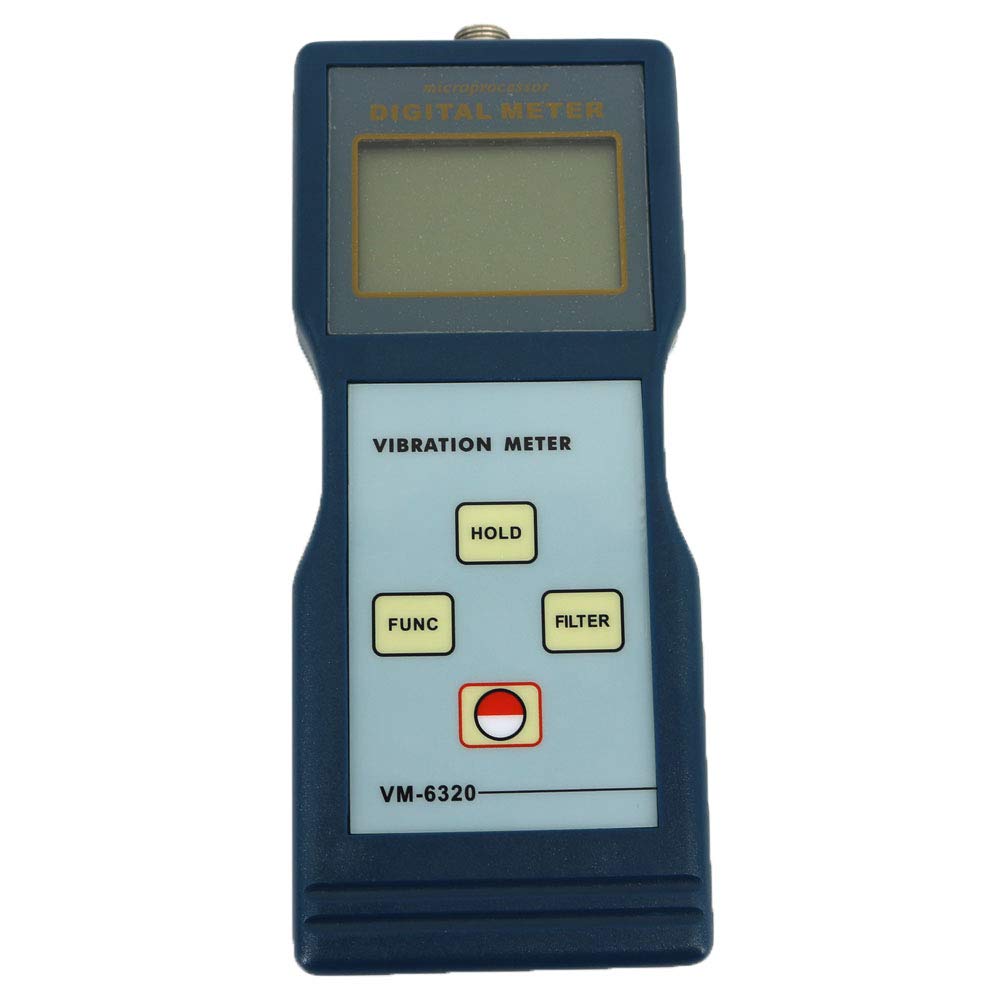

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features:
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines. * Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements. * Wide frequency range (10Hz~10kHz) in acceleration mode. * Optional headphones for use as electronic stethoscope. * Bearing condition monitoring function.
Specification:
Sensor

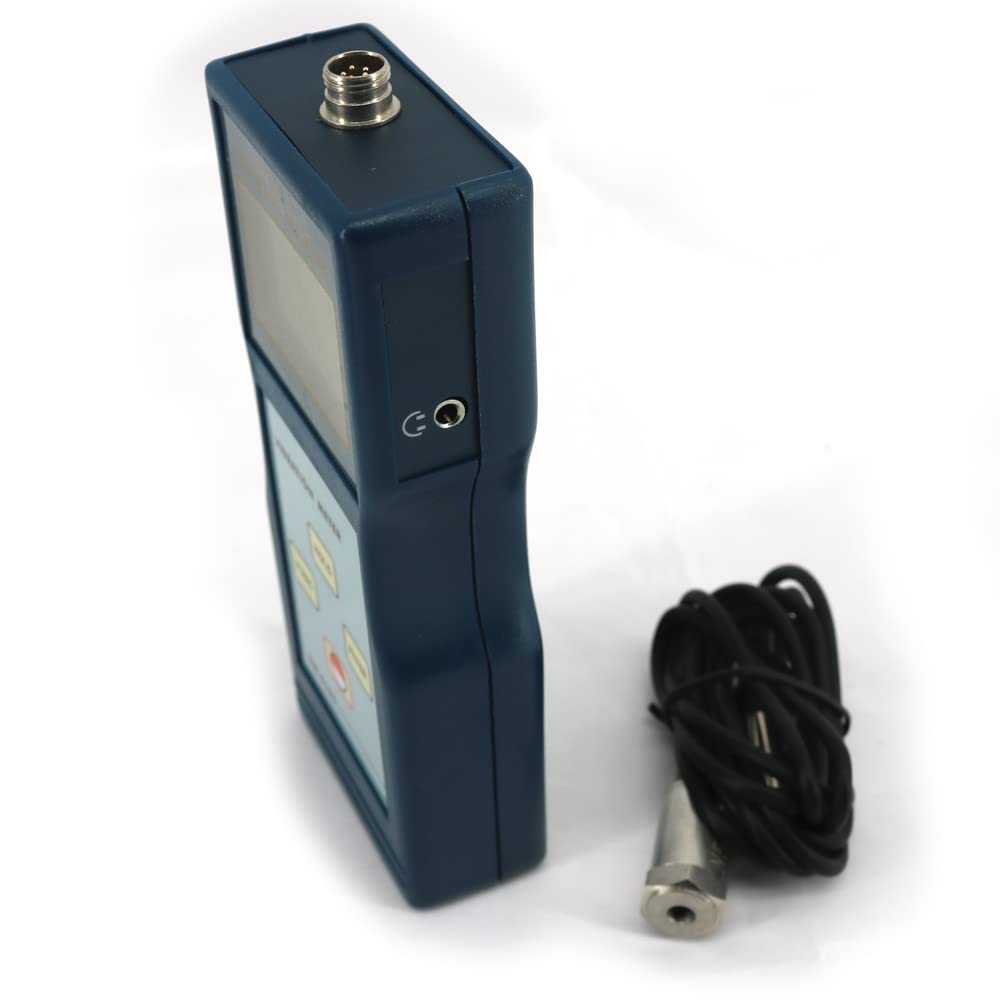

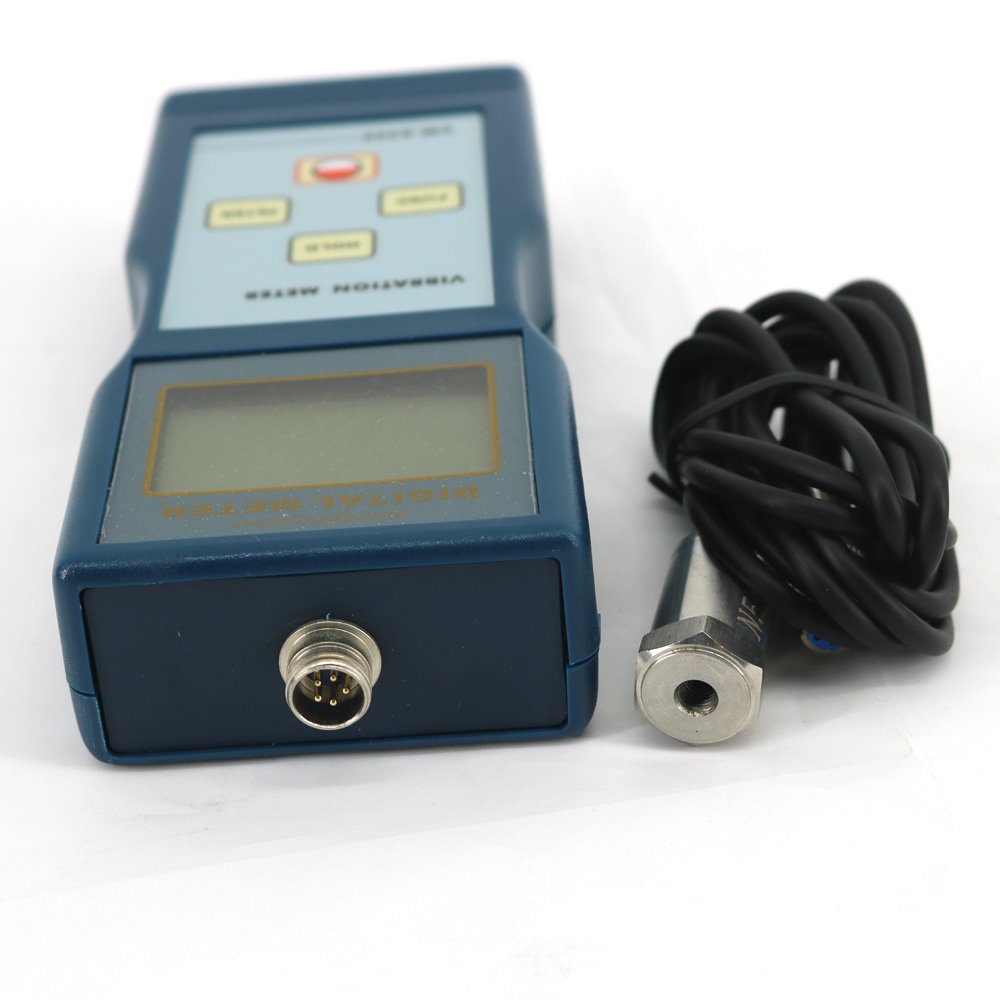

Piezoelectric Accelerometer
Measuring Range
Acceleration: 0.1~200 m/s⊃2; Equivalent Peak
Velocity: 0.01~200 mm/s True RMS
Displacement: 0.001~2.0 mm Equivalent Peak-peak
Frequency Range
Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz
Velocity: 10 Hz ~ 1k Hz
Displacement: 10 Hz ~ 1k Hz
Accuracy
< 5 %
Analogue Output
AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
