VM-6380 Digital Vibration Tester Portable 3D 3-Axis Piezoelectric Machinery Vibrometer Frequency 10Hz~10kHz Acceleration
VM-6380 Digital Vibration Tester Portable 3D 3-Axis Piezoelectric Machinery Vibrometer Frequency 10Hz~10kHz Acceleration
Couldn't load pickup availability
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Features
* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
Vibration Standard
| ISO/IS2373 Motor Quality Standard According As Vibration Velocity |
||||
| Quality Rank |
Rev(rpm) |
H:high of shaft(mm) Maximum vibration velocity rms(mm/s) |
||
| 80<H<132 |
132<H<225 |
225<H<400 |
||
| Normal |
600~3600 |
1.8 |
2.8 |
4.5 |
| Good(R) |
600~1800 |
0.71 |
1.12 |
1.8 |
| 1800~3600 |
1.12 |
1.8 |
2.8 |
|
| Excellent(S) |
600~1800 |
0.45 |
0.71 |
1.12 |
| 1800~3600 |
0.71 |
1.12 |
1.8 | |
Specification
|
Sensor
|

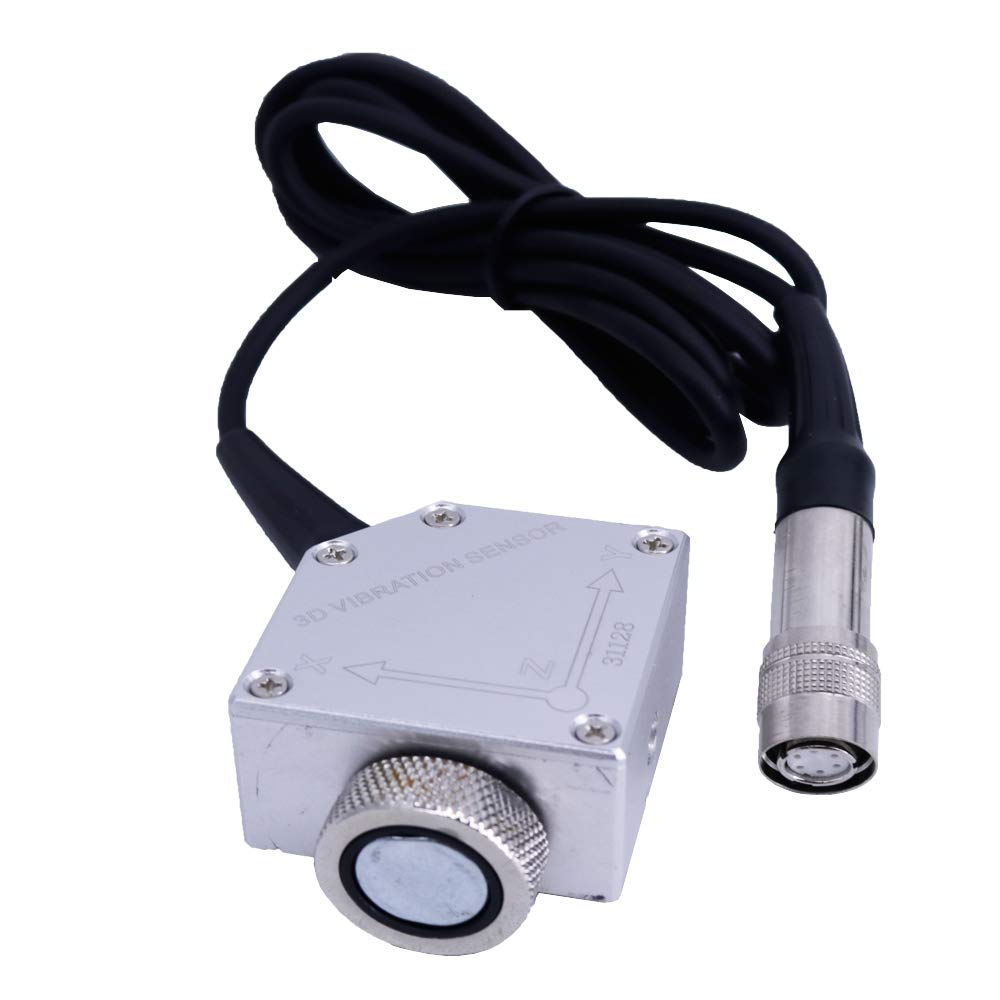

Piezoelectric Transducer
|
|
|
Measuring Range
|
Acceleration
|
0.1m/s²~400m/s² 0.3ft/s²~1312ft/s² 0.0g~40g Equivalent Peak
|
|
Velocity
|
0.01mm/s~400mm/s 0.004inch/s~16.0inch/sTrue RMS
|
|
|
Displacement
|
0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak
|
|
|
Frequency Range
|
Acceleration
|
10Hz~10kHz
|
|
Velocity
|
10Hz~1kHz
|
|
|
Displacement
|
10Hz~1kHz
|
|
|
Accuracy
|
5% of Reading+2 digits
|
|
|
Operating Conditions
|
Temperature
|
0ºC~50ºC
|
|
Humidity
|
<90%RH
|
|
|
Power Supply
|

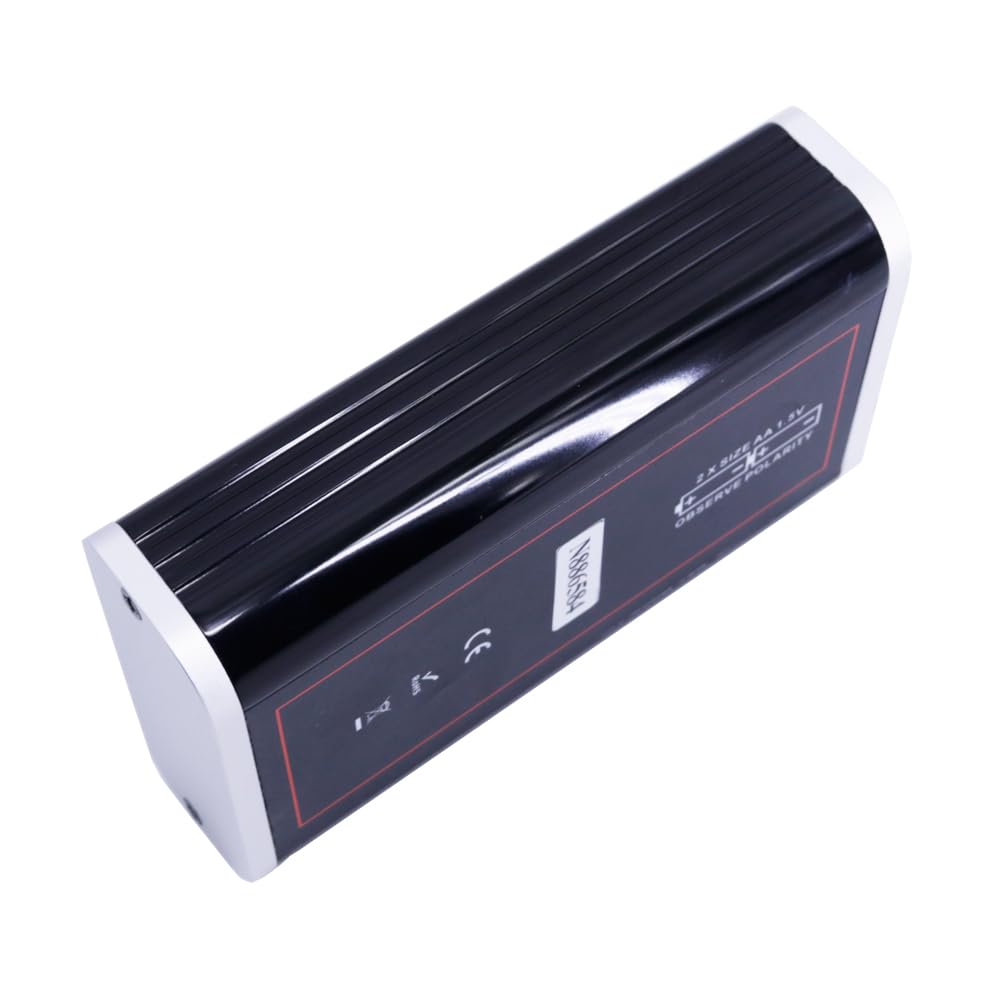

2x1.5V AA(UM-3)Battery
|
|
|
Dimensions
|
137mmx76mmx32mm
|
|
|
Weight
|
425g(Not Including Batteries)
|
|
|

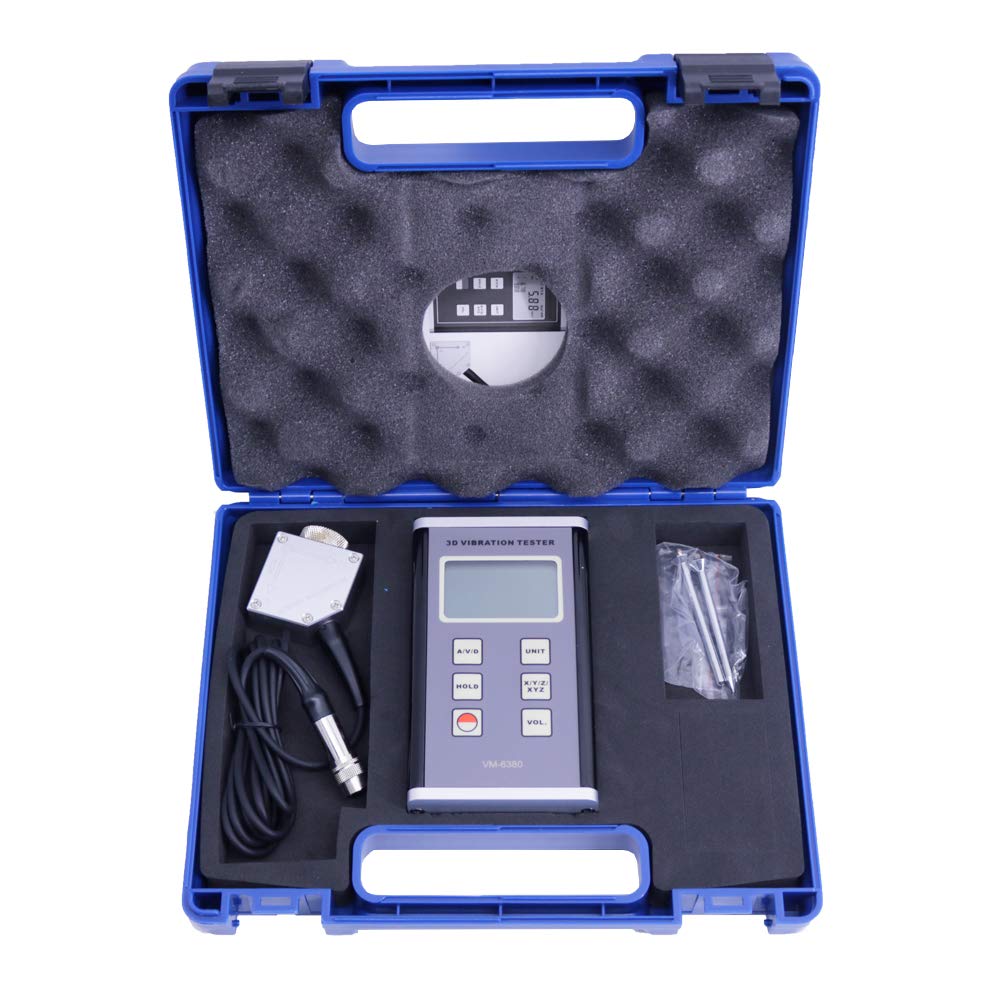

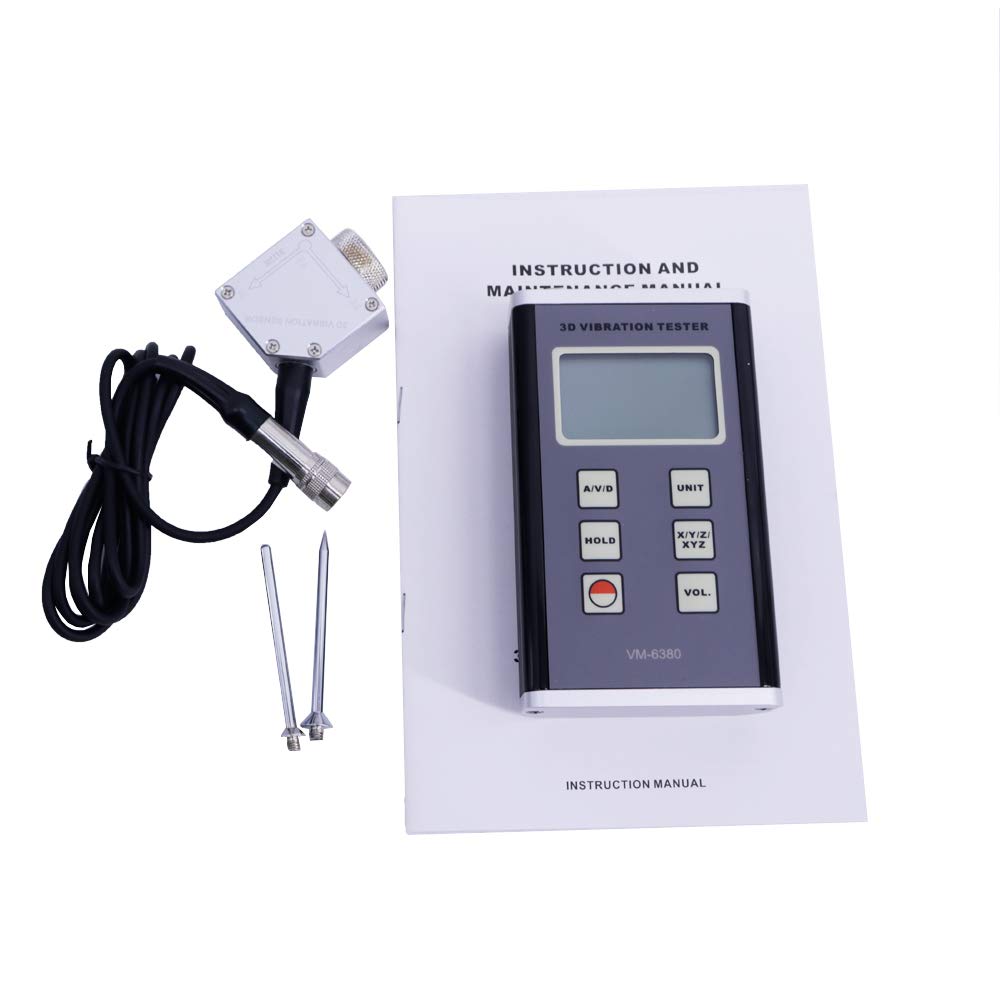

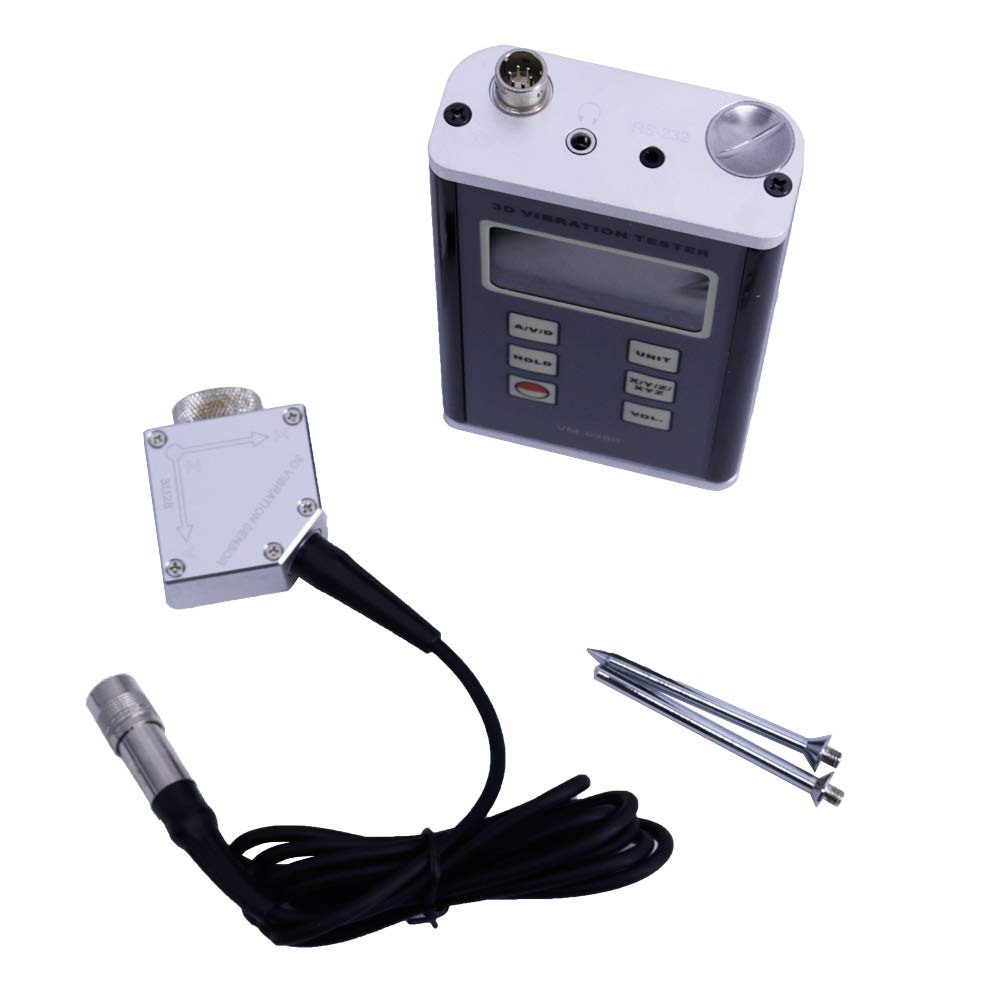

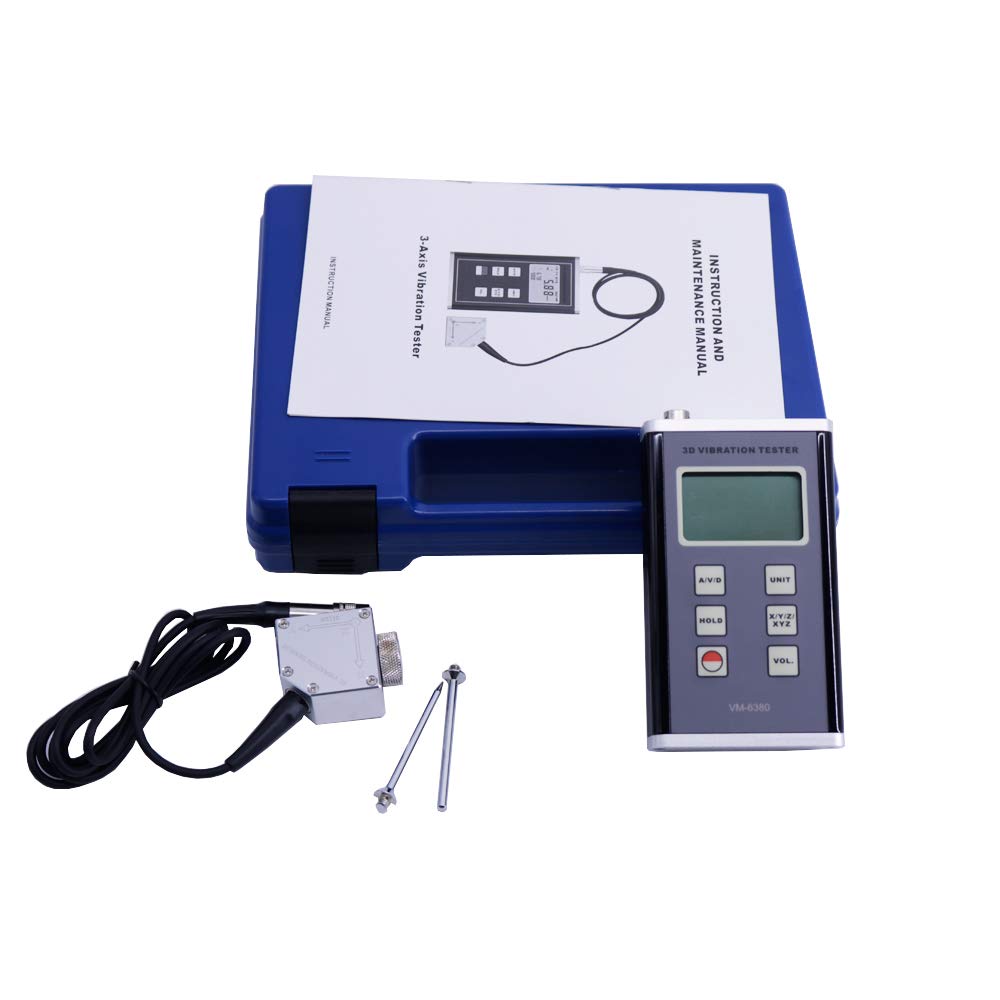

Standard Accessories
|

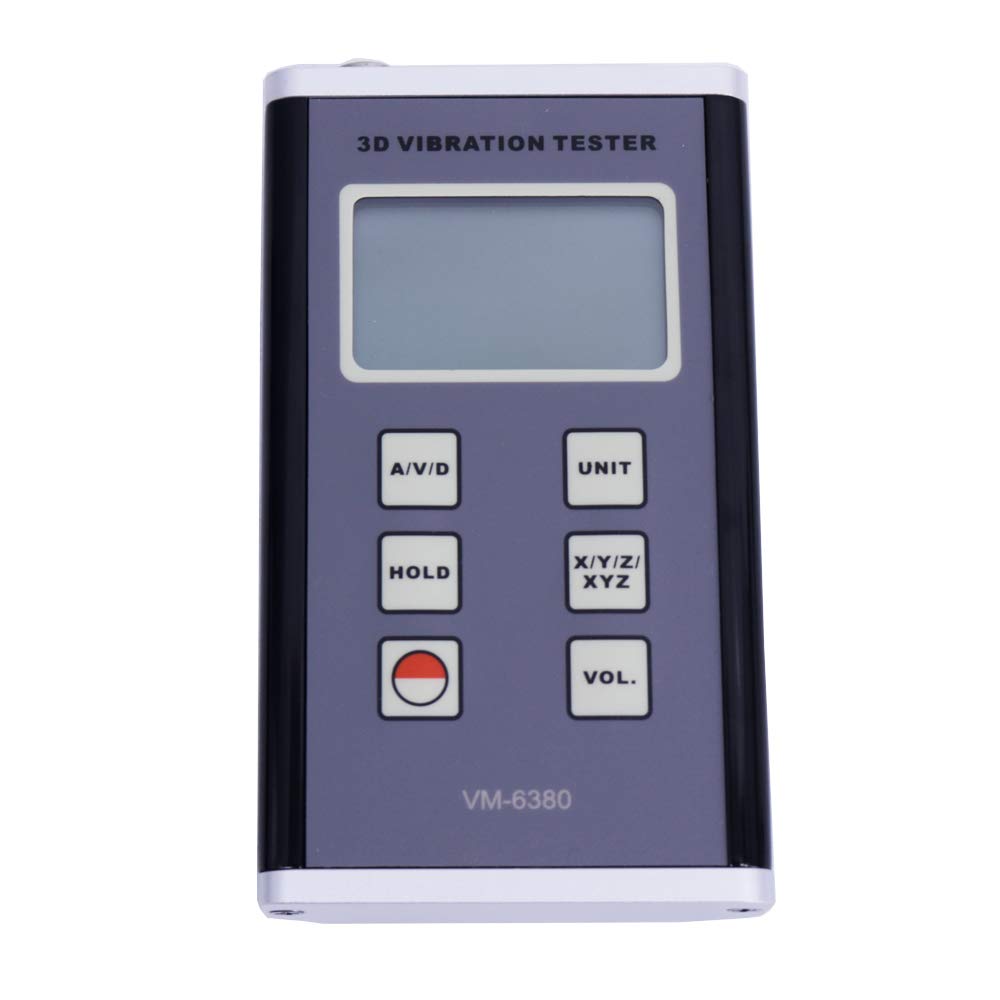

Main Unit
|
|
|

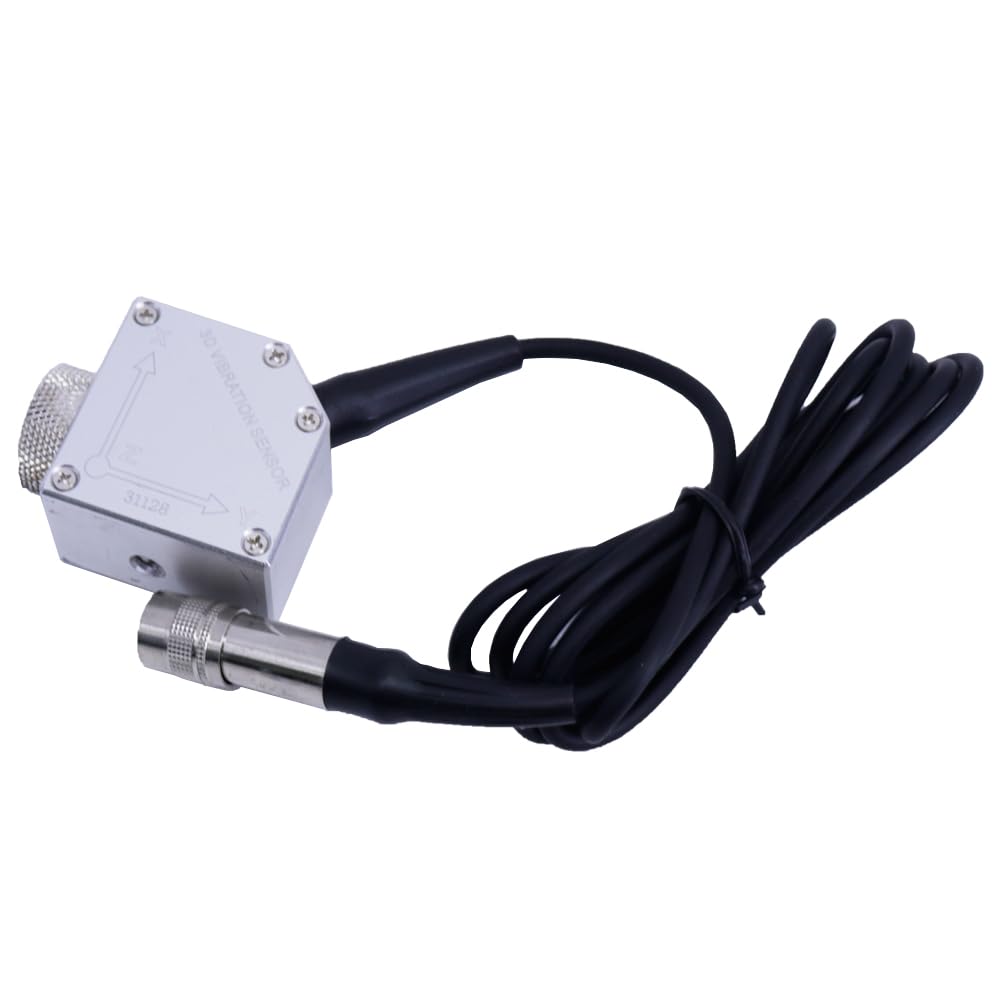

Piezoelectric Transducer
|
||
|
Powerful Rare Earth Magnet
|
||
|
Probe(Cone)&Probe(Spherical)
|
||
|
Carrying Case(B04)
|
||
|
Manual Book
|
||
