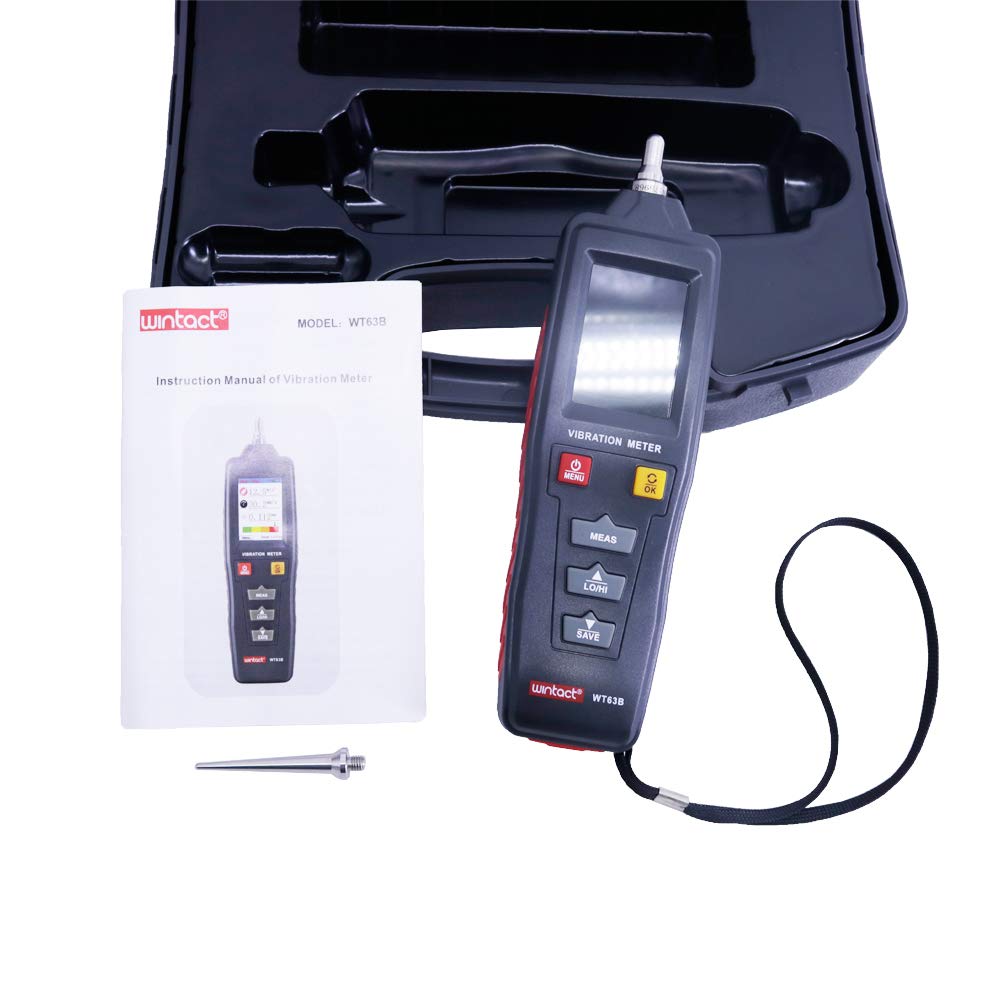

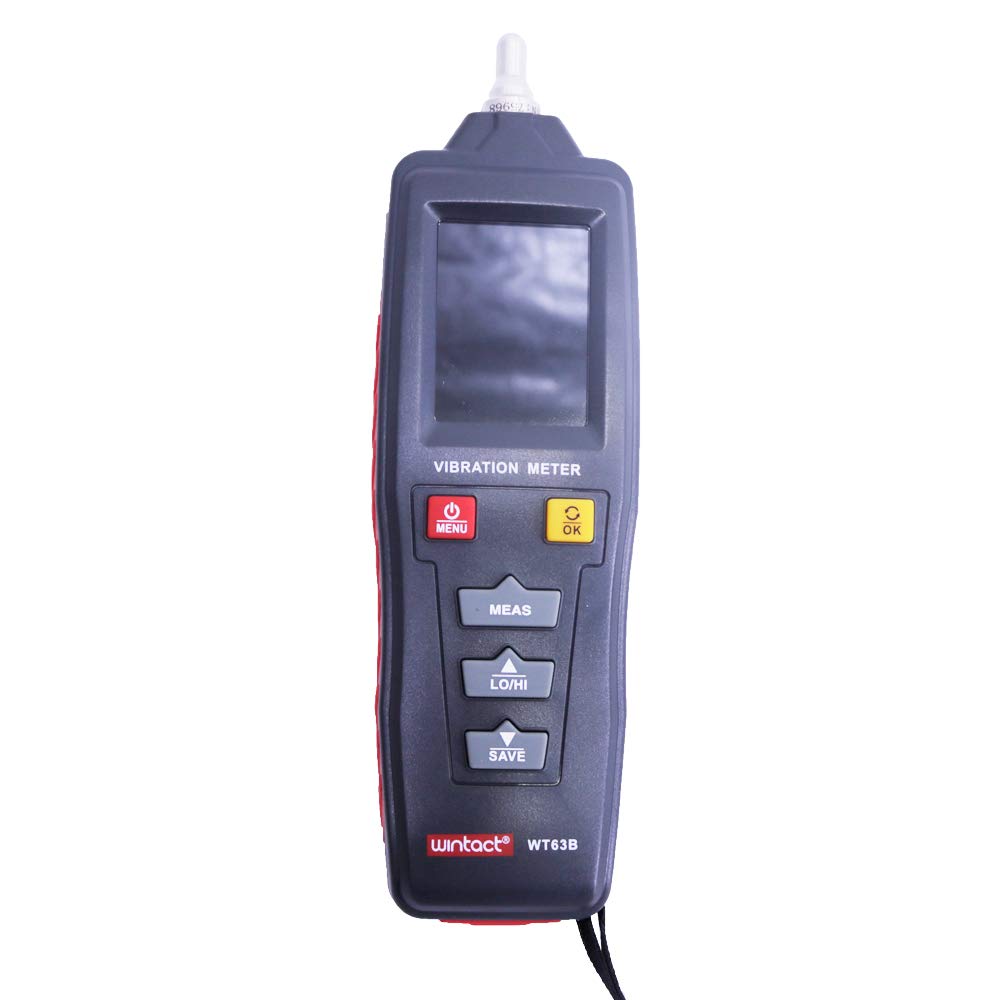

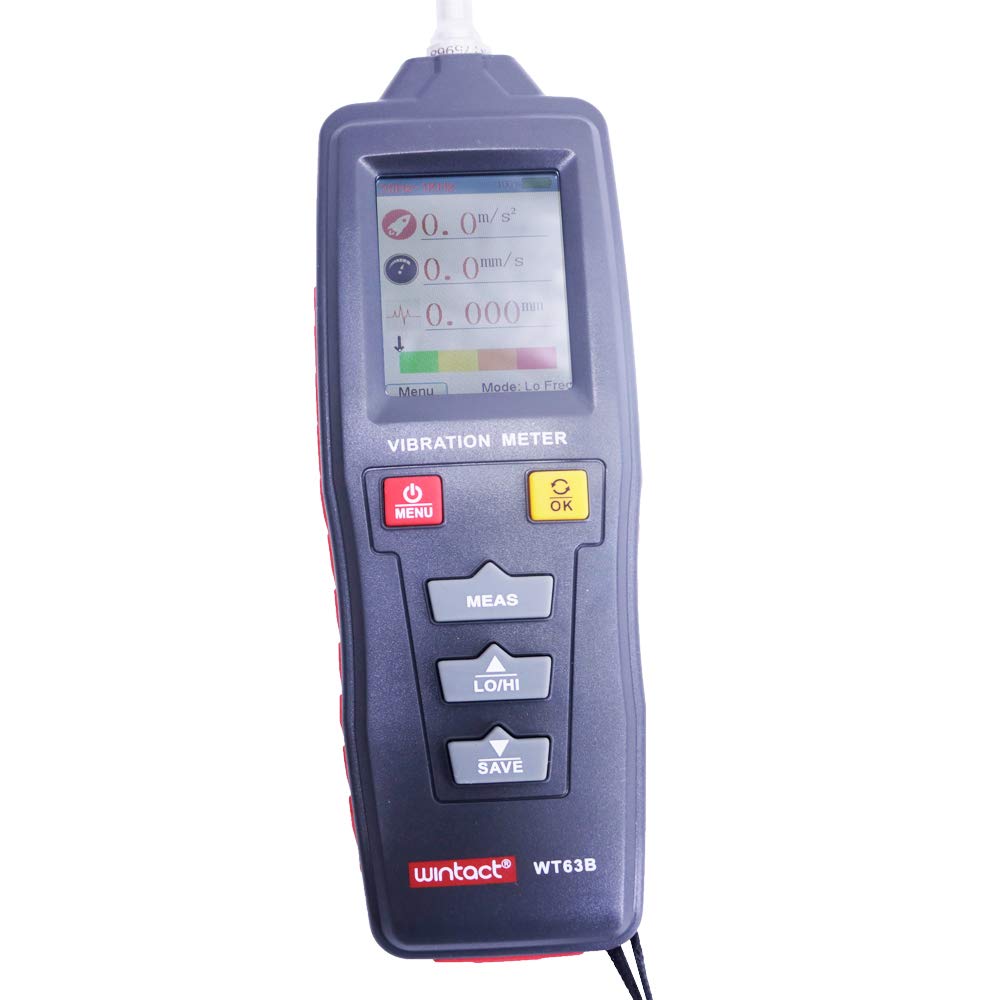

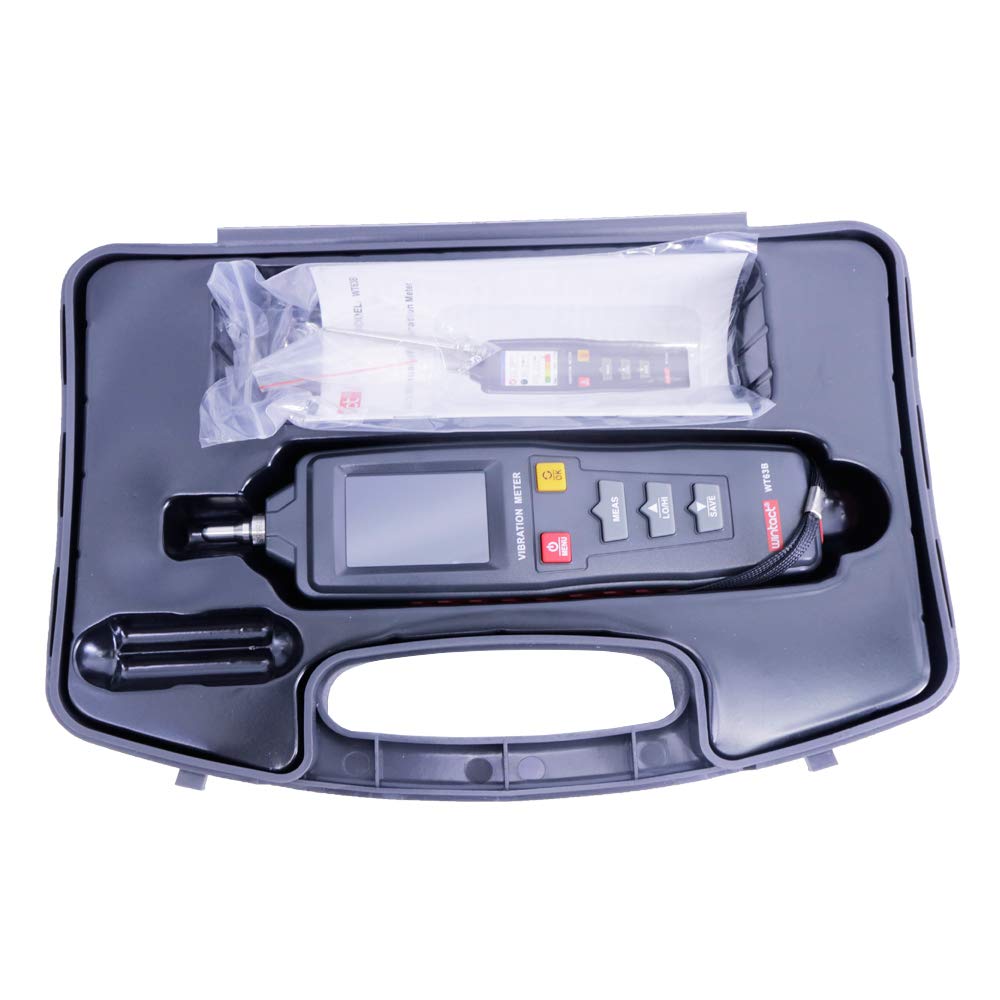

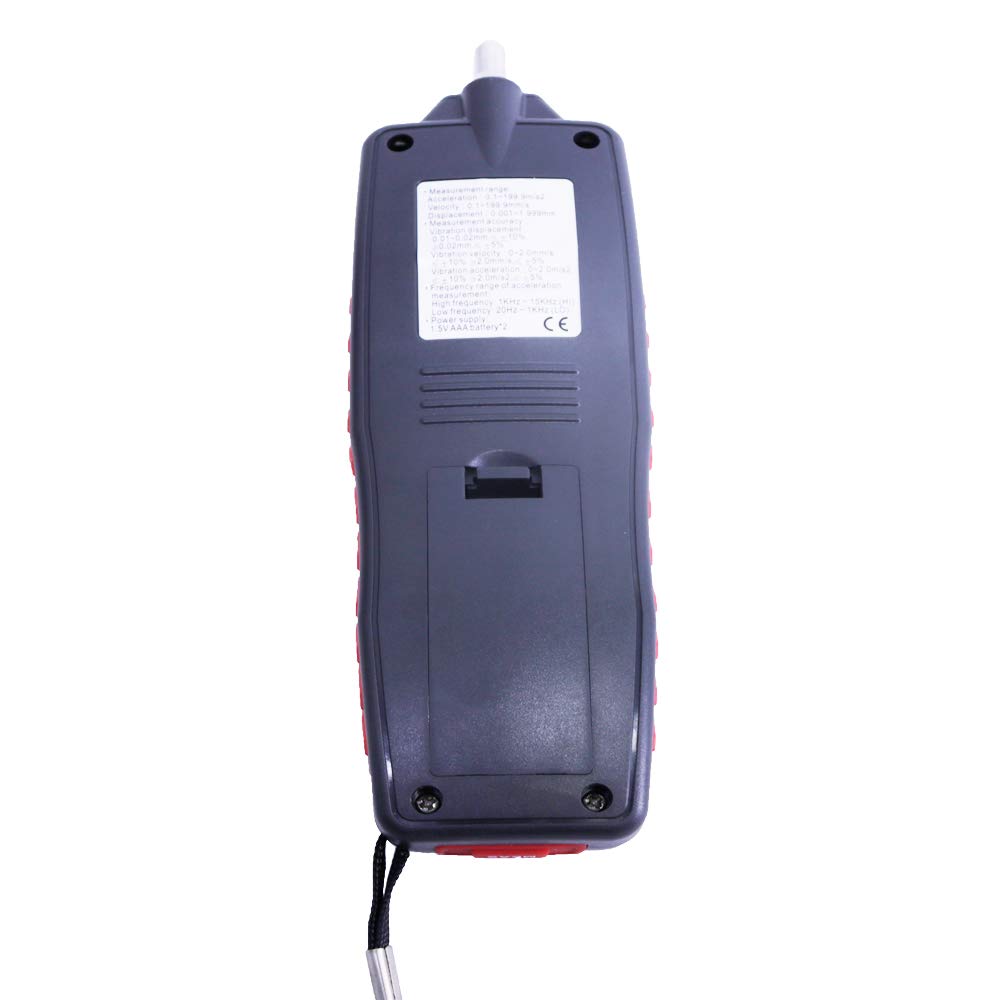

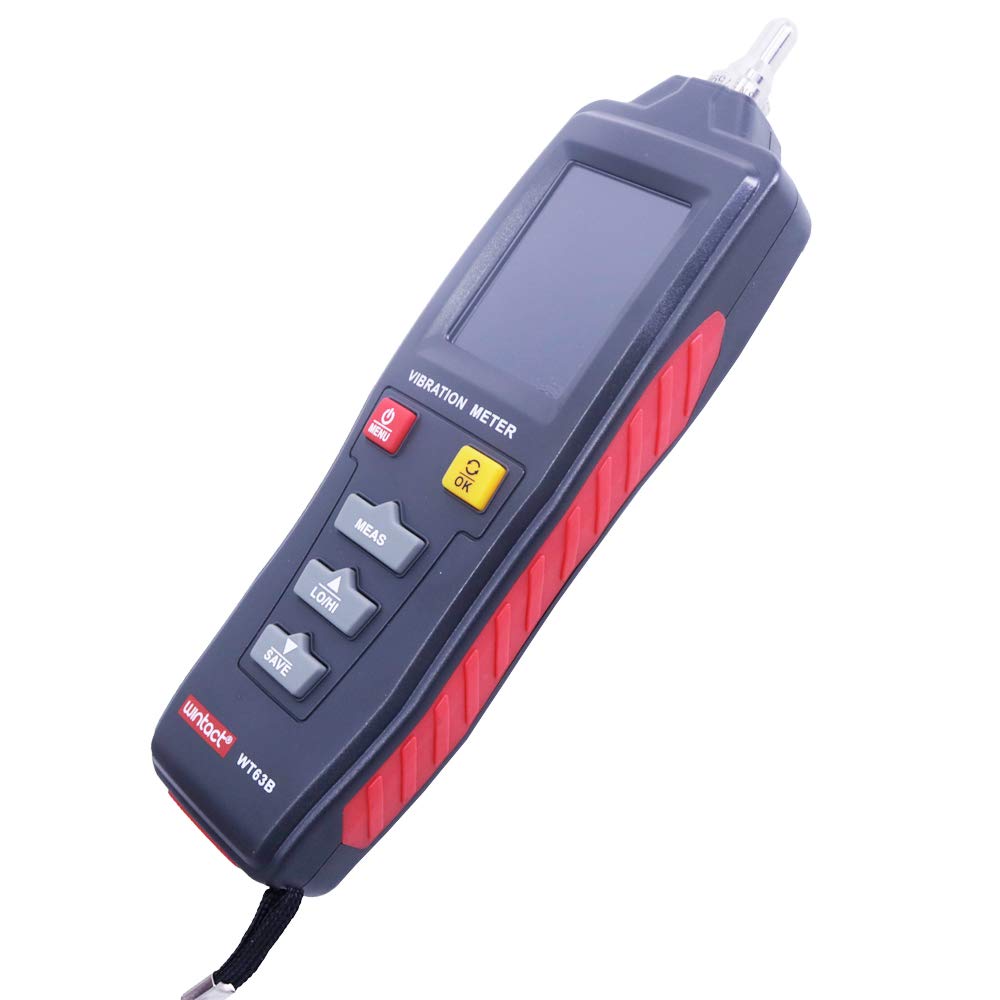

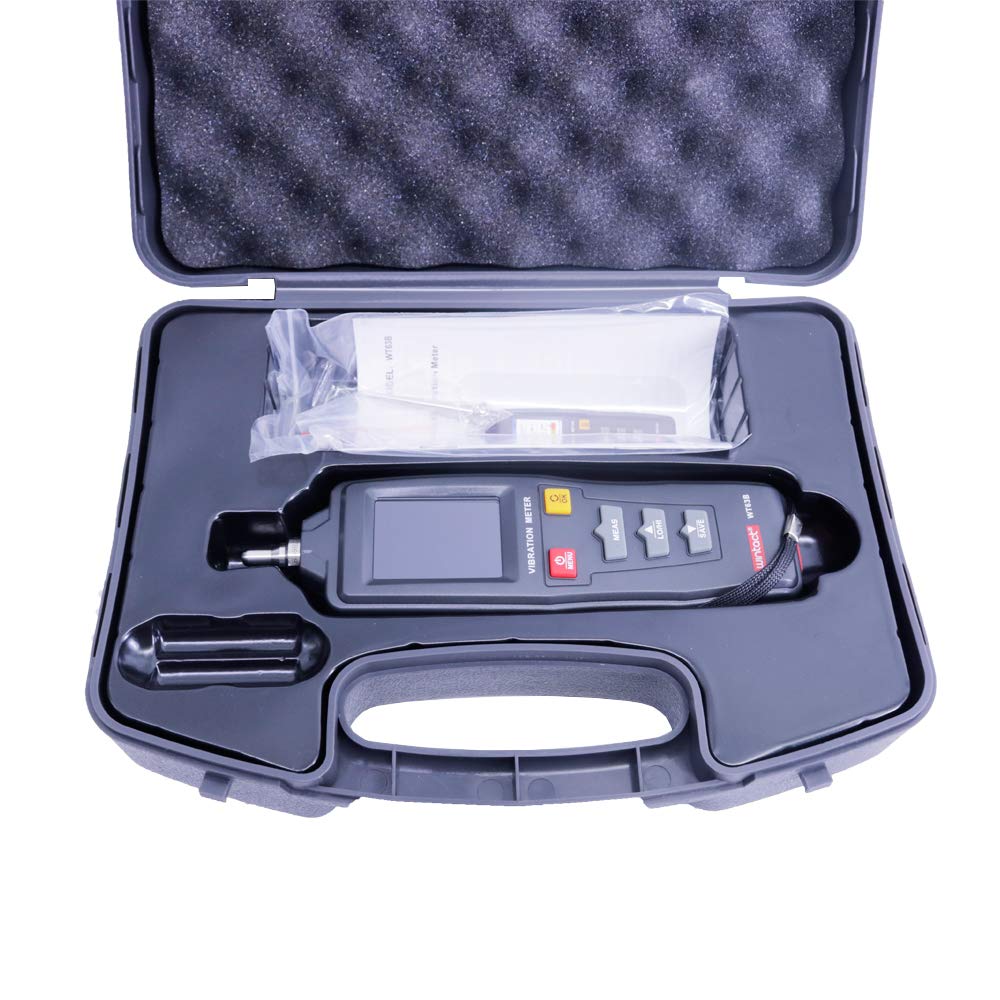

WT63B Digital Vibration Meter Vibrator Velocity:0.1~1999.9m/s^2 with LCD Display
Measure acceleration, velocity and displacement
Use hi-sense of vibration sensor, measuring accurately
Provide a magnetic probe to fit the condition uneasy hold on by hand
Equipped two probes (S and L) to adapt the different measurement requirement
model number: WT63B
Part Number: WT63B
Details: This product is used in machinery manufacturing, power, smelting, vehicles and other fields. In addition, it is also widely used for rapid inspection of bearings, gears, motors, fan machine tools, etc., and preventive inspection of mechanical equipment failures.

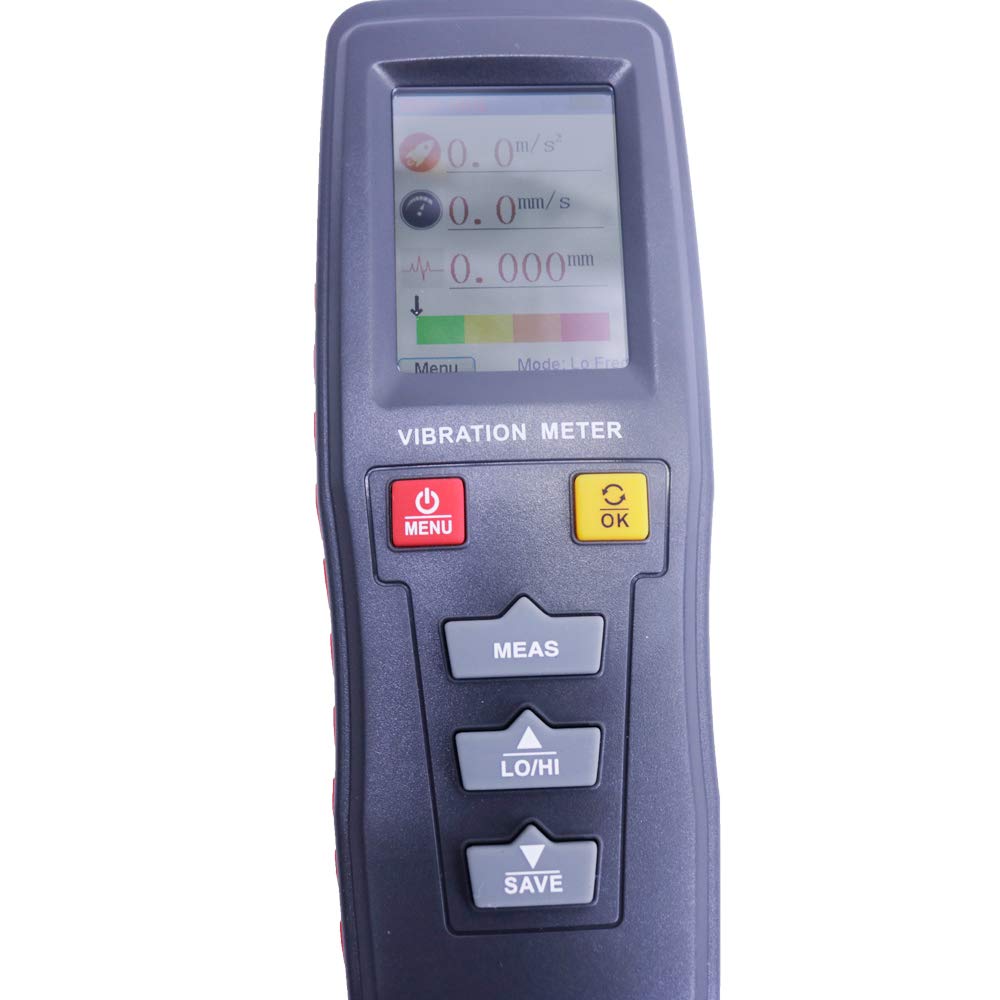

1. LCD displays measurement result and conditions directly
2. Selective vibration characteristic
3. Low battery indication
4. Auto turn off function
5. LCD back light function
6. Maximum value hold function
7. Temperature unit Celsius Degree / Fahrenheit Degree selection
Measuring range:
Acceleration:0.1~199.9m/s^2
Velocity:0.1~1999.9m/s^2
Displacement:0.001~1.999 mm (P-P)
*Accuracy: ±5%
*Measuring frequency:
--Acceleration: 20Hz~1KHz (LO);1KHz~15KHz (HI)
--Velocity: 20Hz~1KHz (LO)
--Displacement: 20Hz~1KHz (LO)
*LCD display: 3 1/2 digits display
*Humidity range for operation:30~90%RH
*Operation temperature: 0~40degree
*Equipped two probes (S and L) to adapt the different measurement requirement
*Provides a magnetic probe to fit the condition uneasy hold on by hand
*Maximum value hold function
*Ambient temperature reading
*C/F selection
*Low battery indication
*Auto power off
*LCD backlight display
*Shuffle interval of date display: 1second
*Maximum groups of data storage
