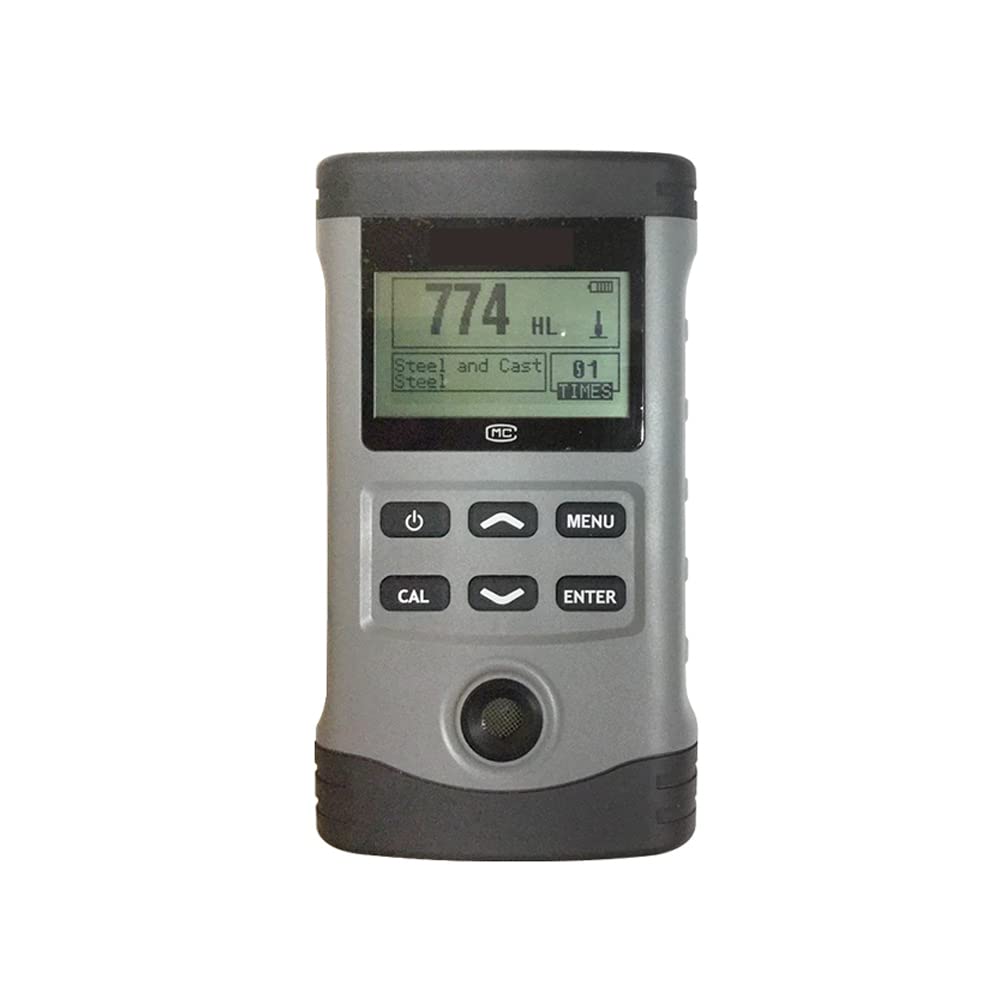

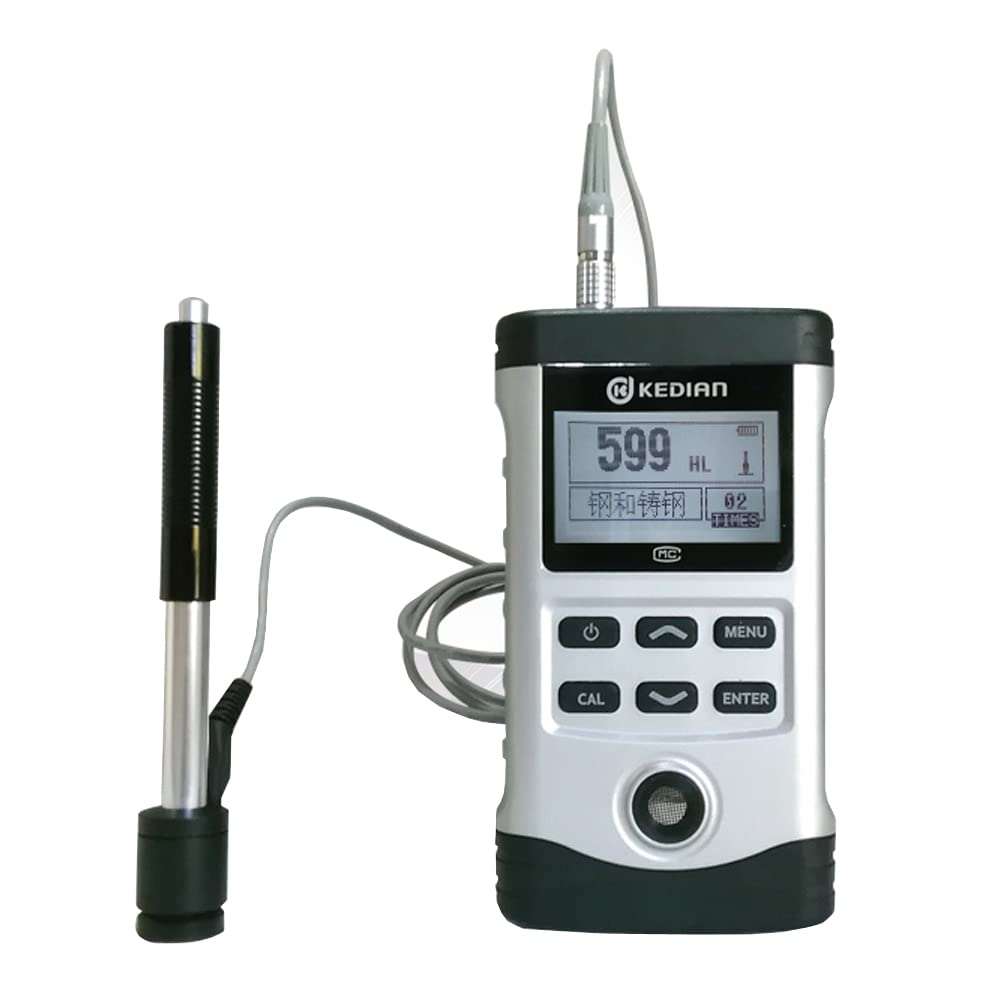

YD-3000A Leeb Hardness Tester Metal Hardness Meter Measuring Range 170-960 HLD

Brand: Graigar

Features:

• Base on HL hardness measuring principle, YD3000A can detect several different metal materials.
• Support to detect material of “steel”, when we use D/DC impact device to detect steel, it can directly read HB numbers.
• It can conveniently change hardness standard to (HL, HB, HRB, HRC, HRA, HV, HS).
• 128*64 graphic dot matrix LCD screen.Full Chinese display, easy to operate.
• 2 AA batteries for power, 150 hours working time. It can automatically switch to sleeping mode and shut down.

model number: YD-3000A

Part Number: YD-3000A

Details: Application:

Installed machine or permanent assembly part.

Mold cavity.

Heavy work piece.

Pressure vessel, steam turbine engine unit and the failure analysis of those equipment.

Small work piece(test in small zone)

Bearing and parts.

Rapid detection for big work piece.

Technique parameter:

Measuring range: HLD (170-960) HLD

Measurement direction: 360°vertical downward, inclined down, horizontal, inclined up, vertical upward.

Hardness standard: HL, HB,HRB, HRC, HRA, HV, HS

Measurement materials: steel and cast steel, alloy tools steel, stainless steel, grey cast iron, nodular cast iron, cast aluminum alloy, macht metal, signal bronze, fine copper, forged steel.

Display: 128*64mm graphics dot matrix LCD screen.

Data storage: 600 files.

Continuous working time: 100 hours ( back light off ).

Communication interface: RS232

Display deviation: ≤6 HLD (HLD=800)

EAN: 0707457583901
