YV400 Portable Vibrometer Vibration Tester with Integrated Thermal Printer

Brand: Graigar

Color: blue

Features:

• YV400 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out.
• It can not only measure the three parameters, but also for rotational speed measuring.
• The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines.
• It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
• YV400 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

model number: YV400

Part Number: YV400

Details: Specification:
Model:YV400
Testing range:
Acceleration: 0.1 ~ 205.6 m/s2(peak);
Velocity: 0.1 ~ 400.0 mm/s(RMS);
Displacement: 0.001 ~ 9.0 mm(peak-peak)
Frequency range:10Hz ~ 200Hz, 10Hz ~ 500Hz, 10Hz ~ 1kHz, 10Hz ~ 10kHz
Allowable error:±5%
Analysis frequency interval:0.25Hz
Speed measurement range:30~300000 RPM (5 ~ 5kHz)
Speed measurement error allowed:±(0.05% + 1)
Speed measuring distance:0.15 ~ 1m
Range of temperature:0℃~40℃

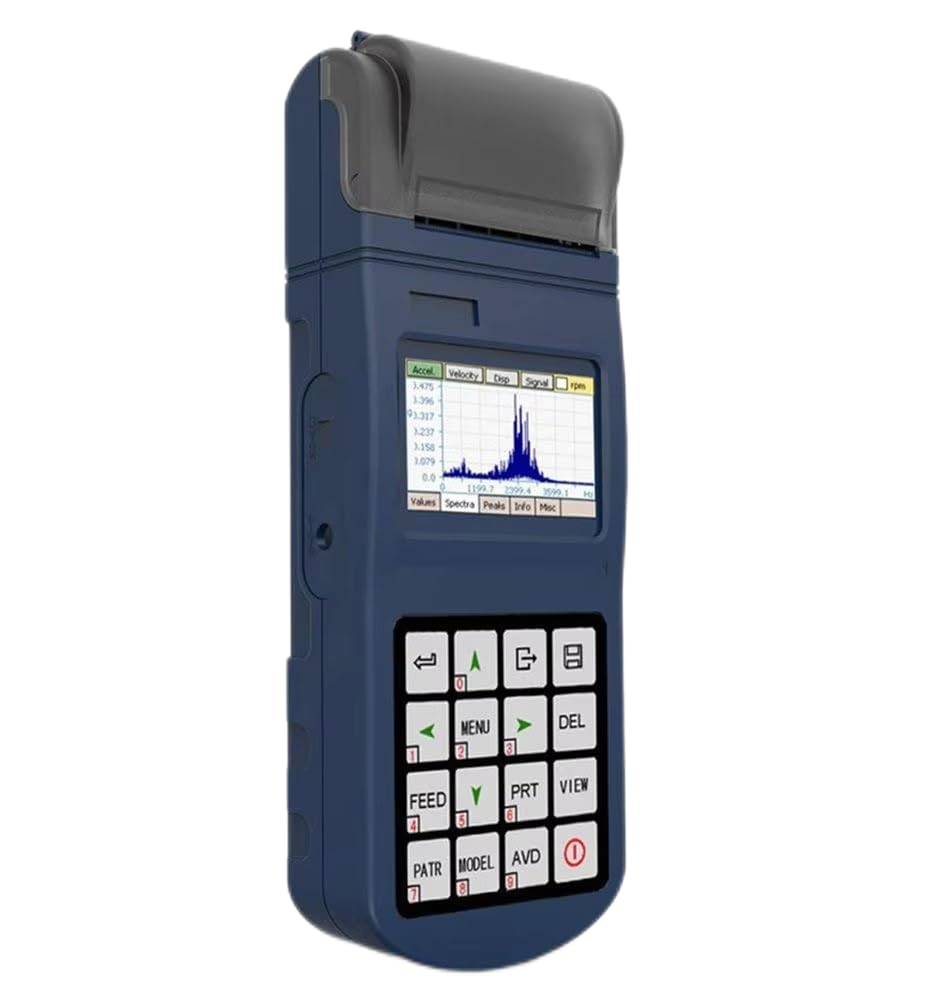

Display:TFT color LCD screen, 320 x 200 pixels
Data interface:Mini USB
Size:212 * 80 * 35mm

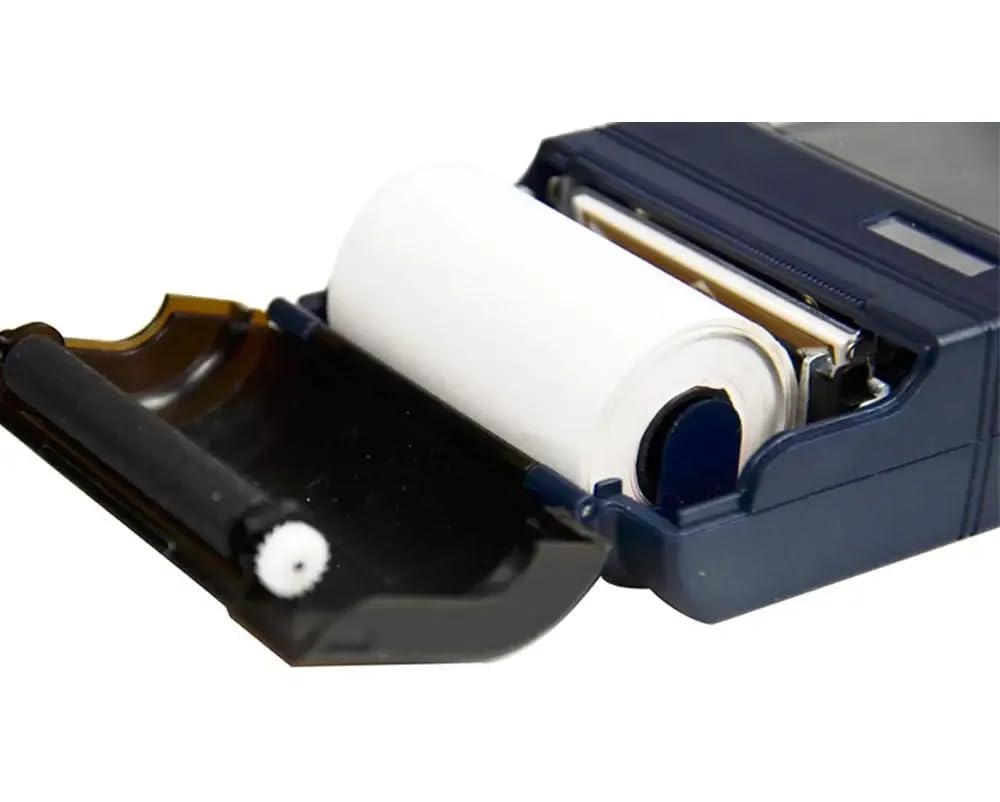

Printer:Integrated thermal printer
Weight:320g
Battery:Rechargeable Li battery,1500mAh
Continuous working time:About 50h

EAN: 0761272051045
