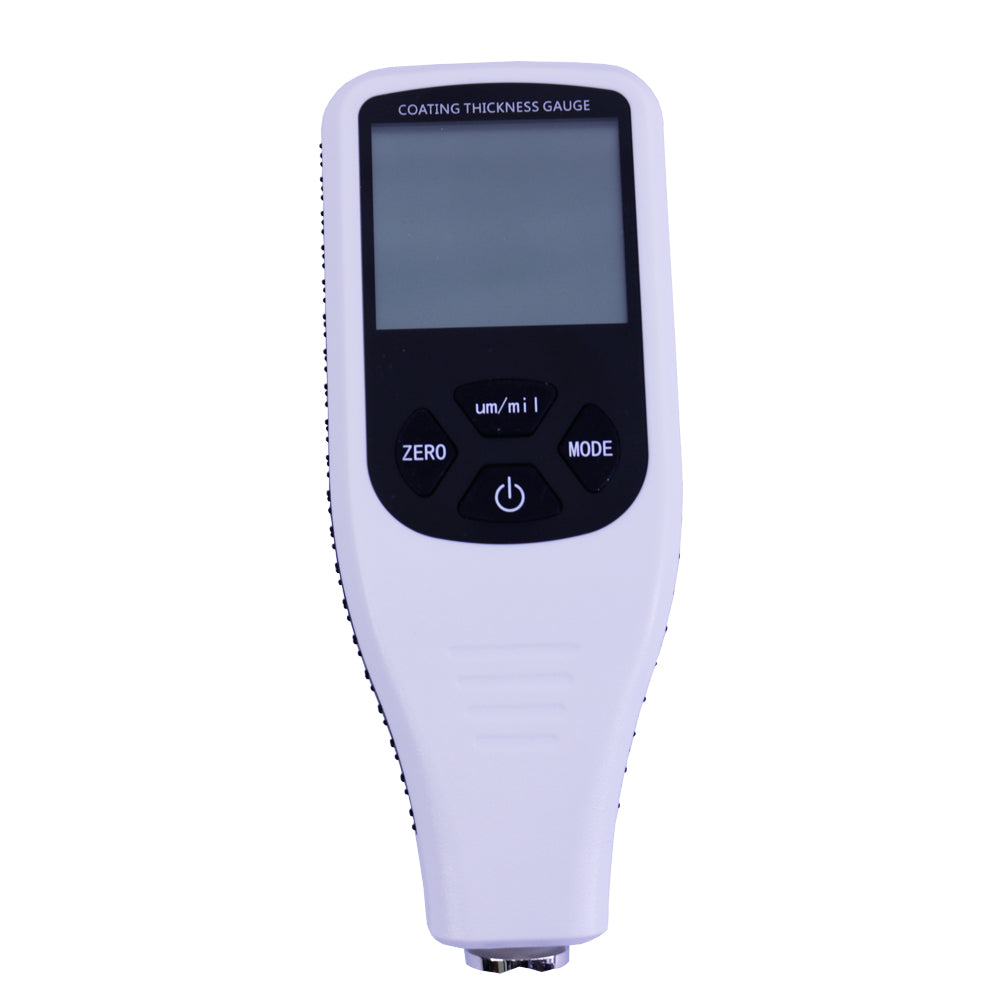

Graigar TC200 塗層油漆厚度計測量範圍 0~1300um 帶背光顯示

Graigar TC200 塗層油漆厚度計測量範圍 0~1300um 帶背光顯示

$85.00 USD
$85.00 USD
特價 售罄

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

Features:

FSTN LCD Display

Built-in Black Light

Integral Probe F&NF, Auto detecting attribute of substrates

Nice shell design for easy reading

Built-in Silicone Slip Strip

Measurement Range: 0~1300um

Accuracy: ±(2.5%+1um)

Resolution: 0.1um

Zero Calibration and 50/100/250/500/1000um Calibration Points

5 minutes auto power off to saving power

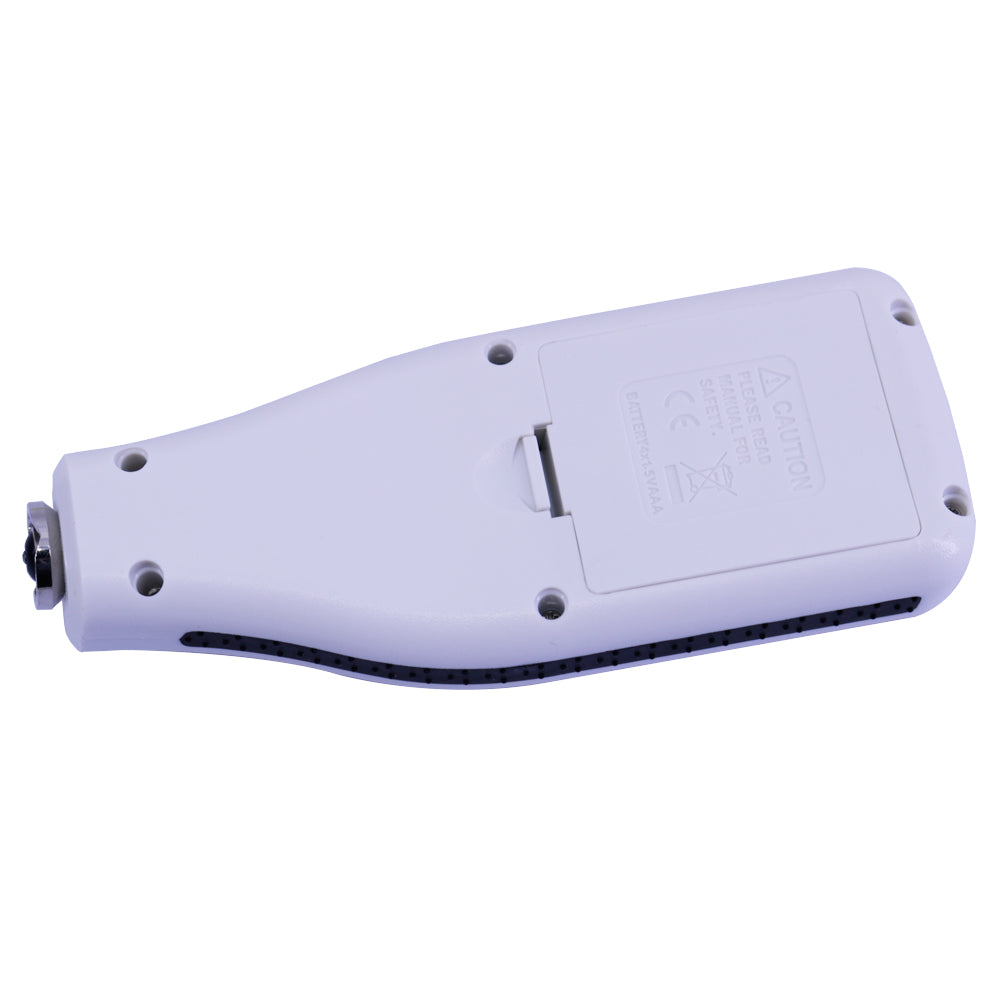

Power Supply: 4 x AAA batteries

Operating Temperature: 0 to 40℃ (32 to 104℉)

Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

Weight: 125g (4.41 oz)



Technical specifications



Probe F

Probe N

Principle

Magnetic Induction

Eddy Current

Range

0~1300um

0~51.2mil

0~1300um

0~51.2mil

Accuracy

±(2.5%+1um)

±(2.5%+0.04mil)

±(2.5%+1um)

±(2.5%+0.04mil)

Resolution

0.1um/0.01mil

0.1um/0.01mil

Calibration

Points: ZERO/50/100/250/500/1000um

Units

um, mil

minimum curvature radius convex: 1.5mm

minimum curvature radius concave: 25mm

minimum measuring area: Diameter 6mm

minimum thickness of substrate

0.5mm(0.02”)

0.3mm(0.012”)

Power

4 x AAA batteries(Not included)

Operation Environment

Temperature:0~40℃(32~104℉) Humidity:20%~90%RH

Size

155mm x 62mm x 35mm

(6.10” x 2.44” x 1.38”)

Weight

125g(4.41oz)Our services
