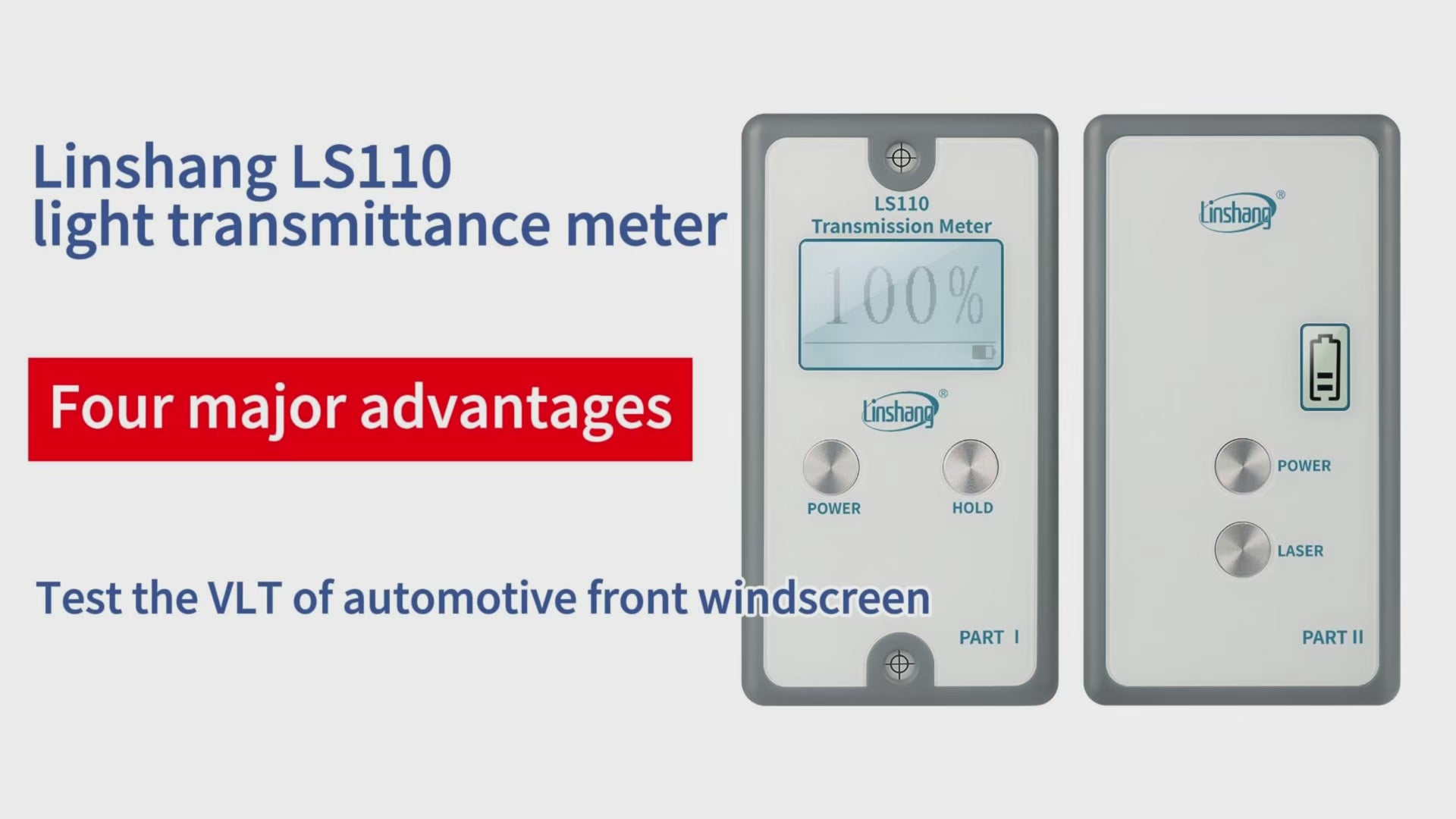

LS110 Light Transmittance Tester Professional UV Light Meter
Introduction:
LS110 wireless split type light transmittance meter is mainly used for light transmittance detection of transparent materials such as glass, acrylic and film.
This car window tint light transmittance meter has three independent test units. The displayed visible light transmittance is the average of three measurement data.
The instrument use a visible light source to illuminate the tested transparent materials.
The sensor detects the incident light intensity of the light source and the light intensity after passing through the tested transparent materials, expressed as a percentage.
Specification:
| Parameter | Value |
|---|---|
| Spectral range | 380nm-760nm full wavelength, in line withCIE photopic luminosity function |
| Measurement accuracy | ± 2% (colorless and uniformtransparent materials) |
| Resolution | 0%---10%: 0.1%; 10%---100%: 1% |
| Test samplesize | >40mm × 40mm |
| Power supply | Built-in lithium rechargeable battery |
| Dimension | 130mm × 70mm × 84mm (L*W*H) |
| Weight | 630g |
Features:
1. The split design of the main and auxiliary machines is convenient for on-site measurement, such as the transmittance measurement of the car front windshield and the building glass.
2. It adopts three-way visible light source measurement. The displayed light transmittance is the average value of three-way measurement data. The measurement result has strong anti-interference ability.
3. The car window tint visible light transmittance meter has built-in rechargeable lithium battery. There is no need to replace the battery, the standard one-to-two USB charging cable can be used to charge the main and auxiliary machines at the same time.The instrument is easy to use and energy-saving.
4. The laser alignment function ensures that the main and auxiliary machines are accurately aligned during the measurement process, thereby ensuring the accuracy of the measurement.
5. With test data lock function (HOLD), the light transmittance meter is convenient for data reading. The data remain on the interface after taking away the test materials.
Packing List:
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS110 transmission meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate / warranty card | 1 | pcs |
| 4 | Charger | 1 | pcs |
| 5 | One to two Charge cable | 1 | pcs |
| 6 | Packing box dimension 25*21*7 cm(L*W*H) | 1 | pcs |
Brand: Graigar
Features:
- 1. The split design of the main and auxiliary machines is convenient for on-site measurement, such as the transmittance measurement of the car front windshield and the building glass.
- 2. It adopts three-way visible light source measurement. The displayed light transmittance is the average value of three-way measurement data. The measurement result has strong anti-interference ability.
- 3. The car window tint visible light transmittance meter has built-in rechargeable lithium battery. There is no need to replace the battery, the standard one-to-two USB charging cable can be used to charge the main and auxiliary machines at the same time.The instrument is easy to use and energy-saving.
- 4. The laser alignment function ensures that the main and auxiliary machines are accurately aligned during the measurement process, thereby ensuring the accuracy of the measurement.
- 5. With test data lock function (HOLD), the light transmittance meter is convenient for data reading. The data remain on the interface after taking away the test materials.
model number: LS110
Part Number: LS110
