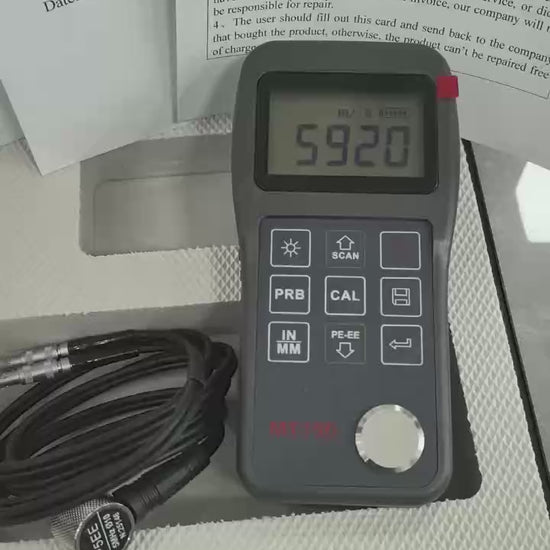

Graigar MT190 多模式數字超聲波測厚儀塗層測厚儀脈衝回波回波回波

Brand: Graigar

Color: Gray

Features:

• 能夠對各種材料進行厚度測量，包括金屬（如鋼、鑄鐵、鋁、銅等）、塑膠、陶瓷、複合材料、環氧樹脂、玻璃和其他超聲波良好導電材料。具有兩種厚度測量模式：脈衝回波模式和回波回波模式，無需計算塗層厚度即可測量帶有塗層的厚度。
• 具有大儲存容量和低功耗設計，可待機超長時間數月以上。能夠測量已知厚度物體的聲速，可滿足各種材料的厚度測試要求。
• 配備USB資料處理軟體，可連接PC進行資料分析、儲存和列印。能夠相容各種不同頻率和尺寸的探頭，可自動識別探頭類型。
• 具有探頭歸零校準和兩點校準功能，可自動校正系統誤差。配備窄脈衝複合晶體高精度探頭，死區小，測量準確。
• 採用EL背光顯示，方便在弱光環境下使用。具有自動休眠、自動關機等節電功能以及電池電量指示功能。智慧型便攜式設計，可靠性高，可抗振動、衝擊和電磁干擾，適用於惡劣的操作環境。

Part Number: MT190

Details: Technical Specifications:
Measuring Range:
Support two modes for thickness measurement:Pulse-Echo mode: (0.65~600)mm,Echo-Echo mode: (3~60)mm.
Accuracy:±0.05mm(≤10mm);±(0.5%H+0.01)mm(>10mm); H refer to the thickness of workpiece.
Measurement Frequency:7 times per second for single point measurement, 16 times per second for scan mode measurement.
Display:High contrast Segment LCD display (support for EL backlight display).
Resolution:0.1mm/0.01mm selectable.
Sound Velocity Range:(1000~9999)m/s (Capable for measuring the sound velocity of the object with known thickness).
Probe Calibration:Zero-point calibration, two-point calibration.
Thickness Measurement Mode:Single Point measurement, min/max measurement, differential measurement.
Data Storage:Capable for saving and managing 20 groups of thickness data (up to 100 values for each group).
Units:Metric/Imperial unit selectable.
Communication :USB 1.1 interface for connecting with PC for printing.
Power Source:With two “AA” size alkaline batteries, it can work above 50 hours continuously with default brightness.
Auto Power Saving:Auto shutdown power saving function.
Material:ABS engineering plastic.
Size:150mm×74mm×32mm.
Weight:245g.

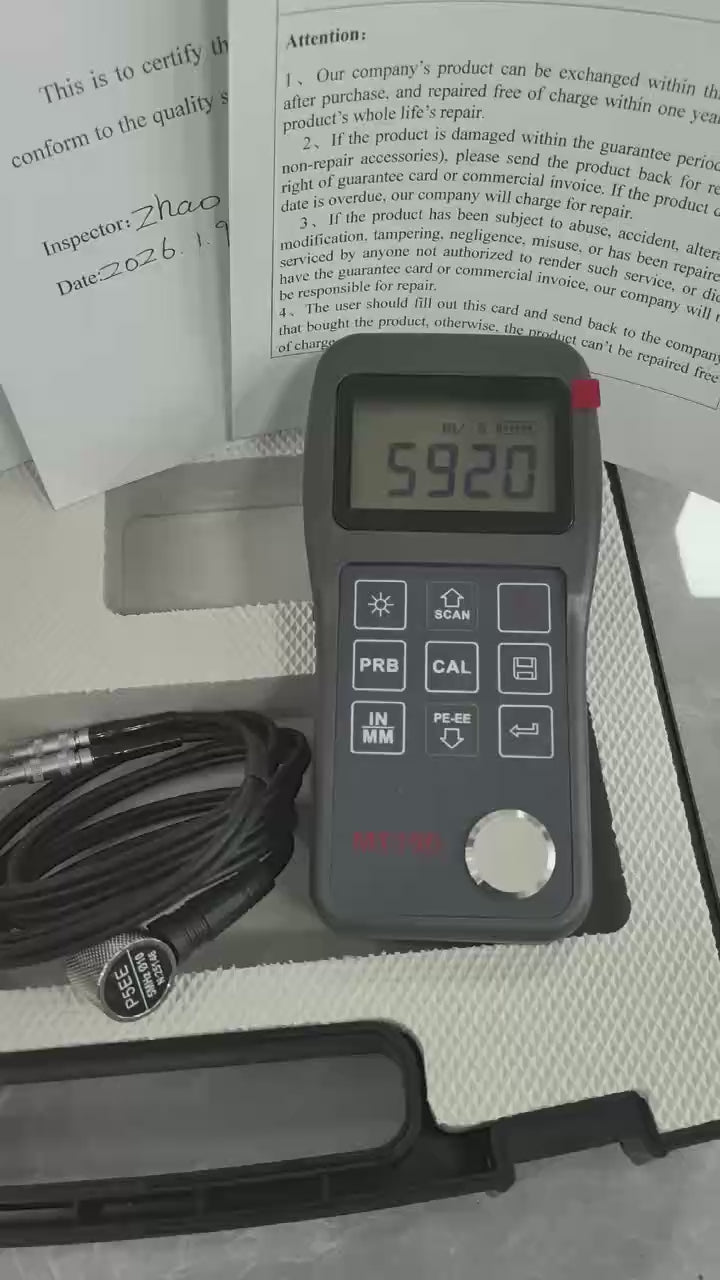

Standard Configuration:
1.Main Unit
2.Narrow Impulse Thickness Probe (P5EE)
3.Couplant Bottle(Empty)
4.ABS Instrument Case
5.Manual
6.Warranty Card
7.Product Certificate
